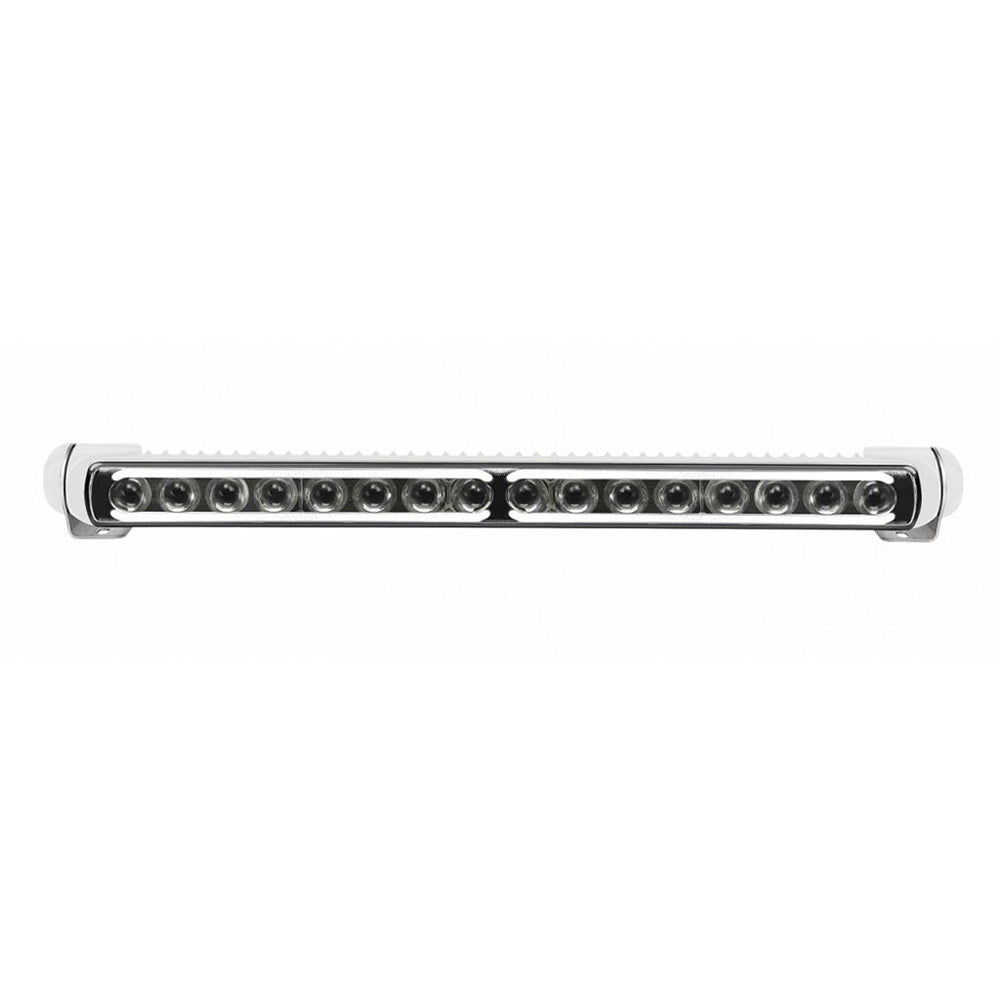

Hella Marine Sea Hawk-470 Pencil Beam Light Bar w/White Edge Light White Housing [958140511]

Hella Marine Sea Hawk-470 Pencil Beam Light Bar w/White Edge Light White Housing [958140511]

Hella Marine

Regular price $298.95 USD
Regular price $455.56 USD Sale price $298.95 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.

Sea Hawk-470 Pencil Beam Light Bar with White Edge Light & White Housing

This light bar combines long-distance light performance, capable of picking out even the most distant objects, and a striking Edge Light. An edge light has been integrated into this powerful long-distance light bar to give a distinctive glowing signature while providing gentle ambient lighting. This edge light comes in white to give a vessel a unique appearance.

The Sea Hawk-470 is synonymous with performance and durability. New optics have now enhanced the spotlight function while retaining the durable corrosion-proof housing and ultra-tough Grilamid® lens. The heavy-duty Grilamid® lens offers an unbeatable combination of properties including toughness against impact, long-term UV stability, and resistance to commonly used chemicals and washes. Grilamid® will not lose its luster or embrittle over time and will remain clear for the product's life.

Proudly designed and manufactured in New Zealand, the Sea Hawk-470 carries a 5-year warranty. When outstanding light intensity and proven reliability are needed to get home safely, the Sea Hawk-470 Light Bars are the preferred choice.


  • White housing and white-edge light
  • The unique corrosion-proof housing provides exceptional durability and long-term reliability (the thermally conductive polymer housing draws heat from internal electronics for reliable operation)
  • Multivolt™ circuitry means the dual-function lamp can be used on 12V or 24V DC, while only consuming 36W on the pencil beam
  • The adjustable mounting system ensures easy installation and flexibility for any orientation (can be mounted upright or pendant)


  • Mounting: Upright or pendant
  • Voltage: Multivolt™ 12/24V DC
  • Maximum Power Consumption Pencil Beam: 36W (2.7A @ 12V / 1.4A @ 24V) and Edge Light: 4W (300mA @ 12V / 150mA @ 24V)
  • Maximum Luminous Intensity: 113,000 candela
  • Light Performance: 1 Lux @ 330m
  • Beam Angle: 8° x 4°
  • Protection: Reverse polarity and transient spike protection, IP 6K7 (Protection against dust and temporary water immersion), IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)
  • Cable Length: Pre-wired with 2.5m of tinned multi-core cable
  • Lens Material: Heavy-duty Grilamid®
  • Bracket: Polished 316 stainless steel
  • Compliance: CE ECE R10 UKCA


  • Bulb Watts: 36w
  • LED: Yes
  • Voltage - Input Range (Volts): 12/24v
  • Box Dimensions: 2"H x 4"W x 20"L WT: 2.55 lbs
  • UPC: 9416325252597
