Hertz CP 1.700 Amplifier

Hertz CP 1.700 Amplifier

Hertz - CP 1.700

Regular price $449.99 USD
Regular price $495.00 USD Sale price $449.99 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.
Hertz CP 1.700 Amplifier

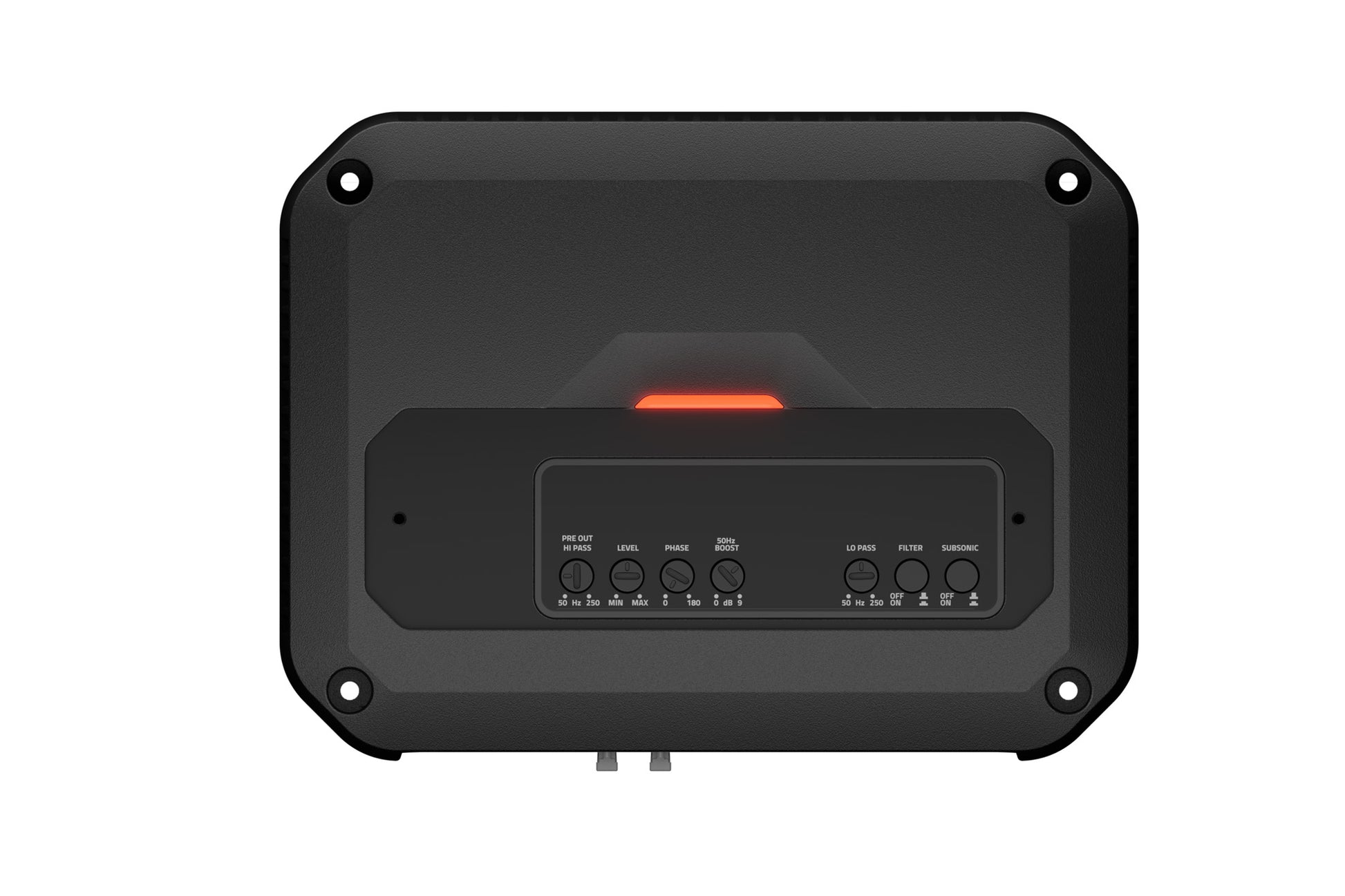

Enhance your audio system with the Hertz CENTO POWER CP 1.700, a mono amplifier that combines superior power handling and sophisticated sound control technologies. Boasting a superior power-to-size ratio with an efficiency of over 89%, this amplifier accommodates a broad voltage range, suitable for both conventional and electric vehicles. The CP 1.700 steps up with additional sound customization features, including a variable phase control to fine-tune the audio output to your preferences. Its high-noise rejection and balanced input circuitry maintain the integrity of the sound, while the inclusion of a full-range pre-out ensures flexible system expansion. Designed for durability and performance, the CP 1.700's elegant design and accessible top panel controls make it a top choice for audiophiles looking to push the limits of their car's audio system.


General Specs
Channels 1
Amp class D
POWER SUPPLY
Nominal power supply voltage (fuse) 11 ÷ 15 VDC (2 x 25 A)
Operating power supply voltage 9 ÷ 18 VDC
Idling current 1.10 A
Standby current draw 4.5 uA
Consumption, MIN load impedance (Max Musical Power) 33 A
Remote IN 4 ÷ 17 VDC (1 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) 1.5 VDC
Efficiency 89%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power 0,01 %
Damping factor @ 1 kHz, 1W 350
Bandwidth @ -3 dB 10 Hz ÷ 500 Hz
S/N ratio (A-weighted @ 1 V Input) 113 dBA
Minimum load impedance
@ 1 Ch: 2 Ω
Adjustable Crossovers yes
Output Power
Output power (RMS) @ 1% THD:
1Ch @ 4Ω 400 W x 1
1Ch @ 2Ω 700 W x 1
Total Power 700 W
INPUTS / FILTERS

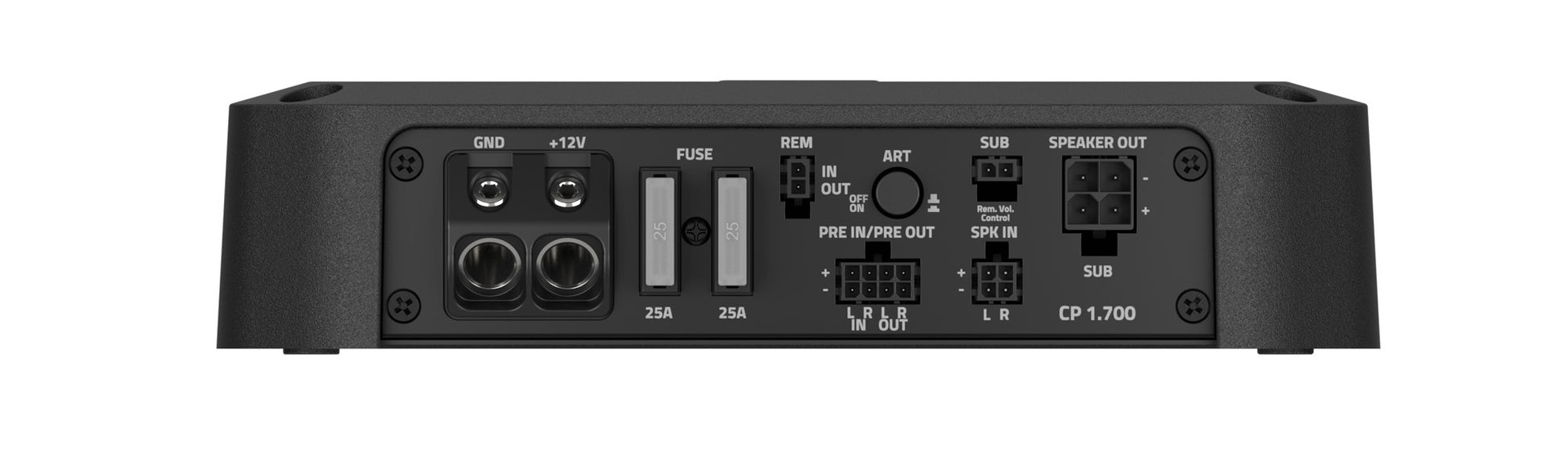

Inputs Pre-In / Speaker-In
Pre Out Hi-Pass 50 ÷ 250Hz @ 12 dB/Oct.
Pre-In sensitivity 0.32 ÷ 8 VRMS
Speaker-In sensitivity 1.6 ÷ 40 VRMS
Sub Ch Lo-Pass OFF / 50 ÷ 250 Hz @ 24 dB/Oct.
Bass Boost 50Hz 0 ÷ 9 dB
Subsonic Hi-Pass OFF / 25 Hz @ 24 dB/Oct.
Sub Remote Volume Control -20 ÷ 6 dB (Active on Rear Ch with LPF ON)
Physical Specs
CP 1.700
Weight Kg lbs
2.44 5.37
