Hertz HEX Series HEX-65-C-W 6.5" 165 (6.5) mm (in.) | 84.5 (3.33) mm (in.) | Classic Coax | 100 W | 4 Ohm
Hertz HEX Series HEX-65-C-W 6.5" 165 (6.5) mm (in.) | 84.5 (3.33) mm (in.) | Classic Coax | 100 W | 4 Ohm
Hertz - HEX-65-C-W
Couldn't load pickup availability
165 (6.5) mm (in.) |

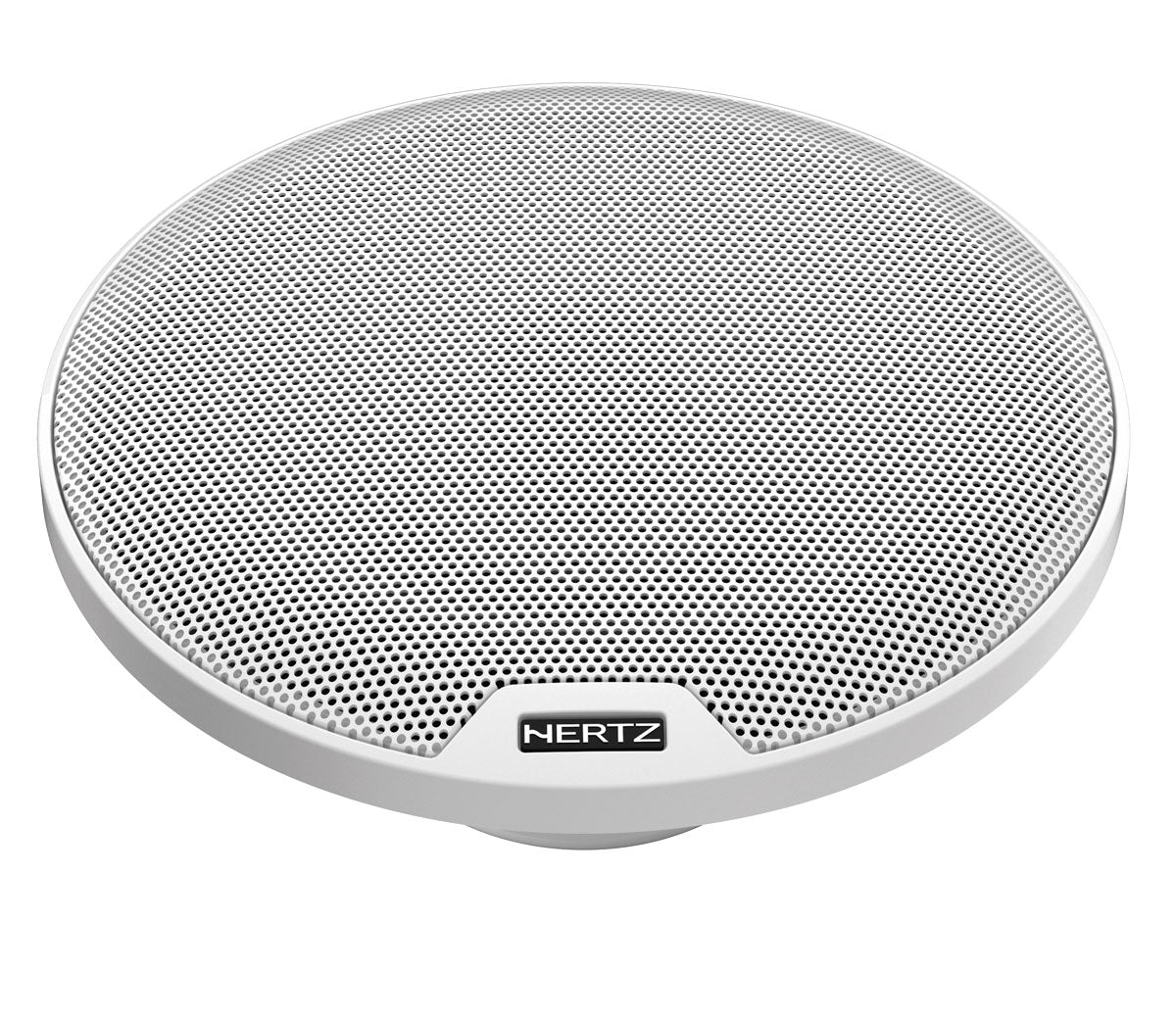

HEX 6.5 C-W marine coaxial features classic grilles will give you years of pure fun while cruising, being over engineered and tested for Marine applications. The compact 6.5” speaker, with a depth of only 2.36 in. delivers a detailed and dynamic sound, making every outing memorable.
1. Hertz Pure Marine Certified Product stamp featuring the IP65 protection grade, ASTM-D4329 standards for UV resistance and ASTM-B117 for salt fog operability.
2. High efficiency tweeter designed with FEM simulation to maximize off-axis emission, typical of in-boat install.
3. Sound-transparent mesh grille with twist and lock locking system, providing an elegant style and a rock-solid protection.
4. Woofer with 25 mm (1”) voice coil fine-tuned for infinite baffle application featuring silicone insulated lead-wire for durability.
5. Sealed built-in crossover with resettable solid-state tweeter protection circuit.
6. Nickel-plated corrosion resistant terminals.
| Component | CLASSIC COAX |
| Size mm (in.) | 165 (6.5) |
| Power Handling - Continuous W | 50 |
| Power Handling - Peak W | 100 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 84.5 (3.33) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Tweeter Voice Coil Ø mm (in.) | 13 (0.5) |
| Frequency Response Hz | 50 ÷ 23k |
| Woofer Magnet size D x d x h mm (in.) | 85 x 32 x 15 (3.35 x 1.26 x 0.59) |
| Tweeter Magnet size D x h mm (in.) | 12,9 x 2 + 11 x 1,9 (0.51 x 0.08 + 0.43 x 0.07) |
| Weight of one speaker kg (lb.) | 1,1 (2.4) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Polypropylene with UV inhibitors |
| Dome | PEI |
| Xmech mm (in.) | ±4,8 (0.19) |
| D mm | 125 |
| Re Ohm | 3,3 |
| Fs Hz | 78 |
| Le mH | 0,109 |
| Vas I | 6,52 |
| Mms g | 13,5 |
| Cms mm/N | 0,31 |
| BL T*m | 4,8 |
| Qts | 0,82 |
| Qes | 0,95 |
| Qms | 6,1 |
| Spl dB | 88 |
