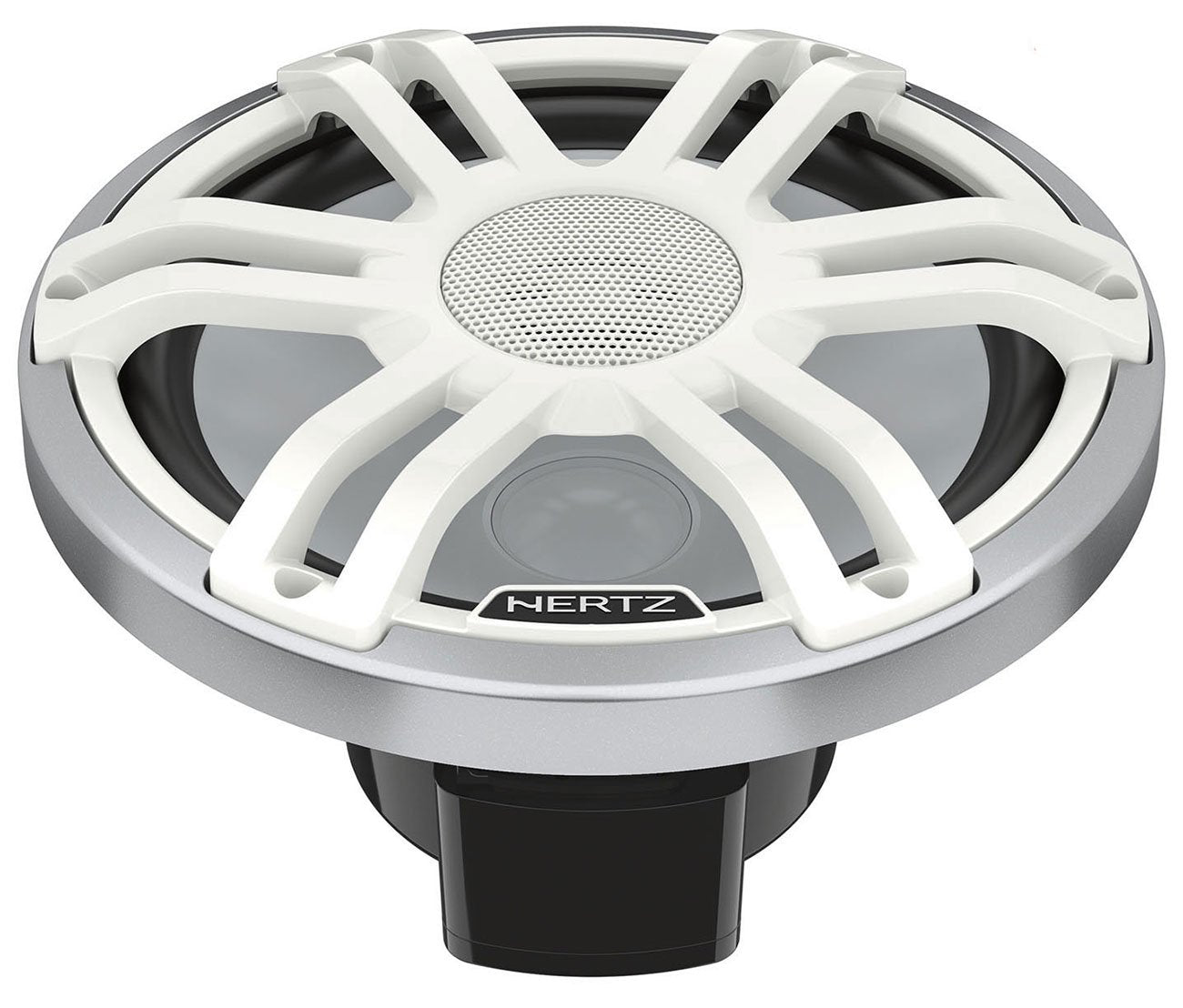

Hertz HMX 8 S-LD-SW 224 (8.8) mm (in.) | 123 (4.84) mm (in.) | Hi-end Led Coax | 200 W | 4 Ohm
Hertz HMX 8 S-LD-SW 224 (8.8) mm (in.) | 123 (4.84) mm (in.) | Hi-end Led Coax | 200 W | 4 Ohm
Hertz -
Regular price
$679.99 USD
Regular price
$790.00 USD
Sale price
$679.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Hertz HMX 8 S-LD-SW 224 (8.8) mm (in.) | 123 (4.84) mm (in.) | Hi-end Led Coax | 200 W | 4 Ohm
| Component | HI-END LED COAX |
| Size mm (in.) | 224 (8.8) |
| Power Handling - Continuous W | 100 |
| Power Handling - Peak W | 200 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 123 (4.84) |
| Tweeter diaphragm mm (in.) | 36 (1.4) |
| Woofer Voice Coil Ø mm (in.) | 32 (1.26) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response Hz | 45 ÷ 25k |
| Woofer Magnet size D x d x h mm (in.) | 90 x 40 x 20 (3.54 x 1.57 x 0.79) |
| Tweeter Magnet size D x h mm (in.) | 19,7 x 3 (0.78 x 0.12) |
| Weight of one speaker kg (lb.) | 1,66 (3.66) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Polypropylene with UV inhibitors |
| Dome | PEI |
| Xmech mm (in.) | ±8,5 (0.33) |
| D mm | 174 |
| Re Ohm | 3,1 |
| Fs Hz | 50 |
| Le mH | 0,52 |
| Vas I | 29,46 |
| Mms g | 27,3 |
| Cms mm/N | 0,37 |
| BL T*m | 6,6 |
| Qts | 0,58 |
| Qes | 0,61 |
| Qms | 11 |
| Spl dB | 91 |
Features:
- Integrated RGB LED lighting to enhance your experience in combination with the HM RGB 1 BK accessory.
- Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
- 1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
- Long-throw 32 mm (1.26”) voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
- Long-throw 25mm (1”) voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and comolded Santoprene surround.
- Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
- FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
- Sealed built-in crossover with resettable solid-state tweeter protection circuit.
- Gold-plated corrosion resistant terminals.
