Hertz Marine HMX 8-T(W/C) 8 in. Speakers Coax
Hertz Marine HMX 8-T(W/C) 8 in. Speakers Coax
Hertz -
Couldn't load pickup availability

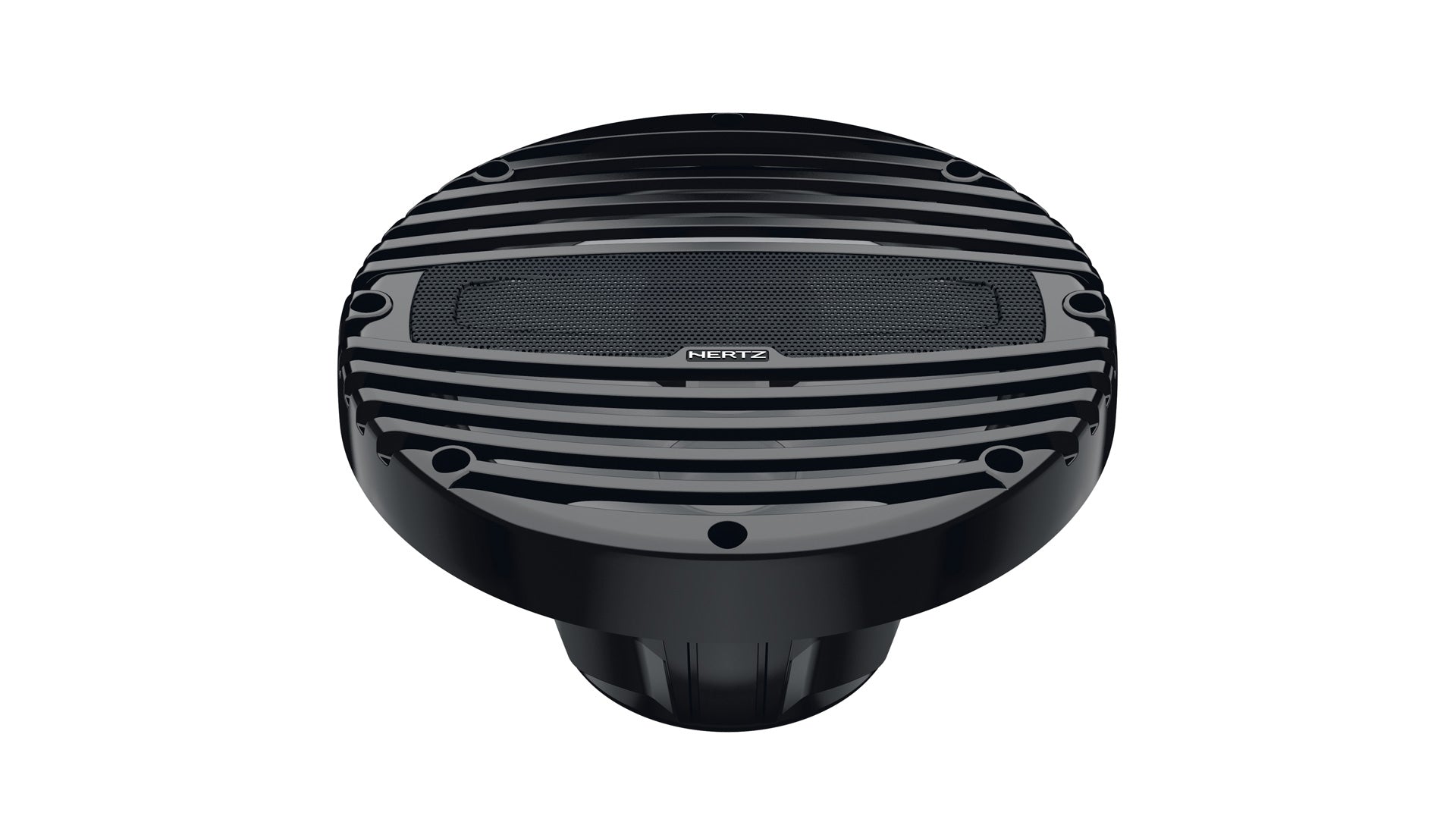

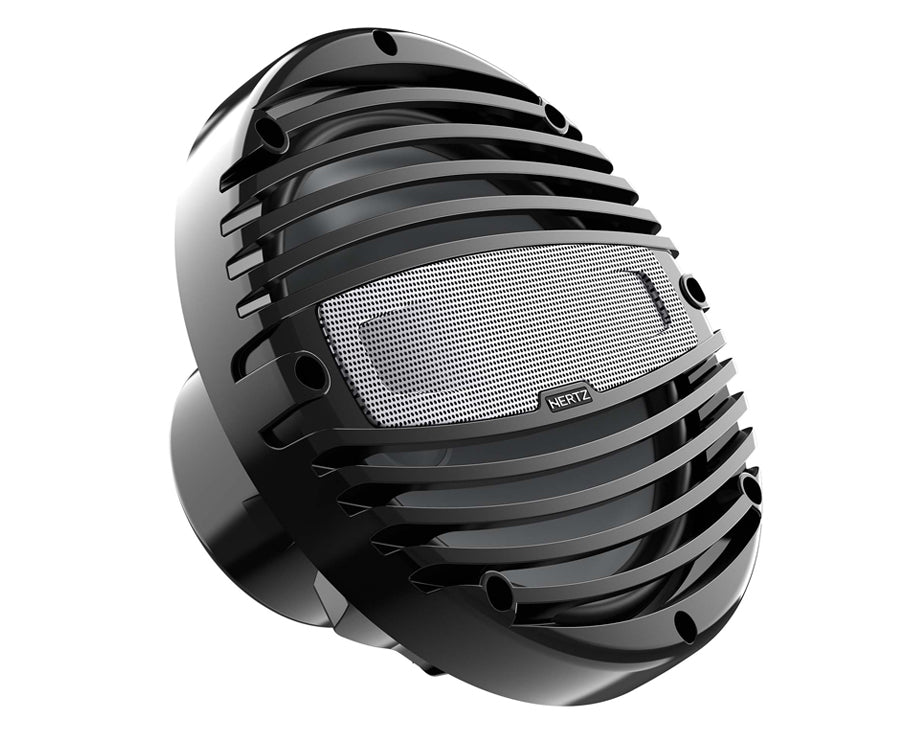

The HMX 8 hi-performance marine coaxial speakers, available in black and white option HMX 8, is optimized to perform in infinite baffle, with a solid bass and an outstanding output. The tweeter feature an acoustic lens optimized for best off-axis dispersion and maximized SPL. The attractive stainless steel tweeter mesh grille provides perfect high-frequency transfer and a rock-solid protection. The UV resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.
| Component | HI-END LED COAX |
| Size mm (in.) | 224 (8.8) |
| Power Handling - Continuous W | 100 |
| Power Handling - Peak W | 200 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 123 (4.84) |
| Tweeter diaphragm mm (in.) | 36 (1.4) |
| Woofer Voice Coil Ø mm (in.) | 32 (1.26) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response Hz | 45 ÷ 25k |
| Woofer Magnet size D x d x h mm (in.) | 90 x 40 x 20 (3.54 x 1.57 x 0.79) |
| Tweeter Magnet size D x h mm (in.) | 19,7 x 3 (0.78 x 0.12) |
| Weight of one speaker kg (lb.) | 1,66 (3.66) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Polypropylene with UV inhibitors |
| Dome | PEI |
| Xmech mm (in.) | ±8,5 (0.33) |
| D mm | 174 |
| Re Ohm | 3,1 |
| Fs Hz | 50 |
| Le mH | 0,52 |
| Vas I | 29,46 |
| Mms g | 27,3 |
| Cms mm/N | 0,37 |
| BL T*m | 6,6 |
| Qts | 0,58 |
| Qes | 0,61 |
| Qms | 11 |
| Spl dB | 91 |
FEATURES:
1. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
2. 1.4" Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
3. Sound-transparent stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
4. Long-throw 32 mm (1.26") voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
5. Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
6. FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
7. Sealed built-in crossover with resettable solid-state tweeter protection circuit.
8. Gold-plated corrosion resistant terminals.
