Hertz HTX 8H S-FL-SW - 200 (8) mm (in.) | 288 (11.34) mm (in.) | Led Flat Common Motor Tower | 400 W | 4 Ohm
Introducing the revolutionary Hertz Marine Common Motor Compression Driver Tower Speakers, a groundbreaking addition to the world of marine audio technology. Engineered to perfection and built with uncompromising precision, these speakers redefine the concept of high-performance marine audio systems, delivering an unparalleled listening experience for boating enthusiasts and water sports aficionados. At the heart of these extraordinary tower speakers lies their cutting-edge common motor compression driver technology. The precisely engineered wave guide optimizes the dispersion of sound waves, enabling enhanced sound projection and increased efficiency. The result is clear, distortion-free audio that carries over long distances, allowing you to enjoy your favorite music with a level of clarity and fidelity that is second to none.
- Common Motor Driver technology allows for improved acoustical performances with a significant reduction in size and weight.
- 400 W peak power with a stunning sensitivity of 98 dB SPL for the ultimate listening experience.
- The FEM-optimized cone profile acts like a horn, boasting a focused and very linear SPL response ensuring full-range sound quality at 100 feet and beyond.
- Waterproof acoustically transparent screen dust cup for maximum protection
- Long-throw 51 mm (2”) voice coil woofer fine-tuned for sealed box applications.
- Sealed built-in crossover with resettable solid-state compression driver protection circuit.
| Component | LED FLAT COMMON MOTOR TOWER |
| Size mm (in.) | 200 (8) |
| Power Handling - Continuous W | 200 |
| Power Handling - Peak W | 400 |
| Impedance Ohm | 4 |

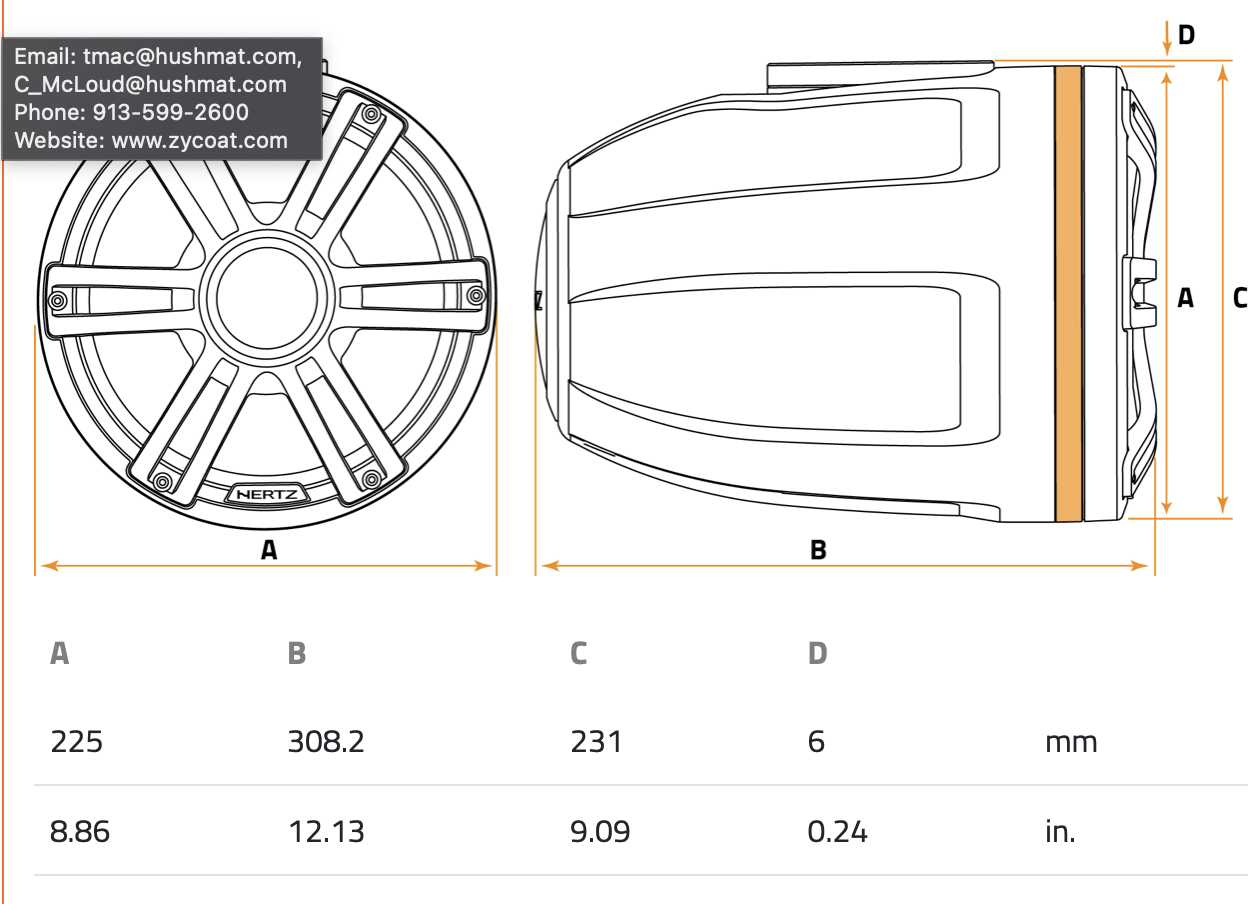

| Depth mm (in.) | 288 (11.34) |
| Woofer Voice Coil Ø mm (in.) | 51 (2) |
| Frequency Response Hz | 45 ÷ 25k |
| Woofer Magnet size D x d x h mm (in.) | 140 x 62 x 22 (5.5 x 2.4 x 0.87) |
| Weight of one speaker kg (lb.) | 5.7 (12.6) |
| Woofer Magnet | High density flux ferrite common motor |
| Tweeter Magnet | High density flux ferrite common motor |
| Cone | Pressed paper water repellent |
| Dome | Polyamide |
| Xmech mm (in.) | 8.3 (0.32) |
| D mm | 166 |
| Re Ohm | 3.3 |
| Le mH | 0.28 |
| Vas I | 10 |
| Mms g | 20.5 |
| Cms mm/N | 0.15 |
| BL T*m | 9 |
| Spl dB | 98 |
