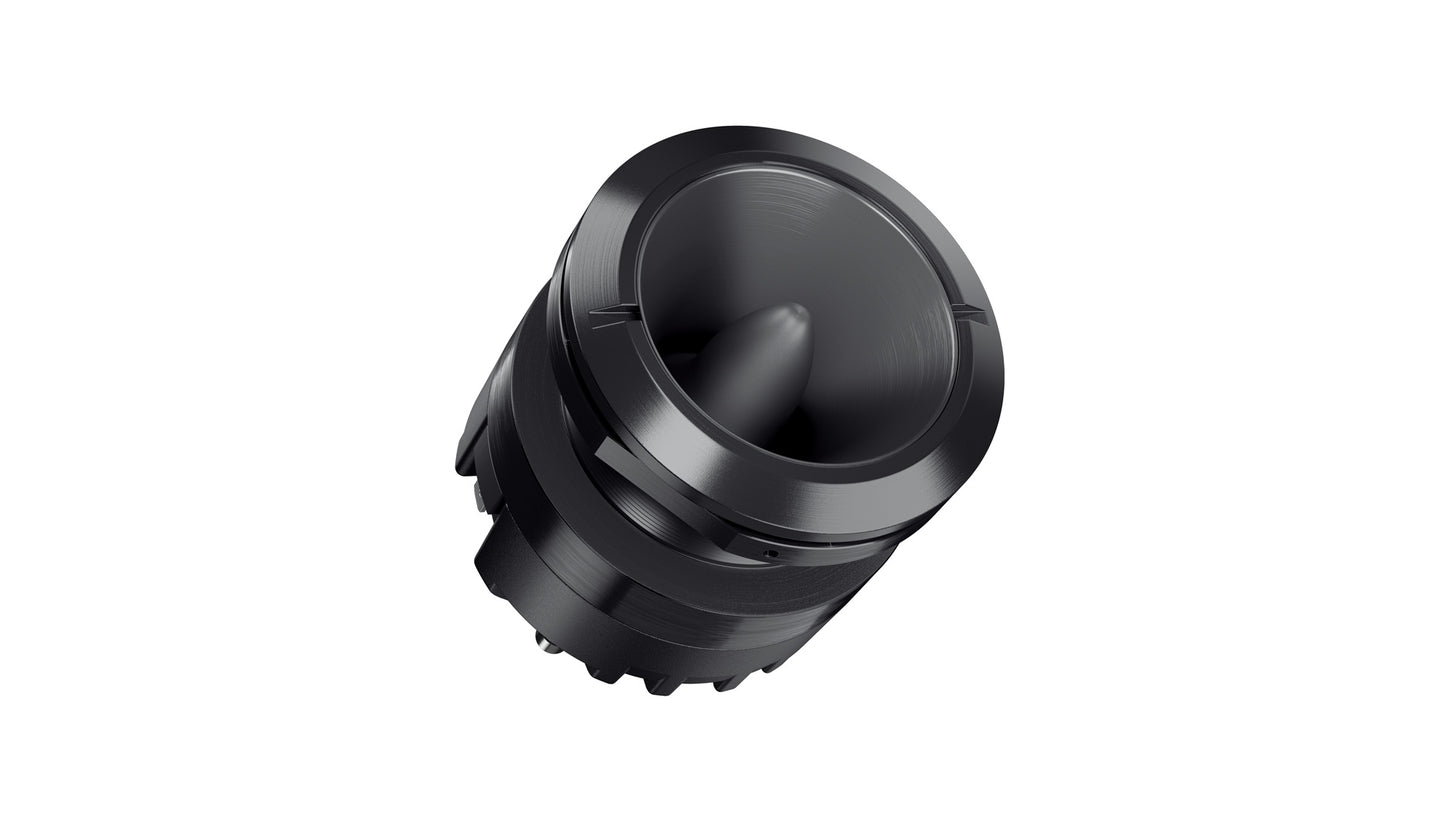

Hertz ST 35A NEO set 1.4 in. compression tweeter NEO magnet
Hertz ST 35A NEO set 1.4 in. compression tweeter NEO magnet
Hertz -
Couldn't load pickup availability
NEO line bullet tweeters are a totally new project, lighter and more compact compared to the previous ST 35 and with superior performance thanks to the use of Neodymium N38 H for the motor units and a FEM (Finite Element Method) optimized driver/horn design. The Active version, ST 35A Neo provides tweeter only.
1. Powerful Neodymium magnet providing high performance with compact size.
2. FEM (Finite Element Method) optimized phase-plug and loading horn.
3. CCAR (Copper Clad Aluminium Ribbon) voice coil for unheard-of thermal and mechanical capability ready for an easy replacement with replacement body kit.
4. Extra-light aluminium membrane to maximize SPL with high current, screw terminals.
5. Body waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time.
| Component | HIGH EFFICIENCY COMPRESSION DRIVER |
| Size mm (in.) | 46 (1.8) |
| Power Handling - Peak W | 120 |
| Power Handling - Peak Note | Hi-pass filtered @ 5 kHz - 12 dB Oct. |
| Impedance Ohm | 4 |
| Voice Coil Ø | 35 (1.4) |
| Frequency Response Hz | 2k ÷ 20k |
| Weight of one component kg (lb.) | 0,53 (1.17) |
| Magnet | Neodymium |
| Dome | Aluminium |
| D mm | 46 |
| Re Ohm | 3,3 |
| Fs Hz | 4000 |
| Le mH | 0,02 |
| BL T*m | 3,5 |
| Spl dB | 109 |
6. Aluminium back cover for superior heat dissipation.
7. Impressive low frequency extension and efficiency.
