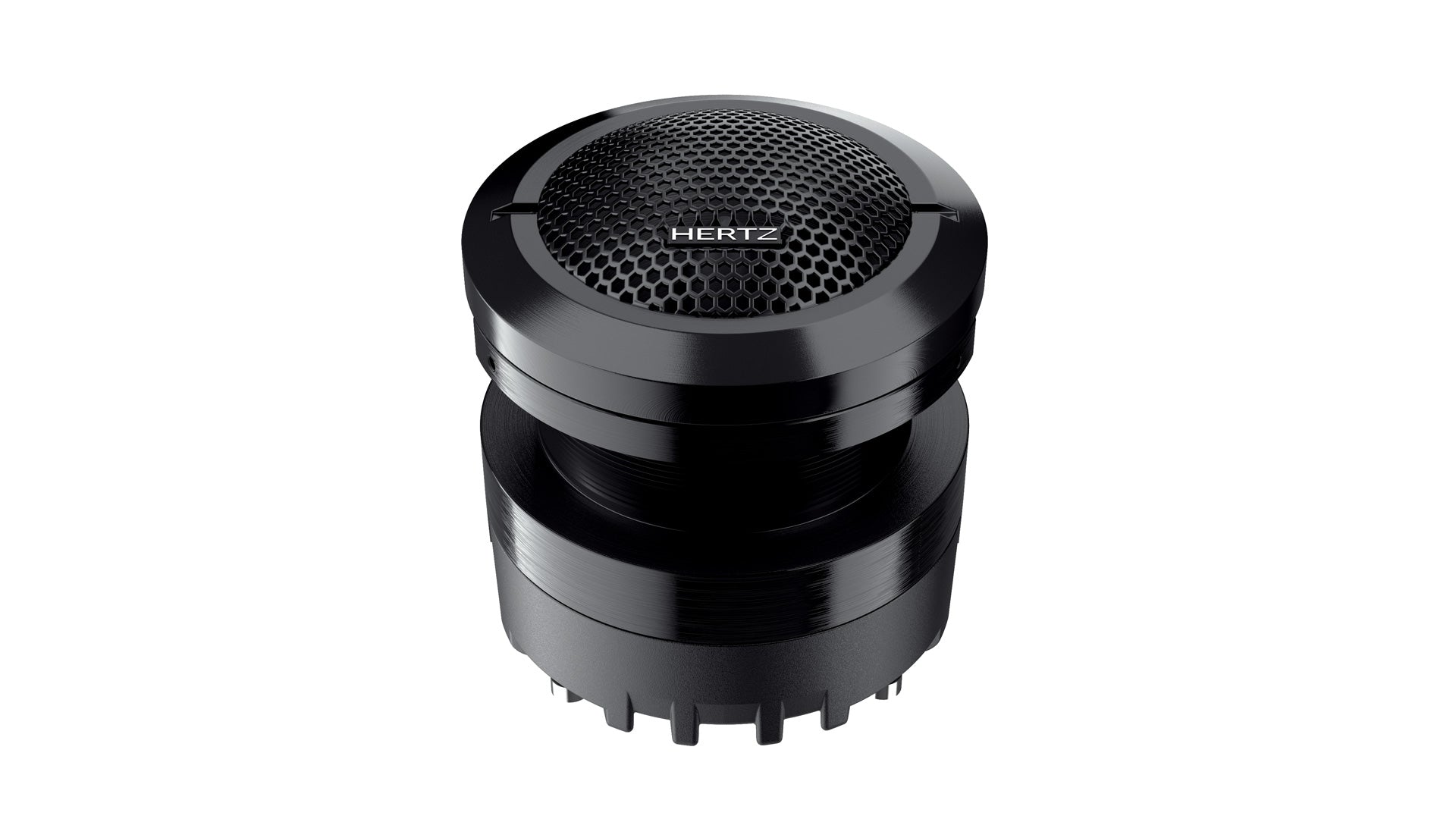

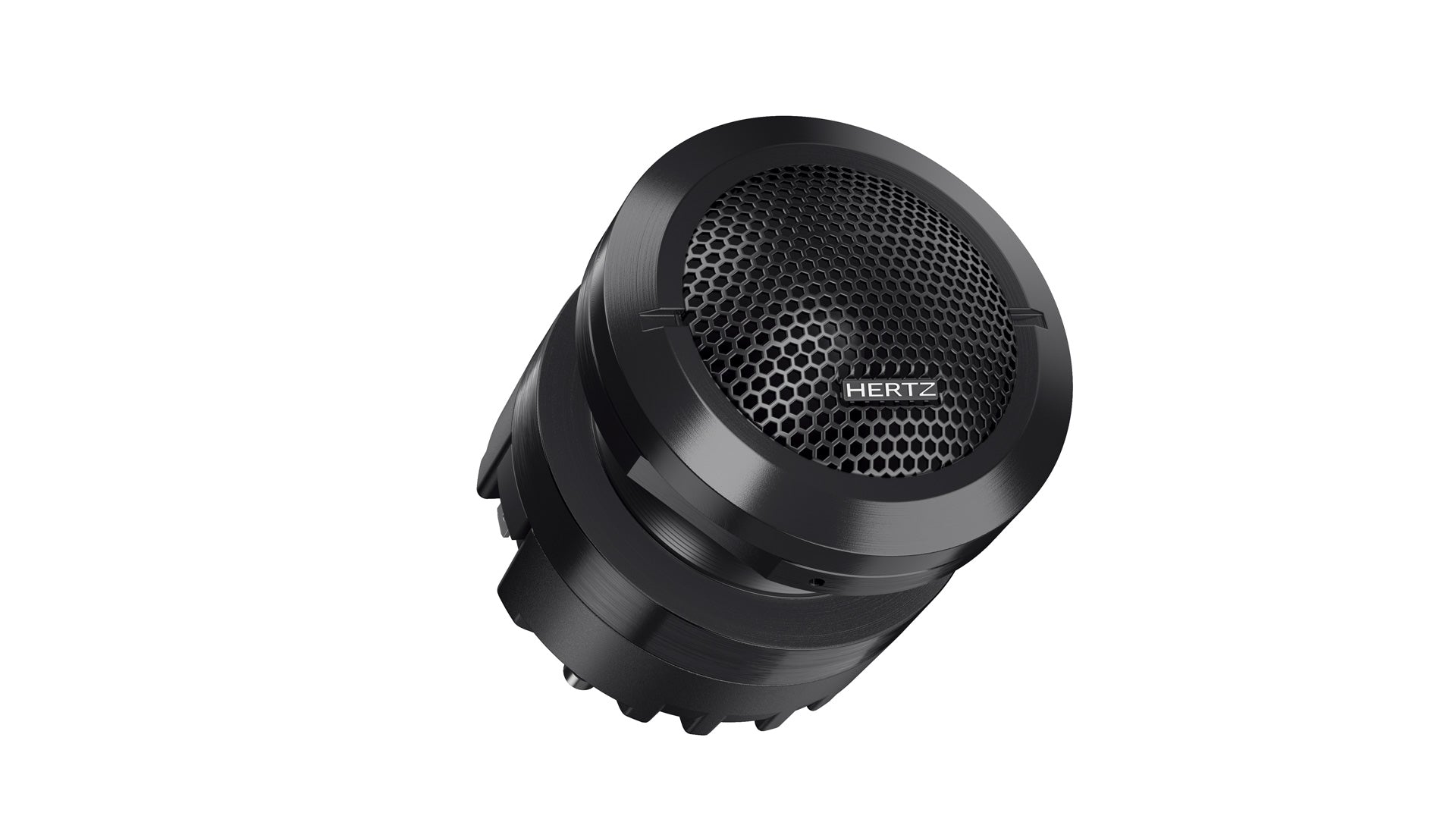

Hertz ST 35K NEO set 1.4 in Compression Tweeter Neodymium magnet w/ Crossover + Grilles
Hertz ST 35K NEO set 1.4 in Compression Tweeter Neodymium magnet w/ Crossover + Grilles
Hertz -
Couldn't load pickup availability
NEO line bullet tweeters are a totally new project, lighter and more compact compared to the previous ST 35 and with superior performance thanks to the use of Neodymium N38 H for the motor units and a FEM (Finite Element Method) optimized driver/horn design. The Kit version, ST 35K Neo features metallic mesh grille and inline crossover filter included.
FEATURES
1. Powerful Neodymium magnet providing high performance with compact size.

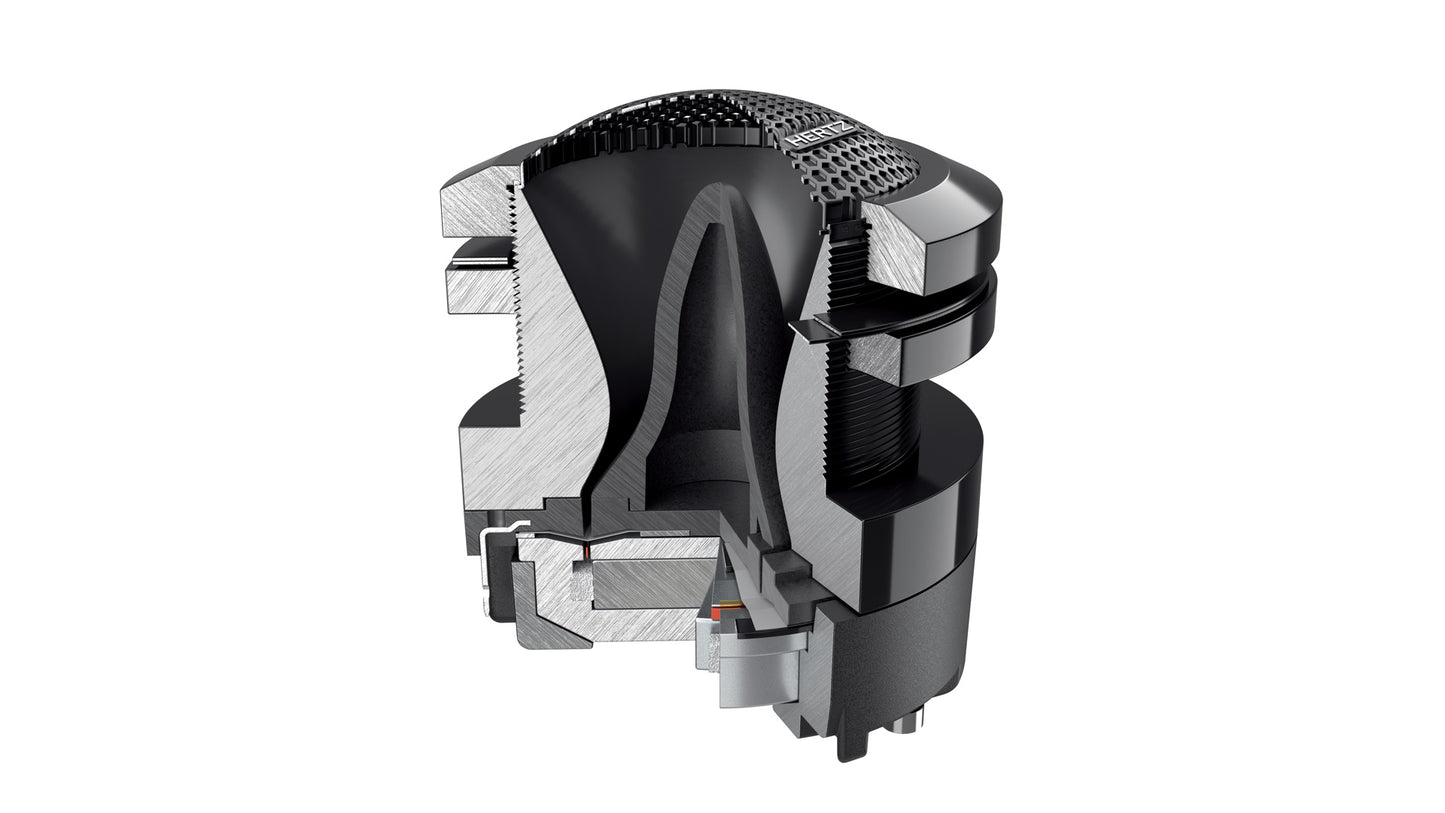

2. FEM (Finite Element Method) optimized phase-plug and loading horn.
3. CCAR (Copper Clad Aluminium Ribbon) voice coil for unheard-of thermal and mechanical capability ready for an easy replacement with replacement body kit.
4. Extra-light aluminium membrane to maximize SPL with high current, screw terminals.
5. Body waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time.
6. Aluminium back cover for superior heat dissipation.
7. Impressive low frequency extension and efficiency.

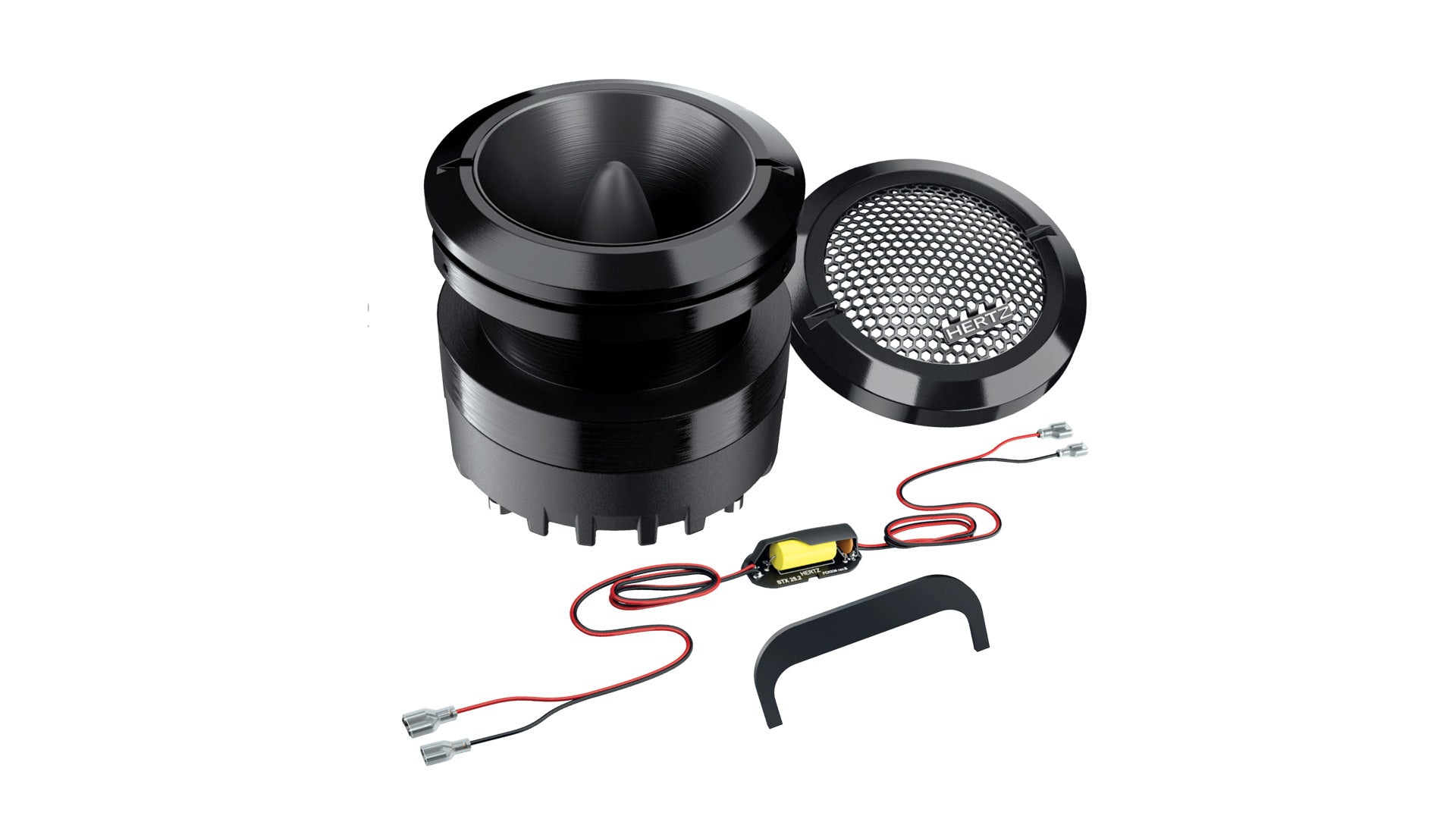

8.Kit version with metallic mesh grille and inline crossover filter included.
| Component | HIGH EFFICIENCY COMPRESSION DRIVER |
| Size mm (in.) | 46 (1.8) |
| Power Handling - Peak W | 120 |
| Power Handling - Peak Note | Hi-pass filtered @ 4 kHz - 12 dB Oct. |
| Impedance Ohm | 4 |
| Voice Coil Ø | 35 (1.4) |
| Frequency Response Hz | 2k ÷ 20k |
| Weight of one component kg (lb.) | 0,53 (1.17) |
| Magnet | Neodymium |
| Dome | Aluminium |
| D mm | 46 |
| Re Ohm | 3,3 |
| Fs Hz | 4000 |
| Le mH | 0,02 |
| BL T*m | 3,5 |
| Spl dB | 109 |
