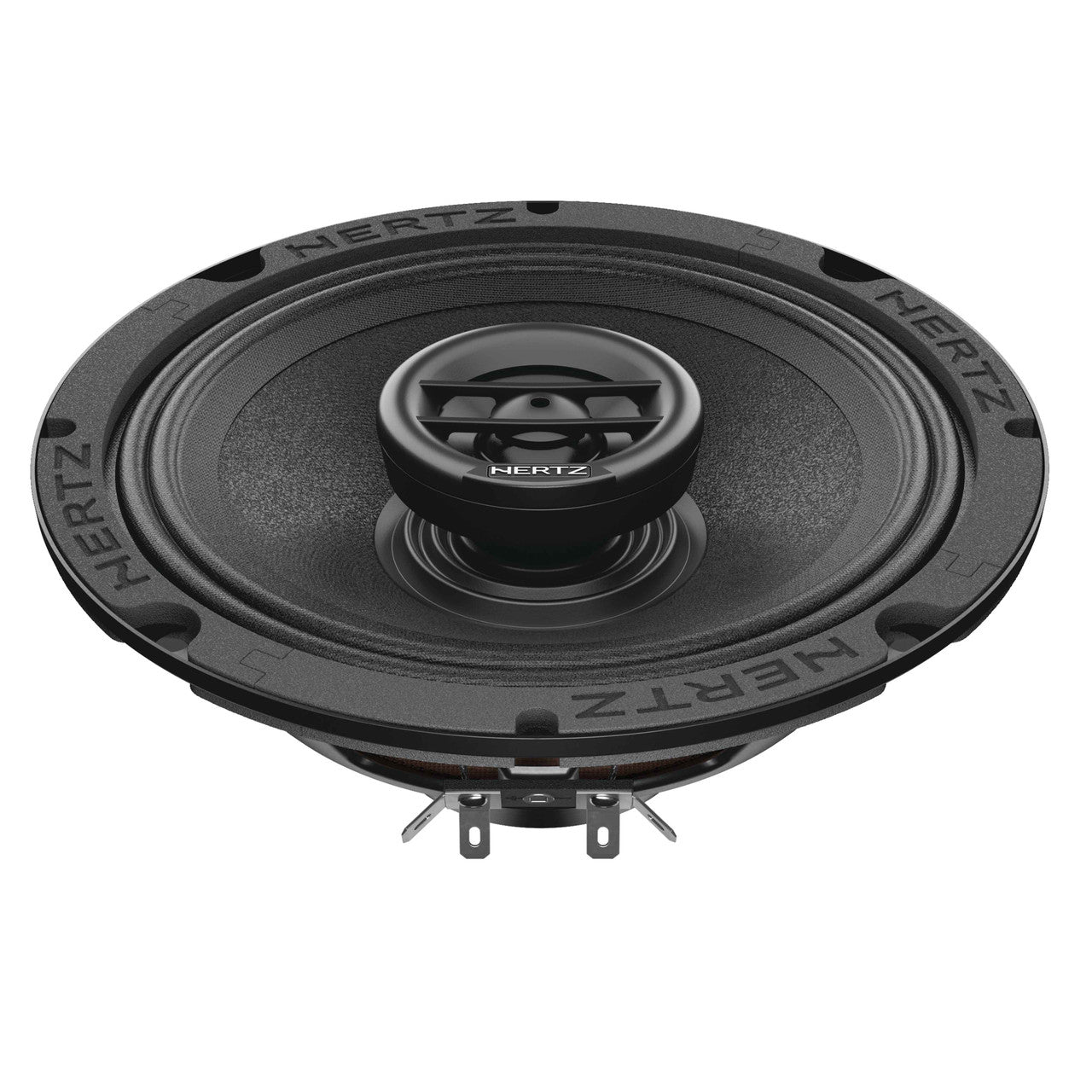

Hertz SX 165 NEO Set 6.5 in. 2-way NEO Magnet UV/waterproofing
Hertz SX 165 NEO Set 6.5 in. 2-way NEO Magnet UV/waterproofing
Hertz -
Couldn't load pickup availability
Hertz SX 165 NEO Set 6.5 in. 2-way NEO Magnet UV/waterproofing
Totally new NEO SPL coaxial SX 165 NEOcone is made with nature-proof high stiffness pressed-paper featuring innovative water/humidity resistant and anti-UV treatments. The double layer copper voice coil, wound on polyamide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance. SX 165 NEO features a large Hi-SPL 1.4 PEI dome tweeter with resettable solid-state protection circuit and a protective rubber gasket for high SPL and a safe outdoor use.
Features:
1. Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.
2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.
3. Unparalleled power handling delivered by the double layer copper voice coil, wound on polyamide former.
4. Hi-SPL 1.4” Neodymium magnet PEI dome tweeter with resettable solid-state tweeter protection circuit.
5. Double faston terminals allow daisy-chaining of multiple units and provide compatibility with most common motorcycle connections.
| Component | SPL COAXIAL |
| Size mm (in.) | 165 (6.5) |
| Power Handling - Continuous W | 100 |
| Power Handling - Peak W | 200 |
| Impedance Ohm | 4 |
| Tweeter diaphragm mm (in.) | PEI |
| Woofer Voice Coil Ø mm (in.) | 38 (1.5) |
| Tweeter Voice Coil Ø mm (in.) | 28 (1.1) |
| Frequency Response Hz | 100 ÷ 20k |
| Woofer Magnet size D x d x h mm (in.) | 70 x 45 x 7 (2.76 x 1.77 x 0.28) |
| Tweeter Magnet size D x h mm (in.) | 19 x 3 (0.75 x 0.12) |
| Weight of one speaker kg (lb.) | 0,94 (2.08) |
| Woofer Magnet | Special Neodymium N38 H |
| Tweeter Magnet | Special Neodymium N38 H |
| Cone | Water repellent pressed paper |
| D mm | 128 |
| Re Ohm | 3,3 |
| Fs Hz | 110 |
| Le mH | 0,061 |
| Vas I | 4,92 |
| Mms g | 10,14 |
| Cms mm/N | 0,21 |
| BL T*m | 5,83 |
| Qts | 0,64 |
| Qes | 0,68 |
| Qms | 9,7 |
| Spl dB | 96,5 |
