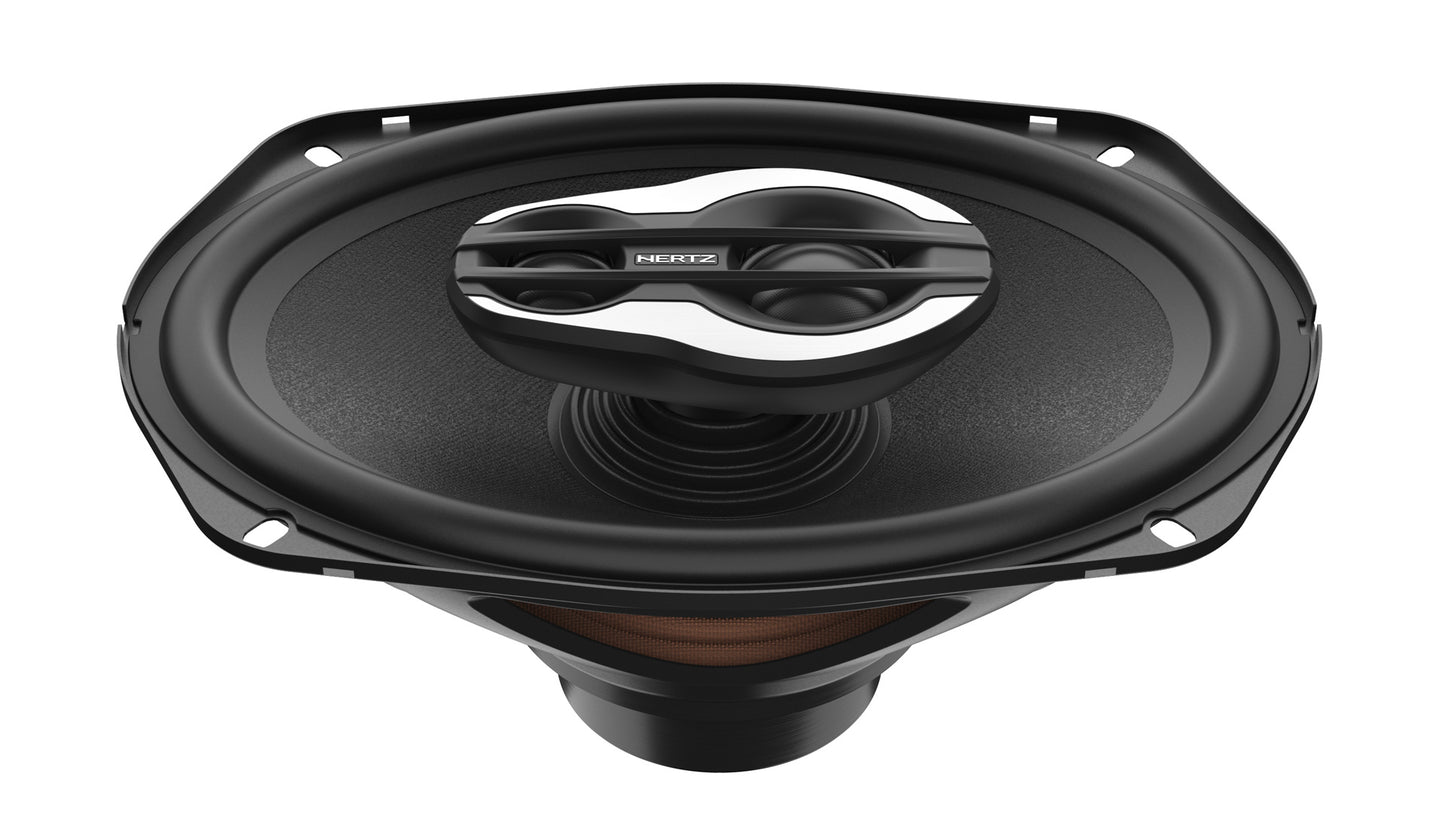

Hertz Set SX 690 NEO.1 6x9 in. 3-Way Coax NEO Magnet UV/waterproofing incl. grilles
Hertz Set SX 690 NEO.1 6x9 in. 3-Way Coax NEO Magnet UV/waterproofing incl. grilles
Hertz -
Couldn't load pickup availability
Hertz Set SX 690 NEO.1 6x9 in. 3-Way Coax NEO Magnet UV/waterproofing incl. grilles
SX 690.1 NEO is a real beast with a Hi-SPL Mid-Hi unit based on a 1.4‚ dome tweeter and 1‚ dome super tweeter with a resettable solid-state protection circuit. Cone is made with nature-proof high stiffness pressed paper featuring innovative water/humidity resistance and anti-UV treatments. The double-layer copper voice coil wound on polyimide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.

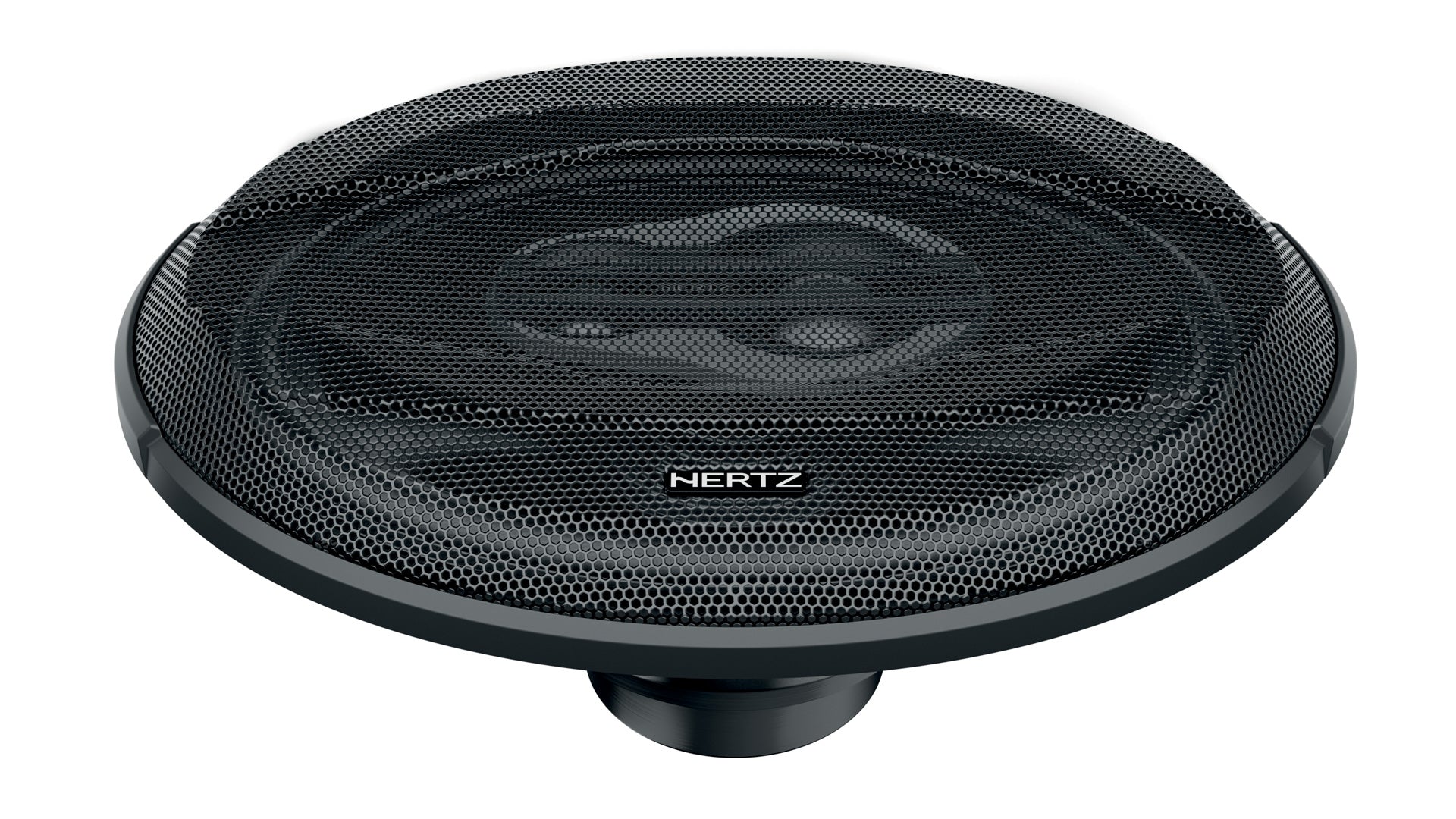

The provided MPG 690 grille is made of a high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.
| Component | SPL COAXIAL |
| Size mm (in.) | in. 6 x 9 |
| Power Handling - Continuous W | 130 |
| Power Handling - Peak W | 260 |
| Impedance Ohm | 4 |
| Tweeter diaphragm mm (in.) | 29 (1.14) |
| Woofer Voice Coil Ø mm (in.) | 38 (1.5) |
| Tweeter Voice Coil Ø mm (in.) | 25 (1) |
| Frequency Response Hz | 65 ÷ 24k |
| Woofer Magnet size D x d x h mm (in.) | 110 x 45 x 20 (4.33 x 1.77 x 0.79) |
| Tweeter Magnet size D x h mm (in.) | 24,5 x 6 x 3,5 (0.96 x 0.24 x 0.14) |
| Weight of one speaker kg (lb.) | 1,69 (3.73) |
| Woofer Magnet | Special Neodymium N38 H |
| Tweeter Magnet | Special Neodymium N38 H |
| Cone | Water repellent pressed paper |
| Dome | Tetolon |
| D mm | 169 |
| Xmax mm | 5,5 |
| Re Ohm | 3 |
| Fs Hz | 65 |
| Le mH | 0,4 |
| Vas I | 11,29 |
| Mms g | 36,1 |
| Cms mm/N | 0,16 |
| BL T*m | 7,665 |
| Qts | 0,62 |
| Qes | 0,78 |
| Qms | 2,9 |
| Spl dB | 94 |
