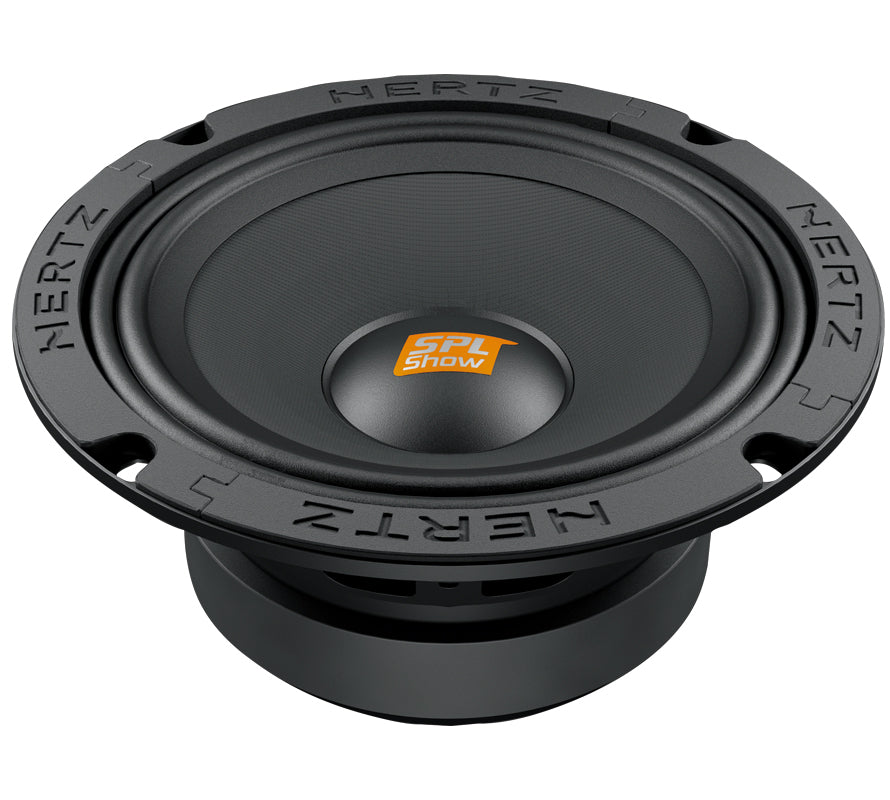

Hertz SV 165.1 Set 6.5 in. SPL 4_ Midrange
Hertz SV 165.1 Set 6.5 in. SPL 4_ Midrange
Hertz
Regular price
$249.99 USD
Regular price
$275.00 USD
Sale price
$249.99 USD
Unit price
/
per
Shipping calculated at checkout.
No Fitment Data
This product doesn't have fitment application data. Please verify fitment manually.
Pickup available at 3287 Library Road
Usually ready in 2-4 days
Hertz SV 165.1 Set 6.5 in. SPL 4_ Midrange
The SV 165.1 car audio midrange can be employed to build systems with tremendous impact. Like the SX subwoofers, the SV 165.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.
Component | SPL Midrange |
Size mm (in.) | 165 (6.5) |
Power Handling - Continuous W | 150 |
Power Handling - Peak W | 400 |
Impedance Ohm | 4 |
Voice Coil Ø | 38 (1.5) |
Frequency Response Hz | 100 ÷ 10k |
Magnet size D x d x h mm (in.) | 110 x 45 x 20 (4.3 x 1.8 x 0.8) |
Weight of one speaker kg (lb.) | 1,85 (4) |
Magnet | High density flux ferrite |
Cone | Ultra light pressed paper |
D mm | 128 |
Re Ohm | 3,2 |
Fs Hz | 110 |
Le mH | 0,26 |
Vas I | 4,65 |
Mms g | 10,4 |
Cms mm/N | 0,2 |
BL T*m | 6,5 |
Qts | 0,5 |
Qes | 0,55 |
Qms | 5,53 |
Spl dB | 97 |
