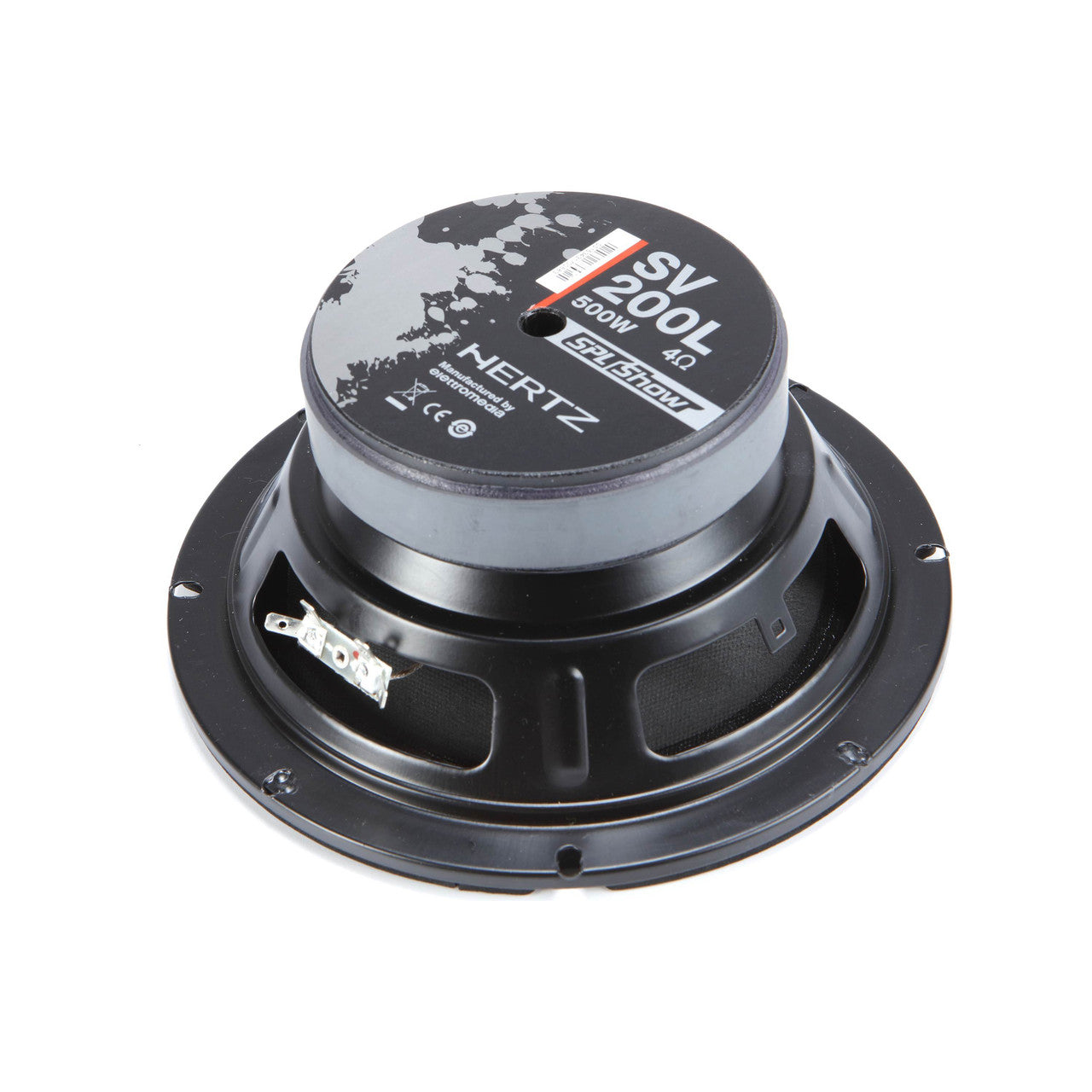

Hertz SV 200L Set 8 in. SPL 4_ Midrange

Hertz SV 200L Set 8 in. SPL 4_ Midrange

Hertz

Regular price $349.99 USD

Regular price $390.00 USD

Sale price $349.99 USD
Sale Special Order this item by Clicking the Chat Button Below
Shipping calculated at checkout.
No Fitment Data
This product doesn't have fitment application data. Please verify fitment manually.
 More payment options

Pickup available at 3287 Library Road

Usually ready in 2-4 days

Hertz SV 200L  Set 8 in. SPL 4_ Midrange

200 (8) mm (in.) | Spl Midrange | 500 W | 4 Ohm

The SV 200.1 car audio midrange is the 200 mm (8 in.) midrange designed for SPL competitions. Like the SX subwoofers, the SV 200.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.



Component SPL Woofer
Size mm (in.) 200 (8)
Power Handling - Continuous W 250
Power Handling - Peak W 500
Impedance Ohm 4
Voice Coil Ø 50 (2)
Frequency Response Hz 45 ÷ 4,5k
Magnet size D x d x h mm (in.) 120 x 60 x 20 (4.7 x 2.4 x 0.8)
Weight of one speaker kg (lb.) 2,32 (5.1)
Magnet High density flux ferrite
Cone Ultra light, non pressed paper
Technical Specs
D mm 168
Re Ohm 3
Fs Hz 44
Le mH 0,75
Vas I 29
Mms g 31,5
Cms mm/N 0,42
BL T*m 8,6
Qts 0,33
Qes 0,36
Qms 3,32
Spl dB 94,5
