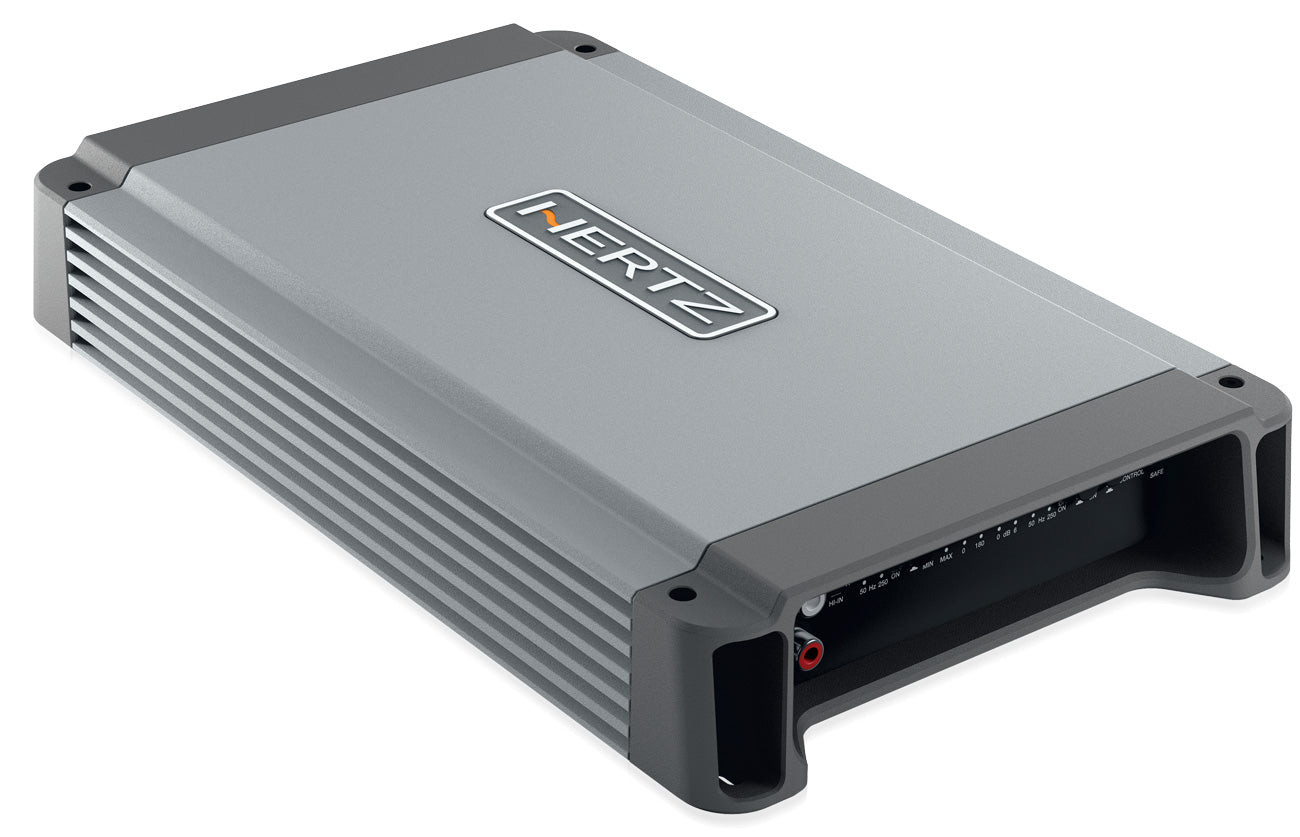

Hertz Marine Amplifier HCP 1MDK

HCP 1MDK mono marine amplifier features latest generation D-Class 2Ω stable output stage reaching the impressive RMS power of 740 W x 1 (4 Ω). Engineered and tested for the real environment of application (UV, salt-fog, vibrations, high/low temperature, thermal shock, dust), HCP 1MDK features a compact design built from extruded aluminium heatsink with top side ensuring effective heat transfer. The special balanced input circuitry reject electro-magnetic disturbances and the Hi-Level and lo-level inputs are compatible with any source. The Adjustable Bass Boost (50 Hz) with continuity between 0 dB and 6 dB adds more punch to subwoofer and SUBSONIC filter (24 dB – 25 Hz), removes very low subsonic frequencies from music signal to prevent damage to the subwoofer. The continuously adjustable PHASE control (0 to 180°) optimizes alignment of woofer bass frequencies with sub ones. The Optional Remote Volume Control (HRC) provides the ability to adjust subwoofer volume level from the dashboard.

FEATURES:

• Power supply featuring multiple winding transformer, Low-ESR 105¬∞C capacitors, D-Class 2 Œ© stable output stage.
• SALT FOG TESTED

  To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

• WATER JET TESTED

  The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.

• CORROSION PROTECTION

  Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marinegrade (epoxy coated) PCB boards.
