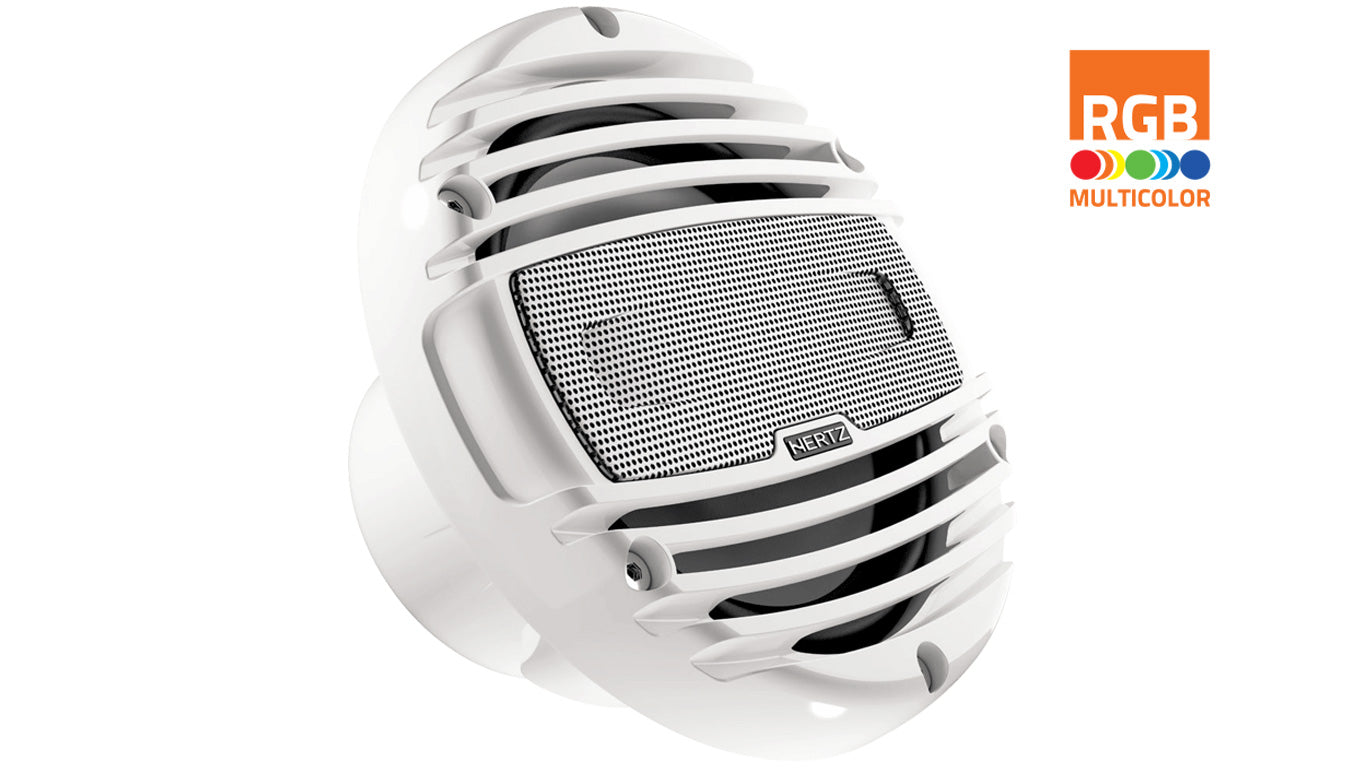

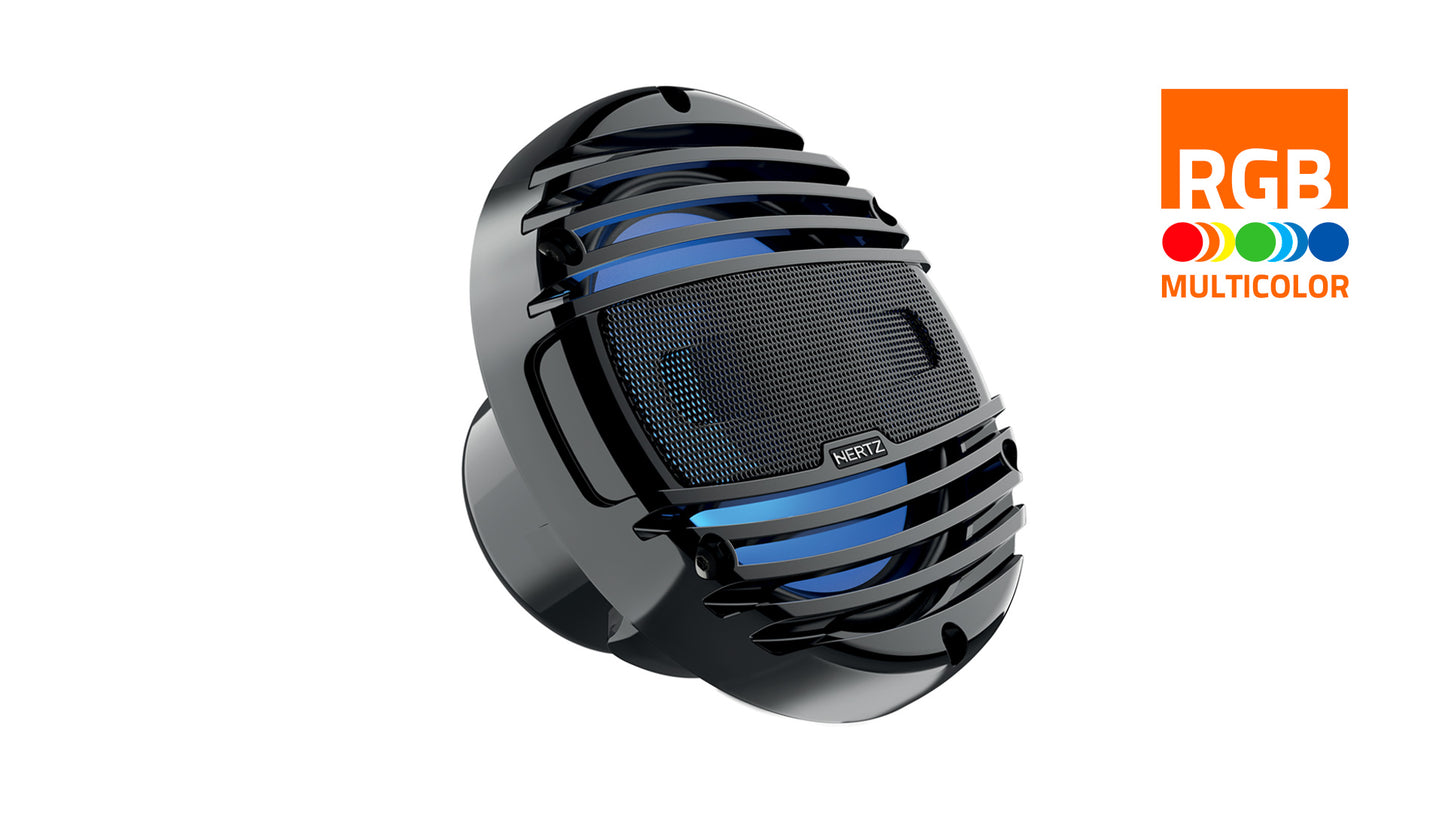

Hertz Marine HMX 6.5-LD-T (W/C) 6.5in. Speakers Coax W/ RGB LED Lights
Hertz Marine HMX 6.5-LD-T (W/C) 6.5in. Speakers Coax W/ RGB LED Lights
Hertz -
Regular price
$429.99 USD
Regular price
$510.00 USD
Sale price
$429.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Hertz Marine HMX 6.5-LD-T (W/C) 6.5in. Speakers Coax W/ RGB LED Lights
165 (6.5) mm (in.) |
The HMX 6.5 LD hi-performance marine coaxial speakers with RGB LEDs lighting option, is optimized to perform in infinite baffle, with a solid bass and an outstanding output. The HMX tweeters feature an acoustic lens optimized for best off-axis dispersion and maximized SPL. The attractive stainless steel tweeter mesh grille provides perfect high-frequency transfer and a rock-solid protection. The RGB LED lighting circuit is integrated below the tweeter, protected by a Polypropylene transparent cover acting as light diffusion. The UV-resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.
| Component | HI-END LED COAX |
| Size mm (in.) | 165 (6.5) |
| Power Handling - Continuous W | 75 |
| Power Handling - Peak W | 150 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 95,6 (3.76) |
| Tweeter diaphragm mm (in.) | 36 (1.4) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response Hz | 50 ÷ 25k |
| Woofer Magnet size D x d x h mm (in.) | 78,5 x 32 x 17 (3.09 x 1.26 x 0.67) |
| Tweeter Magnet size D x h mm (in.) | 19,7 x 3 (0.78 x 0.12) |
| Weight of one speaker kg (lb.) | 1 (2.2) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Polypropylene with UV inhibitors |
| Dome | PEI |
| Xmech mm (in.) | ±6,65 (0.26) |
| D mm | 125 |
| Re Ohm | 3,5 |
| Fs Hz | 65 |
| Le mH | 0,53 |
| Vas I | 8,8 |
| Mms g | 14 |
| Cms mm/N | 0,4 |
| BL T*m | 5,2 |
| Qts | 0,7 |
| Qes | 0,75 |
| Qms | 11,5 |
| Spl dB | 89 |
FEATURES:
1. Integrated RGB LED lighting to enhance your experience in combination with the HM RGB 1 BK accessory.
2. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
3. 1.4" Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
4. Sound-transparent stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
5. Long-throw 25mm (1") voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
6. Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
7. FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
8. Sealed built-in crossover with resettable solid-state tweeter protection circuit .
9. Gold-plated corrosion resistant terminals.
2. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
3. 1.4" Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
4. Sound-transparent stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
5. Long-throw 25mm (1") voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
6. Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
7. FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
8. Sealed built-in crossover with resettable solid-state tweeter protection circuit .
9. Gold-plated corrosion resistant terminals.
