Hertz Venezia Series Class D Marine Amp 3/5ch 1010W: VENEZIA-V5C

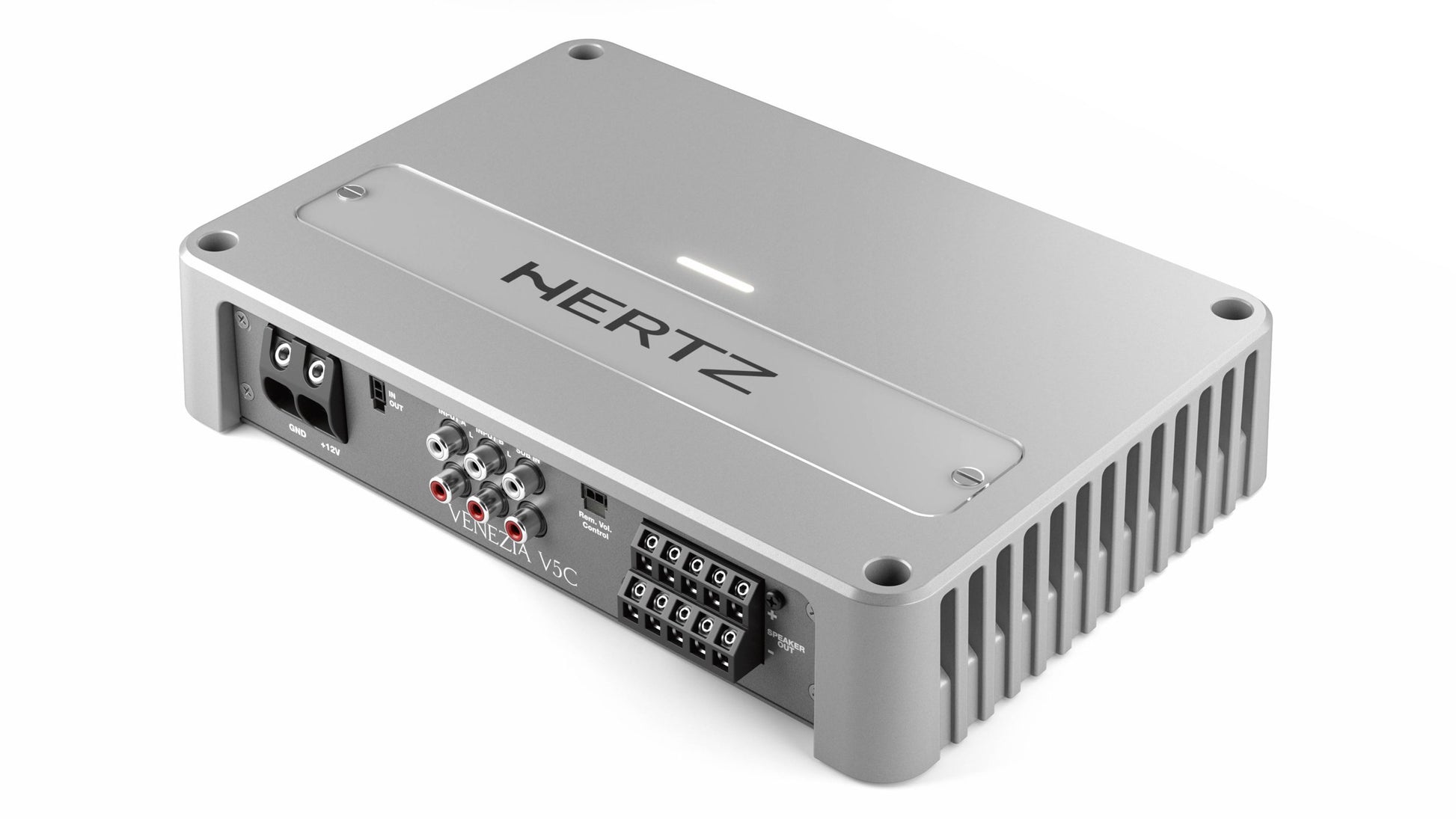

Venezia V5C is the compact five channels marine amplifier, featuring 80 W x 4 (4Ω) plus 330 W (4Ω) for the subwoofer! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V5C is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V5C is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

Features:

• Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
• ADC (Advanced D-Class) Technology 2Ω stable output stage providing Hi-Res certified audio performance with superior efficiency.
• Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
• Balanced fully-differential input circuitry to reject electromagnetic disturbances.
• Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.

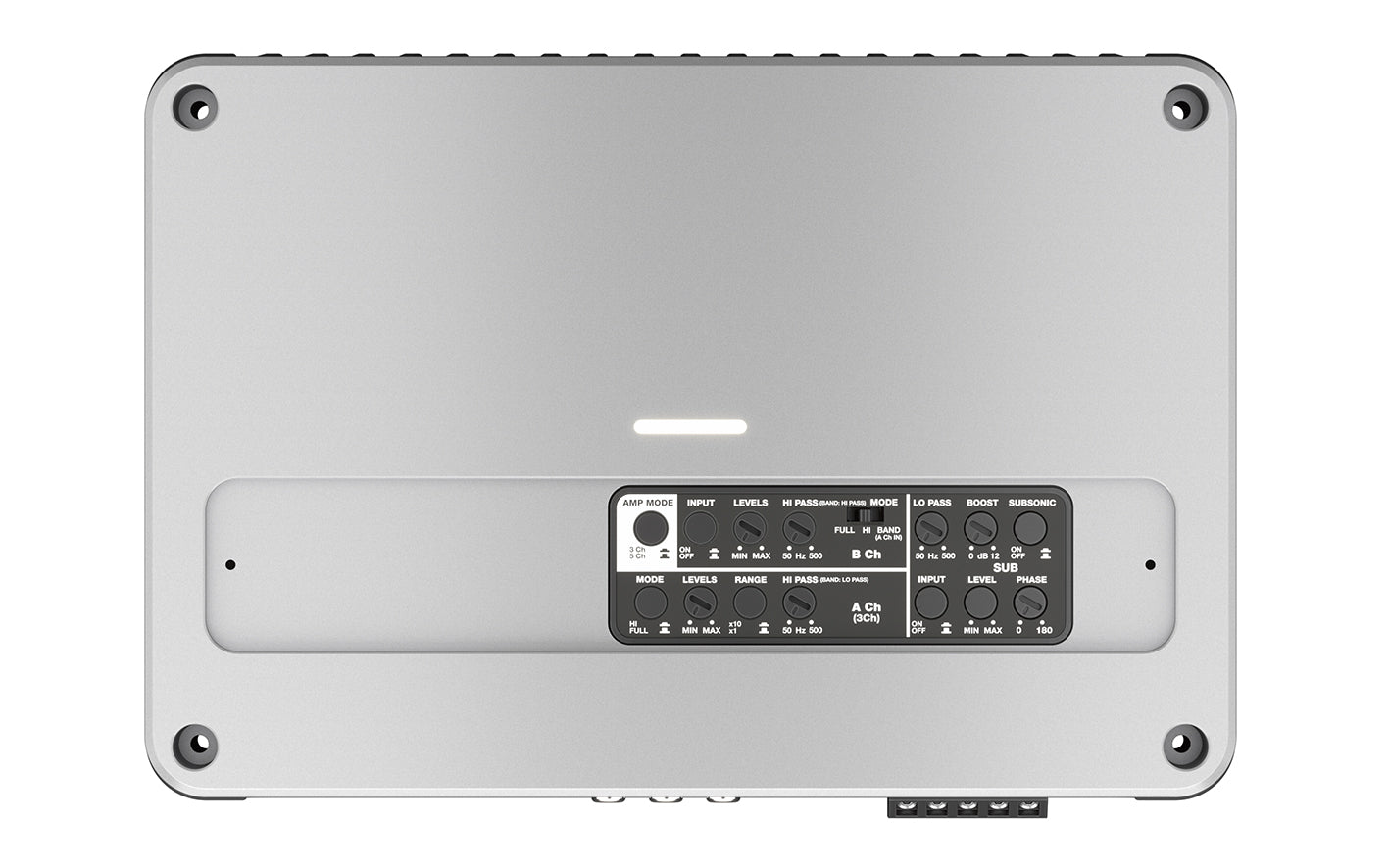

• Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
• Short-circuit, overload, and thermal protections with auto-resetting.

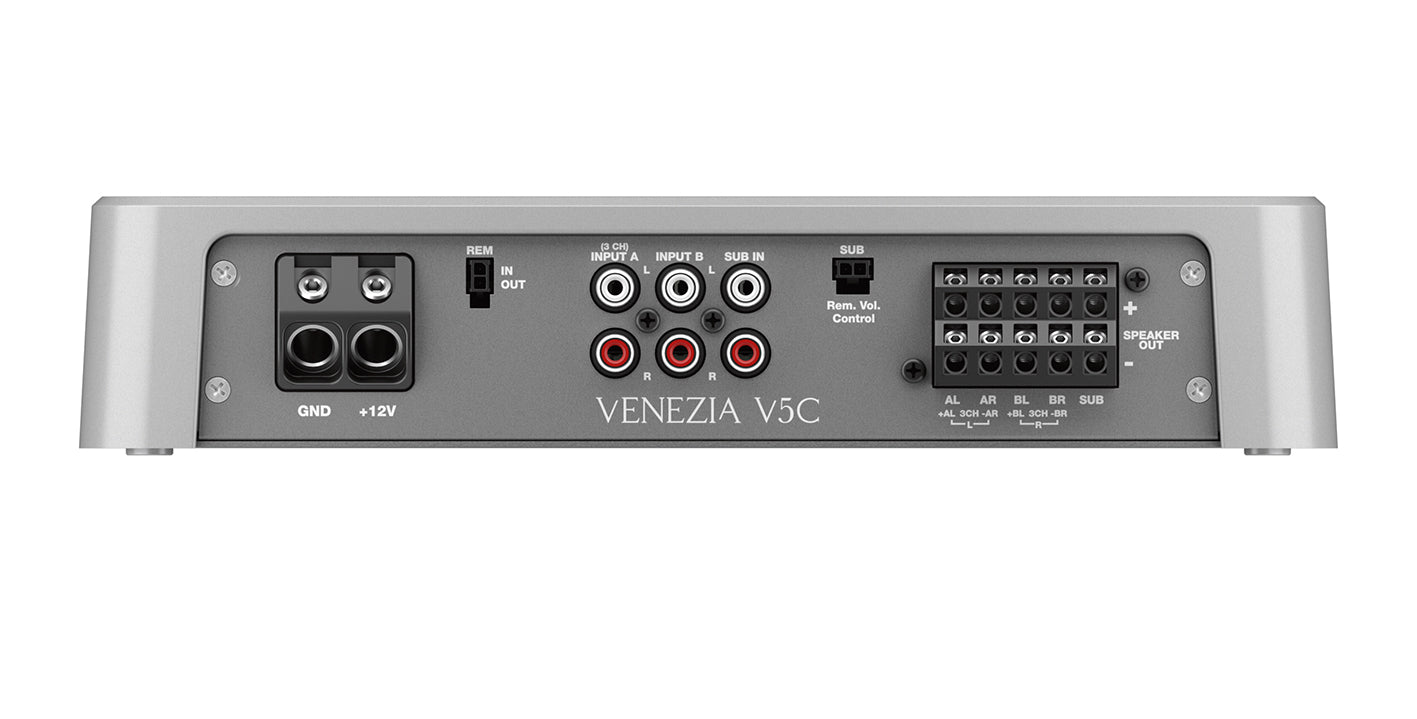

• Plug&Play Input and Output connections with safe-lock.
• Proprietary Plug&Play Power Supply Connector with safe-lock.

Technologies:

• ADC: Hertz Advanced Class D architecture maximizes efficiency and power while minimizing heat and electromagnetic radiation – without penalizing sound quality! High-powered channels with bridging capability deliver the output levels needed in the marine environment.
• Corrison Resistant: Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marinegrade (epoxy coated) PCB boards.
• Water Jet Resistant: This Hertz Marine amplifier is IPX2 certified when installed vertically with connections facing downward
• Hi-Res: Hi-Res certified performance, with an extended audio band up to 40 kHz.
• Salt-Fog Tested:

Specifications:

• Channels: 5 - 3
• Power supply voltage: 9 ÷ 16 VDC
• ldling current (power ON/OFF): 1.7 A / 0.05 mA
• Consumption @ 1Ω, 14.4 VDC (Max Musical Power): 47 A
• Remote In: 7 ÷ 15 VDC - 1 mA
• Distorsion - THD (100Hz @ 4Ω): <0,05%
• Bandwidth: 10 ÷ 42 kHz
• S/N Ratlo (A welghted @ 1 V): 100 dB
• Damping factor (100Hz @ 4Ω) >130
• Pre-ln sensitivity: 0.2 ÷ 5 VRMS
• Pre-ln impedance: 10 kΩ
• Load impedance (MIN) @5Ch: 2Ω @3Ch: 4Ω + 4Ω + 2Ω
• Weight (kg/lb): 3.72 / 8.2
• Adjustable Crossovers yes

Inputs/Filters:

• lnputs: A Ch. Pre in / B Ch. Pre in / Sub Ch. Pre in
• Pre Out: No
• A Ch. filters: Yes
• By-Pass Yes
• Hi-Pass : 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
• By-pass: Yes
• Hi-Pass: 50 ÷ 500 Hz @ 12 dB/Oct
• Band-Pass: 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
• By-pass: No
• Low-Pass: 50 ÷ 250 Hz @ 24 dB/Oct
• Phase (adjust°): (0 ÷ 180°)
• Subsonic: 25 Hz @ 24 dB/Oct
• Boost 50 Hz (adjust): (0 ÷ 12) dB

Output Power:

• OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
• 5Ch: 80 W x 4 (4Ω) + 330 x 1 (4Ω)
• 5Ch: 115 W x 4 (2Ω) + 550 W x 1 (2Ω)
• 3Ch: 230 W x 2 (4Ω) + 330 W x 1 (4Ω)
• 3Ch: 230 W x 2 (4Ω) + 550 W x 1 (2Ω)
• Total Power: 1010 W
