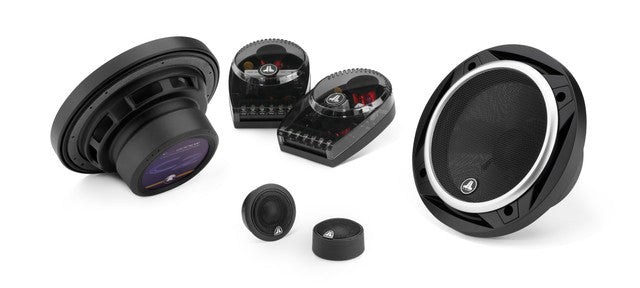

JL Audio® C2 Car Speaker System 6" Two-way Component System (C2-600)

JL Audio® C2 Car Speaker System 6" Two-way Component System (C2-600)

Unlock immaculate vocal transparency, wider acoustic soundstage dispersion, and pristine high-frequency tracking with the world-renowned speaker engineering of JL Audio. Built using proprietary technical benchmarks—including DMA-optimized long-excursion motor structures, premium silk dome tweeters, and mineral-filled cone membranes—these drivers slice right through ambient cabin wind and road noise for total sound immersion.

Product Overview & Core Highlights:

JL Audio® C2 Car Speaker System 6" Two-way Component System (C2-600)

REFINED PERFORMANCE FOR REAL-WORLD VEHICLES

COMPONENT SPEAKERS

MULTIPLE SIZES AND FLEXIBLE MOUNTING-HOLE PATTERNS FOR EASY INSTALLATION

DMA-OPTIMIZED WOOFERS FOR BETTER BASS RESPONSE

PURE SILK DOME TWEETERS FOR SMOOTHER, CLEANER SOUND

TRUE TWO-WAY OUTBOARD CROSSOVERS

1-YEAR WARRANTY



SIZES	5.25"/6"/6.5"
CONTINUOUS POWER HANDLING (RMS)	60 W
SENSITIVITY (SPL @ 1 W/1 M)	5.25": 89.0 dB 6": 90.5 dB 6.5": 91.0 dB
FREQUENCY RESPONSE (+/- 3 DB)	5.25": 63 Hz-22 KHz 6"/6.5": 59 Hz-22 KHz
NOMINAL IMPEDANCE	4 Ω
RECOMMENDED AMPLIFIER POWER (RMS)	15 - 100 W/Channel
VOICE COIL DIAMETER	1" (25 mm)
CONE MATERIAL	Mineral-filled polypropylene
TWEETER TYPE	Silk Dome
TWEETER SIZE	0.75" (19 mm)
GRILLE(S) INCLUDED
WARRANTY	1 year

Connections
SPEAKER CONNECTIONS	Spade connectors

Mounting Dimensions
FRAME OUTER DIAMETER	5.25": 5.20" (132 mm) 6": 6.21" (158 mm) 6.5": 6.5" (165 mm)
MOUNTING DEPTH CLEARANCE	5.25": 0.72" (18 mm) 6": 0.91" (23 mm) 6.5": 0.85" (22 mm)
FRONTAL GRILLE PROTRUSION	5.25": 0.72" (18 mm) 6": 0.91" (23 mm) 6.5": 0.85" (22 mm)
MOUNTING HOLE	5.25": 4.56" (116 mm) 6": 5" (127 mm) 6.5": 5.56" (141 mm)
GRILLE TRAY OUTER DIAMETER	5.25": 6.01" (153 mm) 6": 6.51" (163 mm) 6.5": 6.84" (174 mm)
MOTOR OUTER DIAMETER	5.25": 2.76" (70 mm) 6"/6.5": 3.15" (80 mm)

Tweeter Specifications
FLUSH MOUNT FIXTURE DIAMETER	1.87" (48 mm)
SURFACE MOUNT FIXTURE DIAMETER	1.69" (43 mm)
FLUSH MOUNT MOUNTING HOLE DIAMETER	1.625" (41 mm)
FLUSH MOUNT MOUNTING DEPTH	0.76" (19 mm)
FLUSH MOUNT TWEETER FRONTAL PROTRUSION	0.29" (7 mm)
SURFACE MOUNT TWEETER FRONTAL PROTRUSION	0.92" (23 mm)

Crossover Specifications
WIDTH	3.36" (85 mm)
HEIGHT	1.44" (37 mm)
DEPTH	4.72" (120 mm)

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold as a Pair (Includes 2 Matching Units)
• Manufacturer Part Number (MPN): 010-03359-00
• Product Category Component: Speakers
• Physical Hardware Sizing: 6-Inch Layout Profile
• Total Package Boxed Shipping Weight: 5.0 lbs
