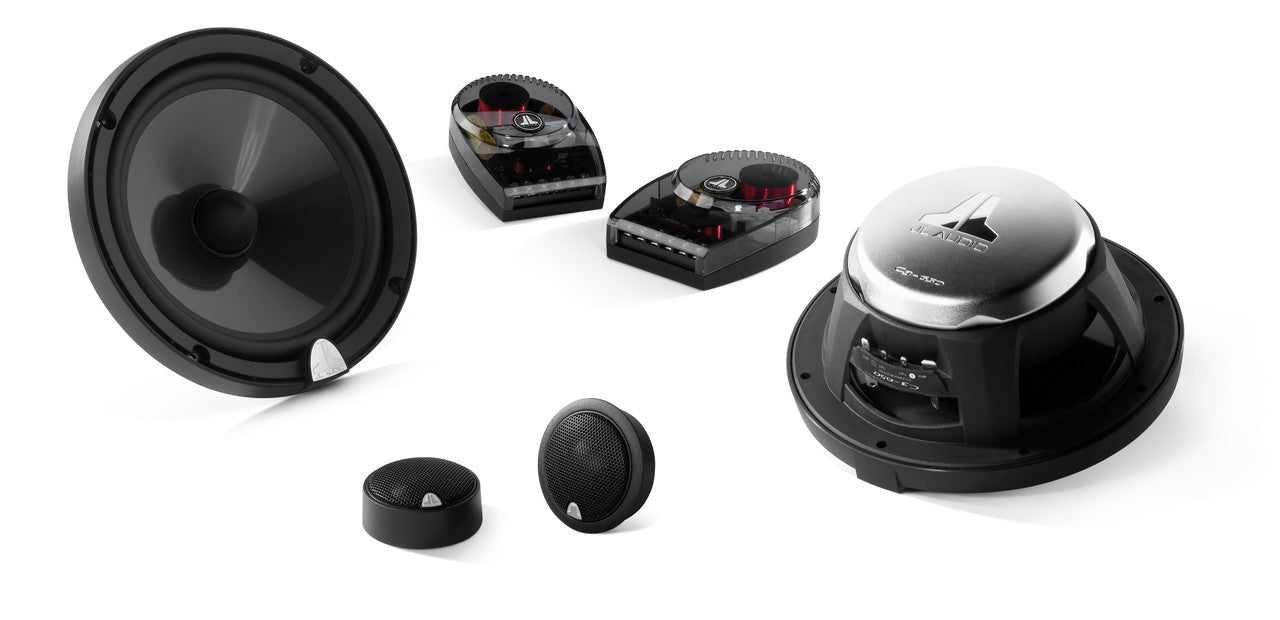

JL Audio® C3 Car Speakers 6.5" Two-way Coaxial/Component System (C3-650)

JL Audio® C3 Car Speakers 6.5" Two-way Coaxial/Component System (C3-650)

Unlock immaculate vocal transparency, wider acoustic soundstage dispersion, and pristine high-frequency tracking with the world-renowned speaker engineering of JL Audio. Built using proprietary technical benchmarks—including DMA-optimized long-excursion motor structures, premium silk dome tweeters, and mineral-filled cone membranes—these drivers slice right through ambient cabin wind and road noise for total sound immersion.

Product Overview & Core Highlights:

JL Audio® C3 Car Speakers 6.5" Two-way Coaxial/Component System (C3-650)

OUTSTANDING PERFORMANCE. MAXIMUM VERSATILITY.

CONVERTIBLE COMPONENTS FOR MORE FLEXIBLE INSTALLATIONS

ELEVATED FRAME COOLING^™SPEAKER DESIGN IMPROVES POWER HANDLING

DMA-OPTIMIZED WOOFERS FOR BETTER BASS RESPONSE

PURE SILK DOME TWEETERS FOR SMOOTHER, CLEANER SOUND

TRUE TWO-WAY OUTBOARD CROSSOVERS

1-YEAR WARRANTY



SIZES	1"/5 x 7"/5.25"/6"/6.5"
CONTINUOUS POWER HANDLING (RMS)	75 W
SENSITIVITY (SPL @ 1 W/1 M)	90 dB 6": 89.5 dB
FREQUENCY RESPONSE (+/- 3 DB)	5.25"/5 x 7"/6.5": 48 Hz-25 KHz ± 3 dB 6": 48 Hz-25 KHz 1": 4 kHz-25 KHz
NOMINAL IMPEDANCE	4 Ω
RECOMMENDED AMPLIFIER POWER (RMS)	25-150 W/Channel
VOICE COIL DIAMETER	1.2" (30 mm)
CONE MATERIAL	Mineral-filled polypropylene
TWEETER TYPE	Silk Dome
TWEETER SIZE	1" (25 mm)
GRILLE(S) INCLUDED	yes (5 x 7": no)
WARRANTY	1 year

Connections
SPEAKER CONNECTIONS	Spade connectors

Mounting Dimensions
FRAME OUTER DIAMETER	5.25": 5.80" (147 mm) 5 x 7": 5.52 x 7.68" (140 x 195 mm) 6": 6.21" (157.7 mm) 6.5": 6.5" (165 mm)
MOUNTING DEPTH CLEARANCE	5.25": 2.27" (58 mm) 5 x 7": 2.52" (64 mm) 6": 2.49" (63 mm) 6.5": 2.55" (65 mm)
FRONTAL GRILLE PROTRUSION	5.25": 1" (25 mm) 6"/6.5": 1.03" (26.2 mm)
MOUNTING HOLE	5.25": 4.56" (116 mm) 6": 5" (127 mm) 6.5": 5.56" (141 mm)
GRILLE TRAY OUTER DIAMETER	5.25": 6" (152 mm) 6": 6.46" (164.1 mm) 6.5": 6.74" (171 mm)
MOTOR OUTER DIAMETER	4.08" (104 mm) 5.25": 3.38" (86 mm)
FRONTAL COAXIAL TWEETER PROTRUSION (FRONTAL GRILLE PROTRUSION MEASURED FROM MOUNTING SURFACE)	5.25": 0.69" (18 mm) 5 x 7": 0.78" (20 mm) 6": 0.81" (20.6 mm) 6.5": 0.75" (19 mm)

Tweeter Specifications
FLUSH MOUNT FIXTURE DIAMETER	2.12" (54 mm)
SURFACE MOUNT FIXTURE DIAMETER	1.9" (49 mm)
FLUSH MOUNT MOUNTING HOLE DIAMETER	1.875" (48 mm)
FLUSH MOUNT MOUNTING DEPTH	0.71" (18 mm)
FLUSH MOUNT TWEETER FRONTAL PROTRUSION	0.32" (8 mm)
SURFACE MOUNT TWEETER FRONTAL PROTRUSION	0.95" (24 mm)

Crossover Specifications
WIDTH	3.36" (85 mm)
HEIGHT	1.44" (37 mm)
DEPTH	4.72" (120 mm)

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold as a Pair (Includes 2 Matching Units)
• Manufacturer Part Number (MPN): 010-03172-00
• Product Category Component: Speakers
• Physical Hardware Sizing: 6.5-Inch Layout Profile
• Total Package Boxed Shipping Weight: 5.0 lbs
