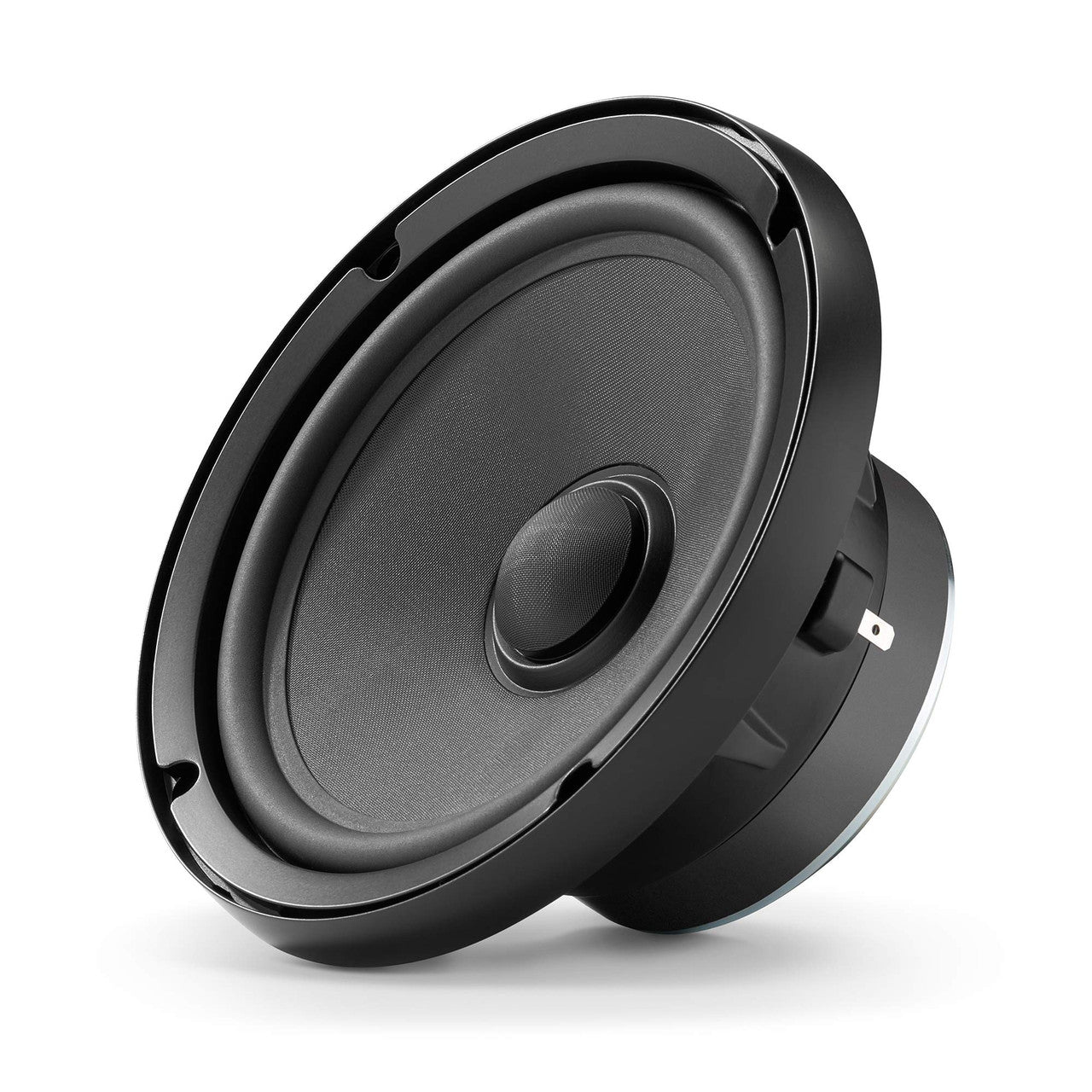

JL Audio® C6 Car Speakers 6.5" Component Woofer (Single) (C6-650cw)

JL Audio® C6 Car Speakers 6.5" Component Woofer (Single) (C6-650cw)

Unlock immaculate vocal transparency, wider acoustic soundstage dispersion, and pristine high-frequency tracking with the world-renowned speaker engineering of JL Audio. Built using proprietary technical benchmarks—including DMA-optimized long-excursion motor structures, premium silk dome tweeters, and mineral-filled cone membranes—these drivers slice right through ambient cabin wind and road noise for total sound immersion.

Product Overview & Core Highlights:

JL Audio® C6 Car Speakers 6.5" Component Woofer (Single) (C6-650cw)

BRING REFINED FIDELITY TO YOUR CAR AUDIO SYSTEM

PREMIUM COMPONENT DRIVERS FOR ACTIVE SYSTEMS

SOLD INDIVIDUALLY FOR FLEXIBLE SYSTEM DESIGN

AVAILABLE IN 3 SIZES: 6.5-INCH WOOFER; 2.75-INCH MIDRANGE; AND 1-INCH TWEETER

CAST-ALLOY WOOFER DESIGN FEATURES ELEVATED FRAME COOLING^™TECHNOLOGY

SURFACE- AND FLUSH-MOUNT FIXTURES ARE INCLUDED

1-YEAR WARRANTY



General
SIZES	1"/2.75"/6.5"
CONTINUOUS POWER HANDLING (RMS)	1": 75 W 2.75": 50 W 6.5": 100 W
SENSITIVITY (SPL @ 1 W/1 M)	1": 90 dB 2.75": 83.50 dB 6.5": 87.37 dB
SENSITIVITY (SPL @ 1 W/0.5 M)	1": 96 dB
SENSITIVITY (SPL @ 2.83 V/1 M)	1": 93 dB 2.75": 86.50 dB 6.5": 90.33 dB
FREQUENCY RESPONSE (+/- 3 DB)	1": 3 kHz-21 KHz 2.75": 350 Hz-4.8 KHz 6.5": 55 Hz-6 KHz
NOMINAL IMPEDANCE	4 Ω
RECOMMENDED AMPLIFIER POWER (RMS)	1": 25-100 W/Channel 2.75": 25-80 W/Channel 6.5": 25-150 W/Channel
VOICE COIL DIAMETER	2.75": 0.8" (20.5 mm) 6.5": 1.27" (32 mm)
CONE MATERIAL	Vacuum-formed, mineral-filled polypropylene
TWEETER TYPE	Silk Dome
TWEETER SIZE	1" (25 mm)
GRILLE(S) INCLUDED
WARRANTY	1 year

Connections
SPEAKER CONNECTIONS	Spade connectors

Mounting Dimensions
FRAME OUTER DIAMETER	2.75": 2.52" (77 mm) 6.5": 6.5" (165 mm)
MOUNTING DEPTH CLEARANCE	2.75": 1.42" (36 mm) 6.5": 2.60" (66 mm)
FRONTAL GRILLE PROTRUSION	2.75": 0.47" (12 mm) 6.5": 1" (25 mm)
MOUNTING HOLE	2.75": 2.52" (64 mm) 6.5": 5.46" (139 mm)
GRILLE TRAY OUTER DIAMETER	2.75": 3.58" (91 mm) 6.5": 6.76" (172 mm)
BOLT HOLE CIRCLE	2.75": 3.03" (77 mm) 6.5": 6.12" (156 mm)
MOTOR OUTER DIAMETER	2.75": 2.75" (69 mm) 6.5": 3.54" (90 mm)

Parameters
FREE AIR RESONANCE (FS)	1": 1500 Hz 2.75": 185 Hz 6.5": 52.8 Hz
ELECTRICAL “Q” (QES)	2.75": 0.769 6.5": 0.647
MECHANICAL “Q” (QMS)	2.75": 7.848 6.5": 5.076
TOTAL “Q” (QTS)	2.75": 0.700 6.5": 0.574
EQUIVALENT COMPLIANCE (VAS)	2.75": 0.0353 cu ft (0.125 L) 6.5": 0.532 cu ft (15.069 L)
ONE-WAY LINEAR EXCURSION (XMAX; SPECS ARE DERIVED VIA ONE-WAY VOICE COIL OVERHANG METHOD WITH NO CORRECTION FACTORS APPLIED)	2.75": 0.059" (1.50 mm) 6.5": 0.148" (3.75 mm)
REFERENCE EFFICIENCY (NO)	1": 0.602% 2.75": 0.1414% 6.5": 0.344%
MOVING MASS (MMS)	2.75": 4.65 g 6.5": 16.42 g
MECHANICAL COMPLIANCE (CMS)	2.75": 0.00031 m/N 6.5": 0.000581 m/N
MAGNETIC STRENGTH (BL)	2.75": 5.03 6.5": 5.186
EFFECTIVE PISTON AREA (SD)	2.75": 3.66 in² (0.00236 m²) 6.5": 21.4 in² (0.013807 m²)
DC RESISTANCE (RE)	1"/6.5": 3.20 Ω 2.75": 3.58 Ω

Tweeter Specifications
FLUSH MOUNT FIXTURE DIAMETER	1": 2.13" (54 mm)
SURFACE MOUNT FIXTURE DIAMETER	1": 2.11" (54 mm)
FLUSH MOUNT MOUNTING HOLE DIAMETER	1": 1.85" (47 mm)
FLUSH MOUNT MOUNTING DEPTH	1": 1.85" (47 mm)
FLUSH MOUNT TWEETER FRONTAL PROTRUSION	1": 0.30" (8 mm)
SURFACE MOUNT TWEETER FRONTAL PROTRUSION	1": 1.04" (26 mm)

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold as a Pair (Includes 2 Matching Units)
• Manufacturer Part Number (MPN): 010-03389-00
• Product Category Component: Speakers
• Physical Hardware Sizing: 6.5-Inch Layout Profile
• Total Package Boxed Shipping Weight: 5.0 lbs
