JL Audio® JD Car System Amplifier 5-Channel System Amplifier (700 W) (JD700/5)
Command your vehicle's audio soundstage and deliver continuous, audiophile-grade electrical current with the advanced high-current marine and car amplifiers of JL Audio. Packed with signature technical architectures—such as ultra-efficient Class-D engineering or highly adaptable multi-zone digital signal distributions—these state-of-the-art powerhouses feed massive clean headroom with zero system background noise.
Product Overview & Core Highlights:

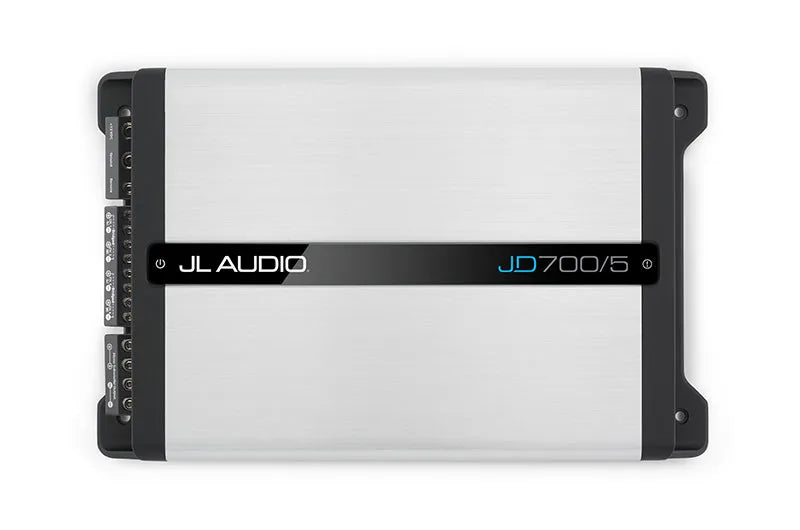

5-Channel System Amplifier (700 W) (JD700/5)
PART NUMBER 010-03883-00
THE AMP THAT DOES IT ALL
Power your entire system with this 5-channel system amplifier that combines a 4-channel full-range and monoblock subwoofer amplifier in one single, easy-to-install package. A generous feature set adds even more value.
General |
|
| Channels | 5 |
|---|---|
| Physical dimensions (Height) | 2.10" (53 mm) |
| Physical dimensions (Width) | 11.86" (242 mm) |
| Physical dimensions (Depth) | 7.50" (190 mm) |
| Weight |
6.55 lbs (2.97 kg) |
| Operating voltage | 10.5-16 VDC |
| Warranty | 2 years |
Audio |
|
| Amplifier class | Class D |
|---|---|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) |
Main: 75 W x 4 |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) |
Main: 100 W x 4 |
| Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) |
Main: 60 W x 4 |
| Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) |
Main: 90 W x 4 |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels | >104 dB |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel | >80 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels | >84 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel | >60 dB |
| Damping factor @ 4 Ω | >150/50 Hz |
| Damping factor @ 2 Ω | >75/50 Hz |
| THD+N @ Rated Power: Main Channels | <1% @ 2 Ω per Channel |
| THD+N @ Rated Power: Subwoofer Channel | <1% @ 2 Ω per Channel |
| Frequency response (+0, -1dB) | 12 Hz-22 kHz |
| Frequency response (+0, -1dB): Main Channels | 12 Hz-22 kHz |
| Frequency response (+0, -1dB): Subwoofer Channel | 7 Hz-500 Hz |
| Input voltage range @ RCA inputs | Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| Fuse rating | 40 A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuse™ |
| Min. copper power/Ground wire gauge | 4 AWG wire |
| Protection circuits | Input under/over voltage Over temperature Output short circuit |

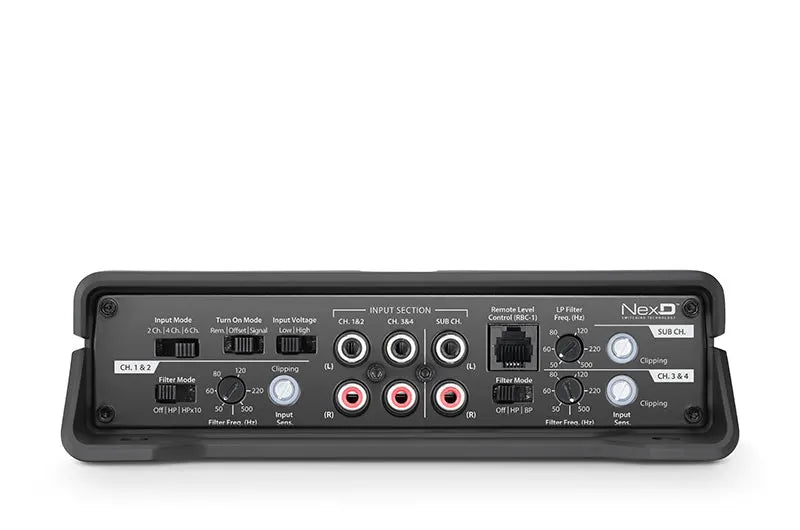

Signal Processing |
|
| Filter mode(s): Channels 1 & 2 | Off, Low-pass or High-pass x10 |
|---|---|
| Filter Slope(s): Channels 1 & 2 | 12 dB/octave |
| Filter frequency range: Channels 1 & 2 | 50 Hz-500 Hz (x10: 500 Hz-5 kHz) |
| Filter mode(s): Channels 3 & 4 | Off, High-pass or Bandpass |
| Filter Slope(s): Channels 3 & 4 | 12 dB/octave |
| Filter frequency range: Channels 3 & 4 | 50 Hz-500 Hz |
| Filter mode(s): Subwoofer Channel | Off or Low-pass only |
| Filter slope(s): Subwoofer Channel | 12 dB/octave |
| Filter frequency range: Subwoofer Channel | 50 Hz-500 Hz |
| Bass boost | |
| Bass boost EQ (0 to +12 dB @ 45 Hz) | |
| Remote level control | Optional (RBC-1) |
| Remote level modes | Sub Channel only |
| Channel input mode switch | yes (2/4/6 Channels) |
🚨 Critical Performance Specifications:
- Package Quantity Configuration: Sold Individually (Includes 1 Premium Component Unit)
- Manufacturer Part Number (MPN): 010-03883-00
- Product Category Component: Amplifiers
- Physical Hardware Sizing: 0-Inch Layout Profile
- Continuous Power Handling (RMS): 700 Watts RMS
- Nominal Circuit Resistance Stability: 4 Ohms
- Total Package Boxed Shipping Weight: 7.0 lbs
