JL Audio® LoC™ 22 Car Line Output Converter (LoC-22)
Complete your ultimate high-fidelity mobile build and protect your electrical circuitry pathways from current strain with the professional-grade audio installation accessories from JL Audio. Manufactured from high-purity conductor matrices with heavy weatherized insulation jackets, these support components lock down ultra-low resistance power delivery for maximum system reliability.
Product Overview & Core Highlights:
JL Audio® LoC™ 22 Car Line Output Converter (LoC-22)
GREAT AUDIO STARTS WITH A CLEAN SIGNAL
An affordable, high-quality alternative to passive line output converters, the LoC 22 is an active two-channel system engineered for applications requiring the attenuation of factory audio signals for use with aftermarket amplifiers and signal processors. LoC 22 features a differential-balanced input architecture, making it compatible with virtually any analog audio signal.
FULLY ACTIVE SPEAKER LEVEL TO LINE OUTPUT CONVERTER
AUTOMATICALLY TURN ON AFTERMARKET PROCESSORS OR AMPLIFIERS WITH DEDICATED 12-VOLT SWITCH

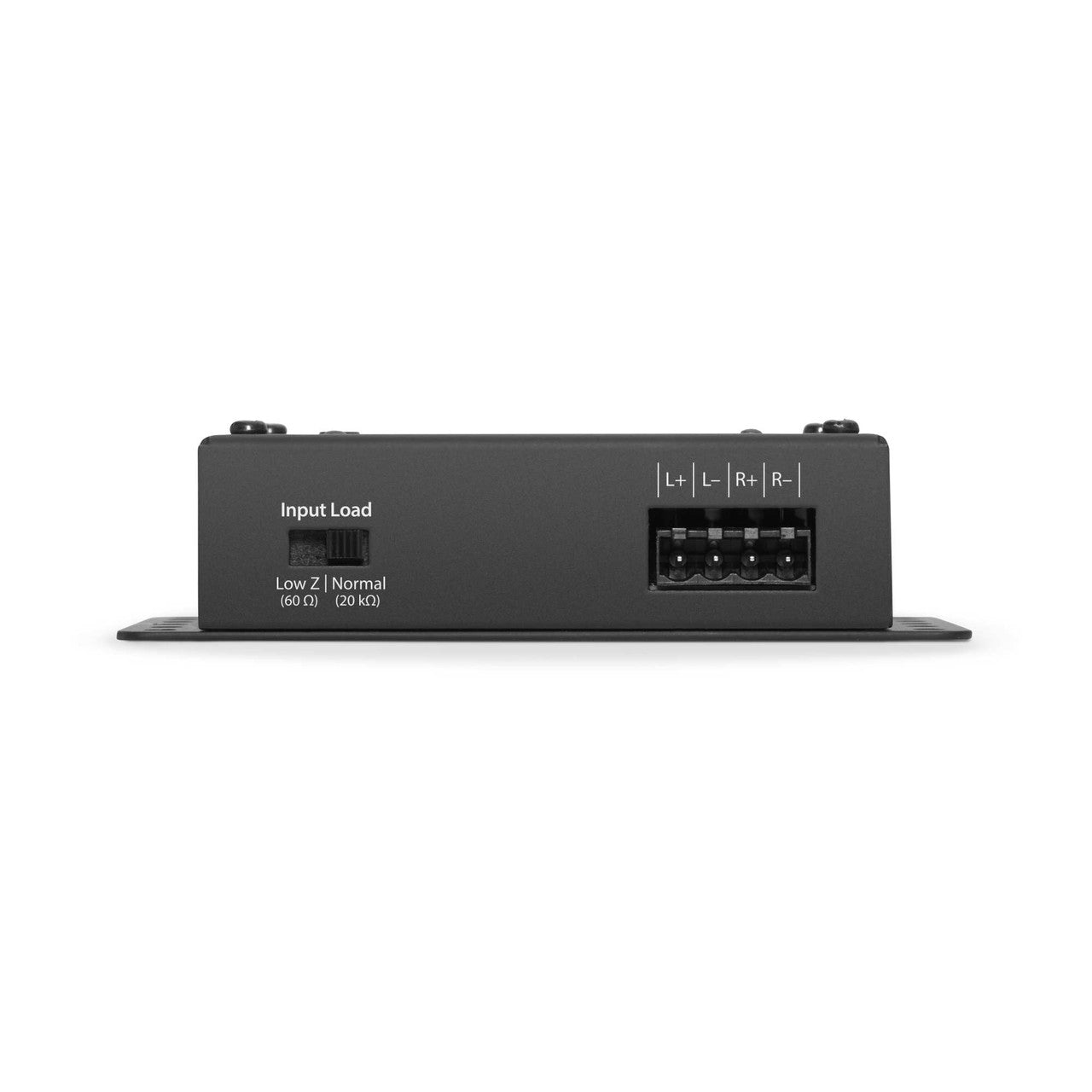

DUAL-RANGE INPUT LOAD SELECTOR FOR OPTIMUM OEM COMPATIBILITY
LED CLIPPING INDICATOR HELPS STREAMLINE OUTPUT LEVEL SETTINGS
ULTRACOMPACT CHASSIS DESIGN FITS JUST ABOUT ANYWHERE
2-YEAR WARRANTY
| INPUT CHANNELS | 2 |
|---|---|
| OUTPUT CHANNELS | 2 |
| PHYSICAL DIMENSIONS (HEIGHT) | 1.23" (31 mm) |
| PHYSICAL DIMENSIONS (WIDTH) | 4.72" (120 mm) |
| PHYSICAL DIMENSIONS (DEPTH) | 3.04" (77 mm) |
| WEIGHT |
2.58 lbs (1.17 kg) |
| POWER SUPPLY TYPE | Switching, MOSFET PWM, Regulated |
| WARRANTY | 2 years |
| OPERATING VOLTAGE | 9-16 VDC |
Audio |
|
| SIGNAL-TO-NOISE RATIO @ 2 V (RMS) | Gain at Min: 118 dB Gain at Max: 103 dB (20 kHz Bandwidth) |
|---|---|
| THD+N @ RATED POWER | 0.01% at 2V RMS (1kHz) |
| FREQUENCY RESPONSE (+0, -1DB) | 3 Hz-32 kHz |
| INPUT VOLTAGE RANGE @ RCA INPUTS | 40V RMS per Channel (maximum) |
| INPUT TYPE | Differential-balanced |
| INPUT IMPEDANCE | Normal: 20kΩ Low Z: 20Ω |
| ANALOG OUTPUT | Unbalanced, stereo RCA jacks |
| MAXIMUM UNCLIPPED OUTPUT (RMS) | 8 V |
| OUTPUT IMPEDENCE | 450 Ω |
| GAIN RANGE | -27.3 dB (full CCW) to +3.2 dB (full CW) |
| CURRENT CONSUMPTION (STANDBY) | <1.6 mA |
| CURRENT CONSUMPTION (IDLE) | 0.13 A at 13.8V |
| FUSE RATING | 1 A |
| RECOMMENDED FUSE TYPE(S) | Fast-acting, ATO/ATC or similar |
🚨 Critical Performance Specifications:
- Package Quantity Configuration: Sold Individually (Includes 1 Premium Component Unit)
- Manufacturer Part Number (MPN): 010-03328-00
- Product Category Component: Installation Accessories & Wiring
- Physical Hardware Sizing: 23-Inch Layout Profile
- Total Package Boxed Shipping Weight: 1.0 lbs
