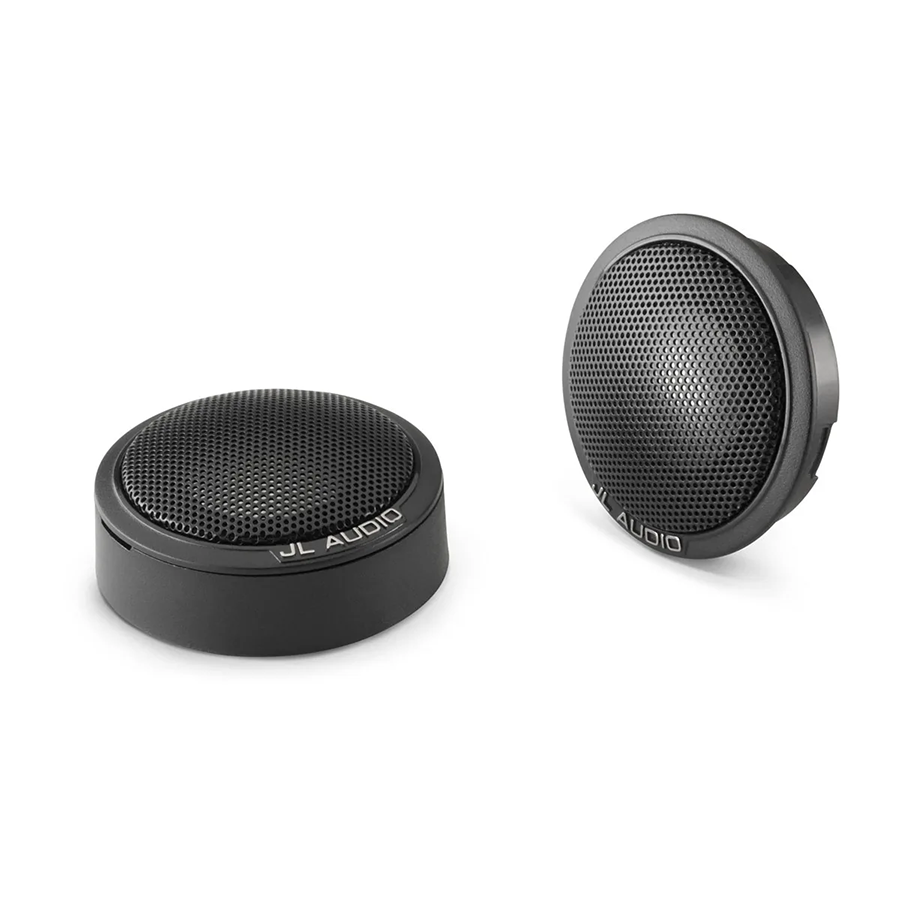

JL Audio 1" C1 Car Tweeter

JL Audio 1" C1 Car Tweeter

Unlock immaculate vocal transparency, wider acoustic soundstage dispersion, and pristine high-frequency tracking with the world-renowned speaker engineering of JL Audio. Built using proprietary technical benchmarks—including DMA-optimized long-excursion motor structures, premium silk dome tweeters, and mineral-filled cone membranes—these drivers slice right through ambient cabin wind and road noise for total sound immersion.

Product Overview & Core Highlights:

JL Audio 1" C1 Car Tweeter

Experience superior performance with the JL Audio C1 component tweeters. These tweeters offer outstanding off-axis response and extended high-frequency reproduction. Featuring true, edge-driven aluminum domes with silk suspensions, they deliver detailed treble frequencies. Whether flush-mounted or surface-mounted using the included fixtures, the C1 tweeters are versatile for various installation needs.

Specs

• Size 1"
• Continuous power handling (RMS) 60 W
• Sensitivity (SPL @ 1 W/1 m) 91.5 dB
• Frequency response (+/- 3 dB) 3.6 kHz-22 KHz
• Recommended amplifier power (RMS) 20-60 W/Channel
• Cone material Mineral-filled polypropylene
• Tweeter type Aluminum Dome
• Flush mount fixture diameter 1.97" (50 mm)
• Surface mount fixture diameter 2.01" (51 mm)
• Flush mount mounting hole diameter 1.75" (45 mm)
• Flush mount mounting depth 0.40" (10 mm)
• Flush mount tweeter frontal protrusion 0.32" (8 mm)
• Surface mount tweeter frontal protrusion 0.87" (22 mm)

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold as a Pair (Includes 2 Matching Units)
• Manufacturer Part Number (MPN): 010-03354-00
• Product Category Component: Speakers
• Physical Hardware Sizing: 1-Inch Layout Profile
• Total Package Boxed Shipping Weight: 5.0 lbs
