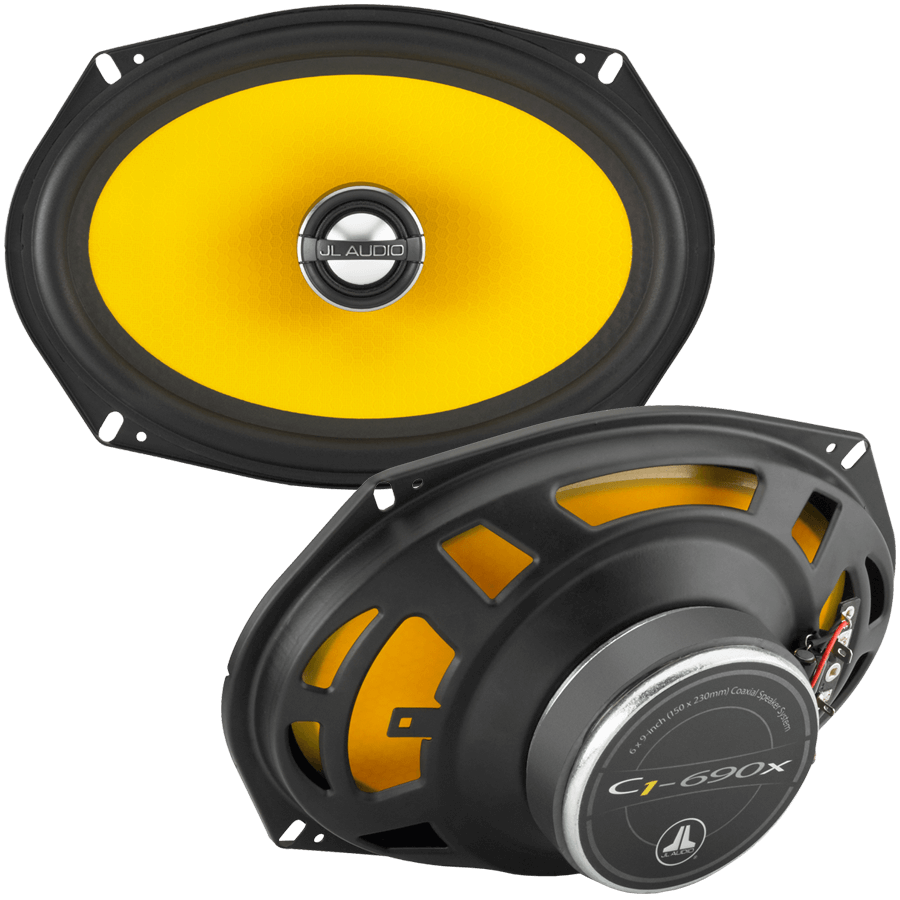

JL Audio 6" x 9" 2-Way Coaxial C1 Car Speakers C1690X

JL Audio 6" x 9" 2-Way Coaxial C1 Car Speakers C1690X

Unlock immaculate vocal transparency, wider acoustic soundstage dispersion, and pristine high-frequency tracking with the world-renowned speaker engineering of JL Audio. Built using proprietary technical benchmarks—including DMA-optimized long-excursion motor structures, premium silk dome tweeters, and mineral-filled cone membranes—these drivers slice right through ambient cabin wind and road noise for total sound immersion.

Product Overview & Core Highlights:

JL Audio 6" x 9" 2-Way Coaxial C1 Car Speakers

INCREDIBLE PERFORMANCE. UNBEATABLE PRICE.

Get loud sound with minimal distortion. JL Audio C1 speakers are available in a wide variety of sizes, and fit easily behind the factory grilles of most vehicles.

Key Features

• Easily install in most factory speaker locations
• DMA-optimized woofers for better bass response
• Aluminum dome tweeters

Features

• DMA-OPTIMIZED WOOFERS Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality.
• REAL DOME TWEETERS True edge-driven aluminum dome tweeters with silk surround suspension create crystal-clear sound.
• TWEETER PROTECTION All coaxial systems include onboard second-order high-pass filters.
• NEAR-UNIVERSAL FIT Moderate mounting depths drop into most OEM locations. Minimal tweeter protrusion fits behind factory grilles. Breakaway tabs, adapter rings and spacer rings (depending on model) all aid in fitting into factory locations.

Specs

• Size 6x9"
• Continuous power handling (RMS) 60 W
• Sensitivity (SPL @ 1 W/1 m) 91.5 dB
• Frequency response (+/- 3 dB) 39 Hz-22 KHz
• Nominal impedance 4
• Recommended amplifier power (RMS) 10-100 W/Channel
• Voice coil diameter 1.2" (30 mm)
• Cone material Mineral-filled polypropylene
• Tweeter type Aluminum Dome
• Tweeter size 1" (25 mm)
• Frame outer diameter 6.38 x 9.33" (162 x 237 mm)
• Mounting depth clearance 2.75" (70 mm)
• Motor outer diameter 3.54" (90 mm)
• Frontal coaxial tweeter protrusion (frontal grille protrusion measured from mounting surface) 0.41" (10 mm)

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold as a Pair (Includes 2 Matching Units)
• Manufacturer Part Number (MPN): 010-03351-00
• Product Category Component: Speakers
• Physical Hardware Sizing: 6-Inch Layout Profile
• Total Package Boxed Shipping Weight: 5.0 lbs
