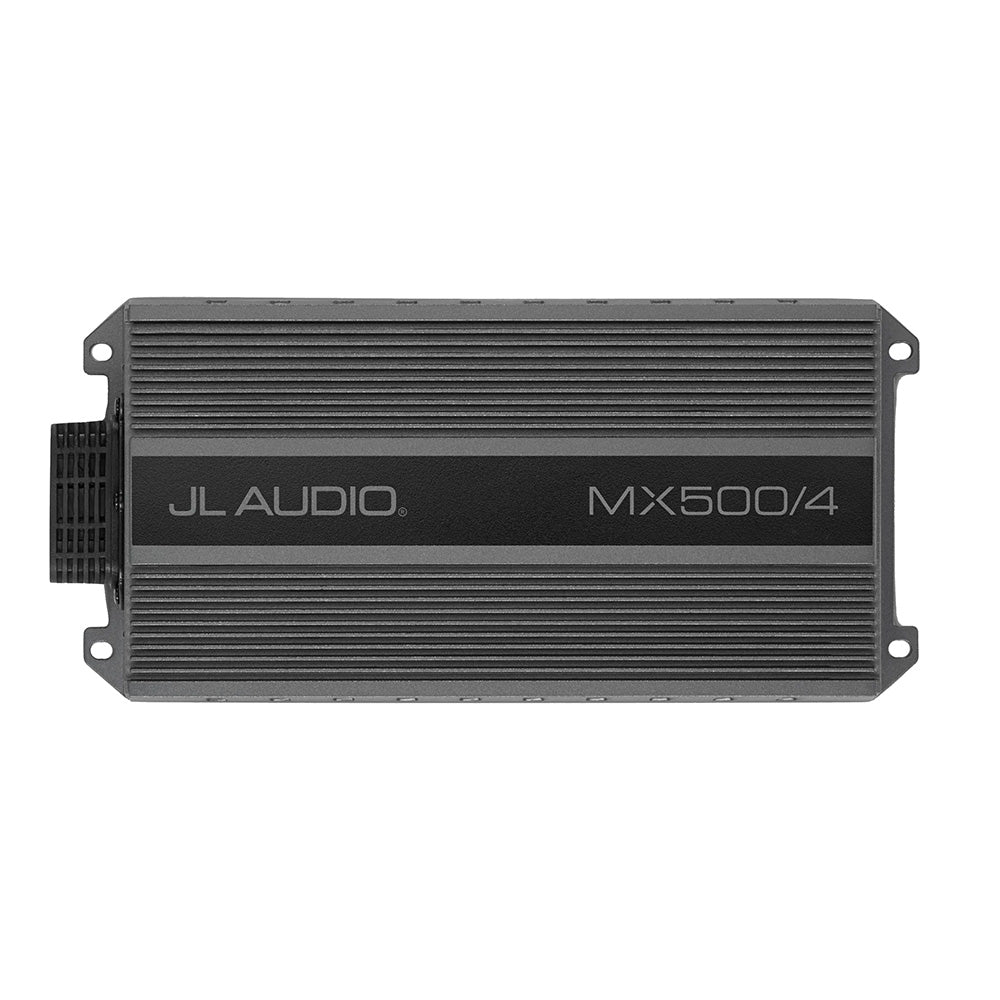

JL Audio MX Series 500w 4 Channel Full-Range Amplifier - MX500/4

JL Audio MX Series 500w 4 Channel Full-Range Amplifier - MX500/4

Command your vehicle's audio soundstage and deliver continuous, audiophile-grade electrical current with the advanced high-current marine and car amplifiers of JL Audio. Packed with signature technical architectures—such as ultra-efficient Class-D engineering or highly adaptable multi-zone digital signal distributions—these state-of-the-art powerhouses feed massive clean headroom with zero system background noise.

Product Overview & Core Highlights:

MX Series 500w 4 Channel Full-Range Amplifier - MX500/4

125 W x 4 @ 2 Ω / 70 W x 4 @ 4 Ω - 14.4V

Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATVs, or other utility vehicles.

Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 Premium Component Unit)
• Manufacturer Part Number (MPN): 010-03106-00
• Product Category Component: Amplifiers
• Physical Hardware Sizing: 4-Inch Layout Profile
• Continuous Power Handling (RMS): 500 Watts RMS
• Nominal Circuit Resistance Stability: 4 Ohms
• Total Package Boxed Shipping Weight: 4.2 lbs
