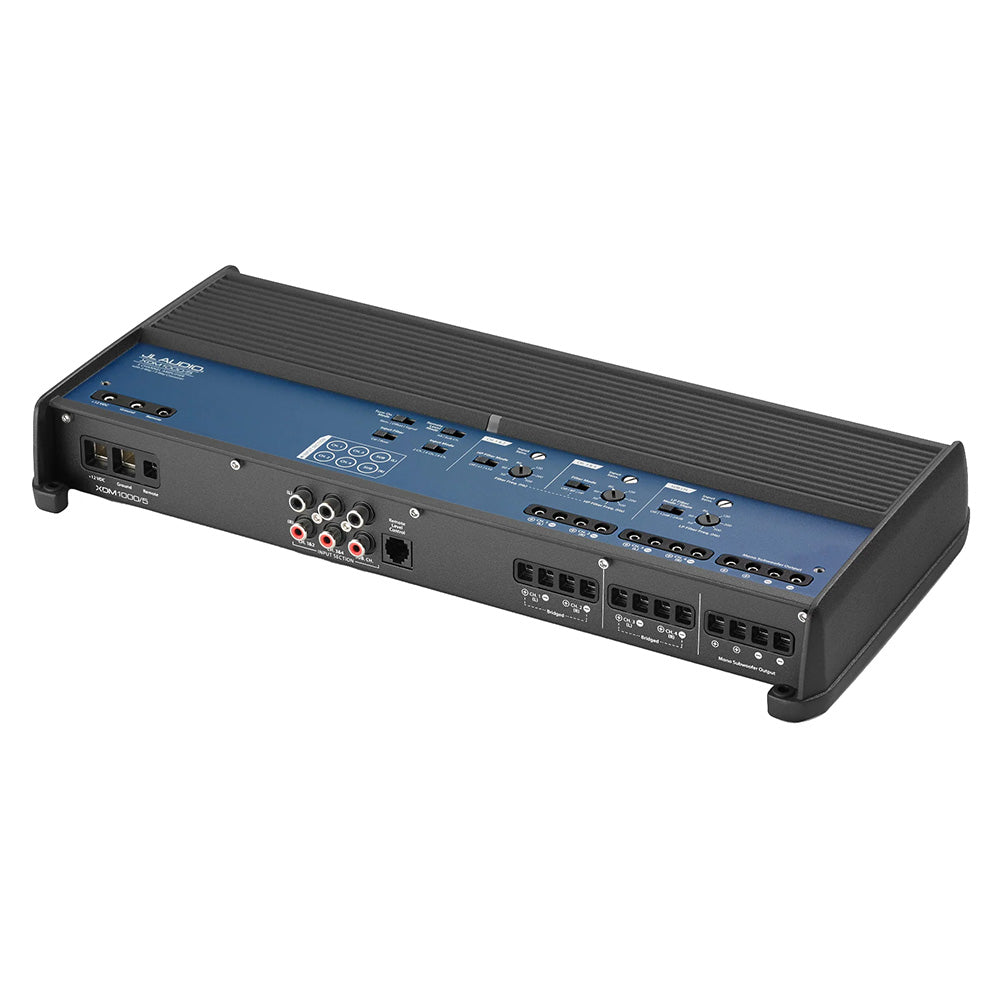

JL Audio XDM Series 1000w 5 Channel Amplifier - XDM1000/5

JL Audio XDM Series 1000w 5 Channel Amplifier - XDM1000/5

Command your vehicle's audio soundstage and deliver continuous, audiophile-grade electrical current with the advanced high-current marine and car amplifiers of JL Audio. Packed with signature technical architectures—such as ultra-efficient Class-D engineering or highly adaptable multi-zone digital signal distributions—these state-of-the-art powerhouses feed massive clean headroom with zero system background noise.

Product Overview & Core Highlights:

XDM Series 1000w 5 Channel Amplifier - XDM1000/5

100 W x 4 @ 2 Ω + 600 W x 1 @ 2 Ω - 14.4V

The XDM1000/5 delivers up to 1000 W of clean power and is ideal for an audiophile-grade, subwoofer + four satellite system. With this potent powerhouse, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also generating a stout 600 W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is our high-speed NexD™ switching amplifier design.

Suitable for car or boat installations, the XDM1000/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

The XDM1000/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm.

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 Premium Component Unit)
• Manufacturer Part Number (MPN): 010-03113-00
• Product Category Component: Amplifiers
• Physical Hardware Sizing: 10-Inch Layout Profile
• Continuous Power Handling (RMS): 1000 Watts RMS
• Total Package Boxed Shipping Weight: 8.7 lbs
