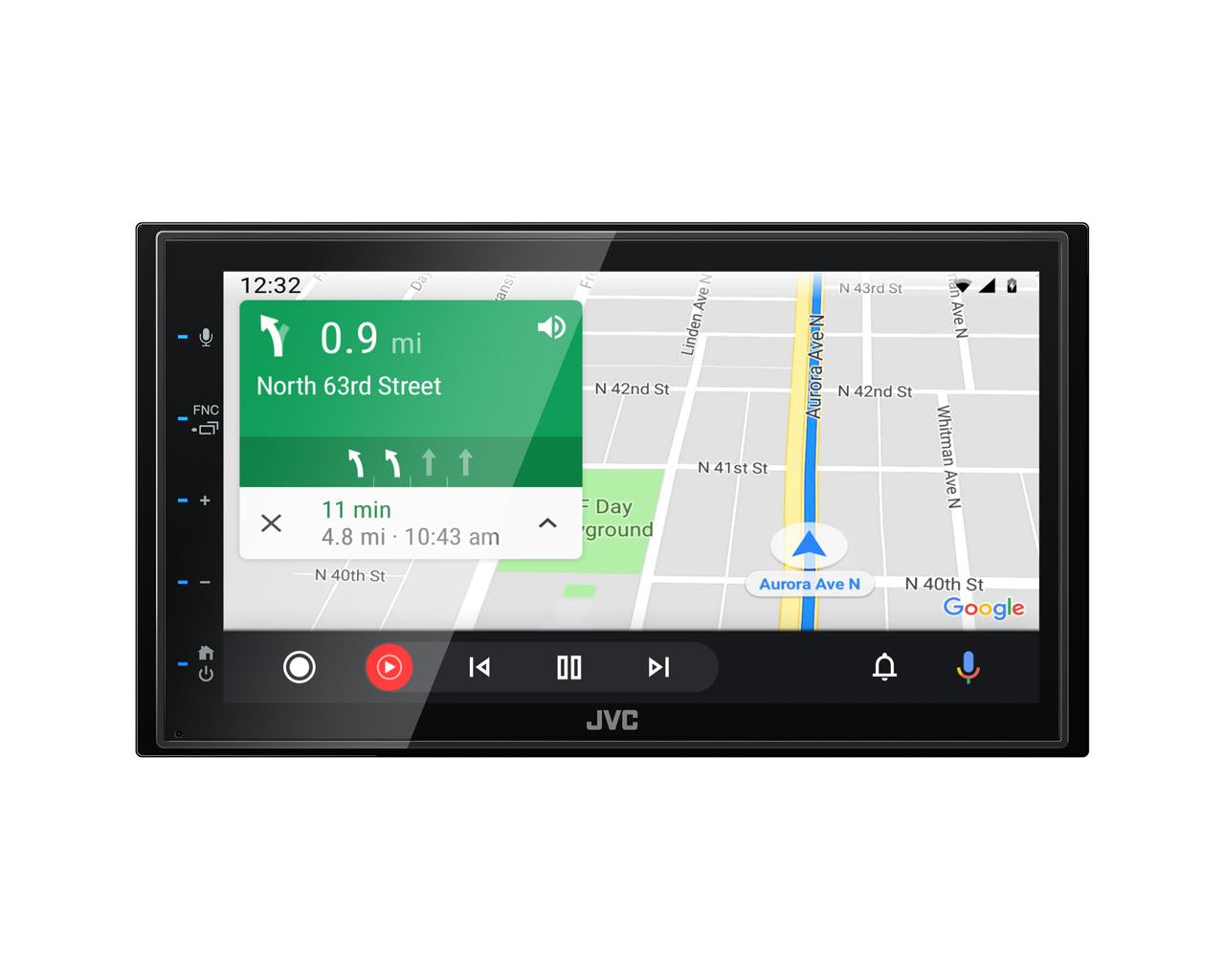

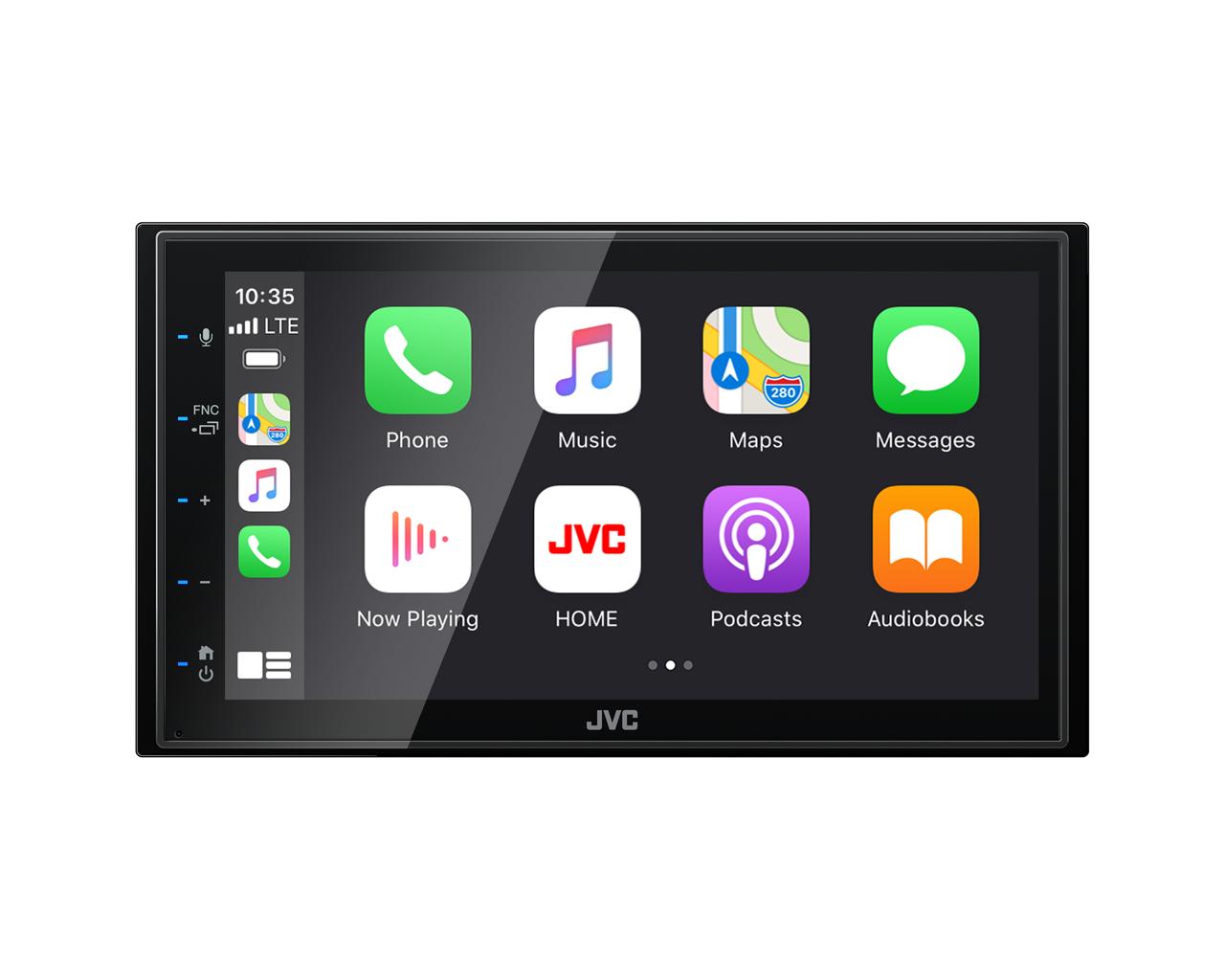

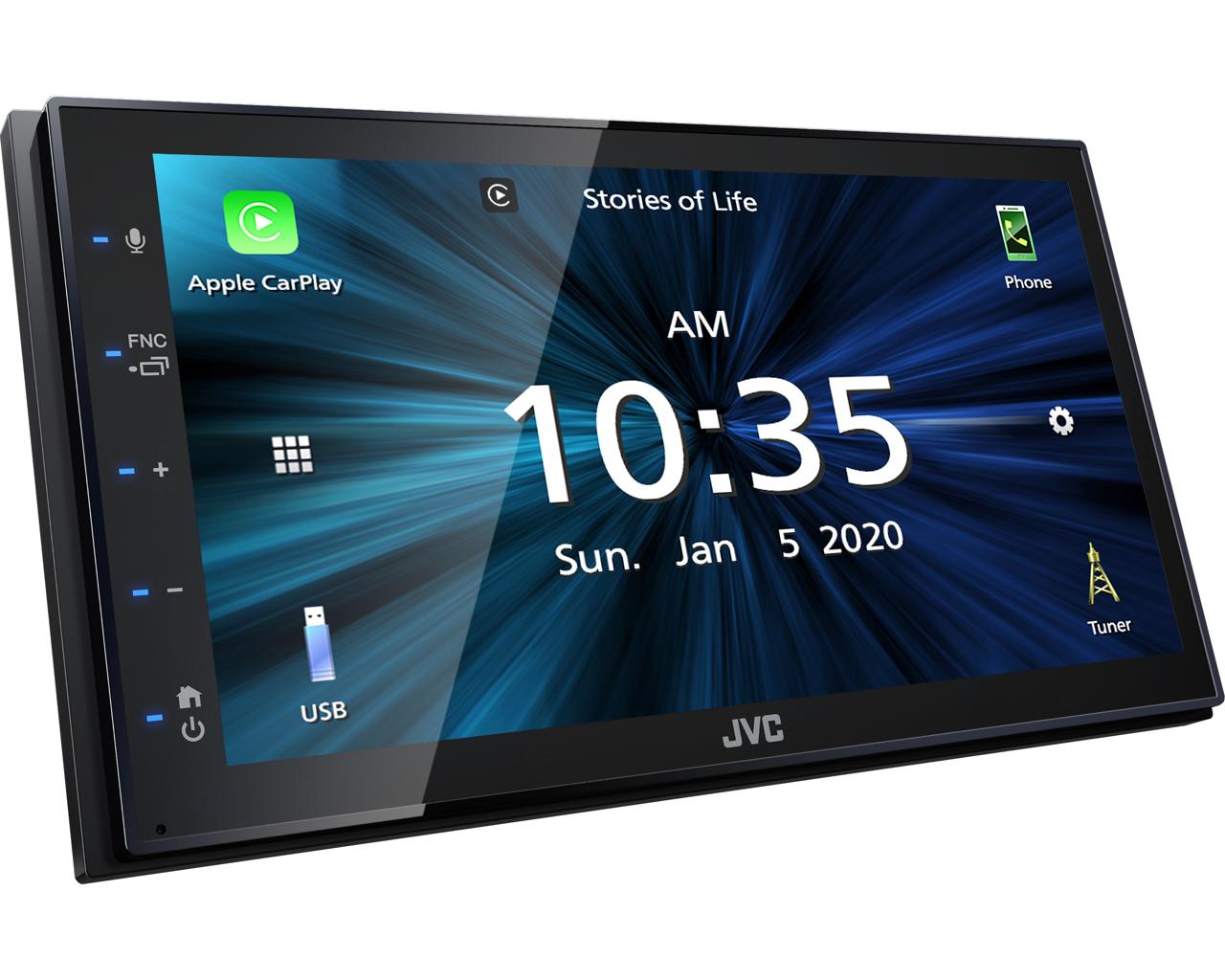

JVC KW-M560BT Car Play and Android Auto Stereo - SDEOL - Showroom Demo

Monitor

Screen Size

6.8 inches (diagonal) wide

Gesture Touch Control

Yes

Panel Type

WVGA Capacitive

Key Illumination Colour

Blue

Dimmer

Yes

Customizable GUI

Yes

Multilingual Display

Yes, , English / Spanish / French

Radio Tuner

Preset Stations

20(FM:15ch, AM:5ch)

SiriusXM Ready

Yes

Radio Data Broadcast System (RBDS)

Yes

FM Frequency Range

87.9 - 107.9MHz

AM Frequency Range

530-1,700kHz

Media Playback

MP3 Compatible with Tag

USB

WMA Compatible with Tag

USB

WAV Compatible with Tag

USB

AAC Compatible with Tag

USB

FLAC Compatible with Tag

USB

MPEG-1 / MPEG-2 Compatible

USB

MPEG-4 Compatible

USB

WMV Compatible

USB

H.264 Compatible

USB

AVI/MKV Compatible

USB

USB

USB Port(s)

x 1

Position

Rear

1.5A Max. Power Supply Current

Yes

Bluetooth®

Built-In Bluetooth®

Yes (Wired-Mic included)
* Available functions depend on mobile phone.

Audio Codec

AAC / SBC

Auto Pairing for iPhone / Android

Yes (Android only)

Hands Free Call (HFP)

Yes (HFP 1.6 wideband speech)

Audio/Video Remote Control Profile (AVRCP)

Yes

Phone Book Access Profile (PBAP)

Yes

Alphabetical Search for Phone Book

Yes

Voice Dialing_

Yes
* Voice recognition compatible mobile phone required

Android Control

Android Auto

Yes (via USB)
* To use Android Auto on your car display, you'll need an Android phone running Android 6 or higher, an active data plan, and the Android Auto app. The service may not be available in certain countries.

Mirroring for Android

Yes

Wired mirroring

Yes, via USB
＊Need mirroring App

Android Music Playback

Yes (via Bluetooth(R))

iPod/iPhone Control

Apple CarPlay

Yes (via USB)
*Supported on iPhone XR, iPhone XS, iPhone XS Max, iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 12, iPhone 12 mini, iPhone 12 Pro, iPhone 12 Pro Max, iPhone 13, iPhone 13 mini, iPhone 13 Pro, iPhone 13 Pro Max, iPhone SE (2nd generation), and Apple Watch Series 5 or later. The service may not be available in certain countries.

Audio

Maximum Power Output (Front & Rear)

50Wx4

Full Bandwidth Power (at less than 1%THD)

22W x 4

13-Band Graphic EQ

Yes

Preset EQ

Yes (7Preset + 3user)

High-Pass Filter/Low-Pass Filter

Yes/Yes

Time Alignment

Yes

Bass Boost (Hyper Bass System)

Yes

Bass Boost (Hyper Bass System)

Yes

Inputs and Outputs

Pre-Out Terminals

2 Preouts (Terminal) + Sub WF (Cable)

Pre-Out Terminals

2 Preouts (Terminal) + Sub WF (Cable)

Pre-Output Level

2.0V / 10k ohms

Subwoofer Output with Level/Frequency Control

Yes

AV Input

mini jack

Video Out

RCA

Rear view camera Input

Yes

General

Back Up Memory

Yes

Wireless Remote Control

Ready (RM-RK258 required)

Wired Steering Remote Control Ready

Yes

Short Chassis

Yes

ISO Connector

Yes

Installation Size (W x H x D)

7" x 3-15/16" x 2-15/16" (178 x 100 x 75 mm)

Unit weight in individual package

4.0 lbs. (1.8kg)
