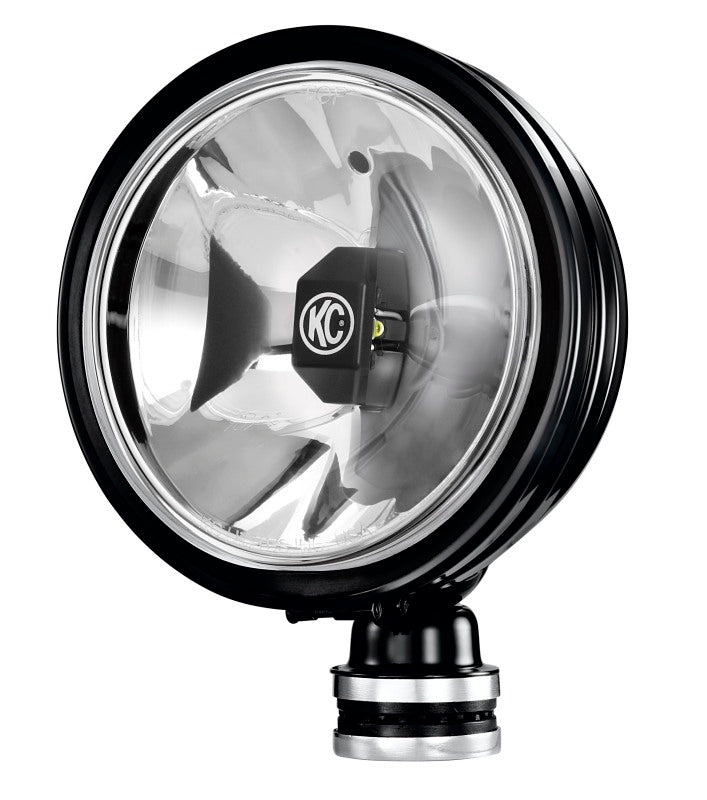

KC HiLiTES 6-Inch Gravity G6 LED Daylighter Light, 20W SAE/ECE Driving Beam, Black Steel Housing - KCL1653

FEATURES-20W Gravity LED G6 optical insert -Black Powder Coated Steel housing -Hard Coated Polycarbonate Lens -Driving Beam Pattern LIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 2,300 lm -Lux @ 10 Meters: 1,310 lx -Candela: 131,000 cd -Beam Distance (Meters): 724m SPECIFICATIONS(PER LIGHT)-Wattage: 20W -LED Source: CREE XPL HD LED -Amp Draw: 1.63A -Voltage: 9V-32V -IP Rating: IP68 -Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38" GRAVITY GRD EXTREME OUTPUT AND EFFICIENCY Gravity Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1,310 lx @10m using only 1.63A per light. Our patented GRD (Gravity Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward. AVAILABLE BEAM PATTERN AND ADVANTAGES Different beam patterns offer advantages depending on your specific lighting needs. Driving Beam- SAE & ECE street legal beams provide added peripheral visibility and while reaching further than stock lights. ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency. RACE PROVEN STRENGTH & DURABILITY The race-proven steel housing combined with our IP68 rated Gravity G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains. KC Hilites 6" Gravity LED Daylighter feature bright CREE LEDs in a SAE legal driving beam pattern. Black steel housing and polycarbonate lens with FLEXible base for accurate aiming. FEATURES-20W Gravity LED G6 optical insert-Black Powder Coated Steel housing-Hard Coated Polycarbonate Lens-Driving Beam Pattern LIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 2;300 lm-Lux @ 10 Meters: 1;310 lx-Candela: 131;000 cd-Beam Distance (Meters): 724m SPECIFICATIONS(PER LIGHT)-Wattage: 20W-LED Source: CREE XPL HD LED-Amp Draw: 1.63A-Voltage: 9V-32V-IP Rating: IP68-Product Dimensions: W-6.22in. x H-8.42in. x D-5.38in. GRAVITY GRD EXTREME OUTPUT AND EFFICIENCY Gravity Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1;310 lx @10m using only 1.63A per light. Our patented GRD (Gravity Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward. AVAILABLE BEAM PATTERN AND ADVANTAGES Different beam patterns offer advantages depending on your specific lighting needs. Driving Beam-SAE/ECE street legal beams provide added peripheral visibility and while reaching further than stock lights. ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency. RACE PROVEN STRENGTH/DURABILITY The race-proven steel housing combined with our IP68 rated Gravity G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.

• Black Powdercoated Housing

The KC HiLiTES Gravity G6 Daylighter LED Light delivers powerful, efficient illumination in a street-legal SAE/ECE driving beam pattern. Designed for improved forward reach and peripheral visibility, this 20-watt light uses a CREE XPL HD LED and KC's patented Gravity Reflective Diode system to direct light through precision reflectors. The result is 2,300 raw lumens, 1,310 lux at 10 meters, and 131,000 candela per light.

Built for demanding automotive, off-road, and racing applications, the KCL1653 features a black powder-coated steel housing and hard-coated polycarbonate lens. Its IP68-rated Gravity G6 optical insert helps protect against dust and water intrusion, while the durable Daylighter shock-mount system supports accurate aiming and maintains beam stability over rough terrain. The adjustable mounting design allows users to fine-tune light position for consistent performance.

Operating across a 9- to 32-volt range with a low 1.63-amp draw, the KC HiLiTES Gravity G6 combines strong output with practical electrical efficiency. The light projects a beam distance of up to 724 meters, making it suitable for drivers who need enhanced visibility beyond the reach of standard vehicle lighting. This single-light configuration is identified by part number KCL1653. Fitment information should be confirmed for the intended vehicle, mounting location, and wiring setup before installation.

• Brand: KC HiLiTES
• Part Number: KCL1653
• Beam Pattern: SAE/ECE driving beam
• Light Output: 2,300 raw lumens
• Illumination: 1,310 lux at 10 meters
• Peak Intensity: 131,000 candela
• Beam Distance: Up to 724 meters
• Electrical Range: 9 to 32 volts

What's Included: One KC HiLiTES Gravity G6 LED Daylighter light with black steel housing and adjustable Daylighter mounting system. Wiring, switches, and vehicle-specific mounting hardware are not specified in the provided product information.

Features:

• 20W Gravity G6 optical insert with CREE XPL HD LED technology for efficient, high-output lighting
• SAE/ECE driving beam improves forward visibility and adds useful peripheral illumination
• Black powder-coated steel housing provides durable protection for off-road and racing use
• Hard-coated polycarbonate lens and IP68 rating help withstand dust, moisture, and harsh environments
• Gravity Reflective Diode system directs LED output through precision reflectors for enhanced beam performance
• Adjustable Daylighter shock mount supports accurate aiming and stable beam alignment
• Produces 2,300 raw lumens, 1,310 lux at 10 meters, and 131,000 candela per light
• Operates from 9 to 32 volts with a low 1.63-amp draw for broad vehicle compatibility

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: N
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
