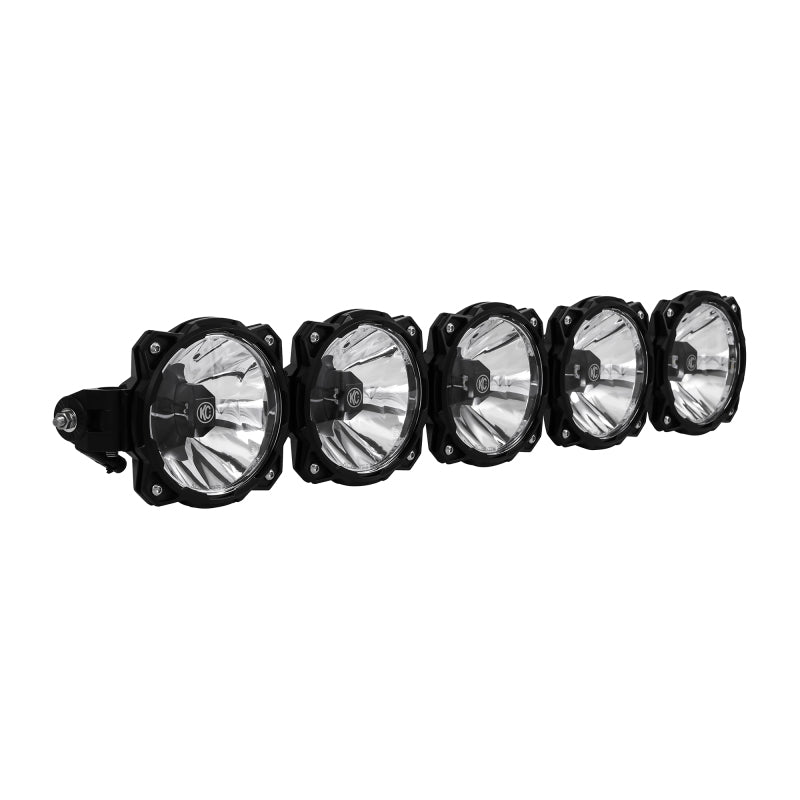

KC HiLiTES Pro6 Gravity LED 5-Light 32-Inch Combo Beam Light Bar, 100W, Part KCL91306

FEATURES-Powered by Gravity LED G6 optical inserts efficient, powerful, patented-Patent-pending Infinity Ring™ system enables the conversion of the Pro6 from straight to radius format in seconds (Patent-pending Application 14/704,736)-Signature KC modular design is expandable to different widths-Extremely high output with very low amperage draw-Multiple G6 beam patterns available Spot, Driving, Wide-40LIGHT PERFORMANCE-Raw Lumens: 11,500 lm-Lux @ 10 Meters: 4,200 lx-Candela: 420,000 cd-Beam Distance (Meters): 1,296mSPECIFICATIONS-Wattage: 100W-Amp Draw: 8.15A-Voltage: 9-32V-Dimensions: H - 6.06" x D - 3.33" x W - 32.875"PARTS INCLUDED-(1) Pro6 LED Light Bar-Deluxe Plug-N-Play Wiring Harness with 30 amp LED SwitchPERFORMANCE Gravity LED OPTICSPatented Gravity LED G6 optical inserts provide exceptional efficiency and light output. 20W, G6 optics are available in Spot, Driving and Wide-40 patterns INFINITY Ring™ SYSTEMThe Infinity Ring™ system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape and a radius or straight setting between each ringUNIVERSAL END MOUNT SYSTEMThe Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep, Truck or UTVRACE PROVEN STRENGTH & DURABILITYInspired by endurance racing and tested by KC athletes worldwide, the Pro6 is set to break all performance barriers while providing the most durable, reliable and scalable light bar design available today The Gravity LED Pro6 LED light bar is an LED off-road lighting system utilizing patented Infinity Ring(r) system featuring radius to straight adjustability, modular beam patterns, and expandable widths. FEATURES-Powered by Gravity LED G6 optical inserts – efficient; powerful; patented-Patent-pending Infinity Ring/#8482; system enables the conversion of the Pro6 from straight to radius format in seconds (Patent-pending Application 14/704;736)-Signature KC modular design is expandable to different widths-Extremely high output with very low amperage draw-Multiple G6 beam patterns available – Spot; Driving; Wide-40LIGHT PERFORMANCE-Raw Lumens: 11;500 lm-Lux @ 10 Meters: 4;200 lx-Candela: 420;000 cd-Beam Distance (Meters): 1;296mSPECIFICATIONS-Wattage: 100W-Amp Draw: 8.15A-Voltage: 9-32V-Dimensions: H-6.06in. x D-3.33in. x W-32.875in.PARTS INCLUDED-(1) Pro6 LED Light Bar-Deluxe Plug-N-Play Wiring Harness with 30 amp LED SwitchPERFORMANCE Gravity LED OPTICSPatented Gravity LED G6 optical inserts provide exceptional efficiency and light output. 20W; G6 optics are available in Spot; Driving and Wide-40 patterns INFINITY Ring/#8482; SYSTEMThe Infinity Ring/#8482; system provides a race-proven; adjustable linking system featuring expandable widths; modular beam shape and a radius or straight setting between each ringUNIVERSAL END MOUNT SYSTEMThe Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep; Truck or UTVRACE PROVEN STRENGTH/DURABILITYInspired by endurance racing and tested by KC athletes worldwide; the Pro6 is set to break all performance barriers while providing the most durable; reliable and scalable light bar design available today

• Modular Beam Optics

The KC HiLiTES Pro6 Gravity LED 5-Light Light Bar delivers high-output off-road illumination in a modular, adjustable design. Powered by patented Gravity LED G6 optical inserts, this 100-watt light bar produces up to 11,500 raw lumens, 420,000 candela, and a beam distance of up to 1,417 yards. The combo beam configuration combines focused Spot illumination with broader Driving coverage for improved visibility on trails, work sites, and other demanding nighttime applications.

The patent-pending Infinity Ring™ system allows the Pro6 to transition between straight and radius configurations in seconds while supporting expandable widths and modular beam arrangements. Its signature KC HiLiTES design is engineered for Jeep, truck, and UTV applications, with high-strength aluminum end mounts that attach to compatible KC mounting systems. The durable construction is race proven and designed to withstand demanding off-road use.

The KC HiLiTES Pro6 uses a 9-32-volt electrical range and draws only 8.15 amps, providing substantial light output with efficient power consumption. A deluxe plug-and-play wiring harness with a 30-amp LED switch is included for a straightforward installation. This light bar is supplied without vehicle-specific mounting brackets, allowing the installer to select the appropriate mounting solution for the application.

What's Included

• One KC HiLiTES Pro6 LED light bar
• Deluxe plug-and-play wiring harness
• 30-amp LED switch

Fitment

Designed for compatible Jeep, truck, and UTV applications using suitable KC HiLiTES mounting hardware. Vehicle-specific fitment and mounting requirements should be verified before installation.

Features:

• Gravity LED G6 Optics: Patented 20-watt optical inserts provide efficient, powerful illumination with Spot, Driving, and Wide-40 beam pattern options.
• Infinity Ring System: Patent-pending adjustable linking technology converts the light bar between straight and radius configurations in seconds.
• High-Output Performance: Produces up to 11,500 raw lumens, 420,000 candela, and a beam distance of up to 1,417 yards.
• Modular Off-Road Design: Expandable KC HiLiTES Pro6 architecture with durable aluminum end mounts supports Jeep, truck, and UTV installations.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: N
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
