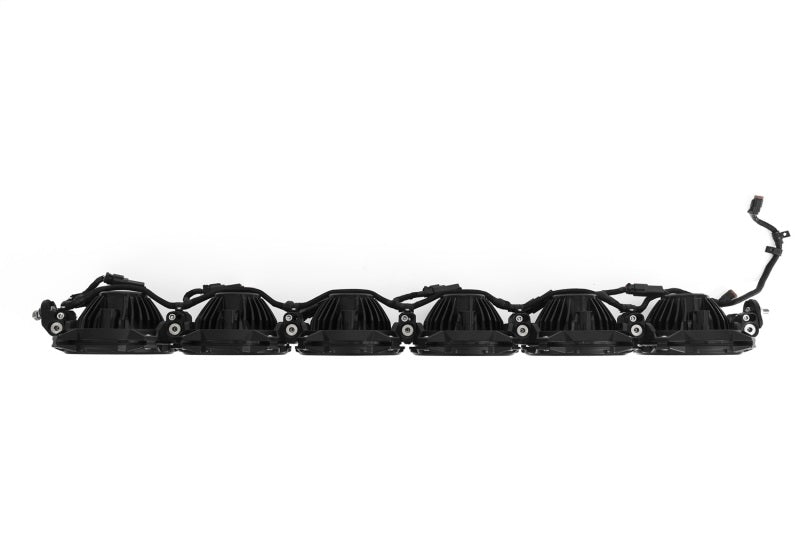

KC HiLiTES Pro6 Gravity LED 6-Light 39-Inch Combo Beam Light Bar, 120W – KCL91307

FEATURES-Powered by Gravity LED G6 optical inserts efficient, powerful, patented-Patent-pending Infinity Ring system enables the conversion of the Pro6 from straight to radius format in seconds (Patent-pending Application 14/704,736)-Signature KC modular design is expandable to different widths-Extremely high output with very low amperage draw-Multiple G6 beam patterns available Spot, Driving, Wide-40LIGHT PERFORMANCE-Raw Lumens: 13,800 lm-Lux @ 10 Meters: 5,150 lx-Candela: 515,000 cd-Beam Distance (Meters): 1,435mSPECIFICATIONS-Wattage: 120W-Amp Draw: 9.78A-Voltage: 9-32V-Dimensions: H - 6.06" x D - 3.33" x W - 39.125"PARTS INCLUDED-(1) Pro6 LED Light Bar-(6) Light Covers - Black w/ Yellow KC Logo-Deluxe Plug-N-Play Wiring Harness with 30A LED SwitchPERFORMANCE Gravity LED OPTICSPatented Gravity LED G6 optical inserts provide exceptional efficiency and light output. 20W, G6 optics are available in Spot, Driving and Wide-40 patterns. INFINITY Ring SYSTEMThe Infinity Ring system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape and a radius or straight setting between each ringUNIVERSAL END MOUNT SYSTEMThe Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep, Truck or UTVRACE PROVEN STRENGTH & DURABILITYInspired by endurance racing and tested by KC athletes worldwide, the Pro6 is set to break all performance barriers while providing the most durable, reliable and scalable light bar design available today The Gravity LED Pro6 light bar is an LED off-road lighting system unlike any you've seen before. This high-performance light bar includes the patented Infinity Ring(r) modular design, as well as patented Gravity LED optics. FEATURES-Powered by Gravity LED G6 optical inserts – efficient; powerful; patented-Patent-pending Infinity Ring system enables the conversion of the Pro6 from straight to radius format in seconds (Patent-pending Application 14/704;736)-Signature KC modular design is expandable to different widths-Extremely high output with very low amperage draw-Multiple G6 beam patterns available – Spot; Driving; Wide-40LIGHT PERFORMANCE-Raw Lumens: 13;800 lm-Lux @ 10 Meters: 5;150 lx-Candela: 515;000 cd-Beam Distance (Meters): 1;435mSPECIFICATIONS-Wattage: 120W-Amp Draw: 9.78A-Voltage: 9-32V-Dimensions: H-6.06in. x D-3.33in. x W-39.125in.PARTS INCLUDED-(1) Pro6 LED Light Bar-(6) Light Covers-Black w/Yellow KC Logo-Deluxe Plug-N-Play Wiring Harness with 30A LED SwitchPERFORMANCE Gravity LED OPTICSPatented Gravity LED G6 optical inserts provide exceptional efficiency and light output. 20W; G6 optics are available in Spot; Driving and Wide-40 patterns. INFINITY Ring SYSTEMThe Infinity Ring system provides a race-proven; adjustable linking system featuring expandable widths; modular beam shape and a radius or straight setting between each ringUNIVERSAL END MOUNT SYSTEMThe Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep; Truck or UTVRACE PROVEN STRENGTH/DURABILITYInspired by endurance racing and tested by KC athletes worldwide; the Pro6 is set to break all performance barriers while providing the most durable; reliable and scalable light bar design available today

• Modular Beam Optics

The KC HiLiTES Pro6 Gravity LED light bar is a high-performance off-road lighting system designed for drivers who need powerful illumination, modular flexibility, and dependable durability. Part number KCL91307 combines six Gravity LED G6 optical inserts with KC’s patented Infinity Ring modular design to produce an exceptionally bright combo beam pattern for trails, work areas, and open-road applications.

The patent-pending Infinity Ring system allows the light bar to transition between a straight and radius configuration in seconds. Its expandable modular construction supports different widths and beam arrangements, while the available Spot, Driving, and Wide-40 optical patterns make it adaptable to a variety of lighting needs. This model uses a combo beam arrangement to provide a useful balance of long-distance reach and broad forward coverage.

With 13,800 raw lumens, 515,000 candela, and a beam distance of up to 1,435 meters, the Pro6 delivers substantial lighting performance while drawing only 9.78 amps. The 9–32-volt operating range supports many automotive, truck, Jeep, and UTV electrical systems. High-strength aluminum end mounts provide a secure installation solution and are designed to work with most standard LED light bar mounting setups and compatible KC mounts. The included plug-and-play wiring harness and 30-amp LED switch simplify installation.

Inspired by endurance racing and tested by KC HiLiTES athletes, the Pro6 is engineered for demanding off-road use. Six black light covers with yellow KC logos are included to help protect the optics when the light bar is not in use. Mounting hardware is not included.

Product Specifications & Technical Data

• Brand: KC HiLiTES
• Part Number: KCL91307
• Lighting Type: Gravity LED G6
• Light Configuration: Six-light modular bar
• Beam Pattern: Combo beam
• Power Output: 120 watts
• Electrical Draw: 9.78 amps
• Operating Voltage: 9–32 volts

What's Included

• One KC HiLiTES Pro6 LED light bar
• Six black light covers with yellow KC logos
• Deluxe plug-and-play wiring harness
• 30-amp LED switch

Features:

• Gravity LED G6 Optics: Six efficient and powerful 20-watt optical inserts produce high-output illumination with Spot, Driving, and Wide-40 pattern compatibility.
• Infinity Ring Modularity: Patent-pending linking technology allows the Pro6 to change between straight and radius configurations in seconds.
• High-Output Combo Beam: Produces 13,800 raw lumens, 515,000 candela, and a beam distance of up to 1,435 meters for long-range and broad-area visibility.
• Universal End Mount Design: High-strength aluminum end mounts are designed to fit most standard LED light bar mounting systems and compatible KC mounts.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: N
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
