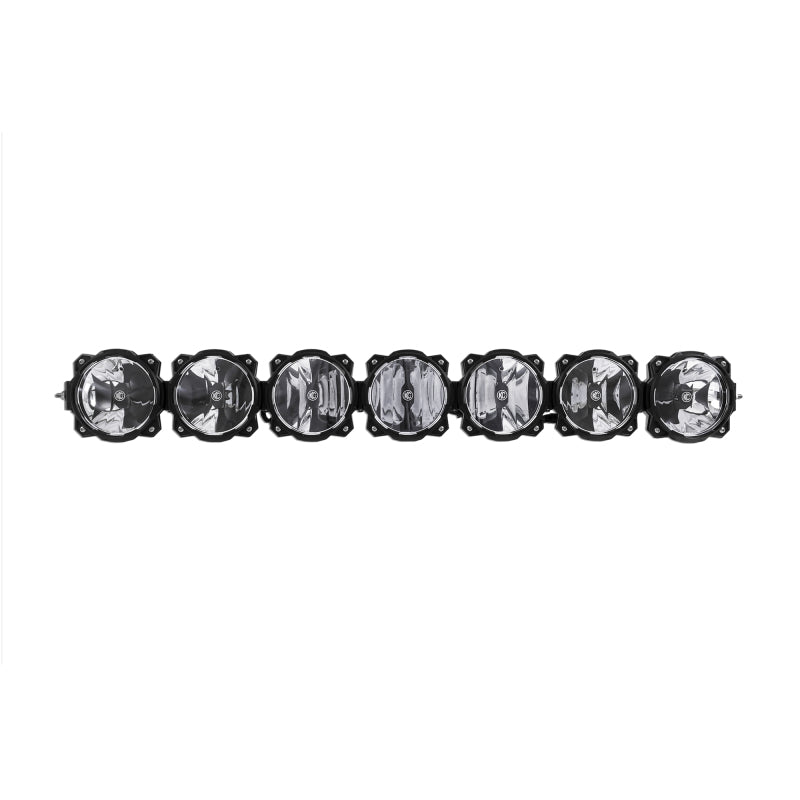

KC HiLiTES Pro6 Gravity LED 7-Light 45-Inch Combo Beam Light Bar, 140W - KCL91314

FEATURES-Powered by patented and powerful Gravity LED G6 optical inserts-Patent-pending Infinity Ring system enables the conversion of the Pro6 from straight to radius configurations in seconds (Patent-pending Application 14/704,736)-Signature KC modular design is expandable to different widths-High output, low amperage draw-G6 LED Optics available in Spot, Driving, Wide-40 Beam PatternsLIGHT PERFORMANCE-Raw Lumens: 16,100 lm-Lux @ 10 Meters: 6,100 lx-Candela: 6100,000 cd-Beam Distance (Meters): 1,562 lmSPECIFICATIONS-Wattage: 140W-Amp Draw: 11.41A-Voltage: 9-32V-Dimensions: H - 6.06" x D - 3.33" x W - 45.625"PARTS INCLUDED-(1) Pro6 LED Light Bar-Deluxe Plug-N-Play Wiring Harness w/30A LED SwitchPERFORMANCE Gravity LED OPTICSPatented Gravity LED G6 optical inserts provide exceptional efficiency and light output. Pro6 light bars ship with a combination of driving and wide-40 G6 optical inserts.INFINITY RING SYSTEM The Infinity Ring system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape and a radius or straight setting between each ring.UNIVERSAL END MOUNT SYSTEMThe Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep, Truck or SUV.RACE PROVEN STRENGTH & DURABILITYInspired by endurance racing and tested by KC athletes worldwide, the Pro6 is set to break all performance barriers while providing the most durable, reliable and scalable LED light bar design available today. The Gravity LED Pro6 LED light bar is an LED off-road lighting system utilizing patented Infinity Ring(r) system featuring radius to straight adjustability, modular beam patterns, and expandable widths. FEATURES-Powered by patented and powerful Gravity LED G6 optical inserts-Patent-pending Infinity Ring system enables the conversion of the Pro6 from straight to radius configurations in seconds (Patent-pending Application 14/704;736)-Signature KC modular design is expandable to different widths-High output; low amperage draw-G6 LED Optics available in Spot; Driving; Wide-40 Beam PatternsLIGHT PERFORMANCE-Raw Lumens: 16;100 lm-Lux @ 10 Meters: 6;100 lx-Candela: 6100;000 cd-Beam Distance (Meters): 1;562 lmSPECIFICATIONS-Wattage: 140W-Amp Draw: 11.41A-Voltage: 9-32V-Dimensions: H-6.06in. x D-3.33in. x W-45.625in.PARTS INCLUDED-(1) Pro6 LED Light Bar-Deluxe Plug-N-Play Wiring Harness w/30A LED SwitchPERFORMANCE Gravity LED OPTICSPatented Gravity LED G6 optical inserts provide exceptional efficiency and light output. Pro6 light bars ship with a combination of driving and wide-40 G6 optical inserts.INFINITY RING SYSTEM The Infinity Ring system provides a race-proven; adjustable linking system featuring expandable widths; modular beam shape and a radius or straight setting between each ring.UNIVERSAL END MOUNT SYSTEMThe Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep; Truck or SUV.RACE PROVEN STRENGTH/DURABILITYInspired by endurance racing and tested by KC athletes worldwide; the Pro6 is set to break all performance barriers while providing the most durable; reliable and scalable LED light bar design available today.

• Modular Beam Optics

The KC HiLiTES Pro6 Gravity LED 7-Light Combo Beam Light Bar delivers high-output off-road illumination with a modular design engineered for demanding driving conditions. Powered by patented Gravity LED G6 optical inserts, this 140-watt light bar produces 16,100 raw lumens and combines driving and Wide-40 beam patterns for broad, forward-focused visibility. Its efficient design provides strong lighting performance while drawing only 11.41 amps across a 9–32-volt electrical system.

The Pro6 features the patent-pending Infinity Ring system, allowing the light bar to be converted from a straight configuration to a radius configuration in seconds. The adjustable linking system also supports expandable widths and modular beam shaping, giving drivers flexibility when configuring lighting for a Jeep, truck, SUV, or other off-road vehicle. High-strength aluminum end mounts support compatibility with most standard LED light bar mounting systems and attach easily to compatible KC HiLiTES mounts. Mounting hardware is not included.

Built with race-proven strength and durability, the KC HiLiTES Pro6 is designed for reliable performance in off-road environments. Its lighting system provides up to 6,100 lux at 10 meters, 610,000 candela, and a listed beam distance of 1,562 meters. The included deluxe plug-and-play wiring harness with a 30-amp LED switch simplifies installation and control. This product is intended for off-road use and is supplied as a complete seven-light-bar assembly without vehicle-specific mounting brackets.

Key Product Specifications and Technical Data

• Brand: KC HiLiTES
• Part Number: KCL91314
• Light Type: Gravity LED Pro6 light bar
• Light Configuration: Seven-light modular assembly
• Power Rating: 140 watts
• Electrical Range: 9–32 volts
• Current Draw: 11.41 amps
• Beam Performance: 16,100 raw lumens, 6,100 lux at 10 meters, and 610,000 candela

What's Included

• One KC HiLiTES Pro6 LED light bar
• Deluxe plug-and-play wiring harness with 30-amp LED switch

Fitment information should be confirmed against the vehicle and mounting system before installation. The universal end-mount design is intended for use with compatible KC HiLiTES mounts and most standard LED light bar mounting arrangements.

Features:

• Modular beam optics: Combines Gravity LED G6 driving and Wide-40 optical inserts for broad, high-output off-road illumination.
• Infinity Ring system: Converts the Pro6 between straight and radius configurations in seconds while supporting expandable widths and modular beam shaping.
• High-output efficiency: Produces 16,100 raw lumens with a low 11.41-amp draw for strong lighting performance with reduced electrical demand.
• Universal mounting design: High-strength aluminum end mounts are designed to fit compatible KC HiLiTES mounts and most standard LED light bar mounting systems.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: N
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
