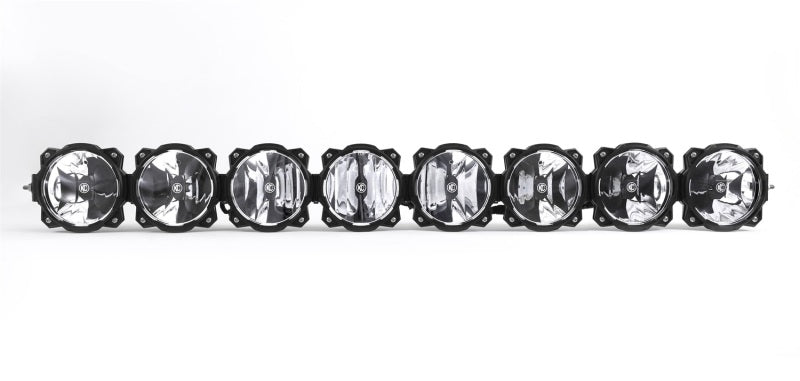

KC HiLiTES Pro6 Gravity LED 8-Light 160W Combo Beam Light Bar, Part Number KCL91308

FEATURES-Powered by patented and powerful Gravity LED G6 optical inserts-Patent-pending Infinity Ring system enables the conversion of the Pro6 from straight to radius configurations in seconds (Patent-pending Application 14/704,736)-Signature KC modular design is expandable to different widths-High output, low amperage draw-Available in Spot, Driving, Wide-40 Beam PatternsLIGHT PERFORMANCE-Raw Lumens: 18,400 lm-Lux @ 10 Meters: 6,700 lx-Candela: 670,000 cd-Beam Distance (Meters): 1,637mSPECIFICATIONS-Wattage: 160W-Amp Draw: 13.04A-Voltage: 9-32V-Dimensions: H - 6.06" x D - 3.33" x W - 51.625"PARTS INCLUDED-(1) Pro6 LED Light Bar-Universal Mounting Brackets and Complete Hardware-Plug-N-Play Wiring Harness w/ 30A LED SwitchPERFORMANCE Gravity LED OPTICSPatented Gravity LED G6 optical inserts provide exceptional efficiency and light output. Pro6 light bars ship with a combination of driving and wide-40 G6 optical inserts.INFINITY RING™ SYSTEMThe Infinity Ring™ system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape and a radius or straight setting between each ring.UNIVERSAL END MOUNT SYSTEMThe Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep, Truck or UTV.RACE PROVEN STRENGTH & DURABILITYInspired by endurance racing and tested by KC athletes worldwide, the Pro6 is set to break all performance barriers while providing the most durable, reliable and scalable LED light bar design available today. The Gravity LED Pro6 LED light bar is an LED off-road lighting system utilizing patented Infinity Ring(r) system featuring radius to straight adjustability, modular beam patterns, and expandable widths. FEATURES-Powered by patented and powerful Gravity LED G6 optical inserts-Patent-pending Infinity Ring system enables the conversion of the Pro6 from straight to radius configurations in seconds (Patent-pending Application 14/704;736)-Signature KC modular design is expandable to different widths-High output; low amperage draw-Available in Spot; Driving; Wide-40 Beam PatternsLIGHT PERFORMANCE-Raw Lumens: 18;400 lm-Lux @ 10 Meters: 6;700 lx-Candela: 670;000 cd-Beam Distance (Meters): 1;637mSPECIFICATIONS-Wattage: 160W-Amp Draw: 13.04A-Voltage: 9-32V-Dimensions: H-6.06in. x D-3.33in. x W-51.625in.PARTS INCLUDED-(1) Pro6 LED Light Bar-Universal Mounting Brackets and Complete Hardware-Plug-N-Play Wiring Harness w/30A LED SwitchPERFORMANCE Gravity LED OPTICSPatented Gravity LED G6 optical inserts provide exceptional efficiency and light output. Pro6 light bars ship with a combination of driving and wide-40 G6 optical inserts.INFINITY RING/#8482; SYSTEMThe Infinity Ring/#8482; system provides a race-proven; adjustable linking system featuring expandable widths; modular beam shape and a radius or straight setting between each ring.UNIVERSAL END MOUNT SYSTEMThe Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep; Truck or UTV.RACE PROVEN STRENGTH/DURABILITYInspired by endurance racing and tested by KC athletes worldwide; the Pro6 is set to break all performance barriers while providing the most durable; reliable and scalable LED light bar design available today.

• Modular Beam Optics

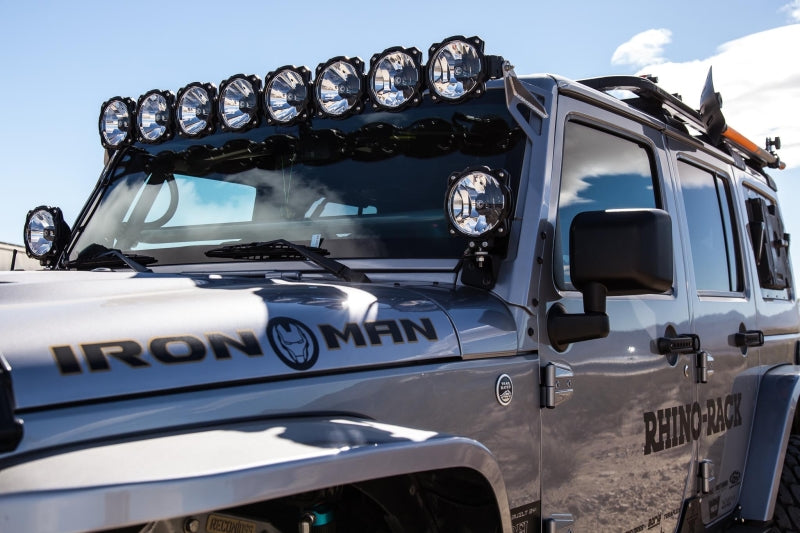

The KC HiLiTES Pro6 Gravity LED light bar is a high-output off-road lighting system designed for Jeeps, trucks, UTVs, and other vehicles requiring powerful, adaptable illumination. This 50-inch universal light bar uses eight patented Gravity LED G6 optical inserts to produce up to 18,400 raw lumens, with a combination of driving and Wide-40 beam patterns for broad trail coverage and extended forward visibility.

Its patent-pending Infinity Ring system allows the Pro6 to transition from a straight configuration to a radius configuration in seconds. The modular design can also be expanded to different widths and configured with different beam patterns, making it adaptable to changing vehicle builds and lighting requirements. High-strength aluminum end mounts provide a durable universal mounting solution compatible with most standard light bar mounting setups and KC HiLiTES mounts.

The KCL91308 Pro6 operates on 9–32 volts and draws only 13.04 amps while delivering 160 watts of lighting performance. It is engineered for demanding off-road use with race-proven strength, reliable construction, and an efficient optical system. The included plug-and-play wiring harness with a 30-amp LED switch simplifies installation, while the universal mounting brackets and complete hardware provide the components needed to secure the light bar. This package does not include vehicle-specific mounting hardware.

Key Product Specifications and Technical Data

• Brand: KC HiLiTES
• Part Number: KCL91308
• Product Type: Pro6 LED light bar
• Light Source: Eight Gravity LED G6 optical inserts
• Beam Pattern: Driving and Wide-40 combo configuration
• Output: 18,400 raw lumens
• Electrical Rating: 160 watts, 13.04 amps, 9–32 volts
• Beam Distance: Up to 1,795 yards

What's Included

• One KC HiLiTES Pro6 LED light bar
• Universal mounting brackets
• Complete mounting hardware
• Plug-and-play wiring harness
• 30-amp LED switch

Features:

• Gravity LED G6 Optics: Patented optical inserts deliver efficient, high-output illumination for demanding off-road driving.
• Infinity Ring System: Patent-pending adjustable rings allow conversion between straight and radius configurations in seconds.
• Modular Beam Design: Expandable construction and configurable optical options support customized vehicle lighting setups.
• High-Output Efficiency: Produces 18,400 raw lumens at 160 watts with a low 13.04-amp draw for strong performance and efficient operation.
