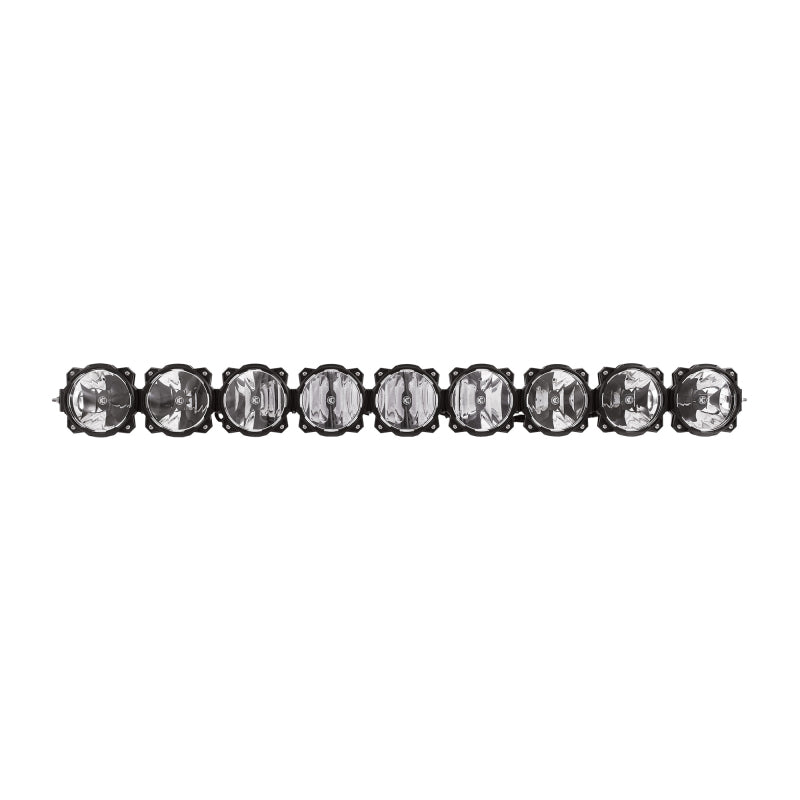

KC HiLiTES Pro6 Gravity LED 9-Light 180W Combo Beam Light Bar, Part KCL91315

FEATURES-Powered by patented and powerful Gravity LED G6 optical inserts-Patent-pending Infinity Ring system enables the conversion of the Pro6 from straight to radius configurations in seconds (Patent-pending Application 14/704,736)-Signature KC modular design is expandable to different widths-High output, low amperage draw-G6 LED Optics available in Spot, Driving, Wide-40 Beam PatternsLIGHT PERFORMANCE-Raw Lumens: 23,009 lm-Lux @ 10 Meters: 7,500 lx-Candela: 750,000 cd-Beam Distance (Meters): 1,732 lmSPECIFICATIONS-Wattage: 180W-Amp Draw: 14.67A-Voltage: 9-32V-Dimensions: H - 6.06" x D - 3.33" x W - 56.625"PARTS INCLUDED-(1) Pro6 LED Light Bar-Deluxe Plug-N-Play Wiring Harness w/30A LED SwitchPERFORMANCE Gravity LED OPTICSPatented Gravity LED G6 optical inserts provide exceptional efficiency and light output. Pro6 light bars ship with a combination of driving and wide-40 G6 optical inserts.INFINITY RING SYSTEMThe Infinity Ring system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape and a radius or straight setting between each ring.UNIVERSAL END MOUNT SYSTEMThe Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep, Truck or SUV.RACE PROVEN STRENGTH & DURABILITYInspired by endurance racing and tested by KC athletes worldwide, the Pro6 is set to break all performance barriers while providing the most durable, reliable and scalable LED light bar design available today. The Gravity LED Pro6 LED light bar is an LED off-road lighting system utilizing patented Infinity Ring(r) system featuring radius to straight adjustability, modular beam patterns, and expandable widths. FEATURES-Powered by patented and powerful Gravity LED G6 optical inserts-Patent-pending Infinity Ring system enables the conversion of the Pro6 from straight to radius configurations in seconds (Patent-pending Application 14/704;736)-Signature KC modular design is expandable to different widths-High output; low amperage draw-G6 LED Optics available in Spot; Driving; Wide-40 Beam Patterns LIGHT PERFORMANCE-Raw Lumens: 23;009 lm-Lux @ 10 Meters: 7;500 lx-Candela: 750;000 cd-Beam Distance (Meters): 1;732 lm SPECIFICATIONS-Wattage: 180W-Amp Draw: 14.67A-Voltage: 9-32V-Dimensions: H-6.06in. x D-3.33in. x W-56.625in. PARTS INCLUDED-(1) Pro6 LED Light Bar-Deluxe Plug-N-Play Wiring Harness w/30A LED Switch PERFORMANCE Gravity LED OPTICS Patented Gravity LED G6 optical inserts provide exceptional efficiency and light output. Pro6 light bars ship with a combination of driving and wide-40 G6 optical inserts. INFINITY RING SYSTEM The Infinity Ring system provides a race-proven; adjustable linking system featuring expandable widths; modular beam shape and a radius or straight setting between each ring. UNIVERSAL END MOUNT SYSTEM The Pro6 LED light bar comes ready to fit most standard LED bar widths and is designed with high-strength aluminum end mounts. This universal mounting design easily attaches to KC mounts on your Jeep; Truck or SUV. RACE PROVEN STRENGTH DURABILITY Inspired by endurance racing and tested by KC athletes worldwide; the Pro6 is set to break all performance barriers while providing the most durable; reliable and scalable LED light bar design available today.

• Modular Beam Optics

The KC HiLiTES Pro6 Gravity LED light bar delivers high-output off-road illumination through patented Gravity LED G6 optical inserts and a modular design engineered for demanding driving conditions. Part KCL91315 combines driving and Wide-40 beam patterns to provide a balanced spread of forward and peripheral light, making it suitable for off-road vehicles, trucks, SUVs, and other applications requiring powerful auxiliary lighting.

Its patent-pending Infinity Ring system allows the Pro6 to be adjusted from a straight configuration to a radius configuration in seconds. The modular system can also be expanded to different widths and adapted with different beam configurations, giving you flexibility as your lighting needs change. High-strength aluminum end mounts provide a universal mounting solution compatible with many standard LED bar mounting systems and KC HiLiTES vehicle-specific mounts.

With an output of 23,009 raw lumens, 750,000 candela, and 7,500 lux at 10 meters, this KC HiLiTES light bar provides substantial long-range visibility while maintaining a relatively low 14.67-amp draw. The 180-watt system operates across a 9-32-volt range and is designed for race-proven strength and durability. A deluxe plug-and-play wiring harness with a 30-amp LED switch is included for a straightforward installation. Mounting hardware is not included, allowing the bar to be paired with the appropriate vehicle-specific or universal mounting solution.

What's Included: One KC HiLiTES Pro6 LED light bar and one deluxe plug-and-play wiring harness with 30-amp LED switch. Fitment data should be confirmed against the vehicle, mounting system, and available installation space before purchase.

Features:

• Gravity LED G6 Optics: Patented optical inserts provide efficient, high-output illumination with driving and Wide-40 beam patterns.
• Infinity Ring System: Converts the light bar between straight and radius configurations in seconds while supporting modular expansion.
• High-Output Performance: Produces 23,009 raw lumens, 750,000 candela, and 7,500 lux at 10 meters for powerful off-road visibility.
• Universal End Mounting: High-strength aluminum end mounts attach to many standard LED bar mounting systems and KC HiLiTES vehicle mounts.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: N
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
