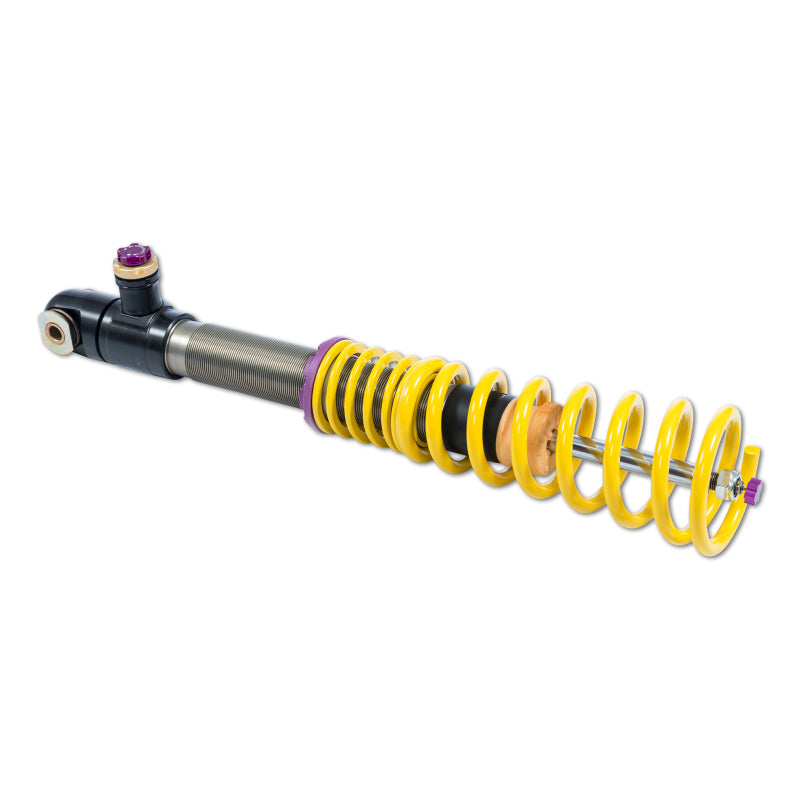

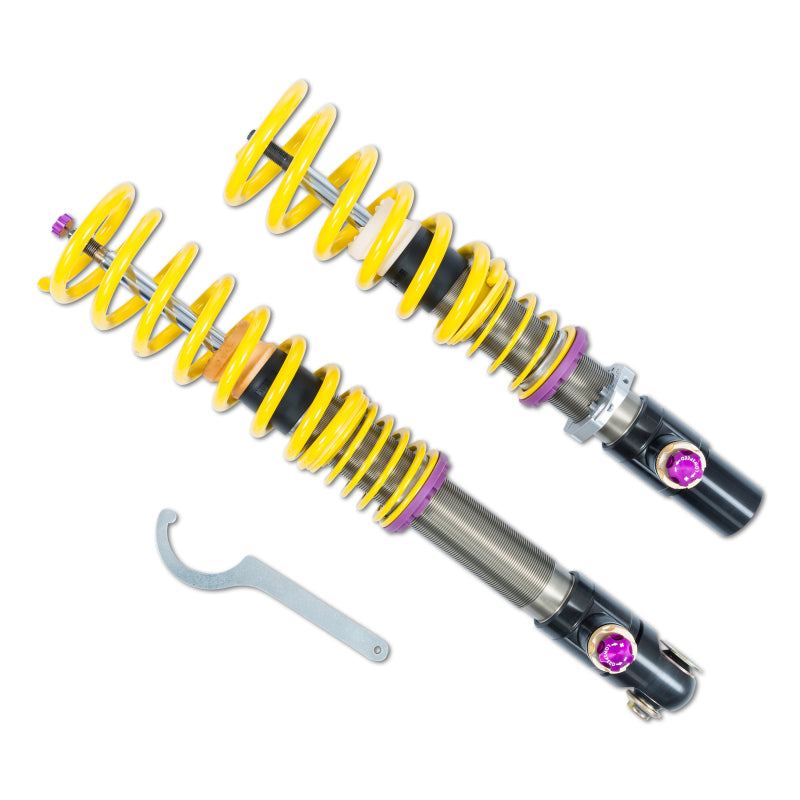

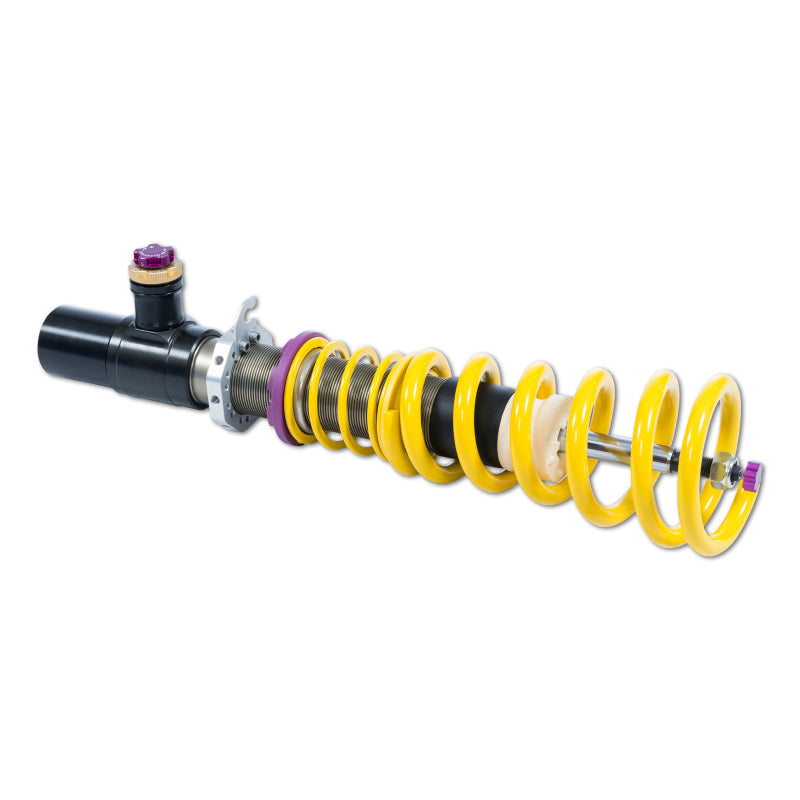

KW V4 Coilover Kit for 2018-2022 BMW M5 F90 AWD with ESC Delete Modules

KW V4 coilovers are a combination of our innovative, race proven technology, as well as decades of experience tuning high end sports cars, super sedans and exotics such as the Audi R8, Audi RS6, BMW M5, Lamborghini Aventador LP 750-4 SV, Dodge Charger SRT Hellcat, Mercedes AMG GT and more. In addition to the individually adjustable ride height the KW V4 coilover kit allows an independent Adjustment -f the rebound damping as well as the low-speed and high-speed compression damping. Each KW V4 coilover kit is delivered with a vehicle-specific comfort setting and with the integrated Adjustment -controls the damping characteristics can be set quickly and intuitively transformed to an optimized performance setup. The 3-way adjustable high-performance dampers in the KW V4 coilover kits feature independent Adjustment -f the rebound damping utilizing patented TVR-A technology, as well as the low speed and high speed compression damping utilizing TVCLH-A technology. The KW V4 coilovers are based upon successful race technology utilized by multiple overall winners of the ADAC Zurich 24h Nurburgring race. The new KW V4 coilovers are exclusively developed for select high-performance vehicles, which benefit greatly from the KW suspension technology -o improve their driving dynamics. KW V4 coilovers are based upon successful race technology utilized by multiple overall winners of the ADAC Zurich 24h Nurburgring race. Exclusively developed for high-performance vehicles to greatly improve their driving dynamics. For over 20 years, KW automotive has been the market leader and driving innovation as a manufacturer of individual suspension solutions for the road and in all types of motorsports. No matter where in the world, gearheads, automobile manufacturers and reputable tuners rely on our KW coilovers "Made in Germany". Every KW coilover kit undergoes extensive stress testing before production and is developed and manufactured exclusively in our company headquarters in Fichtenberg, a small in town in Germany, to meet the high standards of our KW quality management. For us as a German manufacturer, it goes without saying that our KW coilover kits will exceed the original equipment manufacturer quality and offer useful and innovative solutions. With an application list comprising more than 4,600 options KW guarantees an outstanding selection backed by our Limited Lifetime Warranty. 2018+ BMW M5 (F90) Sedan (Bundle including ESC kit)

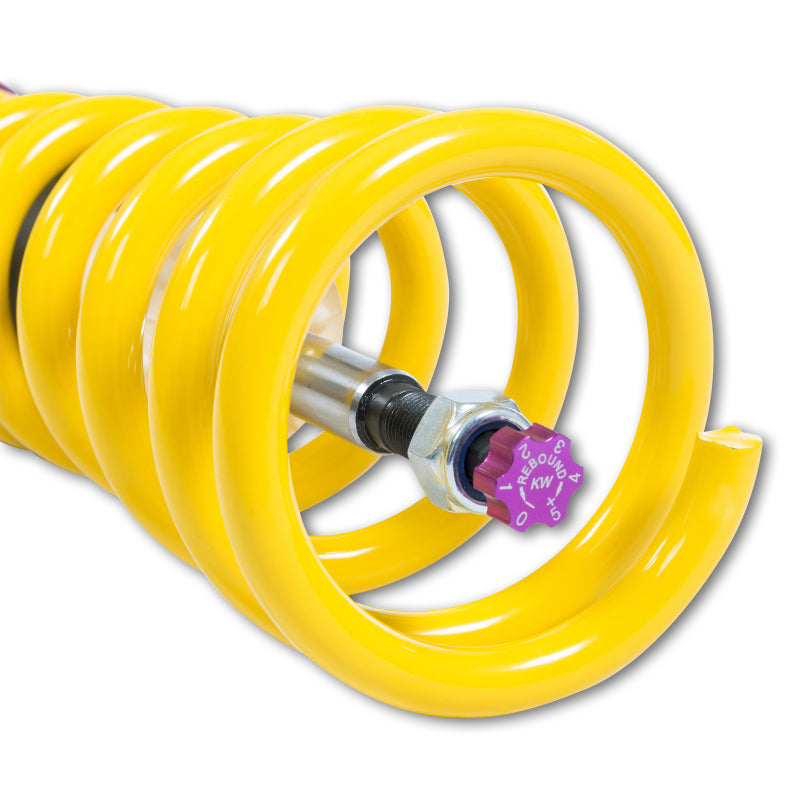

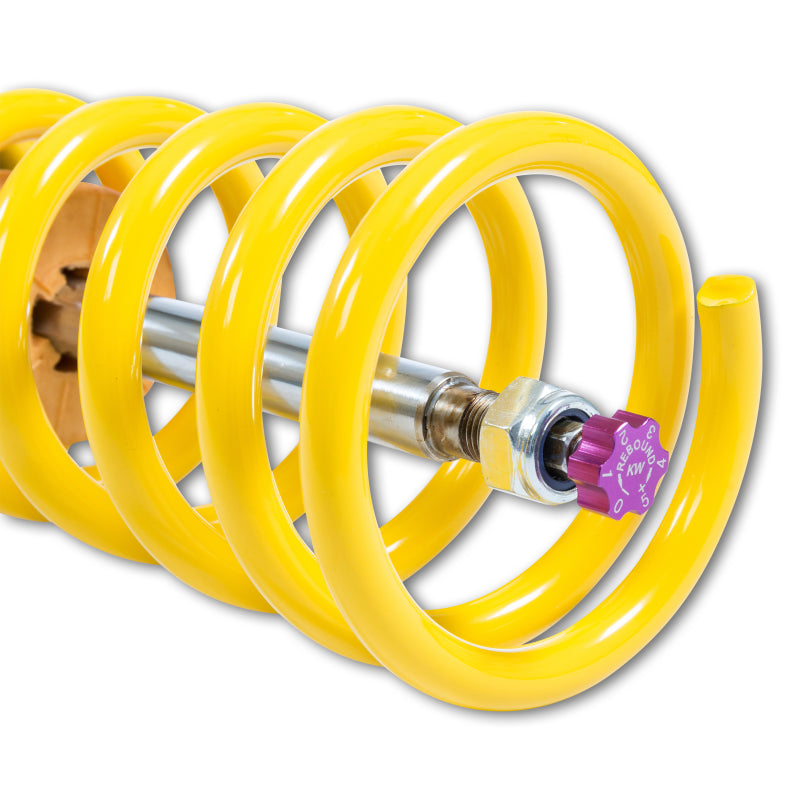

• TVR-A (Twin Valve Rebound - Adjustable) technology - allows oil to flow passed an adjustable, conical low-speed bypass during slow damper speeds, while at higher speed, the main rebound stage valve opens for maximum fluid displacement.

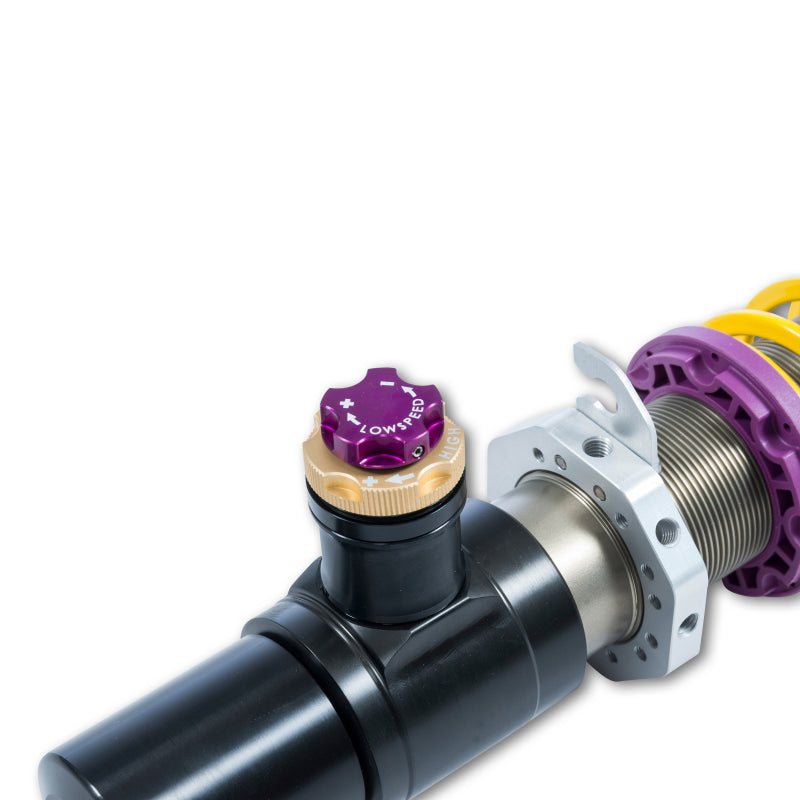

• TVCLH-A (Twin Valve Compression Low High - Adjustable) technology - Patented compression valve allows you to easily fine tune the low speed and high-speed damping and includes suggested settings for both street and track use.
• Road legal motorsports technology featuring independent rebound and low and high-speed compression adjustability with application specific street focused spring rates and matched damper tuning.
• KW suspensions V4 coilovers are hand built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany.
• Solid aluminum unibal top mounts improve steering feedback by minimizing deflection while providing camber adjustability when applicable.
• Each damper is dyno tested to ensure accuracy and preset to our recommended shock settings before being released for delivery.

Upgrade the handling and adjustability of your 2018-2022 BMW M5 F90 Sedan with the KW V4 coilover kit, part number KWS3A7200CC. This high-performance suspension system combines individually adjustable ride height with independent rebound, low-speed compression, and high-speed compression damping adjustments. The included ESC delete modules are designed for this application and help support installation on vehicles equipped with electronically controlled suspension.

KW V4 coilovers use patented TVR-A Twin Valve Rebound Adjustable technology and TVCLH-A Twin Valve Compression Low High Adjustable technology. These systems allow drivers to fine-tune damper behavior for street driving, spirited use, or track-focused performance. Each kit includes application-specific spring rates, vehicle-specific comfort settings, and recommended damper presets to provide a practical starting point for suspension tuning.

Built using race-proven technology developed through decades of motorsports and high-performance vehicle engineering, the KW V4 system is hand assembled and dyno tested at KW's headquarters in Fichtenberg, Germany. Individually numbered dampers, solid aluminum unibal top mounts where applicable, and precision testing support consistent performance and improved driver feedback. The adjustable design helps reduce body movement, sharpen response, and optimize the driving characteristics of the BMW M5 while maintaining road-focused usability.

Key Product Specifications & Technical Data

• Brand: KW
• Part Number: KWS3A7200CC
• Product Type: V4 adjustable coilover suspension kit
• Vehicle Application: BMW M5 F90 Sedan
• Model Years: 2018-2022
• Drive Configuration: All-wheel drive
• Damping Adjustment: Independent rebound, low-speed compression, and high-speed compression
• Included Electronics Components: ESC delete modules

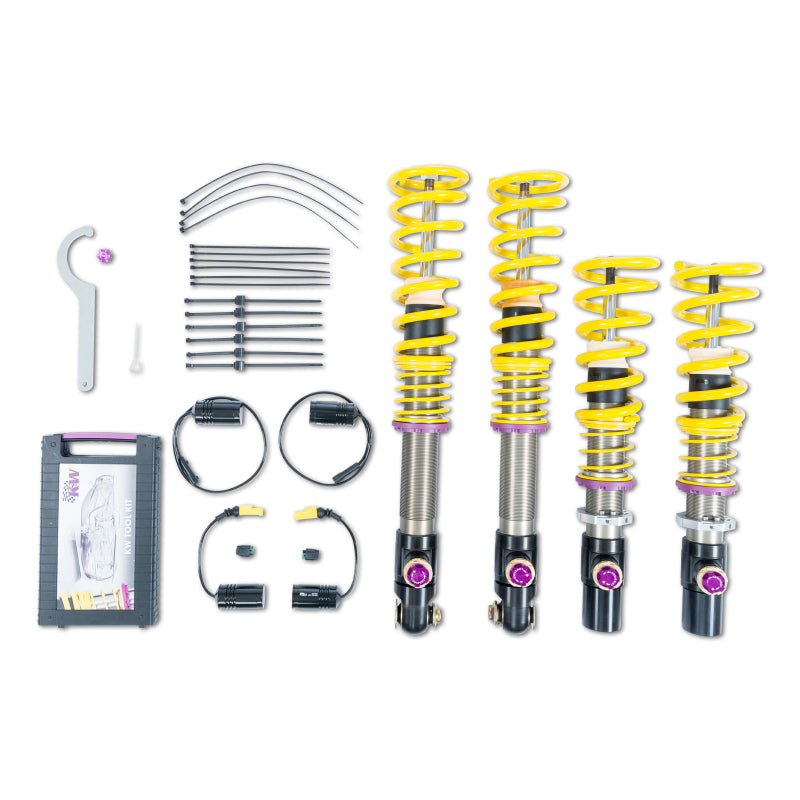

What's Included

• KW V4 coilover suspension components
• Application-specific springs and matched dampers
• ESC delete modules
• Vehicle-specific setup recommendations
• Installation and adjustment components as supplied by KW

Fitment: Fits 2018, 2019, 2020, 2021, and 2022 BMW M5 F90 Sedan models with all-wheel drive. Verify vehicle configuration and suspension equipment before ordering.

Features:

• Adjustable Ride Height: Allows the BMW M5's ride height to be tailored for stance, handling balance, and vehicle-specific requirements.
• TVR-A Rebound Adjustment: Patented Twin Valve Rebound Adjustable technology provides independent rebound tuning across varying damper speeds.
• TVCLH-A Compression Adjustment: Independent low-speed and high-speed compression damping adjustments support precise street and track setup changes.
• Race-Proven Construction: Hand-built and dyno tested in Germany with application-specific spring rates, matched dampers, and individually numbered components.

Fitments:
2018 BMW M5 Base
2019 BMW M5 Base
2019 BMW M5 Competition
2020 BMW M5 Base
2020 BMW M5 Competition
2020 BMW M5 Edition 35 Years
2021 BMW M5 Base
2021 BMW M5 Competition
2022 BMW M5 Base
2022 BMW M5 CS
2023 BMW M5 Base
