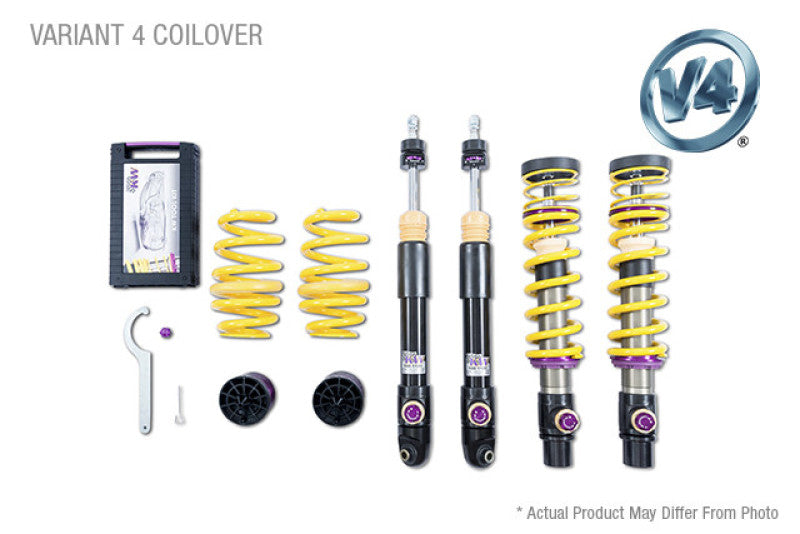

KW V4 Coilover Suspension with HLS2 Hydraulic Lift for 2017-2021 Audi R8 4S - KWS3A7102AM

KW V4 coilovers are a combination of our innovative, race proven technology, as well as decades of experience tuning high end sports cars, super sedans and exotics such as the Audi R8, Audi RS6, BMW M5, Lamborghini Aventador LP 750-4 SV, Dodge Charger SRT Hellcat, Mercedes AMG GT and more. In addition to the individually adjustable ride height the KW V4 coilover kit allows an independent Adjustment -f the rebound damping as well as the low-speed and high-speed compression damping. Each KW V4 coilover kit is delivered with a vehicle-specific comfort setting and with the integrated Adjustment -controls the damping characteristics can be set quickly and intuitively transformed to an optimized performance setup. The 3-way adjustable high-performance dampers in the KW V4 coilover kits feature independent Adjustment -f the rebound damping utilizing patented TVR-A technology, as well as the low speed and high speed compression damping utilizing TVCLH-A technology. The KW V4 coilovers are based upon successful race technology utilized by multiple overall winners of the ADAC Zurich 24h Nurburgring race. The new KW V4 coilovers are exclusively developed for select high-performance vehicles, which benefit greatly from the KW suspension technology -o improve their driving dynamics. KW V4 coilovers are based upon successful race technology utilized by multiple overall winners of the ADAC Zurich 24h Nurburgring race. Exclusively developed for high-performance vehicles to greatly improve their driving dynamics. For over 20 years, KW automotive has been the market leader and driving innovation as a manufacturer of individual suspension solutions for the road and in all types of motorsports. No matter where in the world, gearheads, automobile manufacturers and reputable tuners rely on our KW coilovers "Made in Germany". Every KW coilover kit undergoes extensive stress testing before production and is developed and manufactured exclusively in our company headquarters in Fichtenberg, a small in town in Germany, to meet the high standards of our KW quality management. For us as a German manufacturer, it goes without saying that our KW coilover kits will exceed the original equipment manufacturer quality and offer useful and innovative solutions. With an application list comprising more than 4,600 options KW guarantees an outstanding selection backed by our Limited Lifetime Warranty. 2017+ Audi R8 (4S) Coupe, incl. RWS

• TVR-A (Twin Valve Rebound - Adjustable) technology - allows oil to flow passed an adjustable, conical low-speed bypass during slow damper speeds, while at higher speed, the main rebound stage valve opens for maximum fluid displacement.
• TVCLH-A (Twin Valve Compression Low High - Adjustable) technology - Patented compression valve allows you to easily fine tune the low speed and high-speed damping and includes suggested settings for both street and track use.

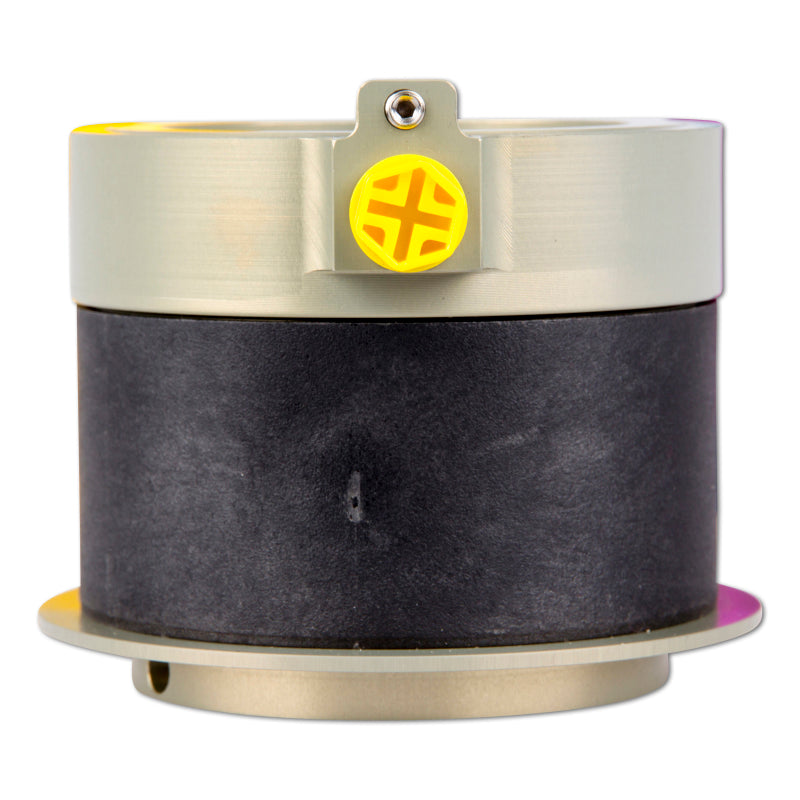

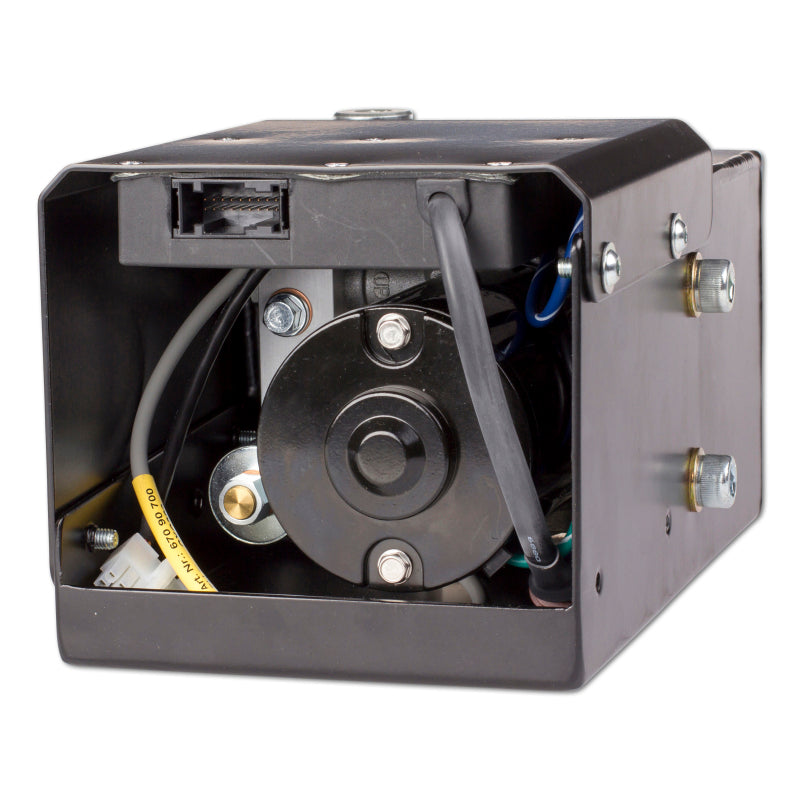

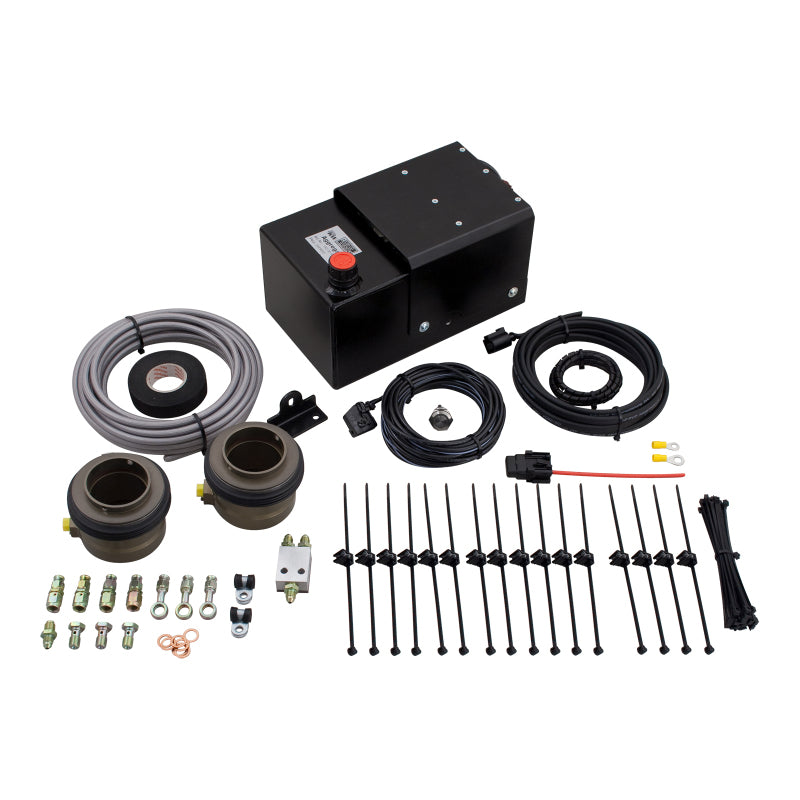

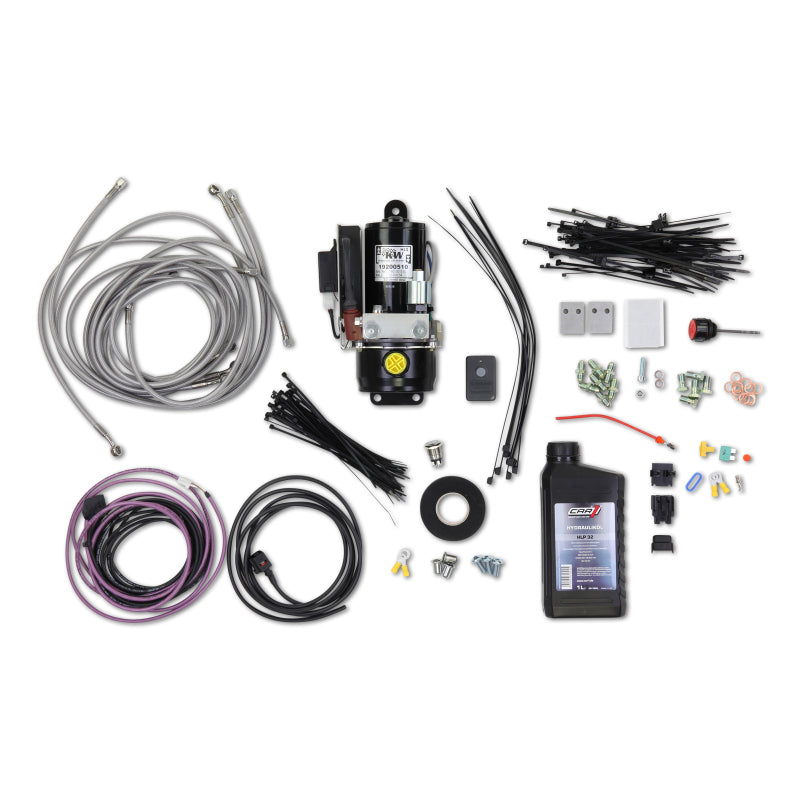

• Includes KW HLS2 hydraulic lift system for the front axle which increases ground clearance at the push of a button. The vehicle specific HLS system includes a self-contained pump and does not affect ride quality or handling.
• Composite spring perch made from wear-resistant, friction-optimized polyamide composite encompassing a stainless-steel insert. The polyamide composite prevents oxidation while the stainless-steel insert maximizes strength.
• V4 coilovers are hand built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany. Each damper is dyno tested to ensure accuracy before being released for delivery.
• Road legal motorsports technology featuring independent rebound and compression adjustability and application specific spring and damper tuning resulting in unparalleled street performance.

Upgrade the handling and adjustable ride height of your 2017-2021 Audi R8 4S Coupe with the KW V4 coilover suspension system, part number KWS3A7102AM. Developed for high-performance vehicles, this system combines KW's race-proven suspension technology with application-specific spring and damper tuning. It is designed for Audi R8 4S Coupe models, including Rear Wheel Series applications, and provides precise control for both street driving and track use.

The KW V4 system features independently adjustable rebound, low-speed compression, and high-speed compression damping. KW TVR-A technology allows precise rebound adjustment, while TVCLH-A technology provides separate low- and high-speed compression tuning. Integrated adjustment controls make it easier to refine the suspension response, with recommended settings provided for comfort-oriented street driving and performance-focused track use.

This kit also includes the KW HLS2 hydraulic lift system for the front axle. With the push of a button, the vehicle can gain additional ground clearance for ramps, driveways, and other obstacles without changing the suspension's normal ride quality or handling characteristics. Wear-resistant composite spring perches, stainless-steel inserts, hand-built dampers, and individual dyno testing support long-term performance and consistent adjustment accuracy. KW develops and manufactures its coilover systems in Germany and backs the product line with a limited lifetime warranty.

Brief Description: Three-way adjustable KW V4 coilover system with front-axle HLS2 hydraulic lift for enhanced suspension tuning and ground clearance on the 2017-2021 Audi R8 4S Coupe.

Key Product Specifications & Technical Data:

• Brand: KW
• Part Number: KWS3A7102AM
• Product Type: V4 adjustable coilover suspension system
• Application: 2017-2021 Audi R8 4S Coupe
• Damping Adjustment: Independent rebound, low-speed compression, and high-speed compression
• Hydraulic Lift: KW HLS2 front-axle system
• Manufacturing: Hand-built and dyno tested in Germany
• Warranty: KW limited lifetime warranty

What's Included: KW V4 coilover components, front-axle HLS2 hydraulic lift system, vehicle-specific springs and dampers, adjustment hardware, and installation components as supplied by KW.

Features:

• TVR-A rebound adjustment technology provides precise control of rebound damping across different damper speeds.
• TVCLH-A technology independently adjusts low-speed and high-speed compression damping for street and track tuning.
• KW HLS2 hydraulic lift system increases front-axle ground clearance at the push of a button without compromising normal handling.
• Hand-built, dyno-tested dampers with application-specific tuning and wear-resistant composite spring perches support reliable high-performance use.

Fitments:
2017 Audi R8 Base
2017 Audi R8 Plus
2017 Audi R8 Spyder
2018 Audi R8 Base
2018 Audi R8 Plus
2018 Audi R8 Plus Spyder
2018 Audi R8 RWS
2018 Audi R8 Spyder
2020 Audi R8 Base
2020 Audi R8 Performance
2020 Audi R8 Performance Spyder
2020 Audi R8 Spyder
2021 Audi R8 Base
2021 Audi R8 Performance
2021 Audi R8 Performance Spyder
2021 Audi R8 Spyder
2022 Audi R8 Performance
2022 Audi R8 Performance RWD
2022 Audi R8 Performance RWD Spyder
2022 Audi R8 Performance Spyder
2023 Audi R8 Performance
2023 Audi R8 Performance RWD
2023 Audi R8 Performance RWD Spyder
2023 Audi R8 Performance Spyder
