MB Quart Mercedes-Benz Sprinter W907 (19+) Tuned Audio Package - 700W STAGE 6 Audio System: MBQSV-STG6A-1

Mercedes-Benz Sprinter (W907) 2019-Current Tuned Audio Package: 700 Watt STAGE 6 Audio System

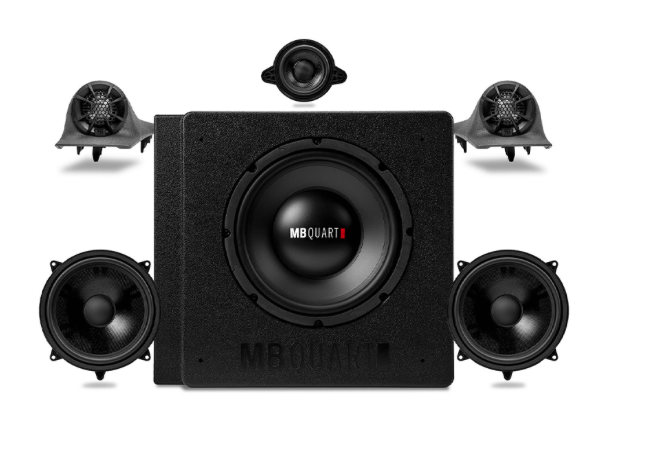

MB Quart MBQSV-STG6A-1 Mercedes-Benz Sprinter (W907) 2019-Current Tuned Audio Package: 700 watt six speaker STAGE 6 audio system with 6.5 inch 2-way front component speaker system, one 3 inch center channel dash speaker, one 10 inch application specific subwoofer system, and powered by a 700 watt 5-channel Class-D amplifier.

**IMPORTANT NOTE** Everything that’s currently in the space under the front passenger seat, such as add-on fuse panels, etc, will need to be relocated. The subwoofer enclosure and amplifier will require all of the space under the passenger seat.

Features & Benefits:

• Speaker Features: Front component speaker system with center channel speaker - 6.5 inch mid-bass door speakers, 1 inch dash mounted on-axis WideSphere titanium tweeters, and one 3 inch mid-range dash mounted center speaker. Power: 100W Maxx / 50W RMS. Impedance: 6.5" Comp 4ohm / 3" Center 8ohm. Frequency Response: 6.5" Comp 60Hz to 20kHz / 3" Center 180Hz to 20kHz. Sensitivity: 6.5" Comp 92dB / 3" Center 83dB. Crossover: 6dB / octave.
• Amplifier Features: One RA1-710.5VA 700 watt high efficiency full range 5-channel Class-D amplifier.
• Subwoofer Features: 10 inch application specific subwoofer designed for long-throw and high output. 2ohm single voice coil.
• Mount / Harness: Powder coated mounting brackets. Includes all wiring harnesses for simple plug-n-play style installation.
• Time and Tools: Basic hand tools.

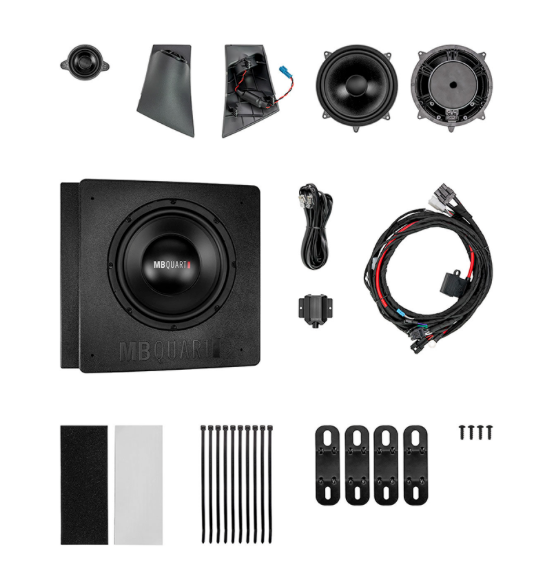

Kit Includes:

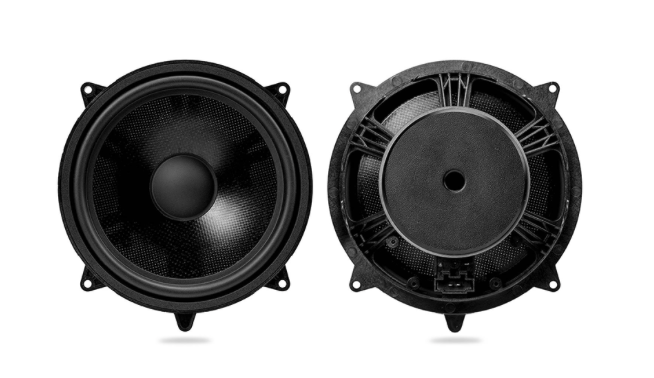

• Front Speakers: 2-way 6.5 inch component speaker system with 1 inch titanium dome tweeters and 3 inch mid-range center speaker.

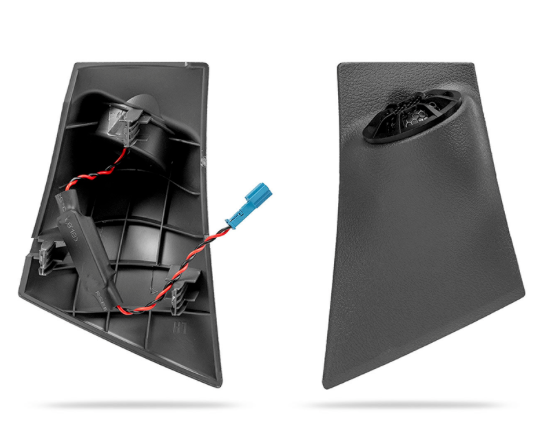

• Front Speakers Mounting: Tweeter Mount: Dash panel with mounting for front tweeter location. Midbass Speakers: Drop in direct replacement for factory speakers in the door and center dash.

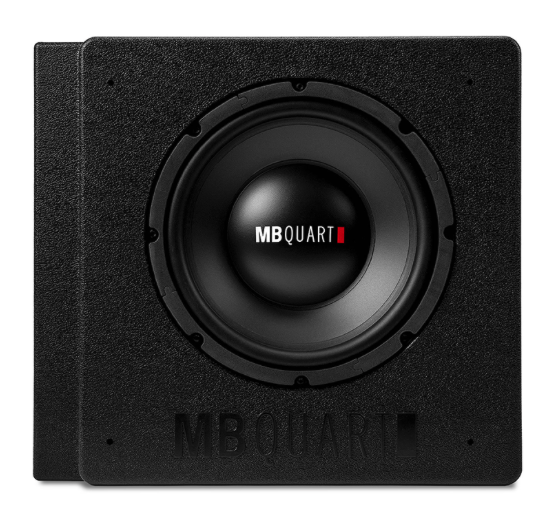

• Subwoofer: One single voice coil 10 inch subwoofer.
• Subwoofer Mounting: Easy Installation uses the whole space under the front passenger seat to mount the subwoofer enclosure and 5-channel amplifier. Includes all necessary hardware. **IMPORTANT NOTE: Everything that's currently in the space under the front passenger seat, such as add-on fuse panels, etc, will need to be relocated. The subwoofer enclosure and amplifier will require all of the space under the passenger seat.**
• Full Range Amplifier: One 700 watt full range, five channel Class-D amplifier

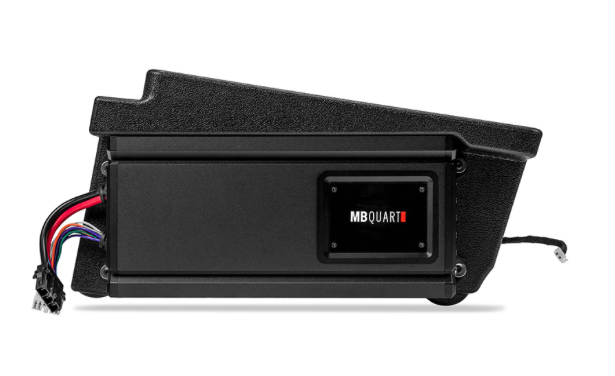

• Full Range Amplifier Mounting: Mounted to the HDPE enclosure that is located under the front passenger seat.
• Harnessing: Includes all wiring harnesses for simple plug-n-play style installation.

Specifications:

• Type: Vehicle Kit
• Series: Mercedes-Benz Tuned
• Category: Mobile, RV
• Color: Black
• Compatible Vehicles: Mercedes-Benz Sprinter (W907) 2019-Current (Requires everything under the front passenger seat be relocated so that the entire space is empty & available)
• Vehicle Kit Total System Power (watts): 700
• Additional Details: See Kit Inclusions and Features & Benefits for product components and details.
