Hertz Mpcx2tm.3 Mille Pro Series MPCX-2-TM3 Crossover (4 Pack)
Hertz Mpcx2tm.3 Mille Pro Series MPCX-2-TM3 Crossover (4 Pack)
Hertz -
Regular price
$279.99 USD
Regular price
$385.00 USD
Sale price
$279.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The MPCX 2 TM.3 car audio crossover is specifically developed for MP 70.3 and MP 25.3 when installed in a 3-way multi-amplification system and combined with an MP 165.3/ MP 165P.3 woofer actively driven.
Features -

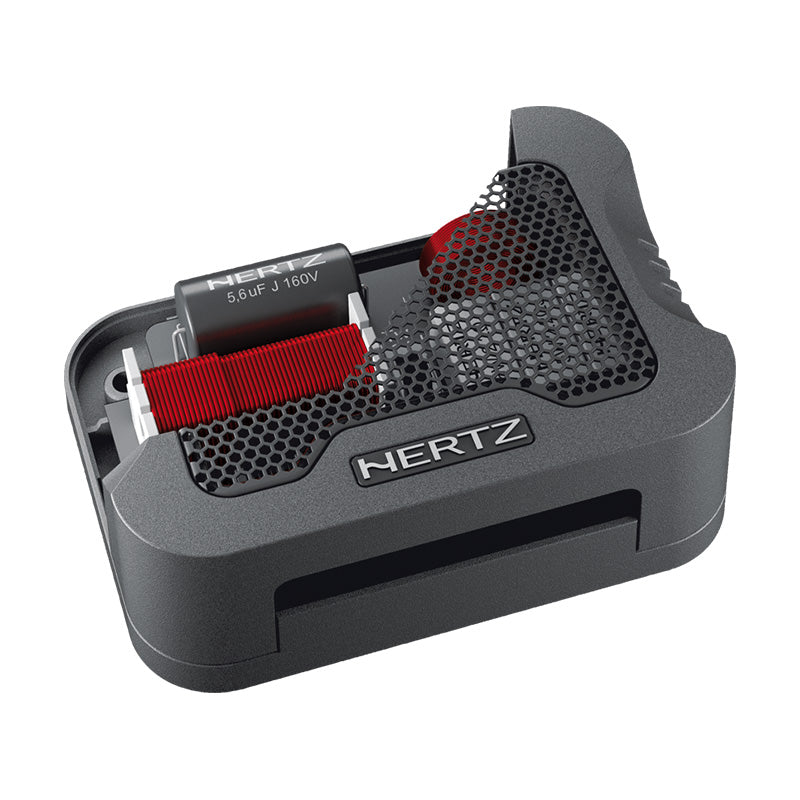

• Passive crossover specifically developed for MP 70.3 and MP 25.3 when installed in a 3-way multi-amplification system and combined with an • MP 165.3/ MP 165P.3 woofer actively driven. • Two-position (0 / +2 dB) switch for tweeter level adjustments, to fine-tune the transducers emission. • 160V extremely high quality bi-metallized polyester film capacitors with ultra-low DF, for maximum sound transparency and neat mid/hi-frequencies. • 1mm pure copper wire low series resistance inductors, for low dissipation losses in the mid-range section where high transient currents are demanded. • Small footprint design for easy installation, with top vent grille for efficient heat dissipation. Specifications -
• Crossover:
‚óã Midrange: Low pass 5,5 kHz @ - 6 dB Oct.
‚óã Tweeter: Hi pass 5,5k Hz @ - 12 dB Oct.
• Tweeter Adjustment: 0/+2 dB
Features -
• Passive crossover specifically developed for MP 70.3 and MP 25.3 when installed in a 3-way multi-amplification system and combined with an • MP 165.3/ MP 165P.3 woofer actively driven. • Two-position (0 / +2 dB) switch for tweeter level adjustments, to fine-tune the transducers emission. • 160V extremely high quality bi-metallized polyester film capacitors with ultra-low DF, for maximum sound transparency and neat mid/hi-frequencies. • 1mm pure copper wire low series resistance inductors, for low dissipation losses in the mid-range section where high transient currents are demanded. • Small footprint design for easy installation, with top vent grille for efficient heat dissipation. Specifications -
• Crossover:
‚óã Midrange: Low pass 5,5 kHz @ - 6 dB Oct.
‚óã Tweeter: Hi pass 5,5k Hz @ - 12 dB Oct.
• Tweeter Adjustment: 0/+2 dB
