Hertz Mpcx2tm.3 single

Features:

• Passive crossover specifically developed for MP 70.3 and MP 25.3 when installed in a 3-way multi-amplification system and combined with an MP 165.3/ MP 165P.3 woofer actively driven.
• Two-position (0 / +2 dB) switch for tweeter level adjustments, to fine-tune the transducers emission.

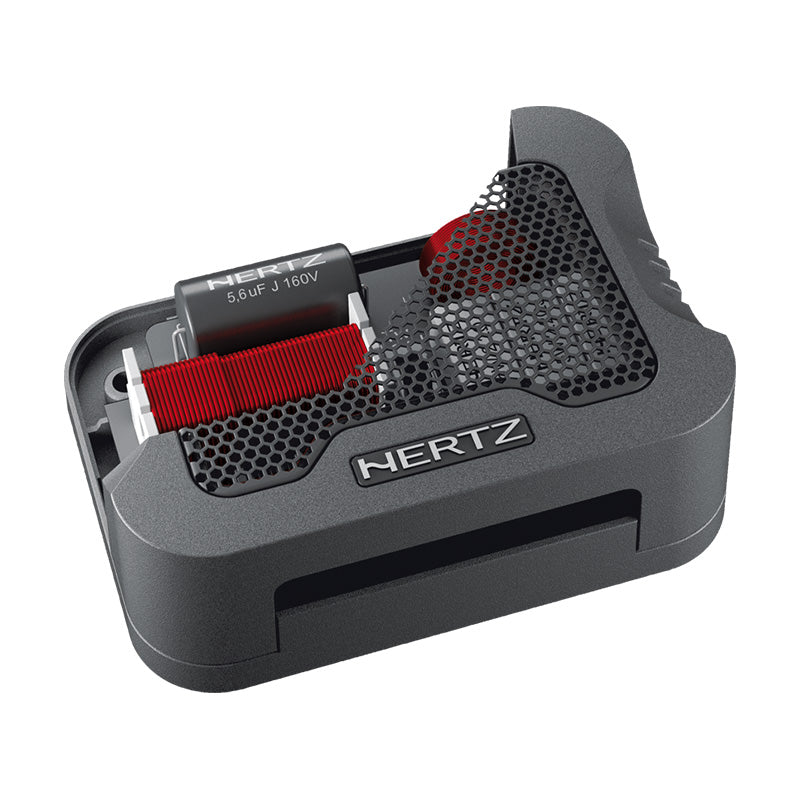

• 160V extremely high quality bi-metallized polyester film capacitors with ultra-low DF, for maximum sound transparency and neat mid/hi-frequencies.
• 1mm pure copper wire low series resistance inductors, for low dissipation losses in the mid-range section where high transient currents are demanded.

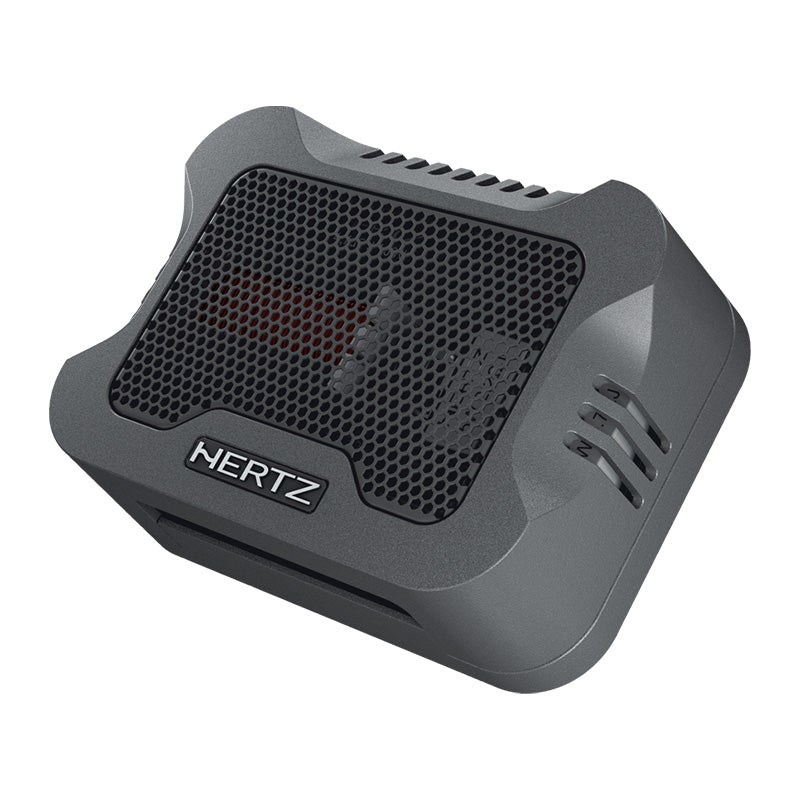

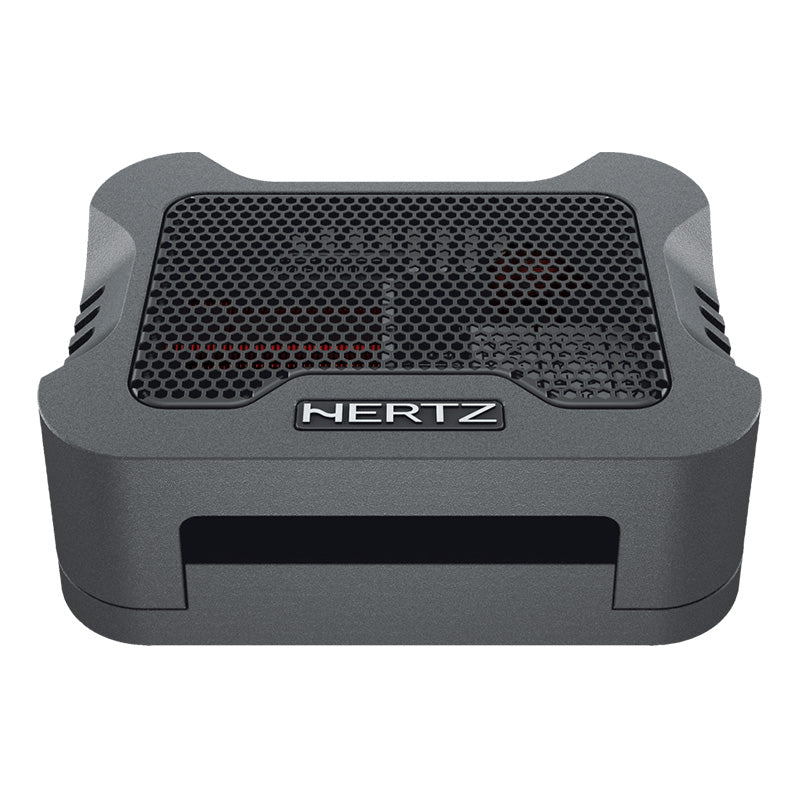

• Small footprint design for easy installation, with top vent grille for efficient heat dissipation.

Specifications:

• Component: Crossover
• Crossover:¬†
  • Midrange: Low pass 5,5 kHz @ - 6 dB Oct.
  • Tweeter: Hi pass 5,5k Hz @ - 12 dB Oct.
• Adjustment Tweeter: 0 / +2 dB
• Size mm (in.): 102 x 76.5 x 37 (4.02 x 3.01 x 1.46)
• Weight kg (lb.): 0,16 (0.35)
