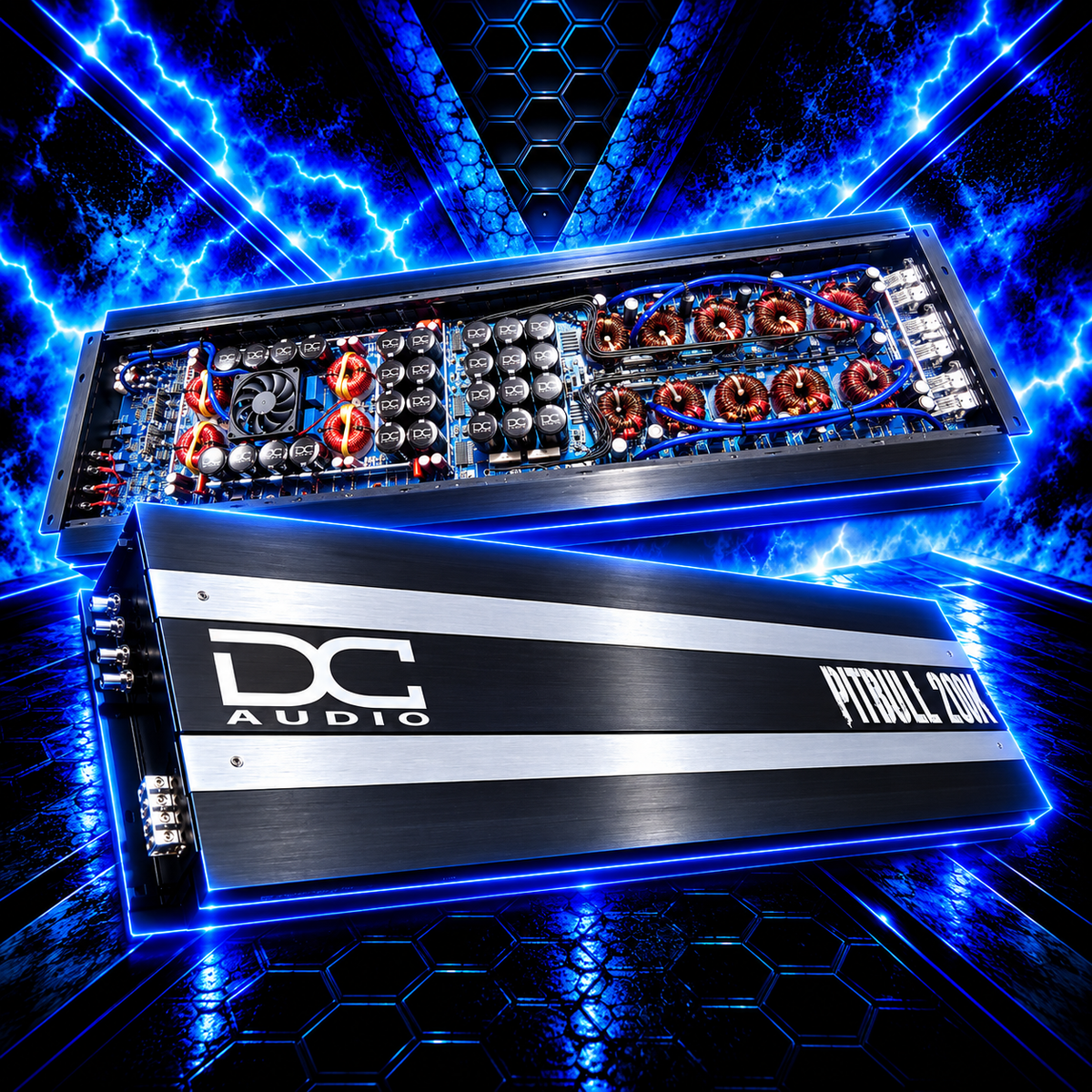

DC Audio Pitbull 20K Competition Amplifier – 20,000 Watt RMS Monoblock

Unleash the Beast. 20,000 Watts of Pure Competition Power.

Some amplifiers are built to play music. Others are built to make a statement. The DC Audio Pitbull 20K Competition Series Amplifier was engineered for those who demand extreme power, massive bass, and uncompromising performance.

Delivering an astonishing 20,000 watts RMS at 1 ohm and 14.4 volts, the Pitbull 20K is a serious competition-grade monoblock amplifier designed for the most demanding car audio systems.

Whether you're building an extreme SPL competition vehicle, powering a massive subwoofer wall, or creating a ground-shaking demonstration system, the DC Audio Pitbull 20K brings the power needed to push the limits.

With heavy-duty construction, triple 1/0 AWG power and ground connections, advanced tuning controls, and a wired bass remote with clipping indicator, this amplifier is engineered for serious competitors who refuse to settle for anything less than extraordinary.

20,000 Watts. One Amplifier. Zero Compromises.

DC Audio – Get On Our Level.

20,000 Watts RMS of Extreme Bass Power

The DC Audio Pitbull 20K is designed to deliver massive power into demanding subwoofer systems.

Producing 20,000 watts RMS at 1 ohm and 14.4 volts, this competition monoblock provides the output needed for some of the most extreme car audio installations.

With an impressive 13,000 watts RMS at 2 ohms and 7,500 watts RMS at 4 ohms, the Pitbull 20K offers tremendous power across multiple impedance configurations.

Designed specifically for high-output 12-volt automotive electrical systems, the Pitbull 20K is built for competitors who understand the importance of proper electrical support, system design, and installation.

When your goal is extreme bass performance, the Pitbull 20K is ready to deliver.

Engineered for Extreme SPL Competition

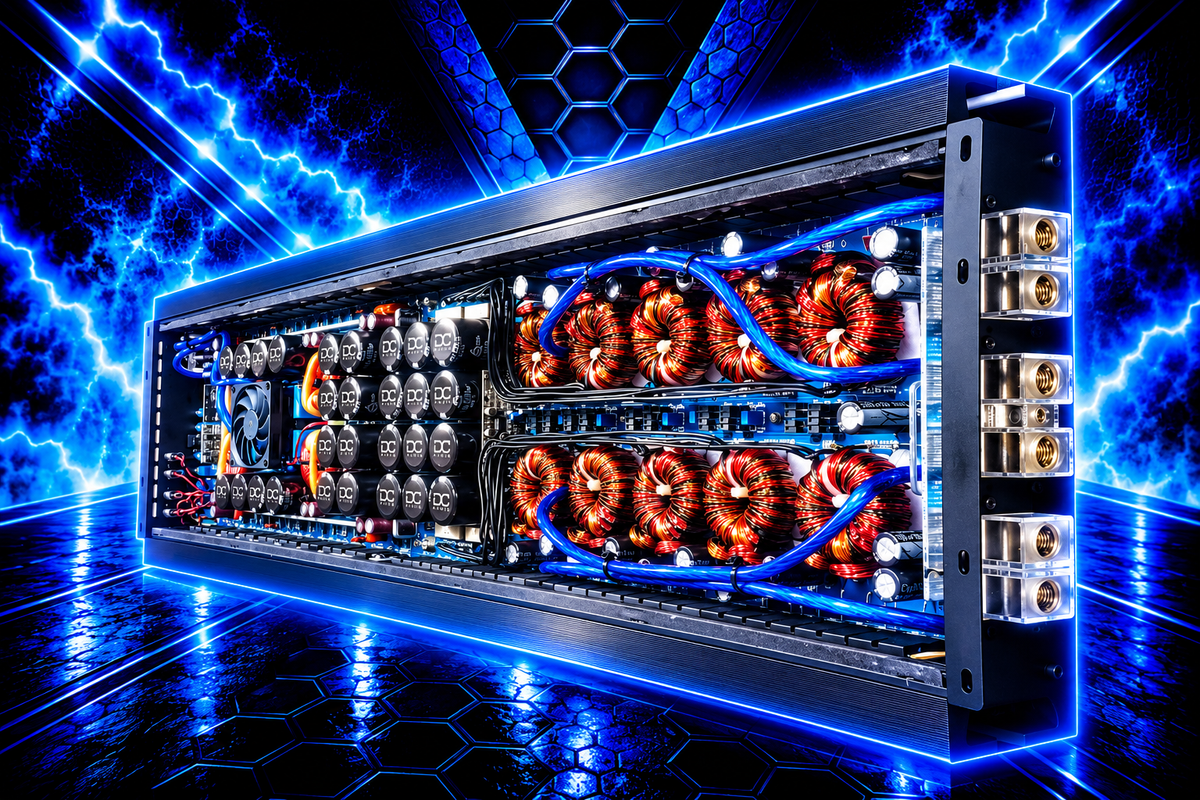

Triple 1/0 AWG Power and Ground Connections

Extreme power requires serious electrical connections. The Pitbull 20K features three 1/0 AWG power inputs and three 1/0 AWG ground inputs, allowing installers to connect the heavy-duty wiring required for high-current competition systems.

These substantial connections are designed to support the demanding electrical requirements of a 20,000-watt RMS amplifier.

1 Ohm Stable Monoblock Design

The Pitbull 20K is engineered to deliver maximum rated output at a minimum impedance of 1 ohm.

Its high-output monoblock design makes it an excellent choice for extreme subwoofer installations where massive power delivery is the priority.

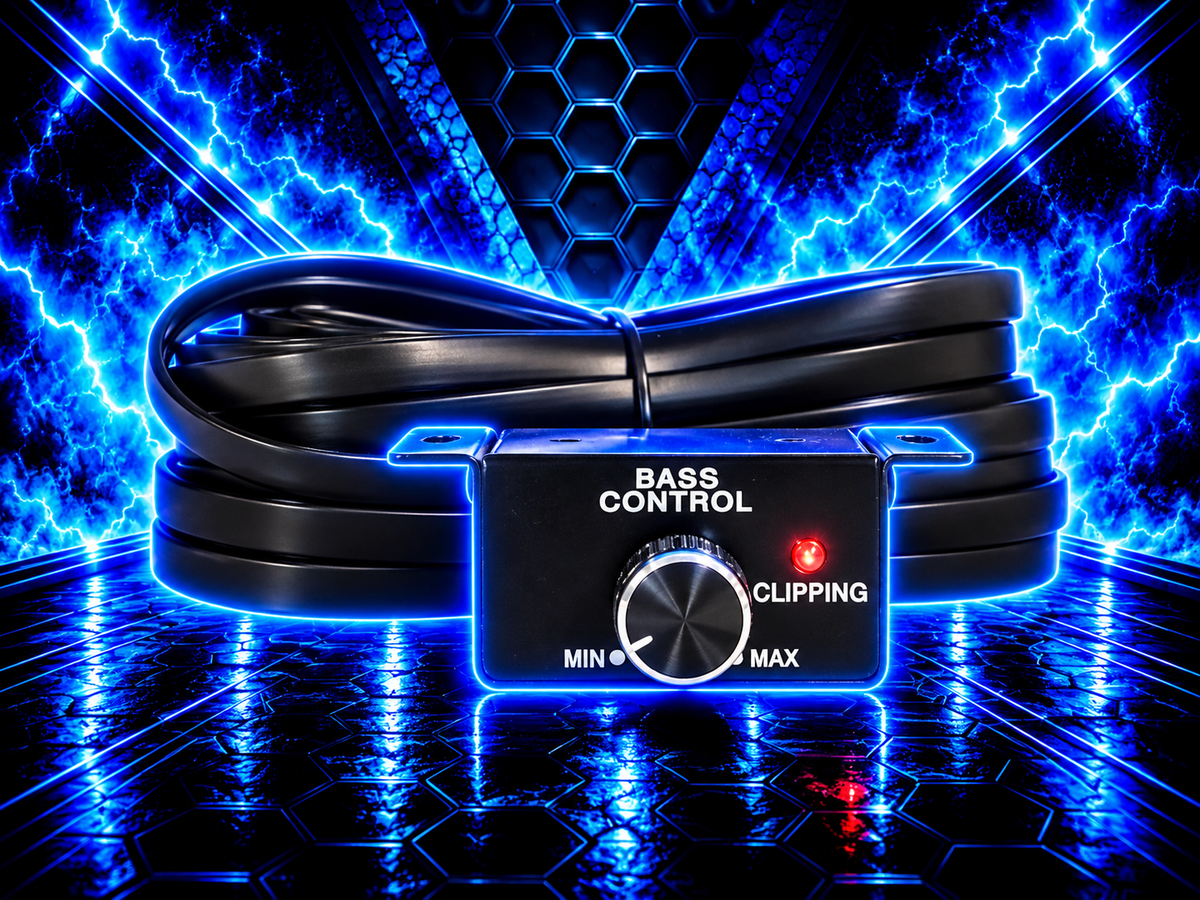

Wired Bass Remote with Built-In Clipping Indicator

Stay in control of your bass system with the included wired bass remote.

The integrated clipping indicator provides valuable feedback, helping you recognize when the amplifier is approaching or entering clipping conditions.

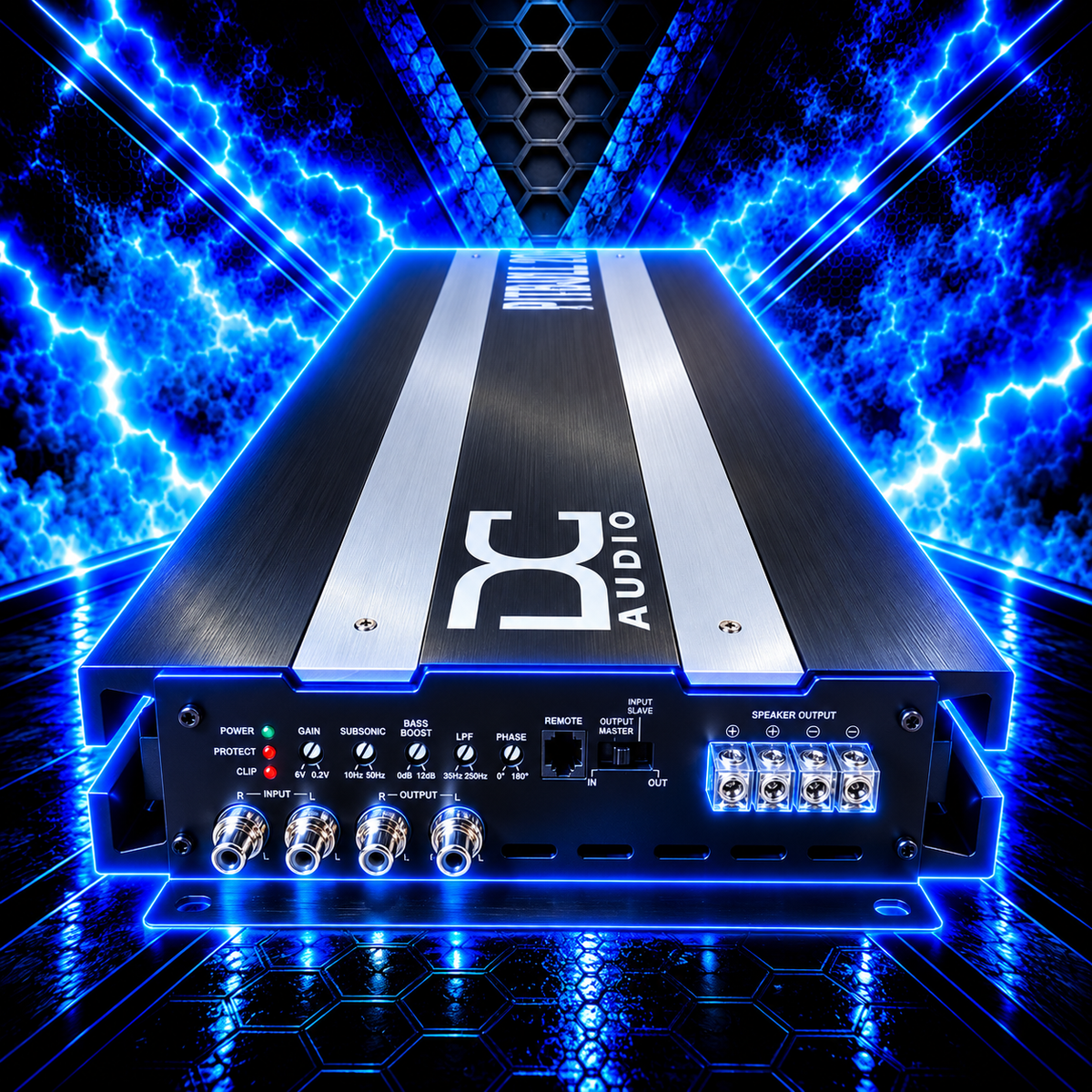

Advanced Subwoofer Tuning Controls

Every competition vehicle and enclosure is different. The Pitbull 20K features adjustable tuning controls to help optimize performance for your specific application.

Fine-tune your bass response with:

• Variable low-pass crossover
• Adjustable subsonic filter
• Variable bass boost
• Adjustable phase control

These features allow you to tailor amplifier output to your subwoofer configuration, enclosure design, and performance goals.

Heavy-Duty 8 AWG Speaker Terminals

The Pitbull 20K features substantial 8 AWG speaker terminals designed to accommodate the wiring used in high-powered subwoofer systems.

Premium Tiffany-Style RCA Connections

High-quality Tiffany-style RCA input connections provide dependable signal connectivity, while RCA pass-through outputs make integrating additional amplifiers into complex audio systems easier.

Heavy-Duty End Plates

The Pitbull 20K features heavy-duty end plates that complement its substantial heatsink and competition-focused construction.

Built for demanding installations, this amplifier looks every bit as serious as the power it produces.

Output Power Ratings (RMS)

Impedance	RMS Power	Voltage
4 Ohm	7,500W x 1	14.4V
2 Ohm	13,000W x 1	14.4V
1 Ohm	20,000W x 1	14.4V

Power ratings are based on the specified voltage and impedance conditions. Actual system performance depends on electrical supply, installation, and operating conditions.

Key Features

• 20,000 Watts RMS at 1 Ohm and 14.4V
• 13,000 Watts RMS at 2 Ohms
• 7,500 Watts RMS at 4 Ohms
• Competition-Grade Monoblock Design
• 1 Ohm Stable Operation
• Designed for 12-Volt Automotive Electrical Systems
• Triple 1/0 AWG Power Inputs
• Triple 1/0 AWG Ground Inputs
• Heavy-Duty 8 AWG Speaker Terminals
• Premium Tiffany-Style RCA Connections
• Heavy-Duty End Plates
• Variable Low-Pass Crossover
• Variable Subsonic Filter
• Adjustable Bass Boost
• Adjustable Phase Control
• Wired Bass Remote Control
• Built-In Clipping Indicator
• RCA Pass-Through Outputs
• Onboard Power and Protect LED Indicators
• Designed for Extreme SPL Competition Applications
• Engineered for High-Power Subwoofer Systems

Complete Technical Specifications

Specification	DC Audio Pitbull 20K
Amplifier Type	Competition Monoblock
Rated RMS Power	20,000 Watts @ 1 Ohm
Input Sensitivity	6V – 0.2V
Frequency Response	15Hz – 270Hz
Crossover Slope	24dB / Octave
Low-Pass Filter	35Hz – 250Hz
Subsonic Filter	10Hz – 50Hz
Bass Boost @ 45Hz	0 – 9dB
Phase Adjustment	0° – 180°
Wired Remote Control	Yes
Clip Indicator	Yes
Signal-to-Noise Ratio	100dB
Damping Factor	Greater Than 150
THD @ 4 Ohms	Less Than 0.1%
External Fuse Rating	3 x 660A (1,980A Total)
LED Status Indicators	Power / Protect
Master/Slave Linking	No
Minimum Operating Impedance	1 Ohm
Maximum Operating Voltage	16.0V DC
Power Connections	Triple 1/0 AWG Power and Ground
Speaker Terminals	8 AWG
RCA Connections	Tiffany-Style

Amplifier Dimensions

Measurement	Inches	Millimeters
Heatsink Length	37.75"	958mm
Heatsink Width	11.5"	292mm
Heatsink Height	2.6"	66mm

Important Operating Requirements & Warranty Information

The DC Audio Pitbull 20K is designed specifically for 12-volt automotive electrical systems. Proper voltage regulation, impedance matching, and electrical support are essential.

MAXIMUM OPERATING VOLTAGE: 16.0V DC

The Pitbull 20K is not designed to operate above 16.0 volts. Charging or operating the amplifier above this voltage may cause damage.

MINIMUM OPERATING IMPEDANCE: 1 OHM

The amplifier must not be operated below a 1-ohm load.

WARRANTY WARNING: Operating the amplifier above 16.0 volts or below 1 ohm will void the warranty.

Due to the extreme power capabilities of this amplifier, a properly designed high-output electrical system, sufficient battery capacity, correctly sized wiring, and appropriate external fuse protection are essential.

Professional installation by an experienced high-power car audio installer is strongly recommended.

Why Choose the DC Audio Pitbull 20K?

At DC Audio, we understand that extreme bass isn't just a hobby. For serious competitors, it's a passion that demands the right equipment.

The DC Audio Pitbull 20K Competition Amplifier represents a serious step into extreme-power car audio.

With an incredible 20,000 watts RMS of rated output, heavy-duty electrical connections, advanced tuning capabilities, and a competition-focused design, the Pitbull 20K provides the power needed for some of the most demanding SPL applications.

This amplifier isn't designed for ordinary bass systems. It's designed for builders who want to push boundaries, challenge limits, and create systems that stand apart from the competition.

Whether you're chasing personal SPL records, building an extreme demonstration vehicle, or putting together a dedicated competition system, the Pitbull 20K brings the power to make it happen.

Built for Extreme Power. Engineered for Serious Competitors.

Unleash the Pitbull.

DC Audio – Get On Our Level.
