DC Audio PS-2000x1 – 2000 Watt Compact Full Bridge Monoblock Amplifier

DOUBLE THE POWER. COMPACT DESIGN. SERIOUS PERFORMANCE.

When 1,000 watts just isn't enough, it's time to step up to the DC Audio PS-2000x1 Full Bridge Monoblock Amplifier.

Engineered for car audio enthusiasts who demand massive output without sacrificing valuable installation space, the PS-2000x1 delivers an incredible 2,000 watts RMS at 1 ohm from an amplifier measuring just 6.82 inches long.

But this isn't just another high-powered subwoofer amplifier.

Thanks to its versatile Full Range / Low Pass switch, the PS-2000x1 can power demanding subwoofer systems OR compatible mids and highs configurations for custom stunt doors, stunt walls, and high-output pro audio installations.

Featuring 1-ohm stability, adjustable crossover controls, an included wired bass knob, onboard clipping indicators, and a built-in cooling fan, this compact powerhouse is packed with features serious audio enthusiasts demand.

Whether you're building a ground-shaking bass system or an aggressive high-output speaker setup, the PS-2000x1 gives you the power and flexibility to take your sound to another level.

MORE POWER. LESS SPACE. GET ON OUR LEVEL.

2,000 Watts RMS – Extreme Power in a Compact Package

Don't let the size fool you.

The DC Audio PS-2000x1 utilizes compact full bridge amplifier technology to deliver serious RMS output without the bulky footprint of traditional high-powered monoblock amplifiers.

With 2,000 watts RMS available at 1 ohm, this amplifier is ready to drive compatible high-performance subwoofers and demanding speaker configurations.

DC Audio PS-2000x1 RMS Power Ratings

Rated at 14.4 Volts

Speaker Impedance	RMS Power Output
4 Ohms	500 Watts x 1
2 Ohms	1,000 Watts x 1
1 Ohm	2,000 Watts x 1

With 1-ohm stability, the PS-2000x1 provides the flexibility to configure your speaker system for maximum performance while staying within the amplifier's rated operating limits.

Whether you're powering a high-output subwoofer or building an extreme pro audio installation, this amplifier delivers serious power.

2,000 WATTS RMS. 1-OHM STABLE. ONLY 6.82 INCHES LONG.

More Than a Subwoofer Amplifier – Full Range Power

What separates the DC Audio PS-2000x1 from many traditional monoblock amplifiers is its versatility.

Most monoblock amplifiers are designed primarily for low-frequency subwoofer applications.

The PS-2000x1 takes things further.

With its Full Range / Low Pass switch, this amplifier can operate as a powerful subwoofer amplifier or provide full-range output for compatible mids and highs systems.

One Amplifier. Multiple Applications.

High-Power Subwoofer Systems

With 2,000 watts RMS at 1 ohm, the PS-2000x1 is an excellent choice for properly matched high-performance subwoofers. Adjustable low-pass and subsonic filters help you fine-tune bass performance.

Custom Stunt Doors

Building an aggressive high-output door panel? The PS-2000x1 provides substantial power for compatible pro audio midrange speakers and properly configured speaker arrays.

Extreme Stunt Walls

Need serious output for a custom stunt wall? Full-range capability allows this amplifier to be integrated into high-output pro audio systems with appropriate speaker wiring and frequency management.

Mids and Highs Systems

The Full Range switch makes the PS-2000x1 a versatile option for compatible mids and highs configurations when paired with suitable crossover filtering or external digital signal processing.

Why limit yourself to bass when you can have the flexibility to power an entirely different type of audio system?

Advanced Bass Control – Fine-Tune Your Sound

Power means nothing without control.

The DC Audio PS-2000x1 includes adjustable tuning features designed to help you get the most from your subwoofer or full-range speaker system.

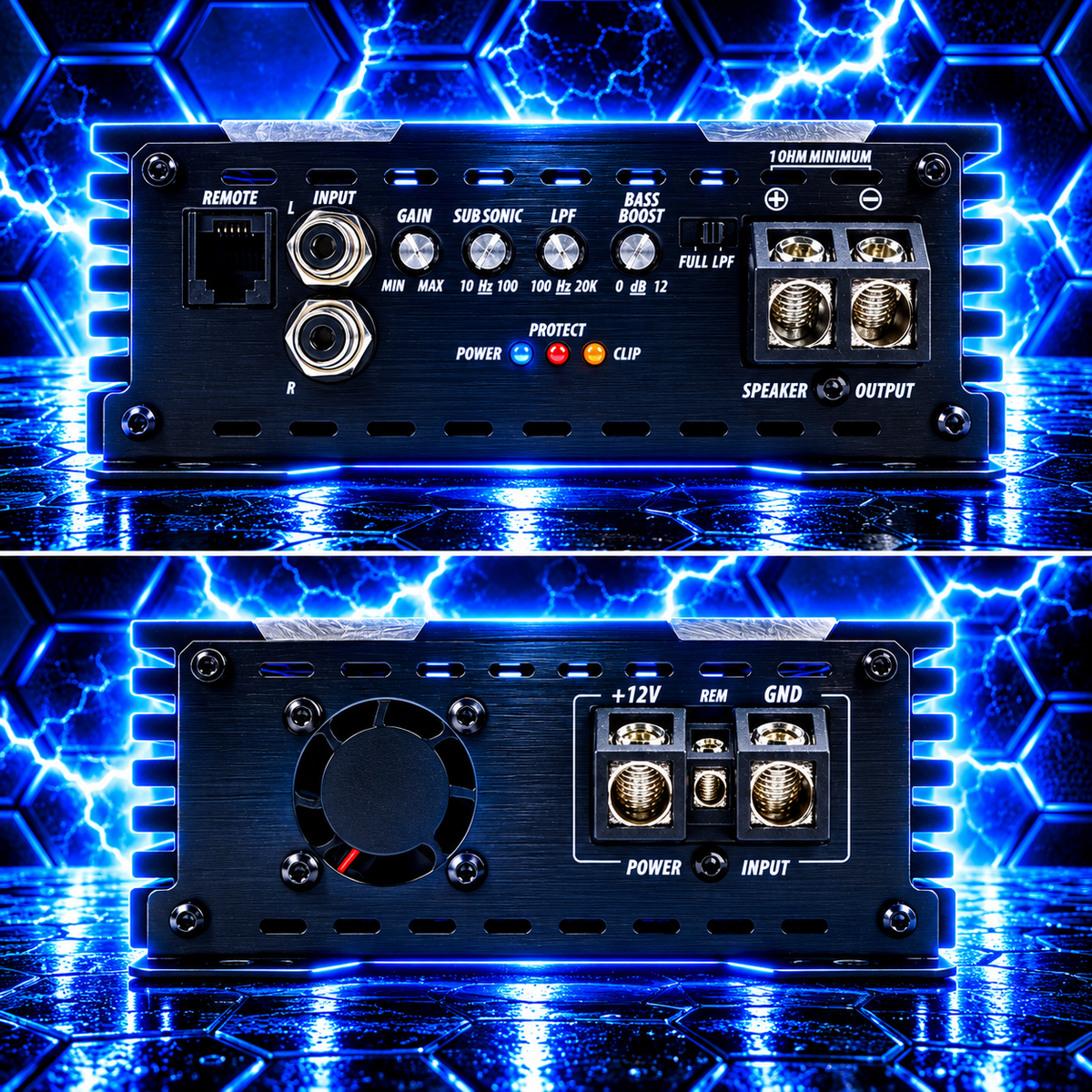

Amplifier Tuning Features

• Variable Low-Pass Filter (LPF): Control the upper frequency limit sent to your subwoofers.
• Variable Subsonic Filter: Reduce unwanted ultra-low frequencies that can cause excessive subwoofer movement in certain enclosure configurations.
• Full Range Switch: Switch between low-pass operation and full-range output for additional system flexibility.
• Adjustable Bass Boost: Customize low-frequency emphasis to match your system and listening preferences.
• 12dB/Octave Crossover: Provides controlled frequency filtering for better integration with your speaker system.
• Adjustable Input Sensitivity: Match the amplifier's input sensitivity to your audio source.

Whether you're chasing deep bass, powerful output, or high-volume pro audio performance, the PS-2000x1 gives you the tools to configure your system properly.

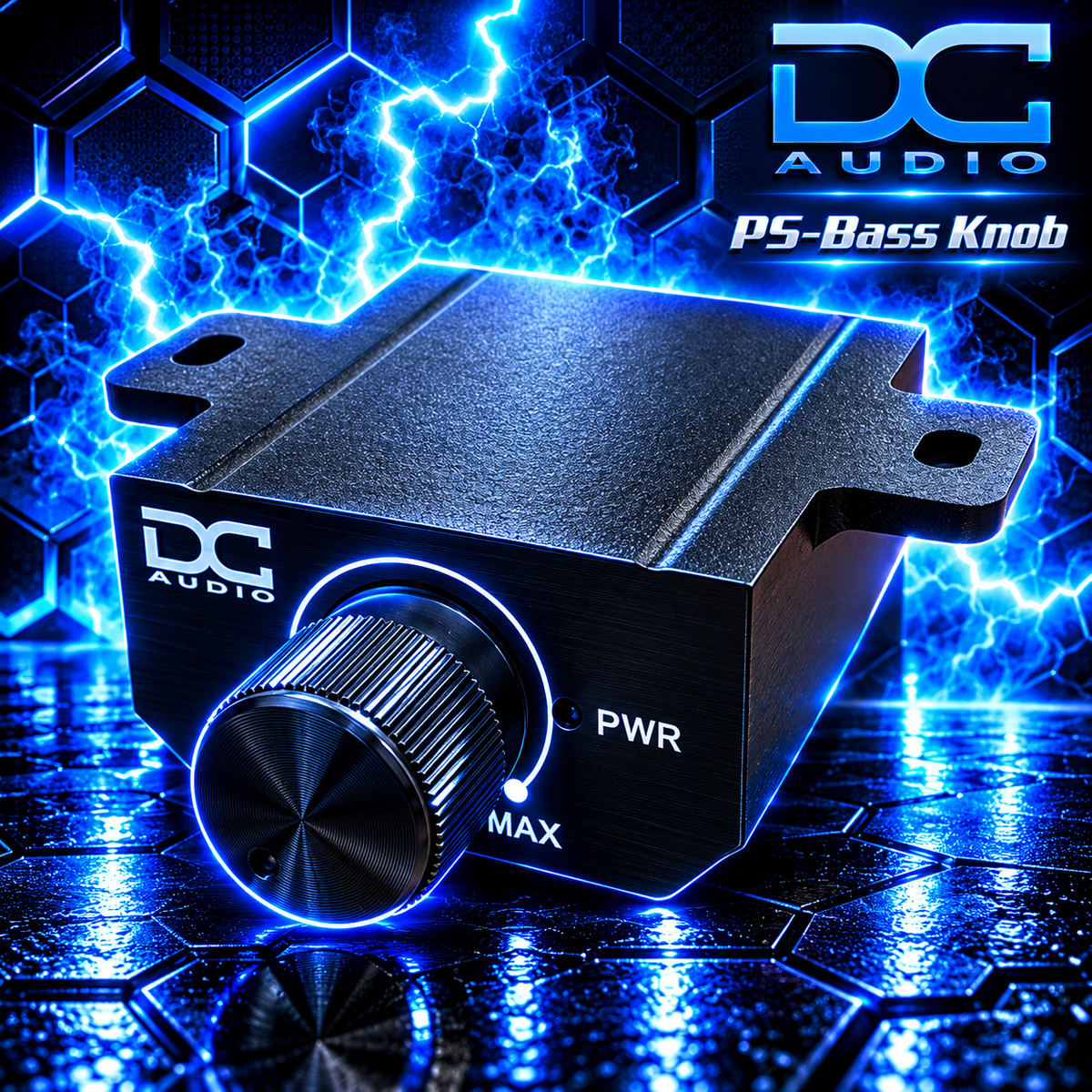

Included Wired Bass Knob – Control Your Bass from the Driver's Seat

Want to adjust your bass without reaching for your amplifier?

The DC Audio PS-2000x1 includes a wired remote bass knob, giving you convenient control over your bass level from your listening position.

Whether you're listening to music at moderate volume or turning things up when it's time to get loud, the included remote makes adjustments quick and easy.

No need to purchase a separate bass remote.

It's included with your amplifier.

Onboard Clip Indicator – Monitor Your Amplifier's Output

When you're running a high-powered audio system, monitoring your amplifier's operating status is important.

The DC Audio PS-2000x1 features onboard LED indicators for:

• Power: Indicates normal amplifier operation.
• Protect: Alerts you when the amplifier enters protection mode.
• Clip: Provides visual feedback when the amplifier output begins clipping.

The onboard clipping indicator is a valuable feature for enthusiasts who want to maximize performance while maintaining proper amplifier gain settings.

Clipping can introduce distortion and increase the risk of speaker damage, so having a visual indication helps make system setup and monitoring more convenient.

Built-In Cooling Fan – Designed for High-Power Operation

Producing 2,000 watts RMS from a compact amplifier requires effective thermal management.

That's why the DC Audio PS-2000x1 features a built-in cooling fan to help manage operating temperatures.

The integrated fan assists with heat dissipation during demanding listening sessions and high-output applications.

Combined with its compact full bridge design, the built-in fan adds another valuable feature for enthusiasts building powerful systems in limited installation spaces.

Proper ventilation is still important for reliable amplifier operation.

SERIOUS POWER DESERVES SERIOUS COOLING.

Ultra-Compact Design – 2,000 Watts in Just 6.82 Inches

One of the most impressive features of the DC Audio PS-2000x1 is its incredible power-to-size ratio.

Measuring just 6.82 inches long, 5.23 inches wide, and 2.3 inches tall, this amplifier packs 2,000 watts RMS into a chassis small enough for many space-limited installations.

Its compact design makes it an excellent choice for:

• High-performance cars and trucks
• Custom subwoofer installations
• High-output stunt doors and stunt walls
• Motorcycle and powersports audio systems with compatible electrical systems
• Multiple-amplifier installations
• Custom amplifier racks
• Competition-inspired audio builds
• High-powered daily-driver systems

Whether you're installing one amplifier or designing a complete high-output system, the PS-2000x1 helps you maximize available space without sacrificing power.

BIG POWER DOESN'T HAVE TO MEAN A BIG AMPLIFIER.

Why Choose the DC Audio PS-2000x1?

Massive 2,000 Watts RMS at 1 Ohm

Serious output for demanding subwoofer systems and compatible high-power speaker applications.

Full Range / Low Pass Switch

Run subwoofers or compatible mids and highs using one versatile amplifier platform.

1-Ohm Stable Monoblock Design

Flexible impedance options for custom car audio installations.

Built-In Cooling Fan

Integrated cooling helps manage operating temperatures during high-power operation.

Included Wired Bass Knob

Convenient remote bass level adjustment without purchasing additional accessories.

Onboard Clip Indicator

Visual feedback to help monitor amplifier clipping.

Adjustable Low-Pass and Subsonic Filters

Fine-tune your subwoofer system's frequency response.

Adjustable Bass Boost

Customize bass emphasis for your preferred listening experience.

Ultra-Compact Full Bridge Technology

Get 2,000 watts RMS from a chassis measuring just 6.82 inches long.

4 AWG Power Inputs

Power connections designed for high-current car audio applications.

Tiffany-Style RCA Jacks

Quality RCA input connections for your audio system.

9V–16.5V Operating Range

Supports a wide range of compatible automotive electrical systems.

DC Audio PS-2000x1 Technical Specifications

Specification	Rating
Amplifier Model	DC Audio PS-2000x1
Amplifier Type	Compact Full Bridge Monoblock
RMS Power @ 4 Ohms	500W x 1
RMS Power @ 2 Ohms	1,000W x 1
RMS Power @ 1 Ohm	2,000W x 1
Minimum Impedance	1 Ohm
Input Sensitivity	4V – 0.4V
Frequency Response	10Hz – 20kHz
Crossover Slope	12dB / Octave
Low-Pass Filter	50Hz – 15kHz
Subsonic Filter	Yes
Bass Boost	Yes
Full Range Switch	Yes
Phase Shift	No
Wired Bass Remote	Included
Clip Indicator	Yes
Signal-to-Noise Ratio	90dB
THD @ 4 Ohms	Less Than 0.1%
Fuse Rating	External 200A
LED Status Indicators	Power / Protect / Clip
Master / Slave	No
Built-In Cooling Fan	Yes
Operating Voltage	9V – 16.5V
Power Inputs	4 AWG

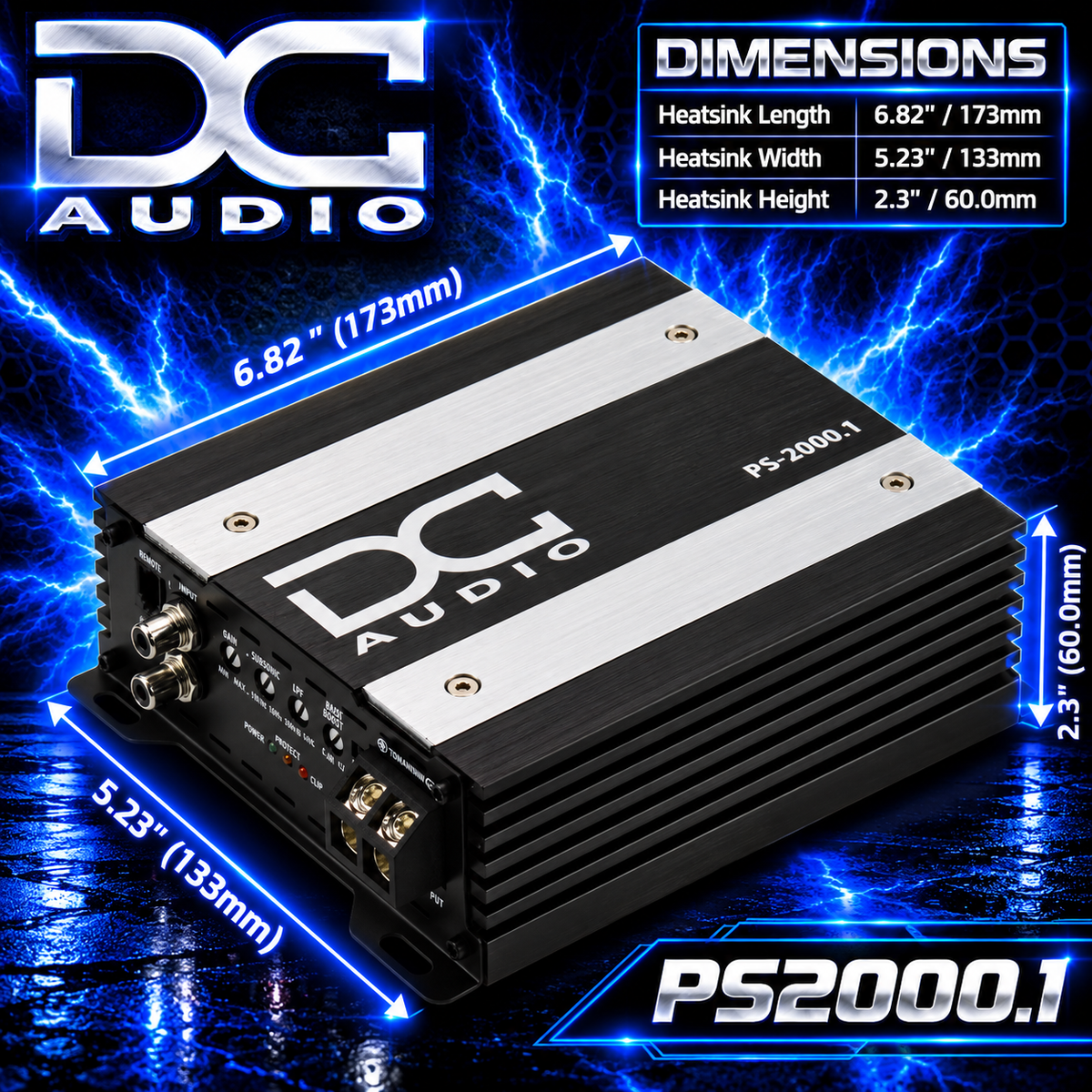

Compact Amplifier Dimensions

Dimension	Measurement
Heatsink Length	6.82" / 173mm
Heatsink Width	5.23" / 133mm
Heatsink Height	2.3" / 60mm

2,000 WATTS RMS IN AN AMPLIFIER UNDER 7 INCHES LONG!

Upgrade to Serious Power with DC Audio

When you're ready to take your car audio system beyond ordinary, the DC Audio PS-2000x1 2000 Watt Full Bridge Monoblock Amplifier is ready to deliver.

Combining massive RMS power, full-range versatility, advanced bass controls, integrated cooling, and an incredibly compact footprint, this amplifier is built for serious car audio enthusiasts.

Whether you're powering demanding subwoofers, building an aggressive stunt door setup, or creating a high-output pro audio system, the PS-2000x1 gives you the power and flexibility to make it happen.

Don't settle for oversized amplifiers or limited functionality.

GET MORE POWER. GET MORE VERSATILITY. GET ON OUR LEVEL.
