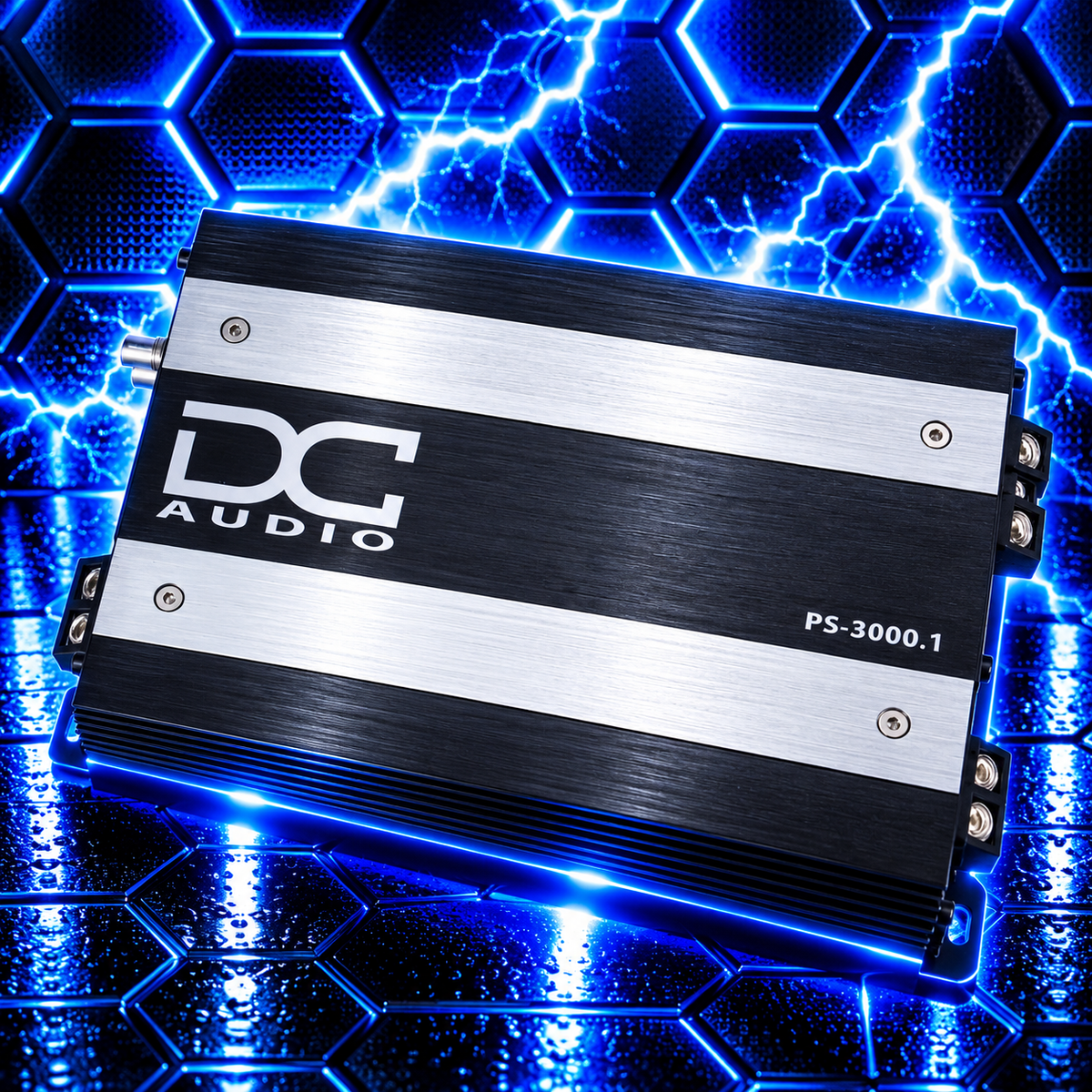

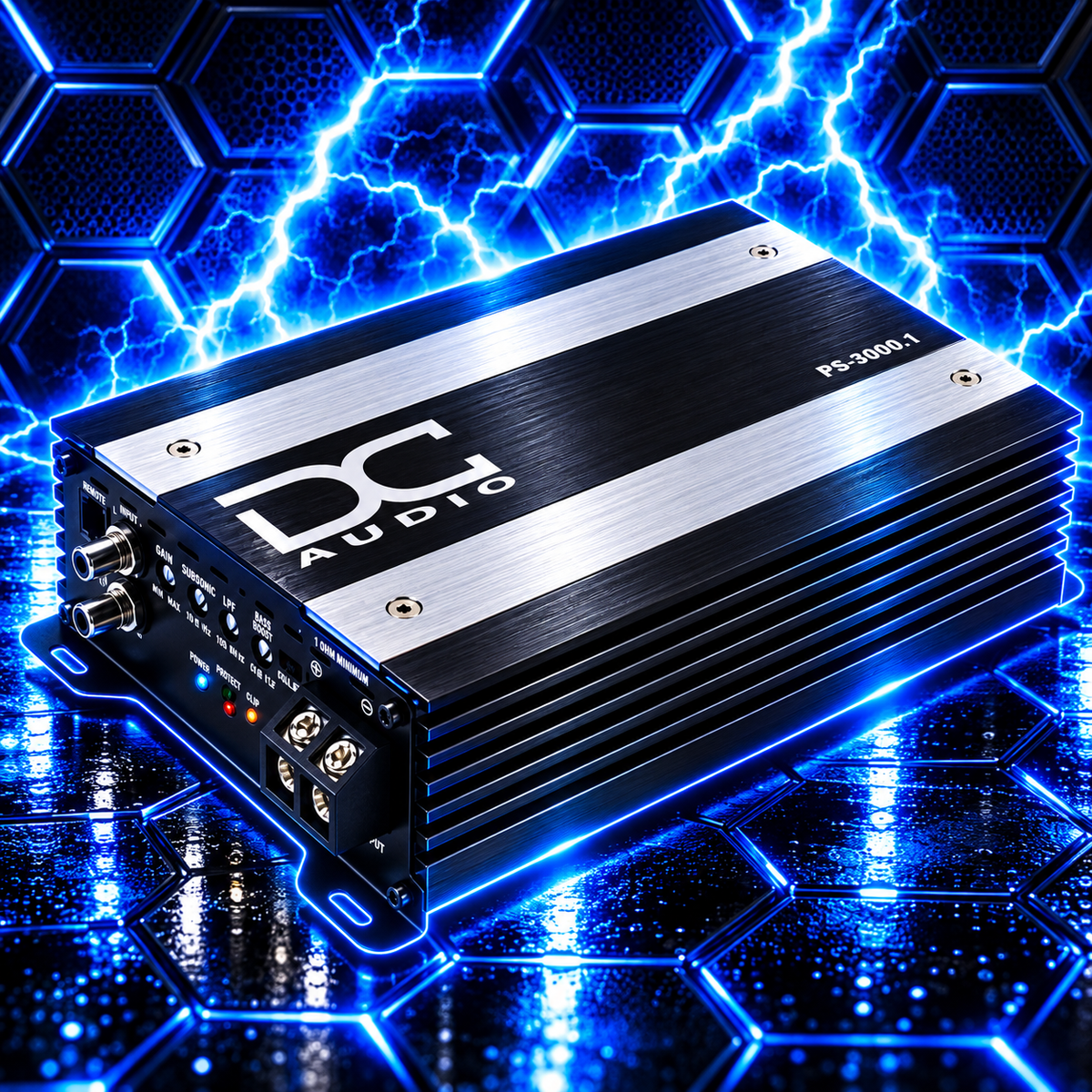

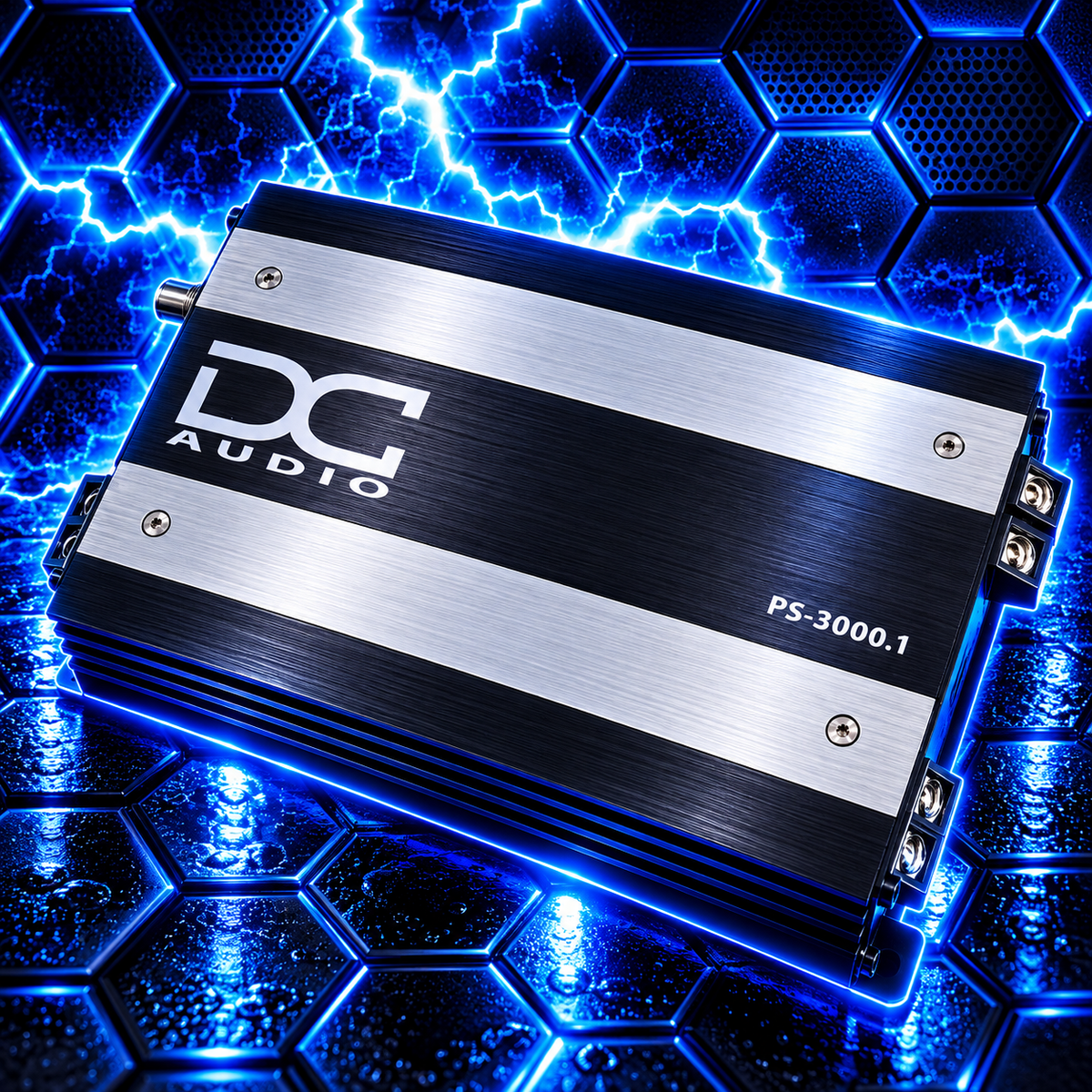

DC Audio PS-3000x1 – 3000 Watt Compact Full Bridge Monoblock Amplifier

EXTREME POWER. COMPACT DESIGN. NO COMPROMISES.

When serious bass demands serious power, the DC Audio PS-3000x1 Full Bridge Monoblock Amplifier is ready to deliver.

Engineered for car audio enthusiasts who refuse to settle for ordinary performance, the PS-3000x1 delivers an incredible 3,000 watts RMS at 1 ohm from an amplifier measuring less than 9 inches long.

Using compact full bridge amplifier technology, this high-output monoblock is designed to deliver massive power without taking up the installation space of traditional large amplifiers.

But the PS-3000x1 isn't limited to just bass.

With its versatile Full Range / Low Pass switch, this amplifier can power demanding subwoofer systems or compatible high-output mids and highs configurations, making it an excellent choice for custom stunt doors, stunt walls, and extreme pro audio installations.

Featuring 1-ohm stability, adjustable crossover controls, an included wired bass knob, onboard clipping indicators, and premium Tiffany-style RCA jacks, the PS-3000x1 is packed with the features serious car audio enthusiasts demand.

Whether you're building a powerful daily-driven bass system, an aggressive competition-inspired setup, or a custom high-output speaker installation, this amplifier delivers the power and versatility to take your sound to the next level.

MORE POWER. LESS SPACE. GET ON OUR LEVEL.

3,000 Watts RMS – Massive Power in a Compact Package

Don't let the compact chassis fool you.

The DC Audio PS-3000x1 delivers an incredible 3,000 watts RMS at 1 ohm, giving you the power needed to drive compatible high-performance subwoofers and demanding speaker systems.

With 1-ohm stability, this amplifier provides flexible impedance options for custom car audio installations.

DC Audio PS-3000x1 RMS Power Ratings

Rated at 14.4 Volts

Speaker Impedance	RMS Power Output
4 Ohms	900 Watts x 1
2 Ohms	1,800 Watts x 1
1 Ohm	3,000 Watts x 1

Whether you're powering a single high-output subwoofer or multiple properly wired subwoofers, the PS-3000x1 delivers serious RMS power to help bring your system to life.

3,000 WATTS RMS. 1-OHM STABLE. ONLY 8.98 INCHES LONG.

More Than a Subwoofer Amplifier – Full Range Versatility

What makes the DC Audio PS-3000x1 different from many traditional monoblock amplifiers?

Versatility.

Most conventional monoblock amplifiers are designed primarily for low-frequency subwoofer applications.

The PS-3000x1 takes things further with a Full Range / Low Pass switch, allowing it to operate as a powerful subwoofer amplifier or provide full-range output for compatible mids and highs systems.

One Amplifier. Multiple Applications.

High-Power Subwoofer Systems

With 3,000 watts RMS at 1 ohm, the PS-3000x1 is an excellent choice for properly matched high-performance subwoofers. Adjustable low-pass and subsonic filters give you additional control over bass response.

Custom Stunt Doors

Building a high-output door panel with multiple pro audio midrange speakers? The PS-3000x1 offers substantial power for compatible speaker arrays with appropriate crossover filtering.

Extreme Stunt Walls

Need serious output for a custom stunt wall? Full-range operation makes this amplifier suitable for properly configured high-output pro audio systems.

Mids and Highs Systems

The Full Range switch allows the PS-3000x1 to power compatible mids and highs configurations when paired with appropriate passive crossovers or external digital signal processing.

ONE AMPLIFIER. MULTIPLE APPLICATIONS. SERIOUS DC AUDIO POWER.

Advanced Bass Control – Fine-Tune Your Sound

Massive power is only part of what makes a great amplifier.

The DC Audio PS-3000x1 includes adjustable tuning features that give you greater control over your sound system.

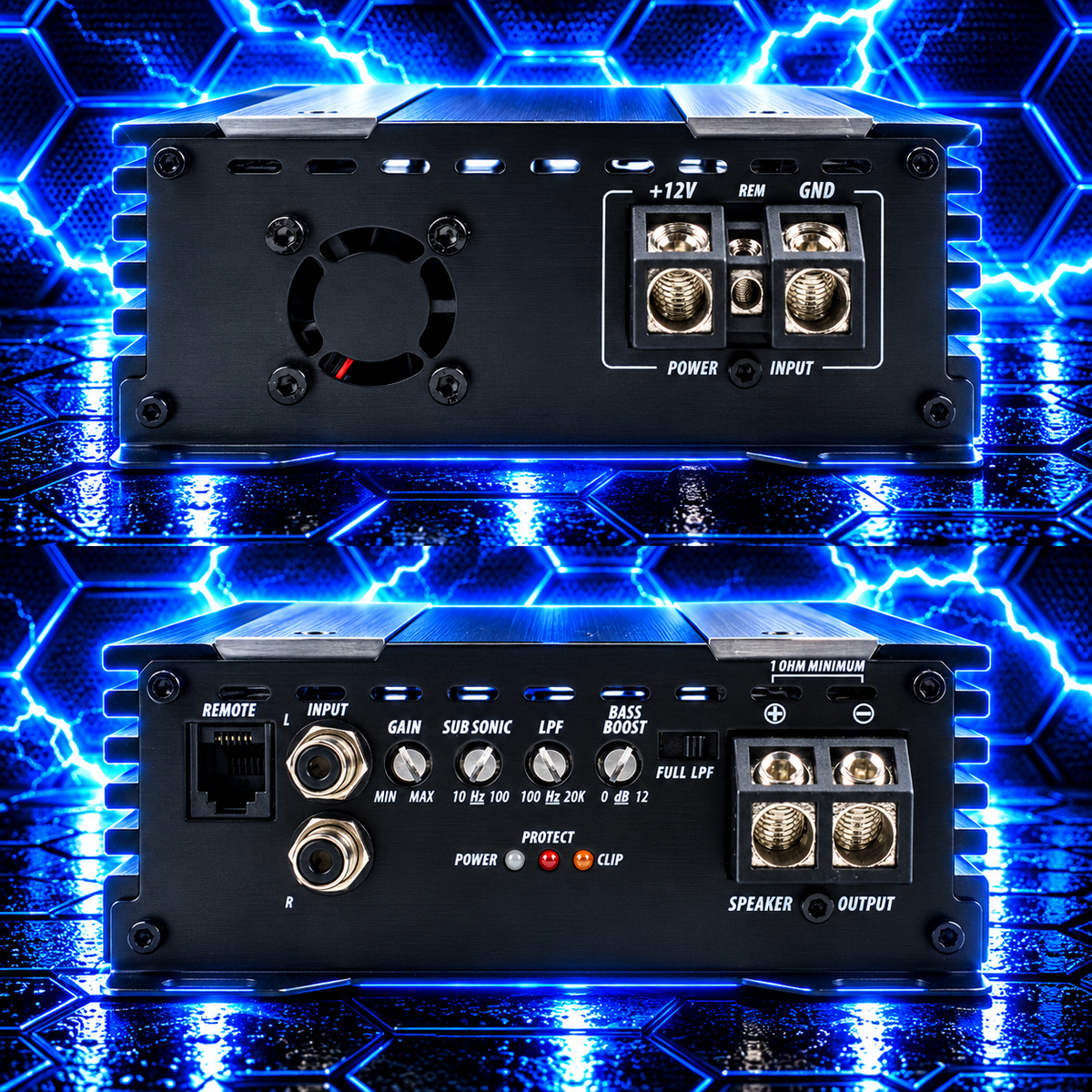

Amplifier Tuning Features

• Variable Low-Pass Filter (LPF): Control the upper frequency limit sent to your subwoofers.
• Variable Subsonic Filter: Reduce unwanted ultra-low frequencies that can cause excessive subwoofer movement in certain enclosure configurations.
• Full Range Switch: Switch between low-pass operation and full-range output for greater system flexibility.
• Adjustable Bass Boost: Customize low-frequency emphasis to match your system and listening preferences.
• 12dB/Octave Crossover: Provides controlled frequency filtering for better integration with your speaker system.
• Adjustable Input Sensitivity: Match amplifier input sensitivity to your audio source.

Whether you're chasing deep bass, powerful output, or high-volume pro audio performance, the PS-3000x1 gives you the tools to configure your system properly.

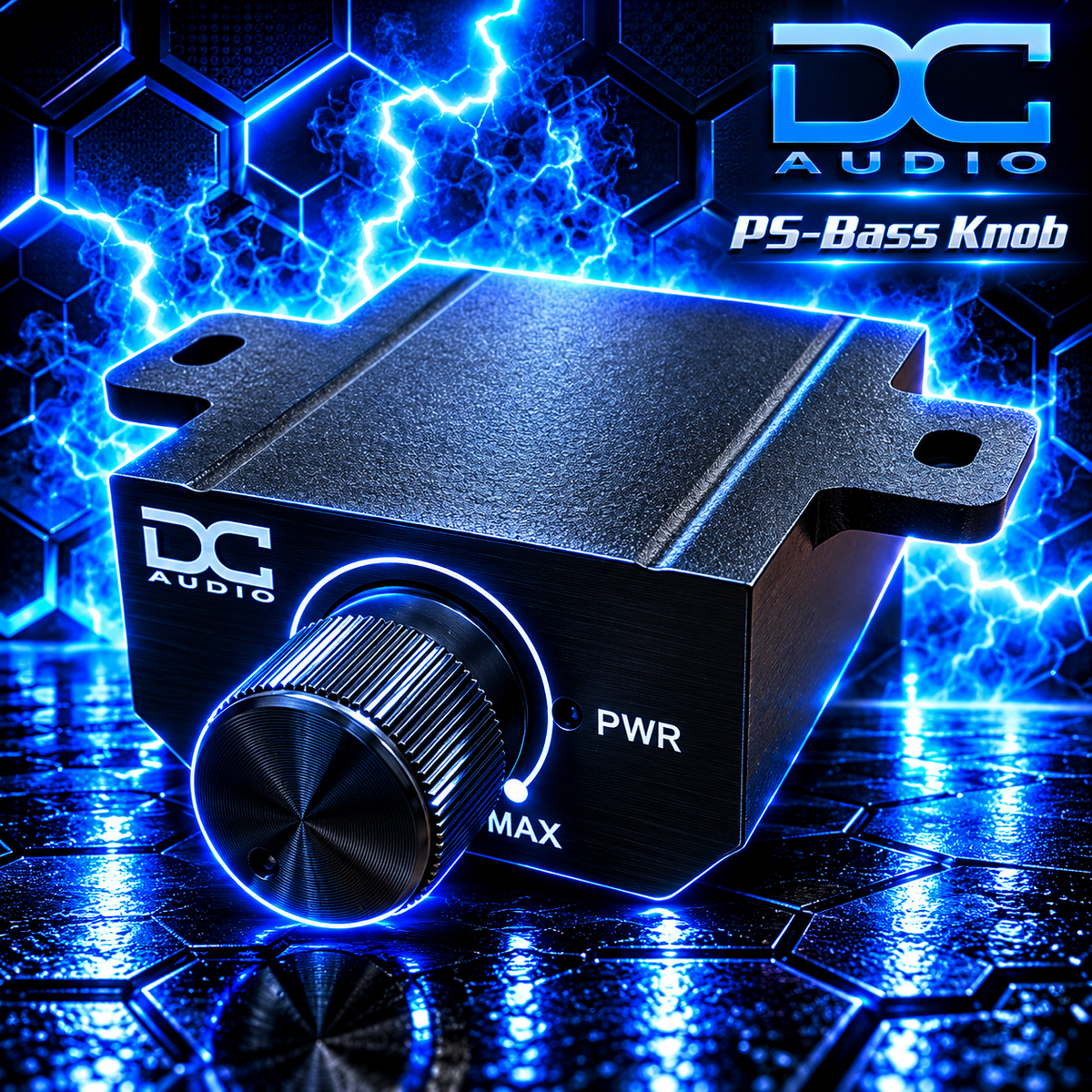

Included Wired Bass Knob – Control Your Bass from the Driver's Seat

Want to adjust your bass without reaching for your amplifier?

The DC Audio PS-3000x1 includes a wired remote bass knob, giving you convenient bass level adjustment from your listening position.

Whether you're switching between music styles, dialing back the bass for everyday listening, or turning things up when it's time to get loud, the included remote makes adjustments quick and convenient.

No need to purchase a separate bass remote.

It's included with your amplifier.

Onboard Clip Indicator – Monitor Your Amplifier's Performance

When you're running a 3,000-watt amplifier, monitoring your amplifier's operating status is important.

The DC Audio PS-3000x1 features onboard LED indicators for:

• Power: Indicates amplifier operating status.
• Protect: Alerts you when the amplifier enters protection mode.
• Clip: Provides visual feedback when the amplifier output begins clipping.

Clipping can introduce distortion and increase the risk of speaker damage.

Having an onboard clipping indicator helps make system setup and monitoring more convenient, especially when dialing in amplifier gain settings.

SERIOUS POWER DESERVES SERIOUS CONTROL.

Ultra-Compact Design – 3,000 Watts in Less Than 9 Inches

One of the most impressive features of the DC Audio PS-3000x1 is its incredible power-to-size ratio.

Measuring just 8.98 inches long, 5.23 inches wide, and 2.3 inches tall, this amplifier packs massive output into a compact chassis.

Its small footprint makes it an excellent choice for:

• High-performance cars and trucks
• High-output subwoofer installations
• Custom stunt doors and stunt walls
• Multiple-amplifier systems
• Custom amplifier racks
• Competition-inspired car audio builds
• High-powered daily-driver systems
• Space-limited custom installations

Whether you're installing one amplifier or building an extreme system with multiple amplifiers, the PS-3000x1 helps you maximize power without sacrificing valuable installation space.

BIG POWER DOESN'T HAVE TO MEAN A BIG AMPLIFIER.

Why Choose the DC Audio PS-3000x1?

Massive 3,000 Watts RMS at 1 Ohm

Serious power for demanding high-performance subwoofers and compatible speaker systems.

Full Range / Low Pass Switch

Power subwoofers or compatible mids and highs using one versatile amplifier platform.

1-Ohm Stable Monoblock Design

Flexible impedance options for custom car audio installations.

Included Wired Bass Knob

Convenient remote bass level adjustment without purchasing additional accessories.

Onboard Clip Indicator

Visual feedback to help monitor amplifier clipping.

Adjustable Low-Pass and Subsonic Filters

Fine-tune frequency response for your subwoofer installation.

Adjustable Bass Boost

Customize bass emphasis for your listening preferences.

Ultra-Compact Full Bridge Technology

Get 3,000 watts RMS from a chassis measuring just 8.98 inches long.

4 AWG Power Inputs

Power connections for high-current car audio applications.

Tiffany-Style RCA Jacks

Quality RCA input connections for your audio system.

9V–16.5V Operating Range

Designed to operate with compatible automotive electrical systems.

DC Audio PS-3000x1 Technical Specifications

Specification	Rating
Amplifier Model	DC Audio PS-3000x1
Amplifier Type	Compact Full Bridge Monoblock
RMS Power @ 4 Ohms	900W x 1
RMS Power @ 2 Ohms	1,800W x 1
RMS Power @ 1 Ohm	3,000W x 1
Minimum Impedance	1 Ohm
Input Sensitivity	4V – 0.4V
Frequency Response	10Hz – 20kHz
Crossover Slope	12dB / Octave
Low-Pass Filter	50Hz – 15kHz
Subsonic Filter	Yes
Bass Boost	Yes
Full Range Switch	Yes
Phase Shift	No
Wired Bass Remote	Included
Clip Indicator	Yes
Signal-to-Noise Ratio	90dB
THD @ 4 Ohms	Less Than 0.1%
Fuse Rating	External 200A
LED Status Indicators	Power / Protect / Clip
Master / Slave	No
Operating Voltage	9V – 16.5V
Power Inputs	4 AWG

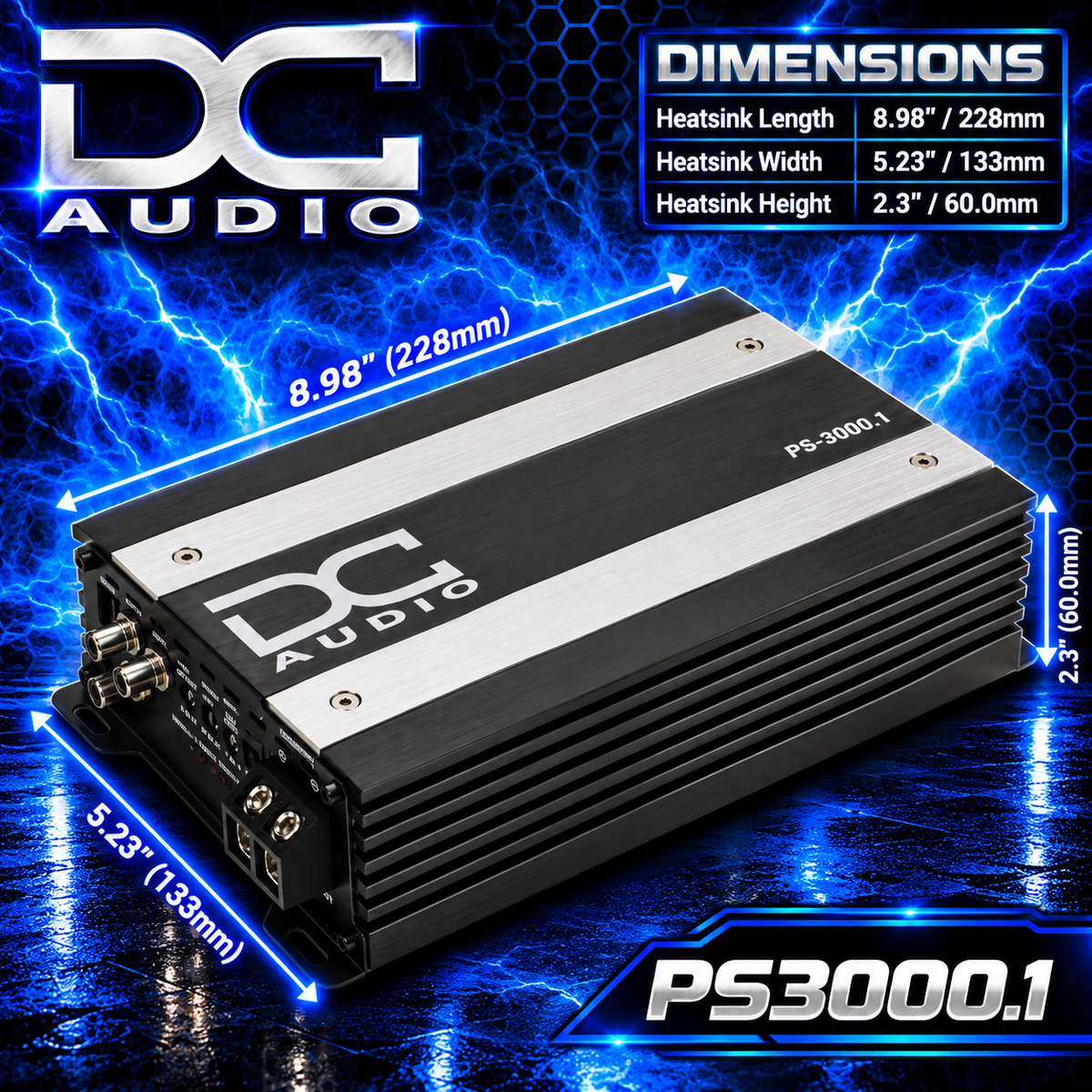

Compact Amplifier Dimensions

Dimension	Measurement
Heatsink Length	8.98" / 228mm
Heatsink Width	5.23" / 133mm
Heatsink Height	2.3" / 60mm

3,000 WATTS RMS IN AN AMPLIFIER UNDER 9 INCHES LONG!

Upgrade to Extreme Power with DC Audio

When ordinary amplifiers aren't enough, step up to the DC Audio PS-3000x1 3000 Watt Full Bridge Monoblock Amplifier.

Combining massive RMS output, full-range versatility, advanced bass controls, onboard clipping indicators, and an incredibly compact design, this amplifier is built for serious car audio enthusiasts.

Whether you're powering demanding subwoofers, building an aggressive stunt door setup, or creating a high-output pro audio system, the PS-3000x1 gives you the power and flexibility to get the job done.

Don't settle for oversized amplifiers or limited functionality.

GET MORE POWER. GET MORE VERSATILITY. GET ON OUR LEVEL.
