DC Audio PS-8000x1 – 8000 Watt Compact Full Bridge Monoblock Amplifier

EXTREME POWER. COMPACT DESIGN. BUILT TO GET LOUD.

When ordinary car audio amplifiers simply aren't enough, it's time to step up to the DC Audio PS-8000x1 Full Bridge Monoblock Amplifier.

Engineered for serious car audio enthusiasts who demand extreme output, versatile performance, and maximum power in a compact package, the PS-8000x1 delivers an incredible 8,050 watts RMS at 1 ohm and 14.4 volts.

That's over 8,000 watts of rated RMS power from an amplifier measuring just 15 inches long, 5.23 inches wide, and 2.3 inches tall.

But the PS-8000x1 isn't just another high-powered subwoofer amplifier.

Thanks to its versatile Full Range / Low Pass switch, this powerhouse can be used to drive demanding subwoofer systems or configured for compatible high-output mids and highs applications, including custom stunt walls, stunt doors, and extreme pro audio installations.

Featuring 1-ohm stability, standard 1/0 AWG power connections, adjustable crossover controls, an included wired bass knob, onboard clipping indicators, and Tiffany-style RCA jacks, the PS-8000x1 is packed with features designed for serious high-power car audio systems.

Whether you're building an aggressive daily-driven bass system, a competition-inspired subwoofer setup, or an extreme stunt wall designed to make your presence known, the PS-8000x1 brings massive power to your installation.

MORE POWER. LESS SPACE. GET ON OUR LEVEL.

Over 8,000 Watts RMS – Extreme Output in a Compact Package

Don't let the streamlined chassis fool you.

The DC Audio PS-8000x1 utilizes compact full bridge amplifier technology to deliver massive RMS power without requiring the enormous installation footprint associated with many traditional high-output amplifiers.

With 8,050 watts RMS available at 1 ohm, this amplifier is designed for demanding, properly matched high-performance subwoofers and custom high-output speaker systems.

DC Audio PS-8000x1 RMS Power Ratings

Rated at 14.4 Volts

Speaker Impedance	RMS Power Output
4 Ohms	2,500 Watts x 1
2 Ohms	4,500 Watts x 1
1 Ohm	8,050 Watts x 1

With 1-ohm stability, the PS-8000x1 provides flexible impedance options for serious car audio installations.

Whether you're powering a single extreme high-power subwoofer or multiple properly wired subwoofers, this amplifier delivers the output needed for demanding bass systems.

8,050 WATTS RMS. 1-OHM STABLE. ONLY 15 INCHES LONG.

More Than a Subwoofer Amplifier – Full Range Versatility

What makes the DC Audio PS-8000x1 different from many traditional high-powered monoblock amplifiers?

The ability to do more than just make bass.

Most conventional monoblock amplifiers are designed primarily for subwoofer applications.

The PS-8000x1 takes things further with a Full Range / Low Pass switch, allowing it to operate as a high-powered subwoofer amplifier or provide full-range output for compatible speaker systems.

One Amplifier. Multiple Applications.

Extreme Subwoofer Systems

With 8,050 watts RMS at 1 ohm, the PS-8000x1 is designed for properly matched high-power subwoofers and demanding bass installations. Adjustable low-pass and subsonic filters help you fine-tune your bass response.

Custom Stunt Doors

Building a high-output door panel with multiple pro audio midrange speakers? The PS-8000x1 provides substantial power for properly configured speaker arrays with appropriate frequency filtering and impedance matching.

Extreme Stunt Walls

Need massive output for a custom stunt wall? Full-range operation makes this amplifier an option for compatible high-output pro audio systems designed to handle its power.

Mids and Highs Systems

The Full Range switch allows the PS-8000x1 to be integrated into properly designed mids and highs configurations using suitable crossovers or external digital signal processing.

ONE AMPLIFIER. MULTIPLE APPLICATIONS. EXTREME DC AUDIO POWER.

Advanced Bass Control – Take Command of Your Sound

When you're working with over 8,000 watts RMS, having the ability to fine-tune your amplifier is essential.

The DC Audio PS-8000x1 includes adjustable tuning features that allow you to configure its output for your specific audio system.

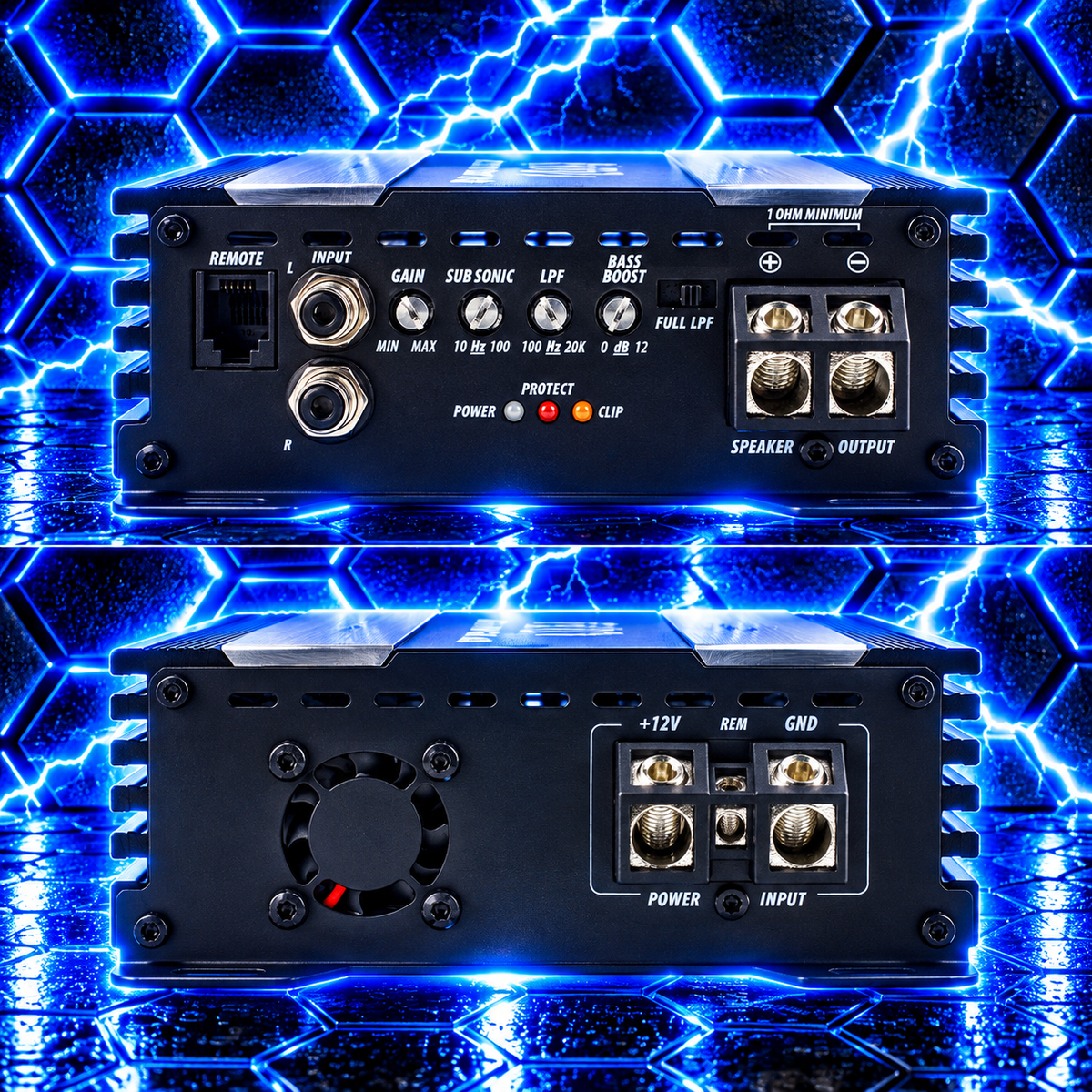

Amplifier Tuning Features

• Variable Low-Pass Filter (LPF): Adjust the upper frequency limit sent to your subwoofers.
• Variable Subsonic Filter: Reduce unwanted ultra-low frequencies that may cause excessive subwoofer excursion in certain enclosure configurations.
• Full Range Switch: Select low-pass or full-range operation for additional installation flexibility.
• Adjustable Bass Boost: Customize low-frequency emphasis for your preferred sound.
• 12dB/Octave Crossover: Provides controlled frequency filtering for system integration.
• Adjustable Input Sensitivity: Match the amplifier's input sensitivity to your audio source.

Whether you're tuning an extreme subwoofer system or configuring a custom full-range pro audio installation, the PS-8000x1 gives you the flexibility to build around your performance goals.

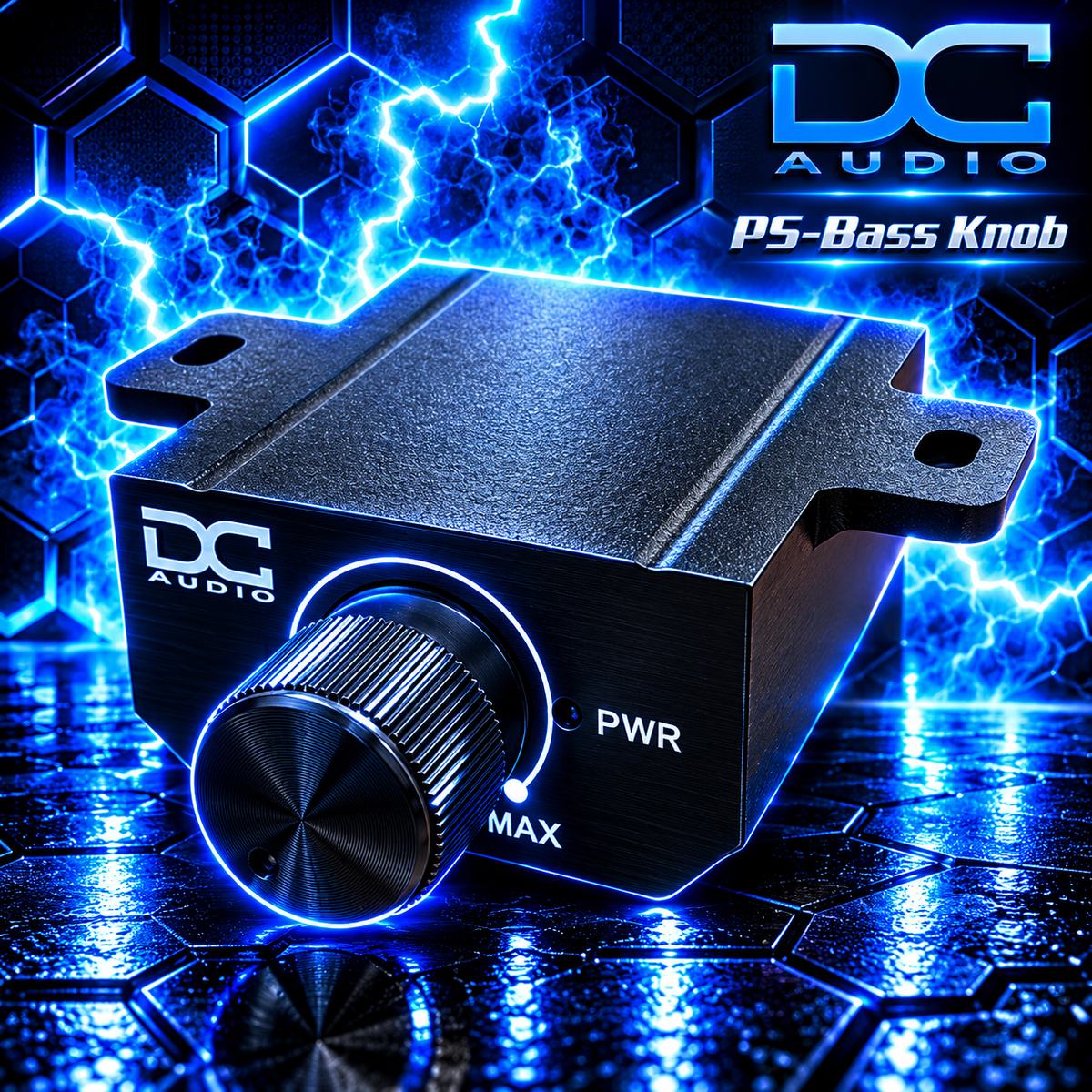

Included Wired Bass Knob – Control Your Bass from the Driver's Seat

With this much power on tap, convenient bass level adjustment is a valuable feature.

The DC Audio PS-8000x1 includes a wired remote bass knob, allowing you to adjust bass level from your listening position.

Whether you're dialing things back for everyday listening or increasing the bass level for a more aggressive experience, the included remote makes adjustments quick and convenient.

No need to purchase a separate bass remote.

It's included with your amplifier.

Onboard Clip Indicator – Monitor Your Amplifier's Performance

When you're running a high-output amplifier, knowing when you're approaching clipping is important.

The DC Audio PS-8000x1 features onboard LED indicators for:

• Power: Indicates amplifier operating status.
• Protect: Alerts you when the amplifier enters protection mode.
• Clip: Provides visual feedback when the amplifier output begins clipping.

Clipping can introduce distortion and increase the risk of speaker damage.

The onboard clip indicator helps make system setup and monitoring more convenient, particularly when adjusting amplifier gain settings and operating a high-power audio system.

EXTREME POWER DESERVES PRECISE CONTROL.

Ultra-Compact Design – Over 8,000 Watts in Just 15 Inches

One of the most impressive features of the DC Audio PS-8000x1 is its power-to-size ratio.

Measuring just 15 inches long, 5.23 inches wide, and 2.3 inches tall, this amplifier delivers tremendous output without requiring the footprint of many traditional high-power monoblocks.

Its compact chassis makes it an excellent option for:

• High-output subwoofer installations
• Custom car and truck audio builds
• Competition-inspired bass systems
• Extreme stunt doors and stunt walls
• Multiple-amplifier installations
• Custom amplifier racks
• Space-conscious high-power installations

Whether you're designing a powerful daily-driven system or building a serious high-output audio setup, the PS-8000x1 allows you to maximize amplifier power while conserving installation space.

OVER 8,000 WATTS RMS IN AN AMPLIFIER JUST 15 INCHES LONG.

Why Choose the DC Audio PS-8000x1?

Massive 8,050 Watts RMS at 1 Ohm

Extreme power for properly matched high-performance subwoofers and high-output audio applications.

Full Range / Low Pass Switch

Use the amplifier for subwoofer applications or compatible full-range speaker systems.

1-Ohm Stable Monoblock Design

Flexible impedance options for demanding car audio installations.

Standard 1/0 AWG Power Inputs

Designed for high-current electrical connections in serious car audio systems.

Included Wired Bass Knob

Convenient remote bass level adjustment from your listening position.

Onboard Clip Indicator

Visual feedback to help monitor amplifier clipping.

Adjustable Low-Pass and Subsonic Filters

Fine-tune your subwoofer system's frequency response.

Adjustable Bass Boost

Customize low-frequency emphasis to suit your system.

Ultra-Compact Full Bridge Technology

Over 8,000 watts RMS from a chassis measuring just 15 inches long.

Tiffany-Style RCA Jacks

Quality RCA signal connections for your audio system.

7V–17V Operating Range

Designed to operate across a wide voltage range when used with a properly configured electrical system.

DC Audio PS-8000x1 Technical Specifications

Specification	Rating
Amplifier Model	DC Audio PS-8000x1
Amplifier Type	Compact Full Bridge Monoblock
RMS Power @ 4 Ohms	2,500W x 1
RMS Power @ 2 Ohms	4,500W x 1
RMS Power @ 1 Ohm	8,050W x 1
Minimum Impedance	1 Ohm
Input Sensitivity	3.8V – 0.4V
Frequency Response	10Hz – 20kHz
Crossover Slope	12dB / Octave
Low-Pass Filter	50Hz – 15kHz
Subsonic Filter	Yes
Bass Boost	Yes
Full Range Switch	Yes
Phase Shift	No
Wired Bass Remote	Included
Clip Indicator	Yes
Signal-to-Noise Ratio	90dB
THD @ 4 Ohms	Less Than 0.1%
Fuse Rating	External 700A
LED Status Indicators	Power / Protect / Clip
Master / Slave	No
Operating Voltage	7V – 17V
Power Inputs	Standard 1/0 AWG

Compact Amplifier Dimensions

Dimension	Measurement
Total Length	15.0" / 381mm
Heatsink Width	5.23" / 133mm
Heatsink Height	2.3" / 60mm

8,050 WATTS RMS IN AN AMPLIFIER ONLY 15 INCHES LONG!

Upgrade to Extreme Power with DC Audio

When ordinary amplifiers aren't enough, step up to the DC Audio PS-8000x1 8000 Watt Full Bridge Monoblock Amplifier.

Combining massive RMS output, full-range versatility, adjustable crossover controls, onboard clipping indicators, and an incredibly compact design, this amplifier is built for serious car audio enthusiasts who demand extreme performance.

Whether you're powering demanding subwoofers, building a custom stunt wall, or creating a high-output pro audio system, the PS-8000x1 gives you the power and flexibility to take your system further.

Don't settle for oversized amplifiers or limited functionality.

GET MORE POWER. GET MORE VERSATILITY. GET ON OUR LEVEL.

Order your DC Audio PS-8000x1 today at www.DCSOUNDLAB.com and experience what extreme compact full bridge power can do for your system.
