Punch Marine Hide-Away AM/FM/WB 2-Zone Digital Media Receiver PMX-6BB

EFFORTLESS CONTROL

The PMX-6BB is a hide-away digital media receiver black box designed for use with Compatible MFD's, and works with the PMX-8DH controller or the PMX-1R remote. The PMX-6BB has built-in CAN-bus functionality for connection to NMEA2K systems, so no external CAN-bus adaptor is needed. It features Single source, Dual zone audio control and is SXM ready.

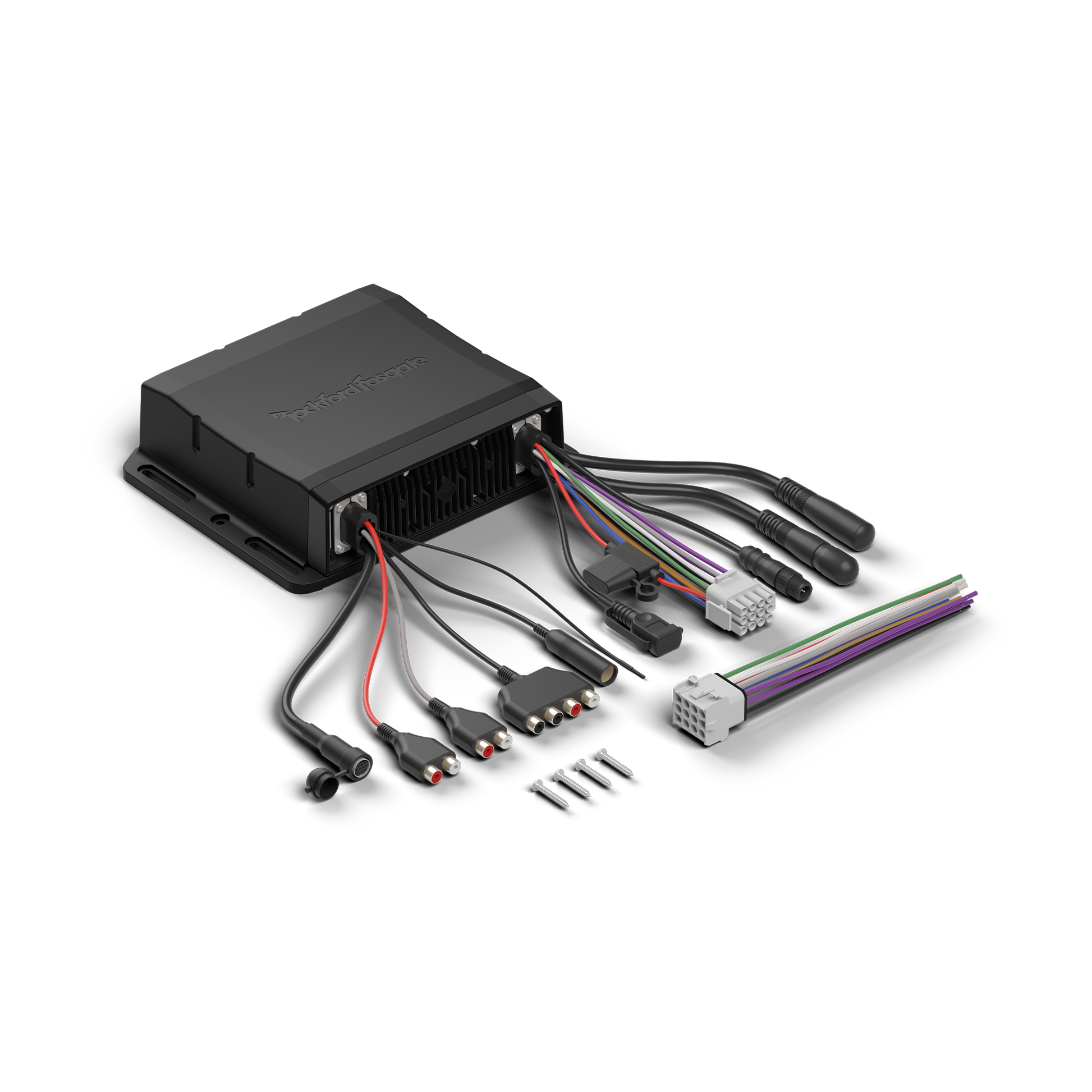

INCLUDED ITEMS:
• (1) PMX-6BB (display head sold separately)
• (4) Mounting Screws

FEATURES AT A GLANCE

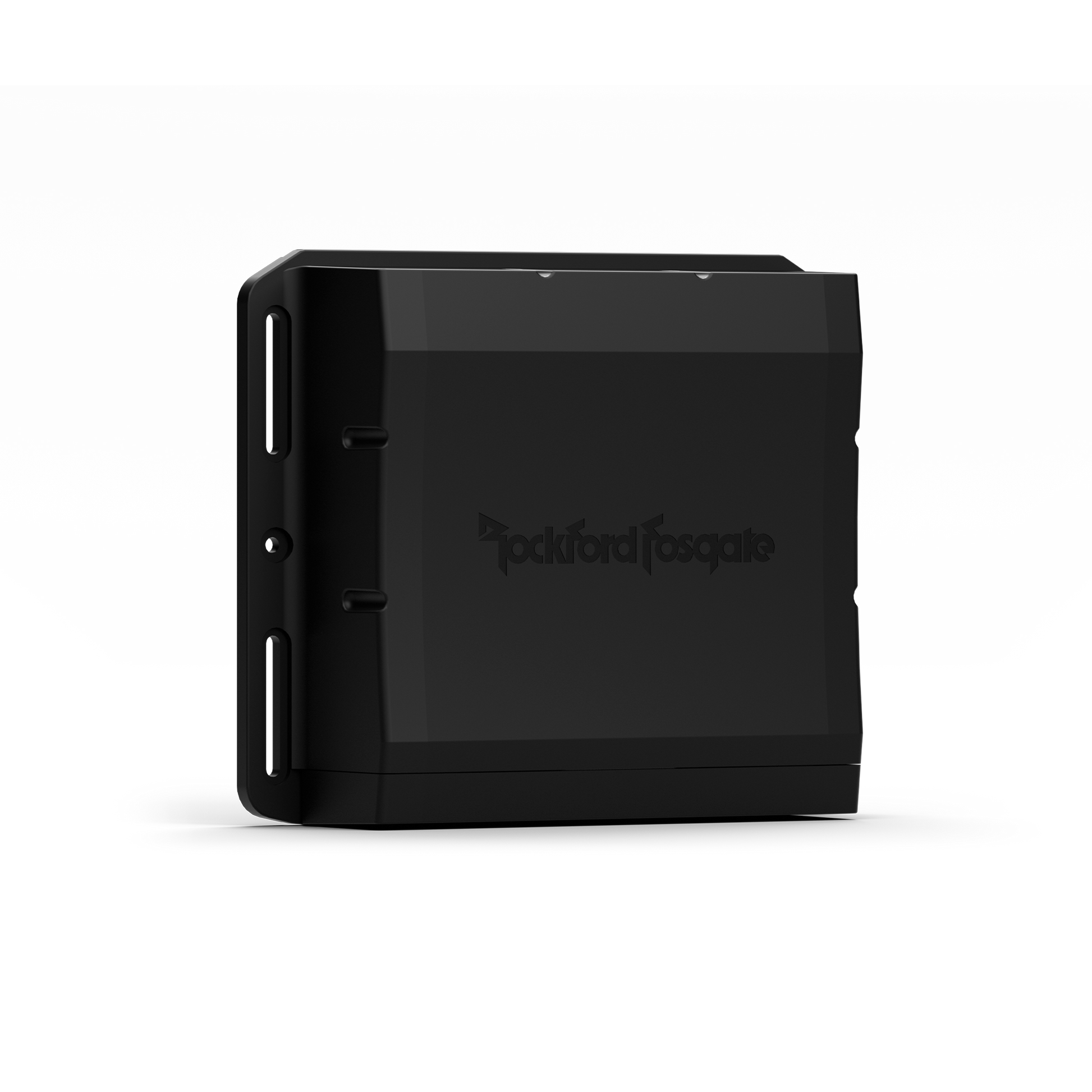

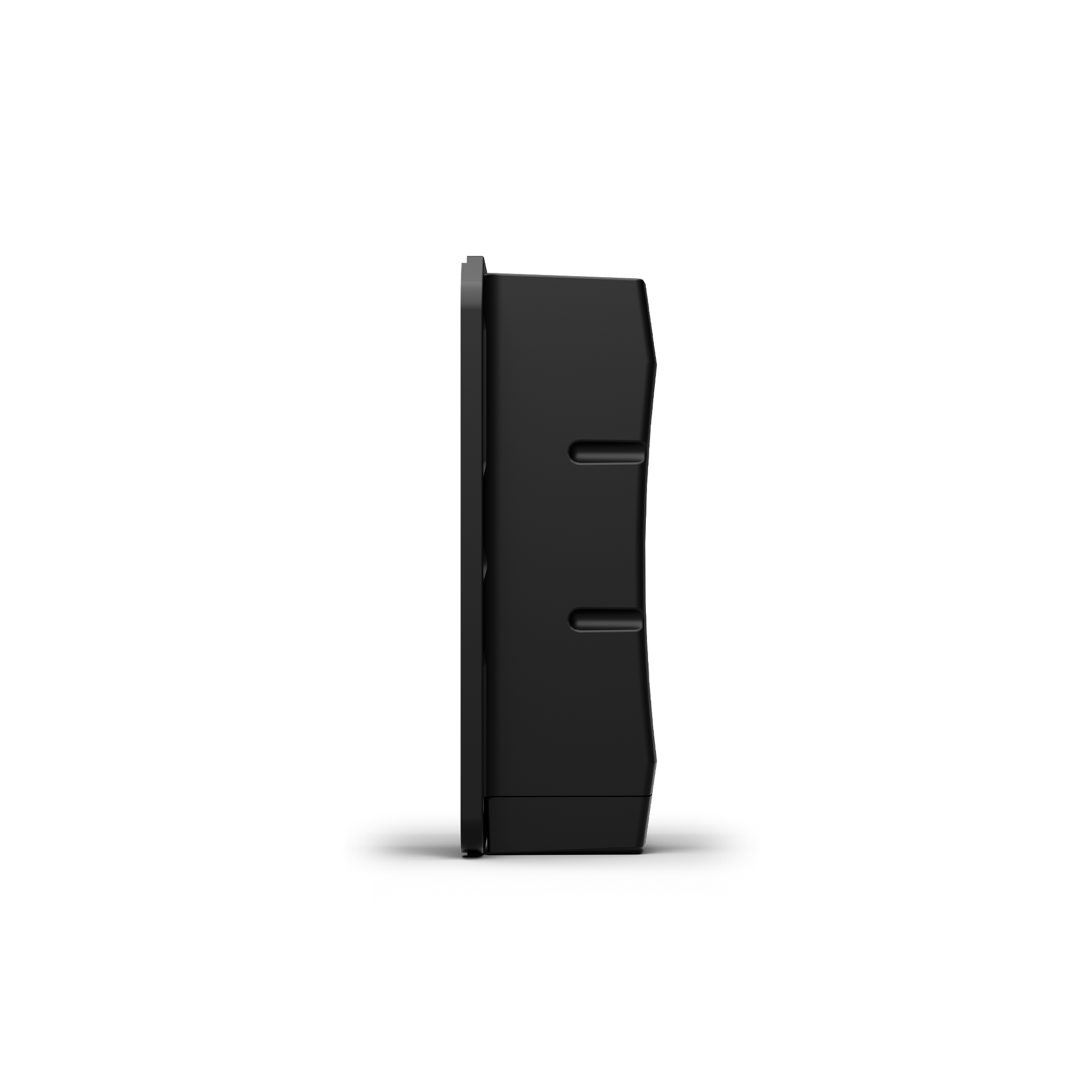

• Hide-away digital media receiver black box
• Dual zone / single source audio control
• Compatible with 5” TFT (PMX-8DH) and three 2.7” wired remotes (PMX-1R)
• Built-in CANbus functionality for connection to NMEA2K systems
• Compatible with a MFD (Multi-Function Display) via NMEA 2000 standard. See MFD Compatibility

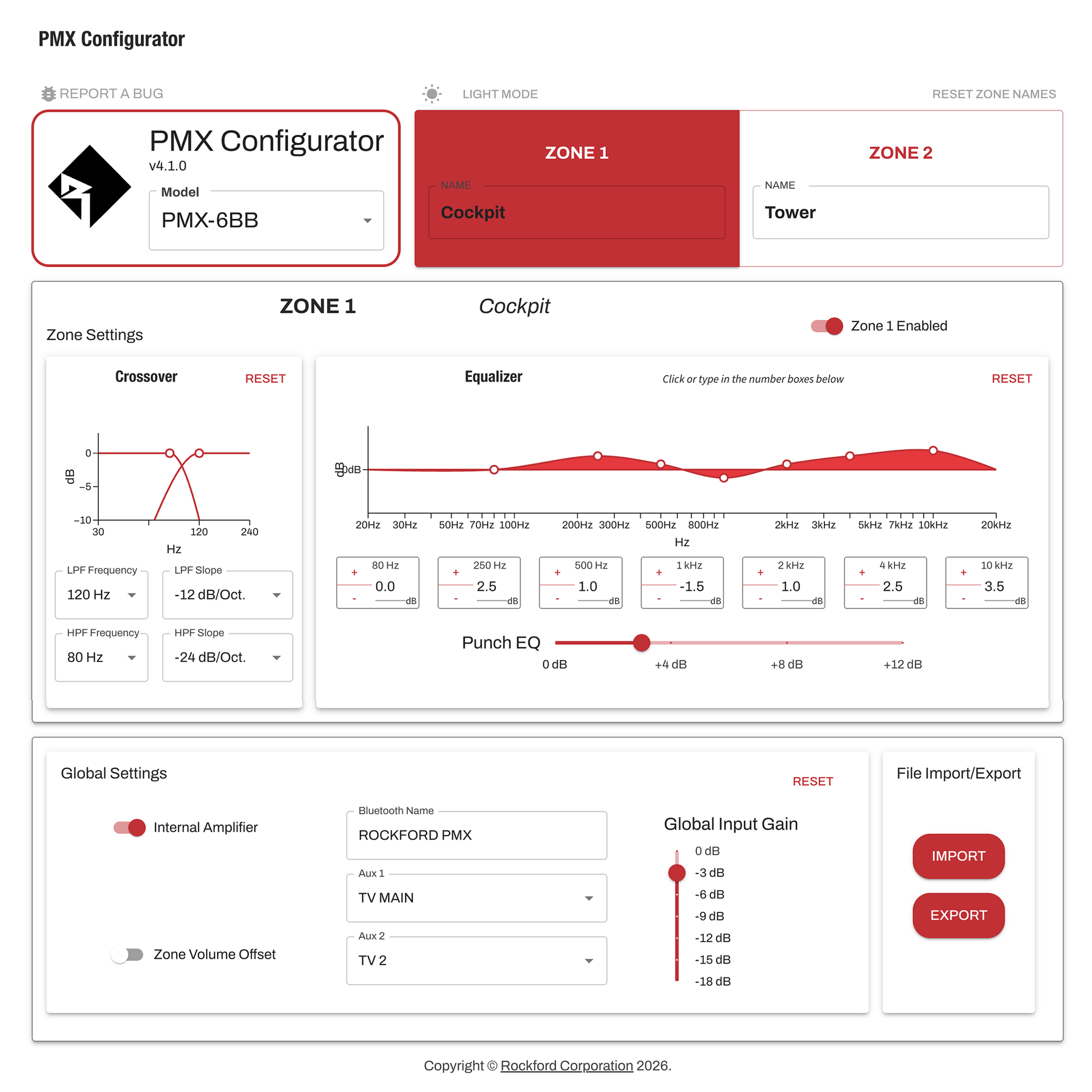

• Dedicated DSP per zone with 7-band graphic EQ + Punch EQ
• Automotive grade AM/FM Radio, Weather Band Radio, and supports RDS.
• SiriusXM-Ready® satellite radio (requires SXV300 tuner)
• Zone 1: RCA L/R + Dual Mono Subwoofer
• Zone 2: RCA L/R
• Rear AUX-In: RCA L/R
• Bluetooth, A2DP only, AVRCP 1.4
• Simple secure pairing bluetooth profile for Android & iOS
• Folder browsing via BT connected iPhones
• Display album art from connected iPhones on the radios display
• Independent sub level control for precise bass adjustment
• Internal power amplifier 4 x 50W 2Ω stable
• Built-In 4-ch amplifier powers 8 speakers without requiring external amp
• Selectable high pass and low pass crossover points for each independent zone
• Selectable crossover slopes of 12dB or 24 dB for each independent zone
• Licensed Pandora control (Apple direct USB or BT/Android via Bluetooth)
• EEPROM non-volatile memory stores data if power is removed
• Upgradeable Firmware and Bluetooth® Software via USB
• External trigger input to activate reverse camera mode
• Integrated voltage gauge w/ low voltage alert
• Adjustable input gain for each source
• Epoxy coated circuit board
• Wired front panel illumination control
• Rear USB with 1A charging (supports art on USB connected iPhones)
• *Antenna not included
• 2-Year Warranty
