RaceQuip RQP711011RQP Red Latch & Link 5-Point Racing Harness

RaceQuip's Latch & Link 5-point auto racing harness set has twin individual shoulder belts and is manufactured using premium 3" polyester webbing and drop forged steel hardware to exceed the SFI 16.1 rating. Shoulders adjust from 20" to 62" and the lap belt adjusts from 20" to 60". All RaceQuip 711 series belts come as a "pull down lap" design, which means that the lap belts must be pulled down and away from the center latch & link buckle mechanism to tighten. All RaceQuip Latch & Link motorsports harness sets are distinguished by a pivoting "hammer," called a Duckbill, which is located on the lap belt and locks all the belts into place by snapping down into a detent. Both shoulder belts and the sub-belt are hooked over the link; the link is inserted into the latch on the lap belt; the Duckbill is then brought down into and over the link, securely holding all the pieces in place. Since RaceQuip seat belt sets are "double adjustable", lengths are simply adjusted on either end for ease of installation. Using the included three bar slide you can mount the belts by either wrapping them around a rollbar or by bolting them in place with the supplied ends (bolts not included). Snap hook ends and eyebolts are sold separately if the user wishes to install belts in that manner. Red - 3 in. Lap and Shoulder - 2 in. Sub

• NOT D.O.T. / FMVSS Certified for On Highway Use
• Double Adjustable for Ease of Installation
• 5 Point Design - Single 2" Crotch Strap
• Shoulders Adjust from 20" to 62"
• Wrap Around or Bolt-in Mounting
• Twin Individual Shoulder Belts
• Premium 3" Polyester Webbing
• Lap Belt Adjusts 22" to 60"
• 3" Hardware Ends Installed
• Drop-Forged Steel Hardware
• Pull Down Style Lap Belt

The RaceQuip RQP711011RQP Latch & Link 5-point auto racing harness set features twin individual shoulder belts, premium 3-inch polyester webbing, and drop-forged steel hardware. This red harness uses a pull-down lap belt design and a pivoting Duckbill latch mechanism that secures the shoulder belts, lap belt, and sub-belt into place.

The double-adjustable design allows the belts to be adjusted at either end for easier installation. The included three-bar slides support wrap-around rollbar mounting or bolt-in installation using the supplied ends; bolts are not included. The harness has a 5-point configuration with a single 2-inch crotch strap, 3-inch lap and shoulder belts, and 2-inch sub-belt. Snap hook ends and eyebolts are sold separately. This product is not D.O.T. or FMVSS certified for on-highway use.

Key Features & Performance Benefits

• 5-Point Harness Design: Includes twin individual shoulder belts, a lap belt, and a single 2-inch crotch strap.

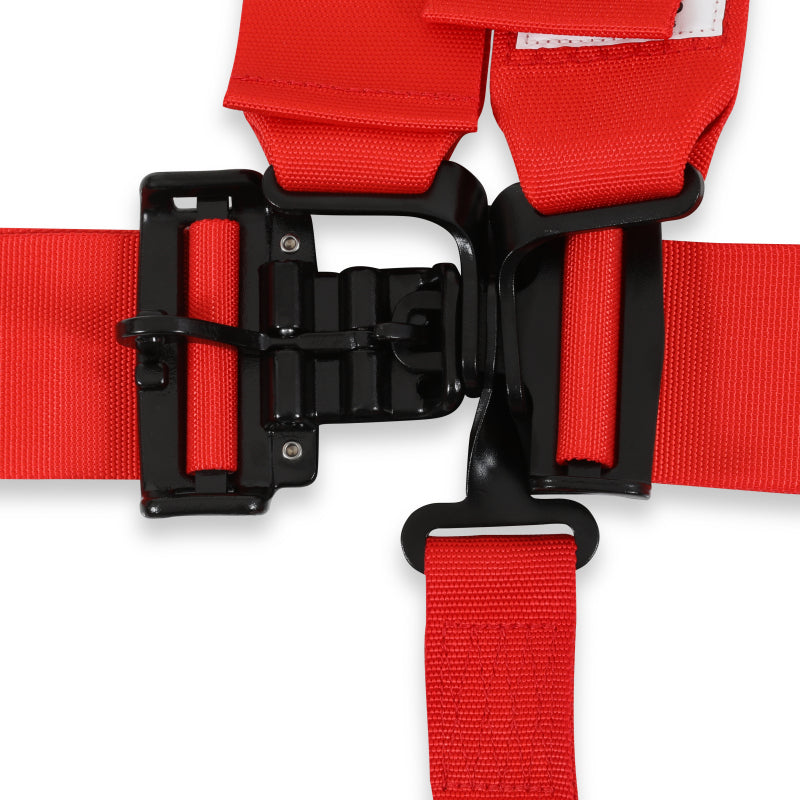

• Latch & Link Closure: Pivoting Duckbill hardware secures the belts through the center latch and link mechanism.
• Double-Adjustable Construction: Belt lengths adjust at either end to simplify installation.
• Flexible Mounting: Supports wrap-around or bolt-in mounting using the included three-bar slides and installed hardware ends.

Key Product Specifications & Technical Data

• Brand: RaceQuip
• Part Number: RQP711011RQP
• Color: Red
• Harness Type: Latch & Link 5-point racing harness
• Webbing: Premium 3-inch polyester
• Shoulder Belt Adjustment: 20 to 62 inches
• Lap Belt Adjustment: 22 to 60 inches
• Hardware: Drop-forged steel with 3-inch hardware ends installed

What's Included

One RaceQuip red Latch & Link 5-point harness set with twin individual shoulder belts, lap belt, 2-inch sub-belt, three-bar slides, and installed hardware ends. Bolts, snap hook ends, and eyebolts are not included.
