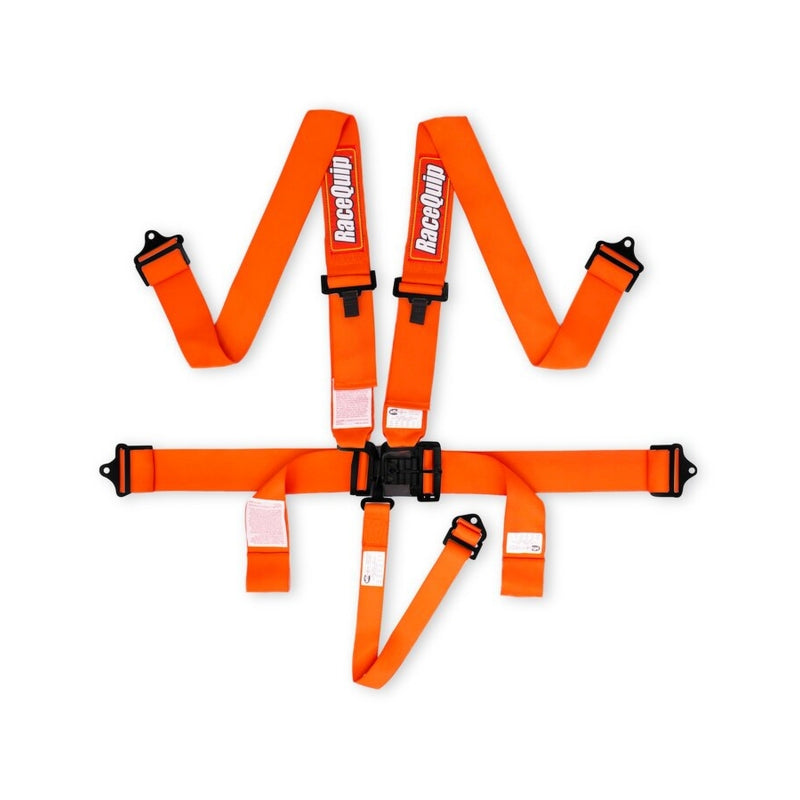

RaceQuip RQP711041RQP Orange Latch & Link 5-Point Seat Belt Harness

RaceQuip's Latch & Link 5-point auto racing harness set has twin individual shoulder belts and is manufactured using premium 3" polyester webbing and drop forged steel hardware to exceed the SFI 16.1 rating. Shoulders adjust from 20" to 62" and the lap belt adjusts from 20" to 60". All RaceQuip 711 series belts come as a "pull down lap" design, which means that the lap belts must be pulled down and away from the center latch & link buckle mechanism to tighten. All RaceQuip Latch & Link motorsports harness sets are distinguished by a pivoting "hammer," called a Duckbill, which is located on the lap belt and locks all the belts into place by snapping down into a detent. Both shoulder belts and the sub-belt are hooked over the link; the link is inserted into the latch on the lap belt; the Duckbill is then brought down into and over the link, securely holding all the pieces in place. Since RaceQuip seat belt sets are "double adjustable", lengths are simply adjusted on either end for ease of installation. Using the included three bar slide you can mount the belts by either wrapping them around a rollbar or by bolting them in place with the supplied ends (bolts not included). Snap hook ends and eyebolts are sold separately if the user wishes to install belts in that manner. Orange - 3 in. Lap and Shoulder - 2 in. Sub

• NOT D.O.T. / FMVSS Certified for On Highway Use
• Double Adjustable for Ease of Installation
• 5 Point Design - Single 2" Crotch Strap
• Wrap Around or Bolt-in Mounting
• Premium 3" Polyester Webbing
• Lap Belt Adjusts 22" to 60"
• 3" Hardware Ends Installed
• Drop-Forged Steel Hardware
• Pull Down Style Lap Belt

The RaceQuip RQP711041RQP Latch & Link 5-point auto racing harness set features twin individual shoulder belts, premium 3-inch polyester webbing, and drop-forged steel hardware. The orange harness uses 3-inch lap and shoulder belts with a 2-inch sub-belt and is designed for motorsports applications. It is not D.O.T. or FMVSS certified for on-highway use.

Key Features & Performance Benefits

• 5-Point Design: Includes twin individual shoulder belts, a lap belt, and a single 2-inch crotch strap.

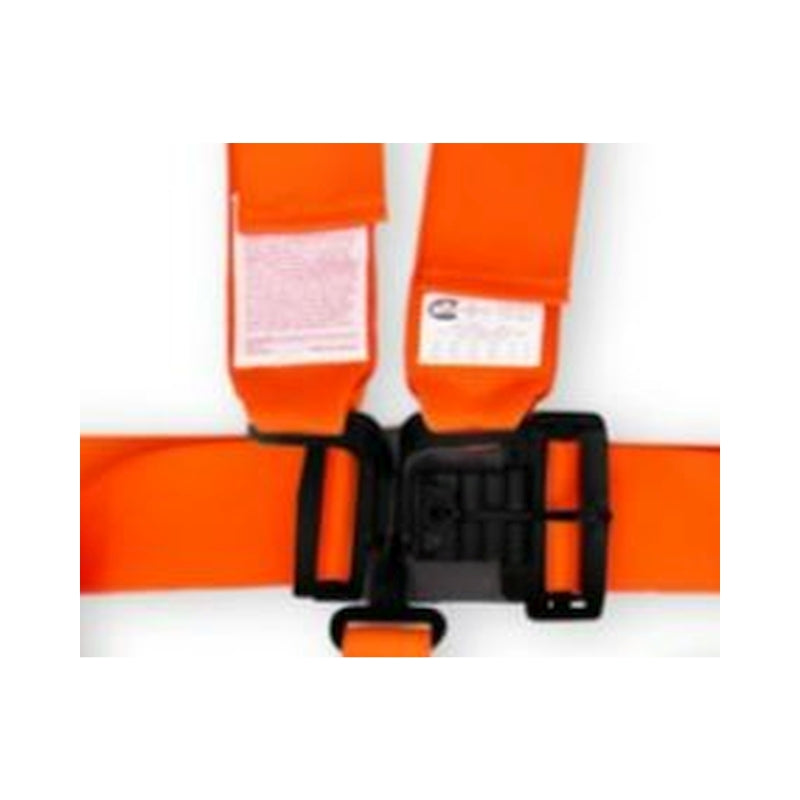

• Latch & Link Buckle: The pivoting Duckbill mechanism secures the belts into the latch and link assembly.
• Double-Adjustable Design: Belt lengths adjust from either end to help simplify installation.
• Flexible Mounting: The included three-bar slides support wrap-around or bolt-in mounting.

Key Product Specifications & Technical Data

• Brand: RaceQuip
• Part Number: RQP711041RQP
• Color: Orange
• Harness Type: 5-point Latch & Link
• Shoulder Belt Width: 3 inches
• Lap Belt Width: 3 inches
• Sub-Belt Width: 2 inches
• Lap Belt Adjustment: 22 to 60 inches
• Shoulder Belt Adjustment: 20 to 62 inches
• Hardware: Drop-forged steel with 3-inch hardware ends installed
• Lap Belt Style: Pull-down
• On-Highway Certification: Not D.O.T. or FMVSS certified for on-highway use

What's Included in the Box

RaceQuip orange 5-point Latch & Link harness set with installed 3-inch hardware ends and included three-bar slides. Bolts, snap-hook ends, and eyebolts are sold separately.

Fitment

Fitment data was not provided.
