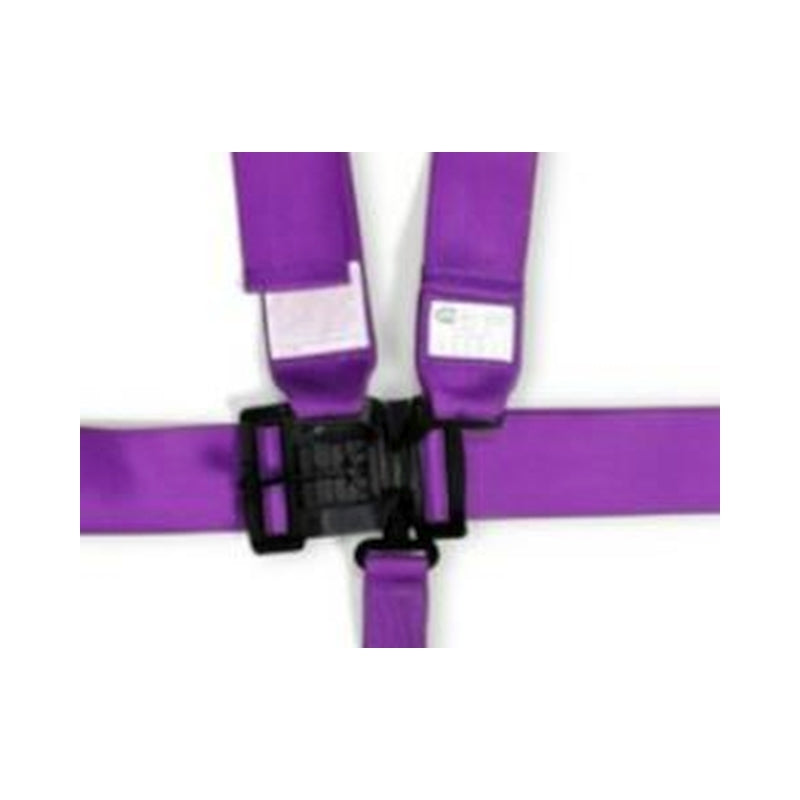

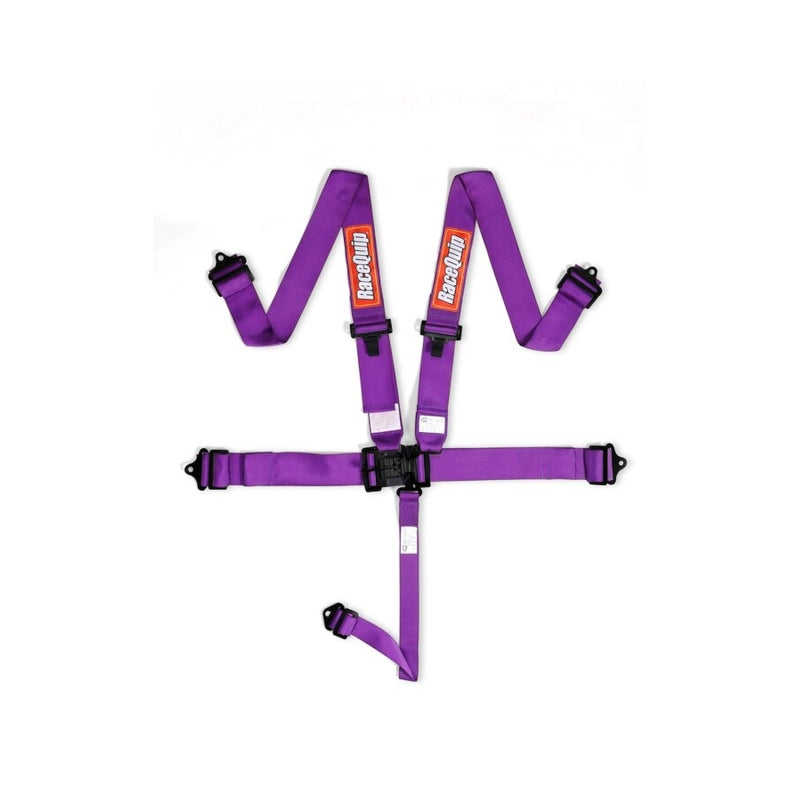

RaceQuip RQP711051RQP Purple Latch & Link 5-Point Racing Harness

RaceQuip's Latch & Link 5-point auto racing harness set has twin individual shoulder belts and is manufactured using premium 3" polyester webbing and drop forged steel hardware to exceed the SFI 16.1 rating. Shoulders adjust from 20" to 62" and the lap belt adjusts from 20" to 60". All RaceQuip 711 series belts come as a "pull down lap" design, which means that the lap belts must be pulled down and away from the center latch & link buckle mechanism to tighten. All RaceQuip Latch & Link motorsports harness sets are distinguished by a pivoting "hammer," called a Duckbill, which is located on the lap belt and locks all the belts into place by snapping down into a detent. Both shoulder belts and the sub-belt are hooked over the link; the link is inserted into the latch on the lap belt; the Duckbill is then brought down into and over the link, securely holding all the pieces in place. Since RaceQuip seat belt sets are "double adjustable", lengths are simply adjusted on either end for ease of installation. Using the included three bar slide you can mount the belts by either wrapping them around a rollbar or by bolting them in place with the supplied ends (bolts not included). Snap hook ends and eyebolts are sold separately if the user wishes to install belts in that manner. Purple - 3 in. Lap and Shoulder - 2 in. Sub

• NOT D.O.T. / FMVSS Certified for On Highway Use
• Double Adjustable for Ease of Installation
• 5 Point Design - Single 2" Crotch Strap
• Wrap Around or Bolt-in Mounting
• Premium 3" Polyester Webbing
• Lap Belt Adjusts 22" to 60"
• 3" Hardware Ends Installed
• Drop-Forged Steel Hardware
• Pull Down Style Lap Belt

The RaceQuip RQP711051RQP Latch & Link 5-point racing harness set features twin individual shoulder belts, premium 3-inch polyester webbing, and drop-forged steel hardware. The purple harness uses a pull-down lap belt design and a pivoting Duckbill mechanism that secures the shoulder belts, lap belt, and sub-belt into the center latch and link assembly.

Key Features & Performance Benefits

• 5-Point Design: Includes twin shoulder belts, a lap belt, and a single 2-inch crotch strap for motorsports restraint applications.
• Latch & Link Buckle: The Duckbill mechanism locks the connected belts into place through the center latch and link assembly.
• Double Adjustable: Belt lengths adjust at either end to help simplify installation.
• Flexible Mounting: The included three-bar slides support wrap-around rollbar mounting or bolt-in installation with the supplied ends; bolts are not included.

Key Product Specifications & Technical Data

• Brand: RaceQuip
• Part Number: RQP711051RQP
• Color: Purple
• Harness Type: Latch & Link 5-point racing harness
• Shoulder Belt Width: 3 inches
• Lap Belt Width: 3 inches
• Sub-Belt Width: 2 inches
• Webbing Material: Polyester
• Lap Belt Adjustment: 22 to 60 inches
• Shoulder Belt Adjustment: 20 to 62 inches
• Hardware: Drop-forged steel

What's Included in the Box

The harness set includes the RaceQuip Latch & Link 5-point belt assembly and three-bar slides. Bolts, snap hook ends, and eyebolts are not included and are sold separately.

Fitment

Specific vehicle fitment data was not provided. This harness is not D.O.T. or FMVSS certified for on-highway use.
