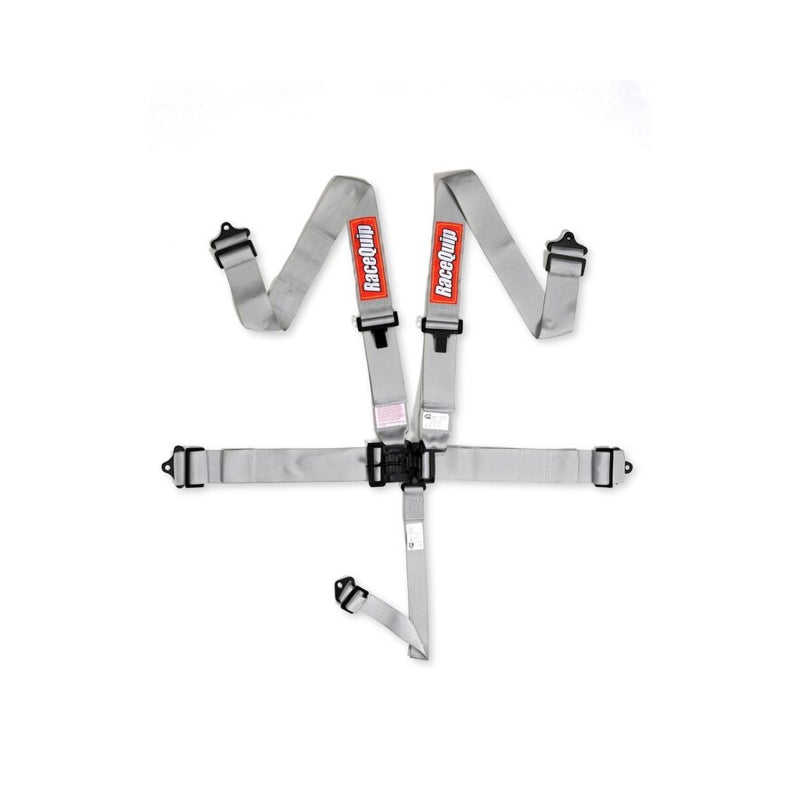

RaceQuip rqp711061RQP Platinum Latch & Link 5-Point Seat Belt

RaceQuip's Latch & Link 5-point auto racing harness set has twin individual shoulder belts and is manufactured using premium 3" polyester webbing and drop forged steel hardware to exceed the SFI 16.1 rating. Shoulders adjust from 20" to 62" and the lap belt adjusts from 20" to 60". All RaceQuip 711 series belts come as a "pull down lap" design, which means that the lap belts must be pulled down and away from the center latch & link buckle mechanism to tighten. All RaceQuip Latch & Link motorsports harness sets are distinguished by a pivoting "hammer," called a Duckbill, which is located on the lap belt and locks all the belts into place by snapping down into a detent. Both shoulder belts and the sub-belt are hooked over the link; the link is inserted into the latch on the lap belt; the Duckbill is then brought down into and over the link, securely holding all the pieces in place. Since RaceQuip seat belt sets are "double adjustable", lengths are simply adjusted on either end for ease of installation. Using the included three bar slide you can mount the belts by either wrapping them around a rollbar or by bolting them in place with the supplied ends (bolts not included). Snap hook ends and eyebolts are sold separately if the user wishes to install belts in that manner. Platinum - 3 in. Lap and Shoulder - 2 in. Sub

• NOT D.O.T. / FMVSS Certified for On Highway Use
• Double Adjustable for Ease of Installation
• 5 Point Design - Single 2" Crotch Strap
• Wrap Around or Bolt-in Mounting
• Premium 3" Polyester Webbing
• Lap Belt Adjusts 22" to 60"
• 3" Hardware Ends Installed
• Drop-Forged Steel Hardware
• Pull Down Style Lap Belt

The RaceQuip Platinum Latch & Link 5-point auto racing harness set is designed with twin individual shoulder belts, premium 3-inch polyester webbing, and drop-forged steel hardware. The 711 series pull-down lap belt tightens by pulling the lap belts down and away from the center latch and link buckle mechanism.

Key Features & Performance Benefits

• 5-Point Design: Includes twin shoulder belts, a lap belt, and a single 2-inch crotch strap for motorsports harness use.

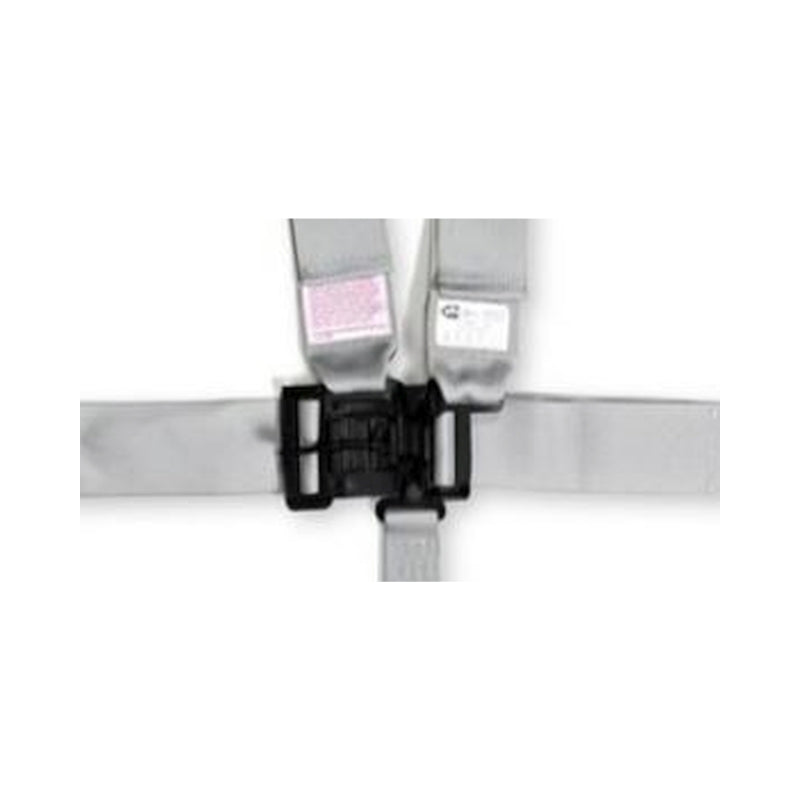

• Latch & Link Buckle: The pivoting Duckbill secures the shoulder belts and sub-belt into the lap-belt latch.
• Double Adjustable: Belt lengths adjust at either end to help simplify installation.
• Versatile Mounting: The included three-bar slides support wrap-around rollbar mounting or bolt-in mounting with the supplied ends; bolts are not included.

Key Product Specifications & Technical Data

• Brand: RaceQuip
• Part Number: rqp711061RQP
• Series: 711
• Harness Type: Latch & Link
• Point Design: 5-point
• Webbing: Premium 3-inch polyester
• Shoulder Belt Adjustment: 20 to 62 inches
• Lap Belt Adjustment: 22 to 60 inches

What's Included

RaceQuip Platinum Latch & Link 5-point harness set with twin individual shoulder belts, a single 2-inch crotch strap, three-bar slides, and installed 3-inch hardware ends. Bolts, snap hook ends, and eyebolts are sold separately.

Important: This harness is not D.O.T. or FMVSS certified for on-highway use.
