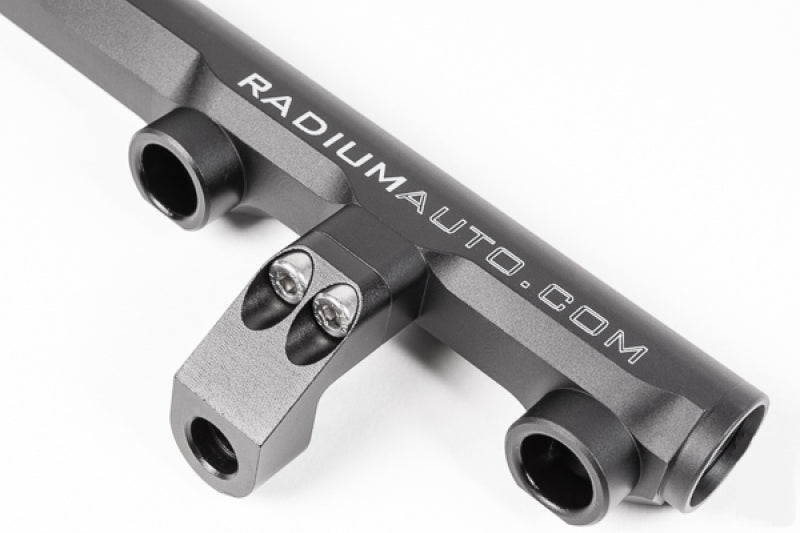

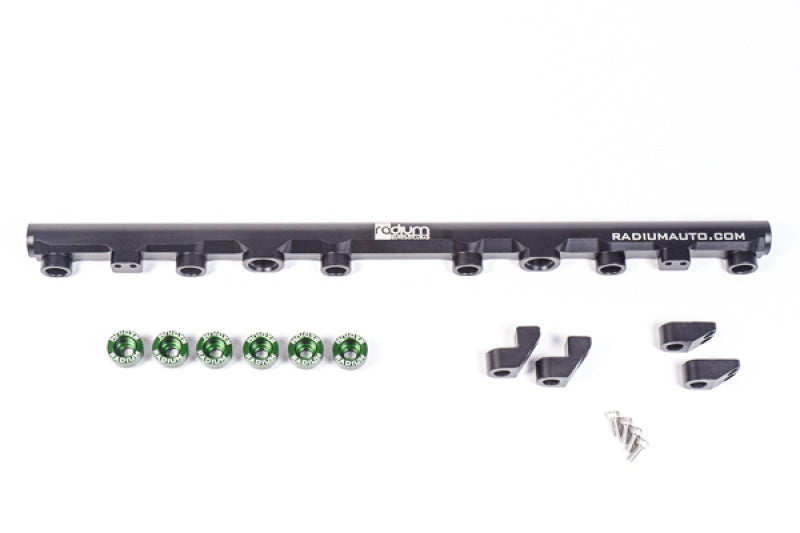

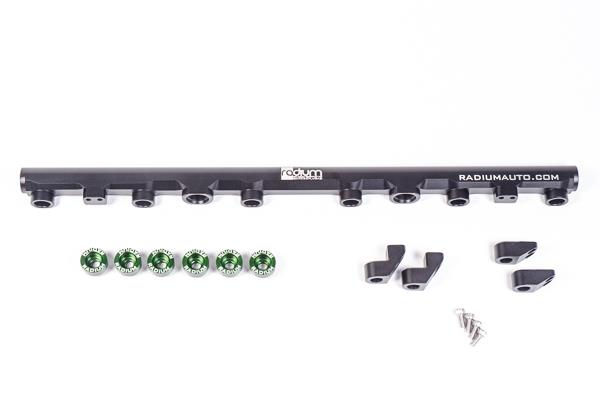

Radium Engineering 20-0215 1992-2002 Toyota Supra 2JZ-GTE Top Feed Fuel Rail Kit

Bolt-in fuel rail for the Toyota 2JZ-GTE engine. Coverts to top feed (universal) fuel injectors. Four 8AN ORB ports can be used to plumb this fuel rail in many different ways. Extra ports can be used for pressure sensors, fuel pulse dampers, etc. Includes two sets of mounting feet, which allows for either 34mm or 48mm height fuel injectors to be used. Fuel injectors must use 14mm upper and lower O-rings. INSTALLATION INSTRUCTIONS AVAILABLE AT RADIUMAUTO.COM

The Radium Engineering 20-0215 bolt-in fuel rail is designed for Toyota 2JZ-GTE engines and converts the fuel system to use top-feed, universal fuel injectors. Four 8AN ORB ports provide multiple plumbing options, while additional ports can be used for pressure sensors, fuel pulse dampers, and other fuel-system components.

The kit includes two sets of mounting feet to support either 34 mm or 48 mm height fuel injectors. Fuel injectors must use 14 mm upper and lower O-rings. The fuel rail fits the 1994-1998 Toyota Supra applications listed in the available fitment data. Installation instructions are available at RadiumAuto.com. This product is not CARB approved, and CARB acknowledgement is required.

Key Features & Performance Benefits

• Bolt-in design: Provides a direct fuel rail solution for Toyota 2JZ-GTE engines.
• Top-feed conversion: Allows the use of top-feed, universal fuel injectors.
• Multiple plumbing options: Four 8AN ORB ports support varied fuel-system routing.
• Adjustable injector support: Two sets of mounting feet accommodate 34 mm or 48 mm height injectors.

Key Product Specifications & Technical Data

• Brand: Radium Engineering
• Part number: 20-0215
• Application: Toyota 2JZ-GTE engine
• Fuel rail type: Bolt-in, top-feed conversion
• Port configuration: Four 8AN ORB ports
• Injector height support: 34 mm or 48 mm
• Injector O-ring requirement: 14 mm upper and lower O-rings
• CARB status: Not CARB approved

What's Included in the Box

• Fuel rail
• Two sets of mounting feet

Fitment

Fits select 1994-1998 Toyota Supra applications with the 2JZ-GTE engine, including model years 1994, 1995, 1996, 1997, and 1998 as listed in the available fitment data.

Fitments:
1993 Toyota Supra Base
1993 Toyota Supra Twin Turbo
1994 Toyota Supra Base
1994 Toyota Supra Twin Turbo
1995 Toyota Supra Base
1995 Toyota Supra Twin Turbo
1996 Toyota Supra Base
1996 Toyota Supra Twin Turbo
1997 Toyota Supra Base
1997 Toyota Supra Twin Turbo
1998 Toyota Supra Base
1998 Toyota Supra Twin Turbo

Air Freight Prohibited: false
Not Carb Approved: true
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: true
Regular Stock: t
Units Per Sku: 1
