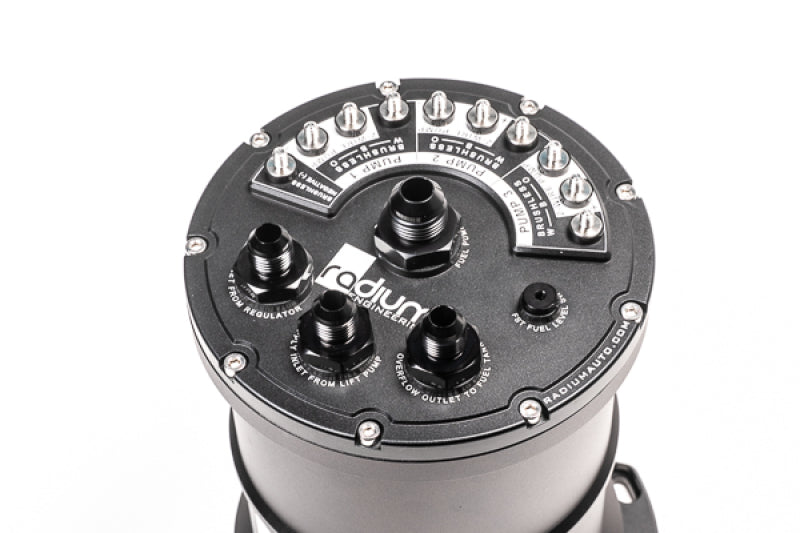

Radium Engineering RAD20-1440 Multi-Pump Fuel Surge Tank

Fuel surge tank compatible with popular 39mm diameter EFI fuel pumps with inline inlet/outlets. Can hold up to three pumps. Fuel pumps sold separately and must be installed by the end user. Approximately 2 liter fluid capacity. Adapter fittings included for 8AN outlet, 6AN return, 6AN connections to fuel tank. Other adapter fittings can be used for different hose sizes (sold separately). Compatible with E85 and other fuels. Installation instuctions available at www.radiumauto.com

The Radium Engineering RAD20-1440 Multi-Pump Fuel Surge Tank is designed for use with popular 39mm-diameter EFI fuel pumps featuring inline inlet and outlet ports. The tank can accommodate up to three fuel pumps, which are sold separately and must be installed by the end user. With approximately 2 liters of fluid capacity, it helps provide a dedicated fuel reservoir for EFI fuel system applications.

Adapter fittings are included for an 8AN outlet, a 6AN return, and 6AN connections to the fuel tank. Additional adapter fittings may be used for other hose sizes and are sold separately. The surge tank is compatible with E85 and other fuels. Installation instructions are available from Radium Engineering. This product is not approved for carbureted applications, and carburetor approval acknowledgement is required.

Key Features & Performance Benefits

• Multi-pump design: Accommodates up to three compatible 39mm EFI fuel pumps.
• Fuel capacity: Provides approximately 2 liters of fluid capacity for EFI fuel system use.
• Flexible plumbing: Includes adapters for 8AN outlet, 6AN return, and 6AN fuel-tank connections.
• Fuel compatibility: Suitable for use with E85 and other fuels.

Key Product Specifications & Technical Data

• Brand: Radium Engineering
• Part number: RAD20-1440
• Product type: Multi-pump fuel surge tank
• Pump compatibility: Popular 39mm-diameter EFI fuel pumps with inline inlet and outlet ports
• Maximum pump capacity: Three fuel pumps
• Fluid capacity: Approximately 2 liters
• Outlet connection: 8AN adapter included
• Return and tank connections: 6AN adapters included

What's Included in the Box

• Radium Engineering RAD20-1440 fuel surge tank
• Adapters for 8AN outlet, 6AN return, and 6AN fuel-tank connections

Fitment

Designed for popular 39mm-diameter EFI fuel pumps with inline inlet and outlet ports. Fuel pumps are not included.

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
