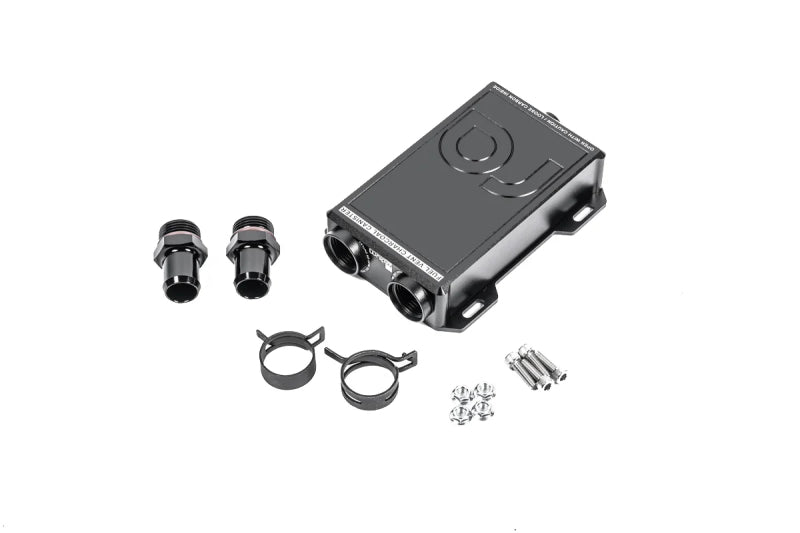

Radium Engineering RAD20-1827-12 Compact Fuel Vent Charcoal Canister for 12AN Hose

Trap unwanted fuel vapors coming from your fuel tank or fuel cell. This canister installs in-line with the vent hose and contains activated carbon that is effective at trapping fuel vapors, but does not impeded air flow. This will eliminate unwanted fuel smells that can be noticed when a vehicle is stored in an enclosed garage or trailer. Canister features two 10AN ORB female ports for vent hose in/out. Hose barb adapter fittings included for connection to 12AN (3/4") hose. Compact machined aluminum design fits into small spaces without losing functionality. Approximate size: 5.25 x 3.25 x 1.28 inches. Fully serviceable. INSTALLATION INSTRUCTIONS AVAILABLE AT RADIUMAUTO.COM

The Radium Engineering RAD20-1827-12 Compact Fuel Vent Charcoal Canister helps control unwanted fuel vapors from a fuel tank or fuel cell. Installed inline with the vent hose, its activated carbon media captures fuel vapors while allowing air to flow through the system. This can help reduce fuel odors that may accumulate when a vehicle is parked in an enclosed garage, trailer, or other confined space.

Designed for compact installations, the canister features a machined aluminum housing and two female 10AN ORB ports for vent hose inlet and outlet connections. Included hose barb adapter fittings allow connection to 12AN hose, providing a practical solution for fuel system venting applications that require a clean, serviceable installation. The Radium Engineering canister is fully serviceable, allowing the internal carbon media and components to be maintained as needed.

Brief Description: Compact inline fuel vapor canister for fuel tanks and fuel cells using 12AN vent hose.

Key Product Specifications & Technical Data:
Part Number: RAD20-1827-12
Brand: Radium Engineering
Application: Fuel tank and fuel cell venting
Canister Type: Inline activated-carbon vapor canister
Port Configuration: Two female 10AN ORB ports
Hose Compatibility: 12AN hose with included barb adapters
Housing Material: Machined aluminum
Serviceability: Fully serviceable

What's Included:
One Radium Engineering fuel vent charcoal canister and hose barb adapter fittings for 12AN hose connections.

Fitment: Universal automotive fuel tank and fuel cell venting applications, subject to available space and compatible plumbing. Verify hose routing, fittings, and fuel system requirements before installation. Installation instructions are available from Radium Engineering.

Features:

• Activated Carbon Vapor Capture: Traps unwanted fuel vapors from fuel tanks and fuel cells without restricting normal vent airflow.
• Compact Machined Aluminum Design: Provides a durable, space-efficient housing for installations with limited room.
• 10AN ORB Port Configuration: Includes two female 10AN ORB ports for vent hose inlet and outlet connections.
• 12AN Hose Compatibility: Includes hose barb adapter fittings for connecting the canister to 12AN, 3/4-inch hose.
