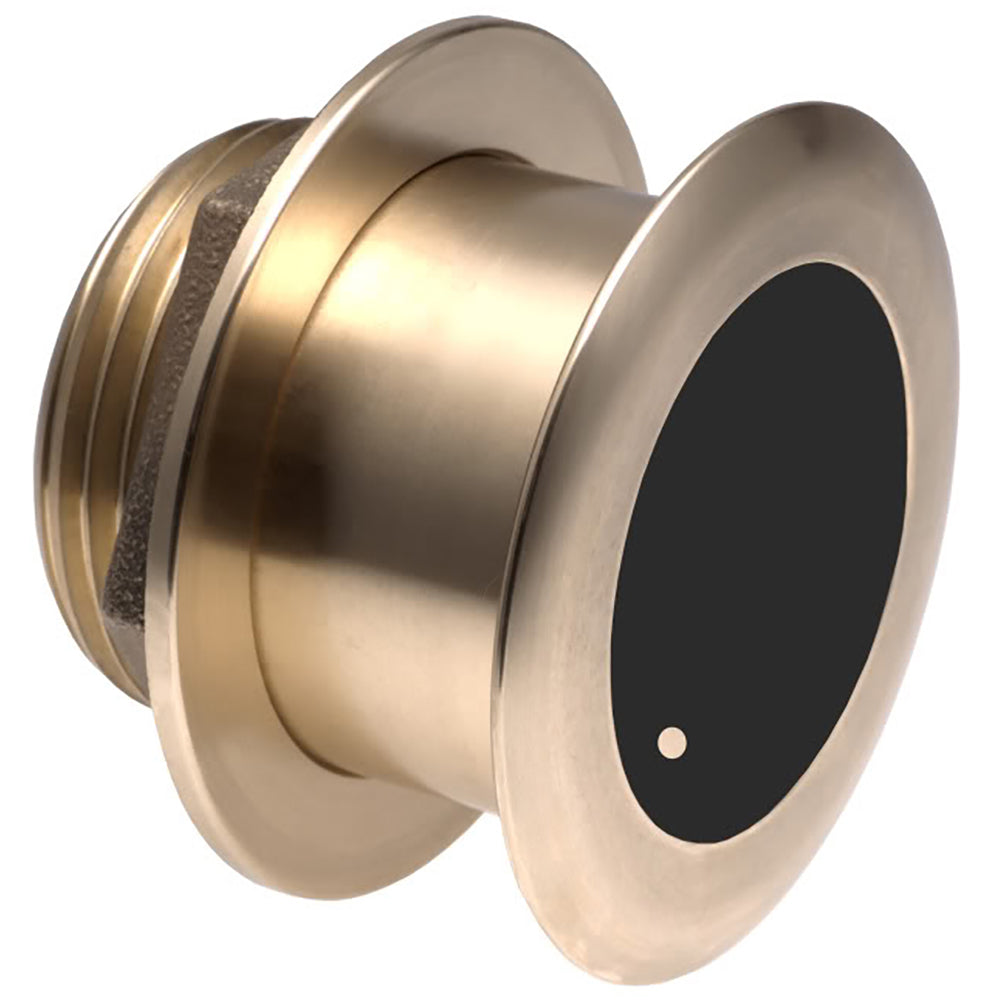

Raymarine B175M Bronze CHIRP 0 Thru-Hull Transducer

Raymarine B175M Bronze CHIRP 0 Thru-Hull Transducer

Unlock spectacular sub-surface depth soundings and monitor deep marine species tracking with the professional acoustic transducer elements of Raymarine. Precision-tuned to handle wide-spectrum CHIRP, DownVision™, and RealVision 3D outputs, these heavy-duty hull mounts provide clear target discrimination that auto-compensates for waves and engine vibration.

Product Overview & Core Highlights:

B175M Bronze CHIRP 0° Thru-Hull Transducer

Features:

• Depth/Temperature
• Thru-Hull
• Hull deadrise = 0º to 7º
• CP450C Plug on Cable
• Urethane
• Frequency: Medium 80-130 kHz
• Power: 1KW
• Medium: 24-16 degree beamwidth
• Hull type: Fiberglass and Wood
• Note: Requires A80328 Single B75/B175 Operation Cable

Specifications:

• Mounting Style: Thru-Hull
• Chirp: Medium
• Imaging: Standard
• Temperature: Yes
• Speed Included: No
• Box Dimensions: 8"H x 11"W x 12"L WT: 11.6 lbs
• UPC: 723193729069

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 Marine Navigation Hardware Unit)
• Manufacturer Part Number (MPN): A80043
• Product Category Component: Marine Transducers
• Acoustic Sonar Frequency Range: High-Performance Wide Spectrum CHIRP Channeling
• Total Package Boxed Shipping Weight: 11.6 lbs
