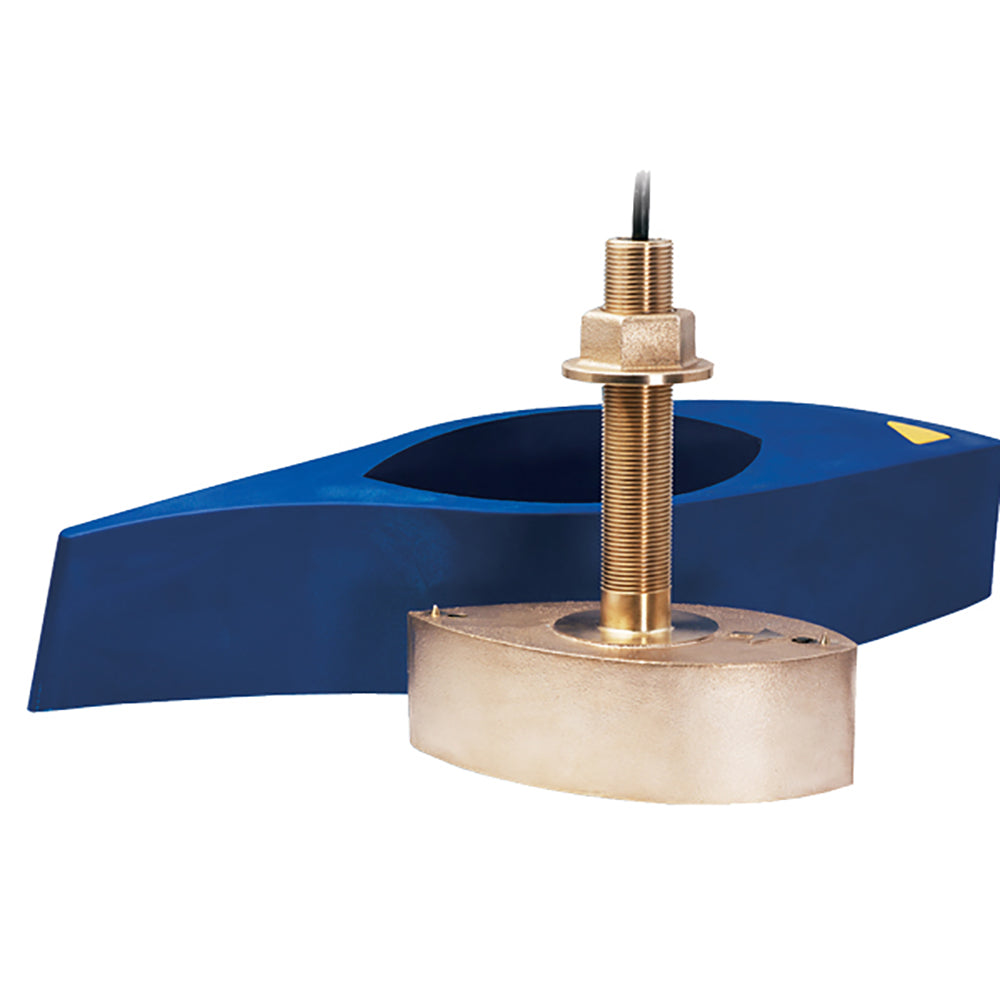

Raymarine B265LM Bronze CHIRP Thru-Hull Depth Temp

Raymarine B265LM Bronze CHIRP Thru-Hull Depth Temp

Unlock spectacular sub-surface depth soundings and monitor deep marine species tracking with the professional acoustic transducer elements of Raymarine. Precision-tuned to handle wide-spectrum CHIRP, DownVision™, and RealVision 3D outputs, these heavy-duty hull mounts provide clear target discrimination that auto-compensates for waves and engine vibration.

Product Overview & Core Highlights:

B265LM Bronze CHIRP Thru-Hull Depth & Temp

Features:

• Depth/Temp
• Thru-Hull
• Hull Deadrise = 0º to 20º
• CP450C Plug on Cable
• Bronze
• Frequency: L=42-65 kHz, M=85-135 kHz
• Power: 1kW
• Low: 25 to 16 degree beamwidth
• Medium: 16 to 11 degree beamwidth
• Hull type: fiberglass or wood

Specifications:

• Temperature: Yes
• Speed Included: No
• Imaging: Standard
• Chirp: Low/Medium
• Mounting Style: Thru-Hull
• Box Dimensions: 7"H x 19"W x 26"L WT: 24 lbs
• UPC: 723193704172

🚨 Critical Performance Specifications:

• Package Quantity Configuration: Sold Individually (Includes 1 Marine Navigation Hardware Unit)
• Manufacturer Part Number (MPN): A80011
• Product Category Component: Transducers
• Acoustic Sonar Frequency Range: High-Performance Wide Spectrum CHIRP Channeling
• Total Package Boxed Shipping Weight: 24.0 lbs
